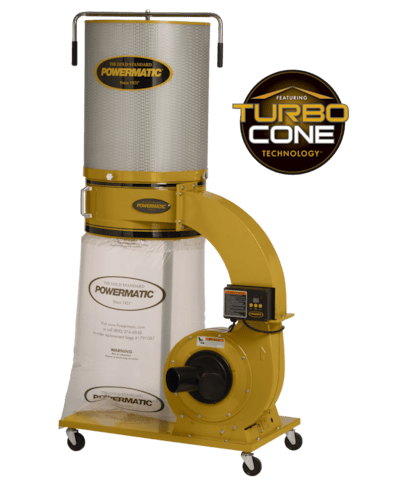

The PM1300TX Dust Collector features the exclusive TurboCone™ which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The canister filter offers superior filtering surface area over standard bags, and captures 98% of 2-micron particles. A digital timer can be set for up to 99 minutes, and an infrared sensor allows remote control operation. The all-metal duct improves rigidity and air flow. The clear collector bags are large capacity, which means less down-time changing them. Four swivel casters and conveniently located handles allow for easy mobility.
FEATURES
10 Cubic feet capacity collection bag reduces number of bag changes
All-metal duct construction for rigidity and improved air flow
Cloth collection bag with view window uses snap ring for rapid installation/removal
Dual 4" dust ports for simultaneous collection from two machines
Eliminates premature filter clogging for sustained performance
Four swivel casters for easy maneuverability
Remote-controlled digital timer can be programmed for up to 99 minutes
The large steel impeller is powered by a 1-3/4HP motor for peak performance.
TurboCone™ improves chip separation and collector bag packing efficiency
SPECIFICATIONS
Air Flow @ 6" (CFM) 1,300
Style (Type) Dust Collector
Static Pressure (Wc.) 11.31
Canister Filter Length (In.) 26
Collection Bag Length (In.) 26
Filter Bag/Canister Length (In.) 26
Impeller Diameter (In.) 12
1-Hose Connection Diameter (In.) 6
2-Hoses Connection Diameter (In.) 4
Motor Voltage (V.) 115/230
Overall Dimensions (L x W x H) (In.) 37 x 29 x 72
Prewired Voltage (V.) 115
