The RIC-4716 inflation cage is a crucial, life-saving piece of equipment that must be used during the inflation of a tire. Tire explosions are deadly, and only a ruggedly constructed tire cage can prevent catastrophic damage in a worst-case scenario.
This product requires liftgate service or a forklift at the shipping destination to offload.

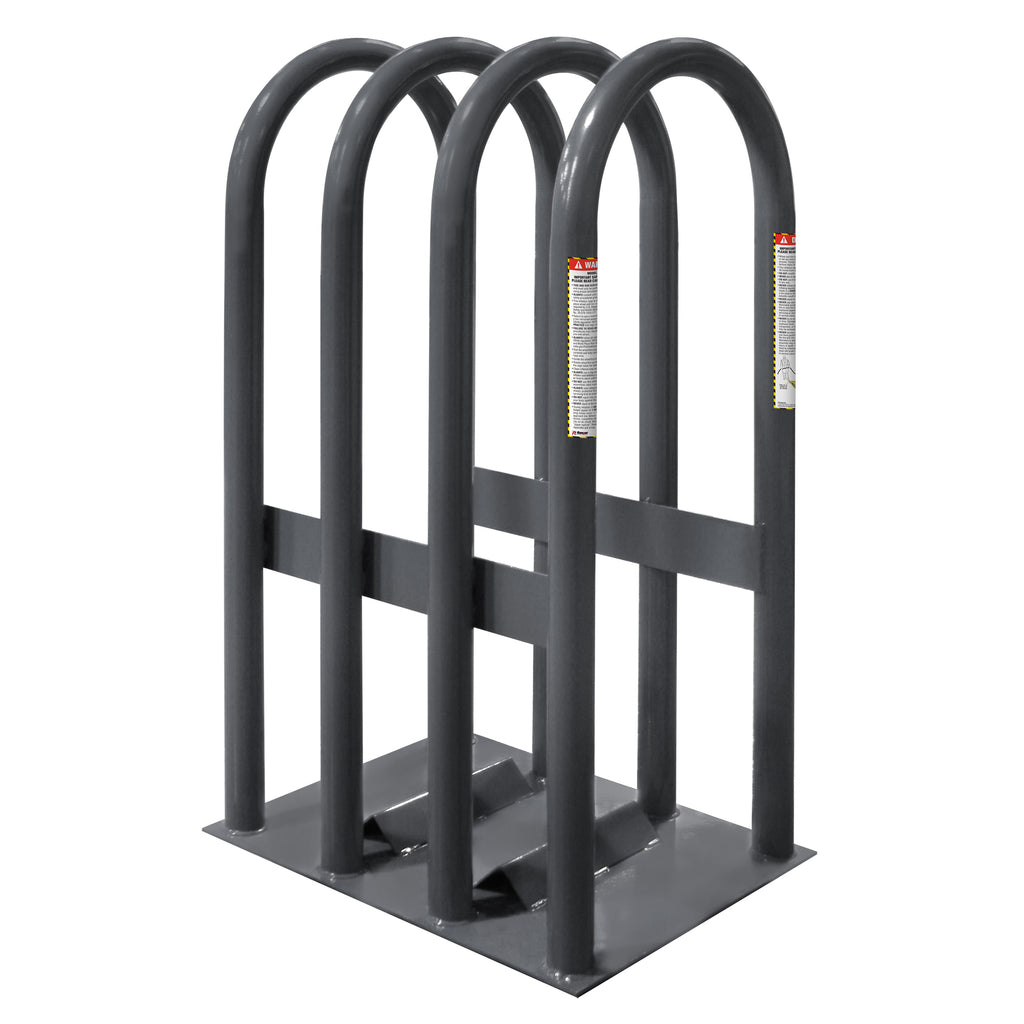

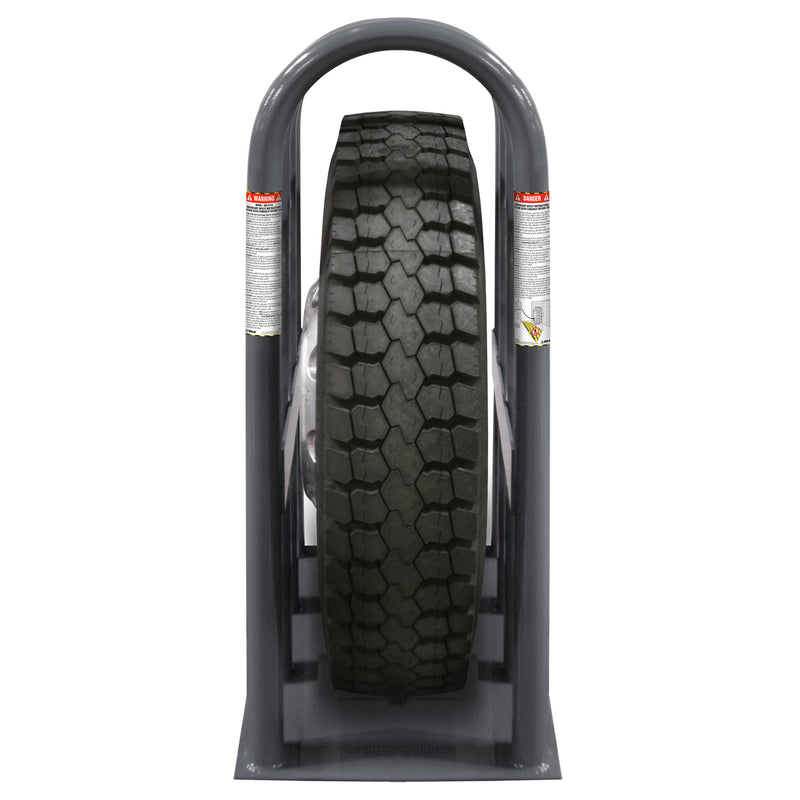

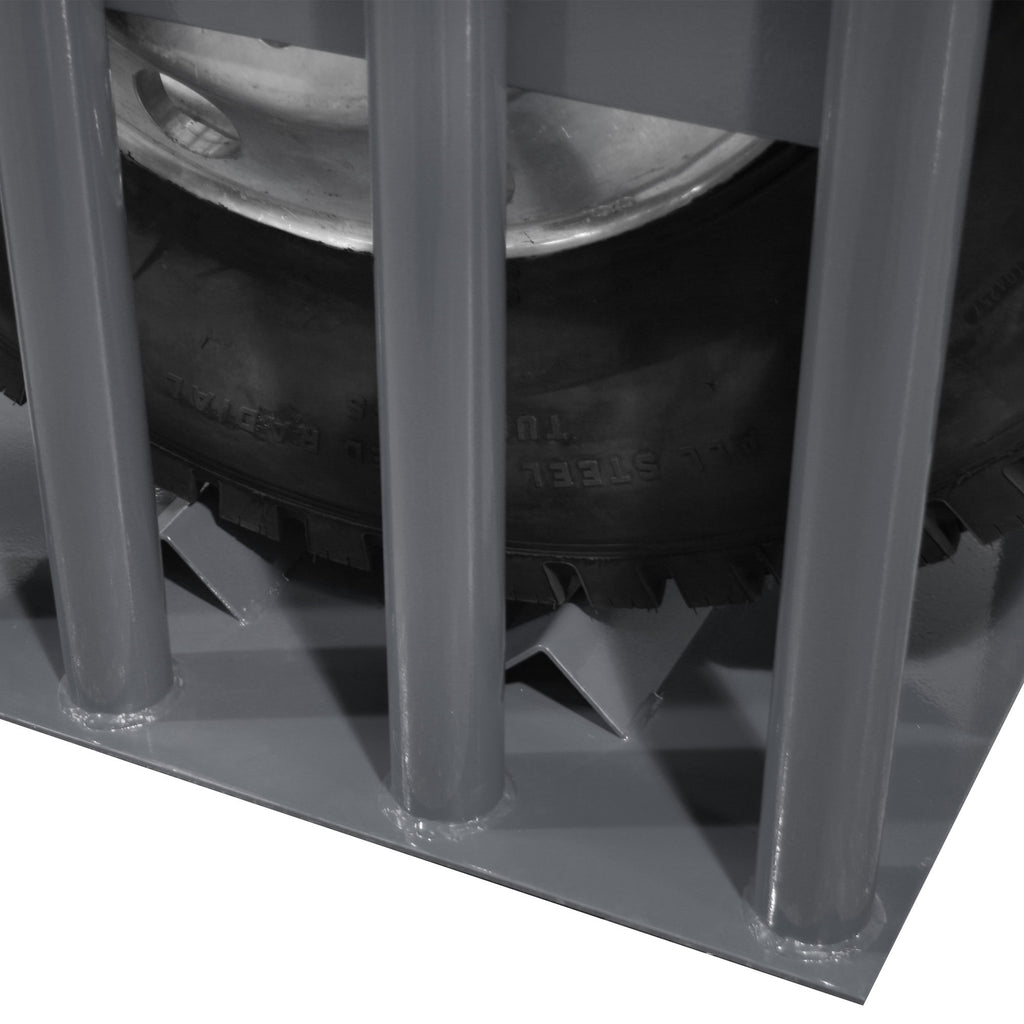

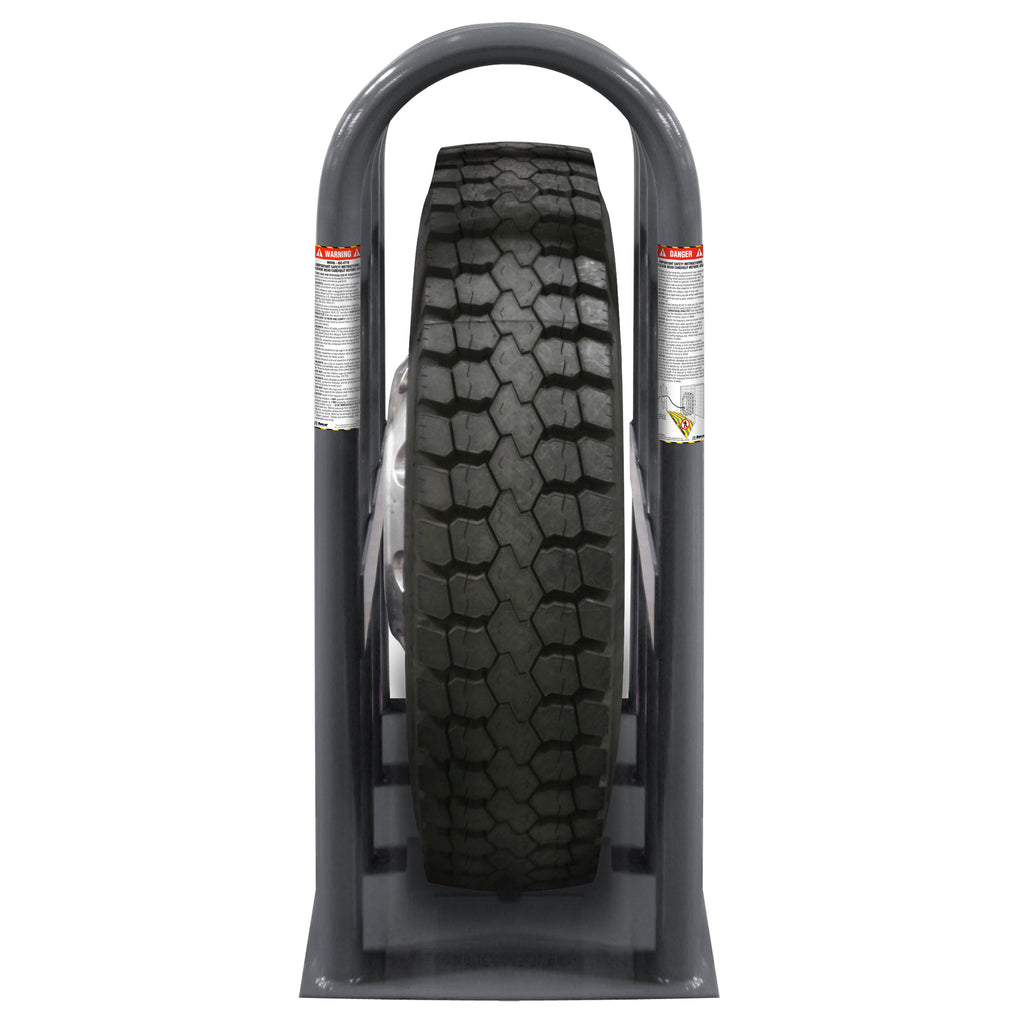

The RIC-4716 inflation cage is designed using 2-3/8” diameter, high-yield, seamless steel tubing with expansion properties to ensure strength, durability and safety. The gradual upper-arched mandrel bent tube design yields maximum space and is engineered to withstand and contain wheel and tire projectiles under extreme tire ruptures, preventing potential injuries or deaths. The RIC-4716 stands 49.5" tall and 21” wide and features four welded-steel bars in order to meet the demands of all wheel service shops. It can handle tires with a maximum width of 16" and maximum diameter of 47", delivering full-capability performance. A solid-steel welded-steel base features a full-width angle-iron wheel cradle to keep the wheel safely contained within the inflation cage during all inflation procedures. IMPORTANT NOTE: Exploding tires have a high potential for severe injury and death. Tire inflation safety cages are a mandatory precaution for safe tire inflation. Tire inflation cages provide valuable protection and exceed the OSHA Standard 29 CFR 1910.177 for servicing multi-piece and single-piece rim wheels. ALWAYS follow all warning and product instructions when using any inflation cage in order to prevent potential injuries or deaths. The checklist below (click link) covers regulations issued by the U.S. Department of Labor, Occupational Safety and Health Administration (OSHA) under 29 CFR 1910.177.
Features
- Prevents catastrophic damage from tire explosions
- Rugged construction ensures durability and life-saving protection
Specifications
| Max Tire Width |
16” (406 mm) |
| Max Tire Diameter |
47” (1,194 mm) |
| Height |
49.5” (1,257 mm) |
| Width |
21” (533 mm) |
| Depth |
27” (686 mm) |
| Shipping Dimensions |
30'' x 24'' x 60'' (762 mm x 609 mm x 1,524 mm) |
| Shipping Weight |
256 lbs (116 kg) |
