Product Overview

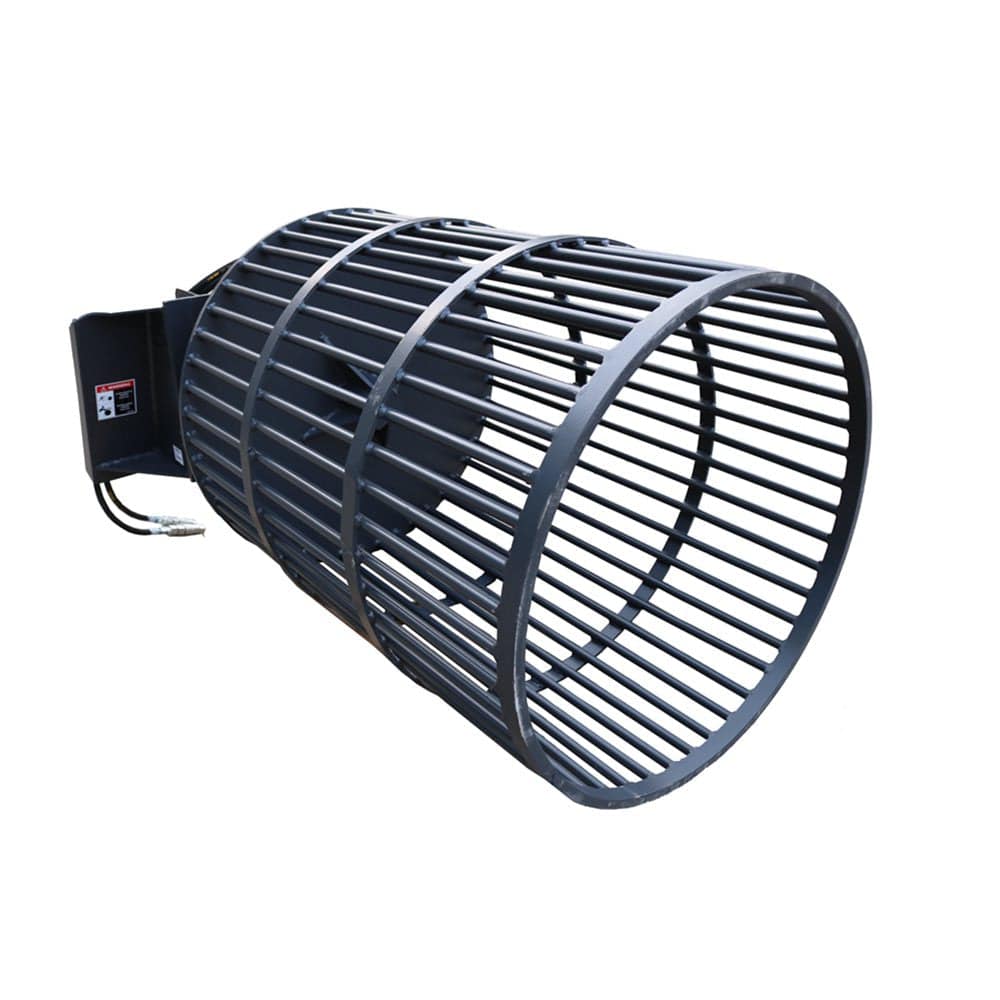

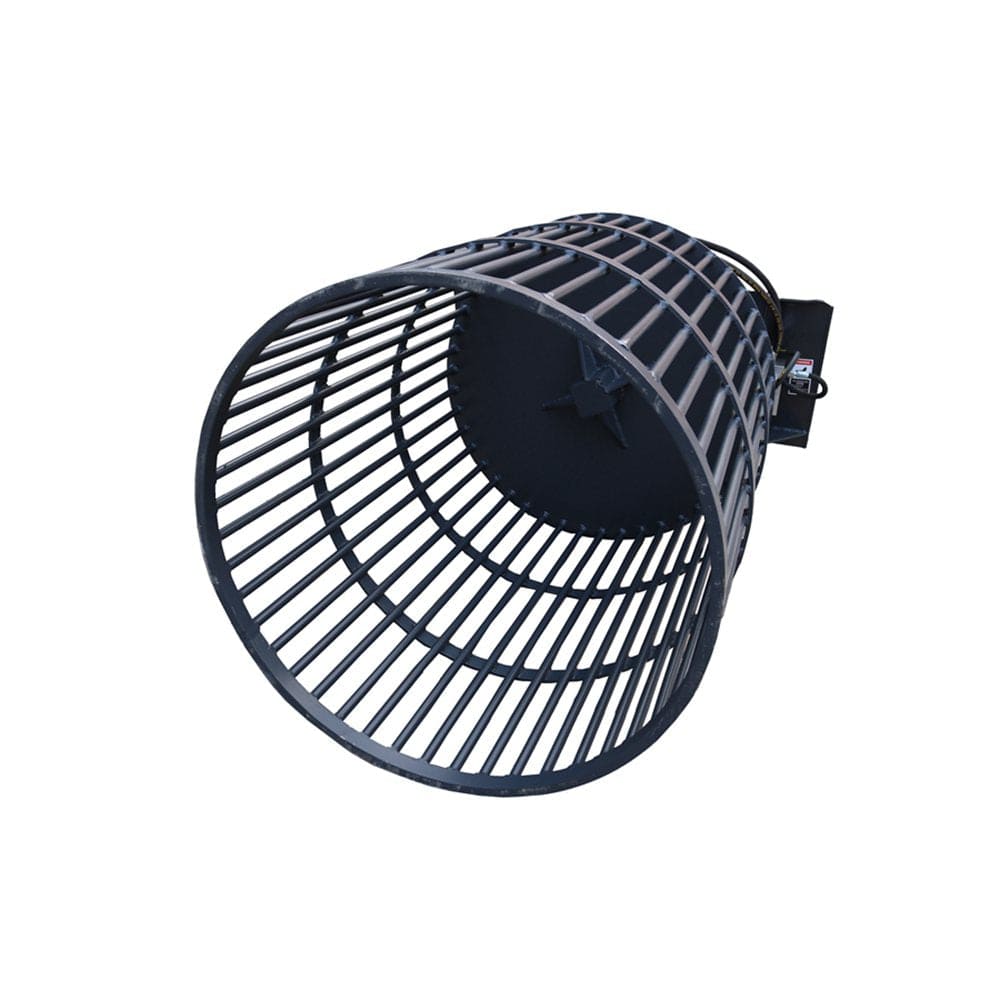

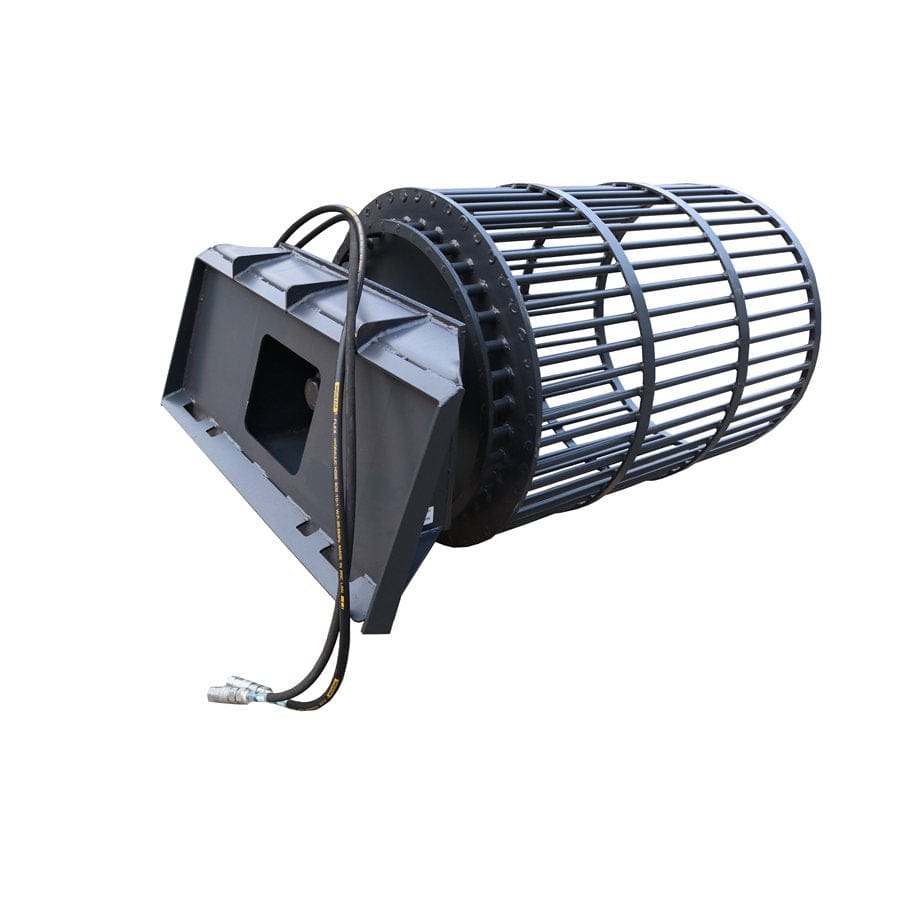

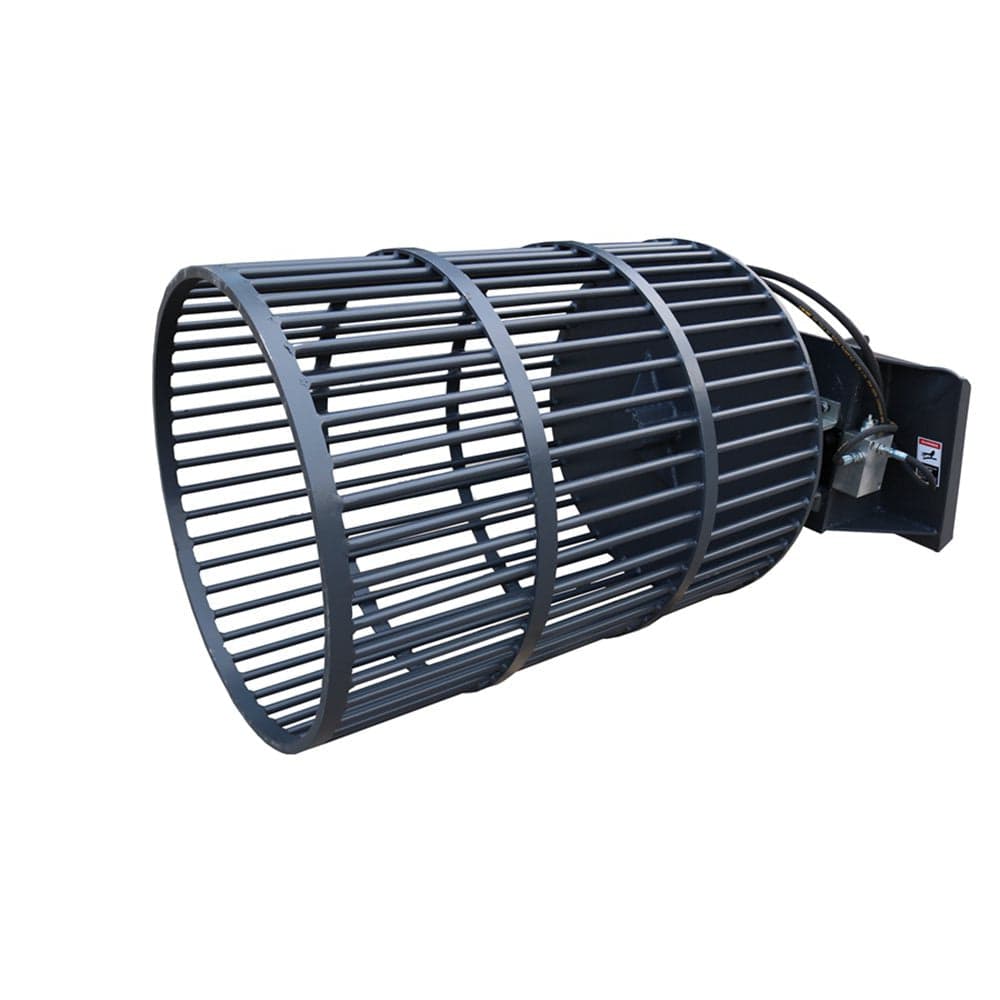

The Skid Steer Rock Picker is the first rotary-style rock picker designed for skid loader use. This unit has a heavy duty universal skid steer mounting plate that is 1" (25mm) thick for durability. It also uses a heavy duty direct drive motor with a 4.5" (114mm) dia spindle with 20,000 lbs capacity on hub. The rods are 0.7"(18mm) in diameter and can handle over a ton of material per scoop and screen rock from 50mm - 915mm dia.
Details
Features:
- Fits universal skid steer quick attach- Heavy duty direct drive motor
- 36"Drum Dia
- Scoops up stones & leaves soil on the ground
- One way spin direction
- All price include shipping
Specifications:
- Drum Rods: 0.7" dia
- Drum Deep: 48"
- Drum Dia: 36" Dia
- Drum rolling speed: 35-40r/min
- Capacity: 2000lb
- Max Load: 0.3m³
- Rock Size: approx. 25" to 34"
- Flow Required: 80Liter/min
- Working pressure: 14Mpa
- Weight: 946lb
Shipping Information:

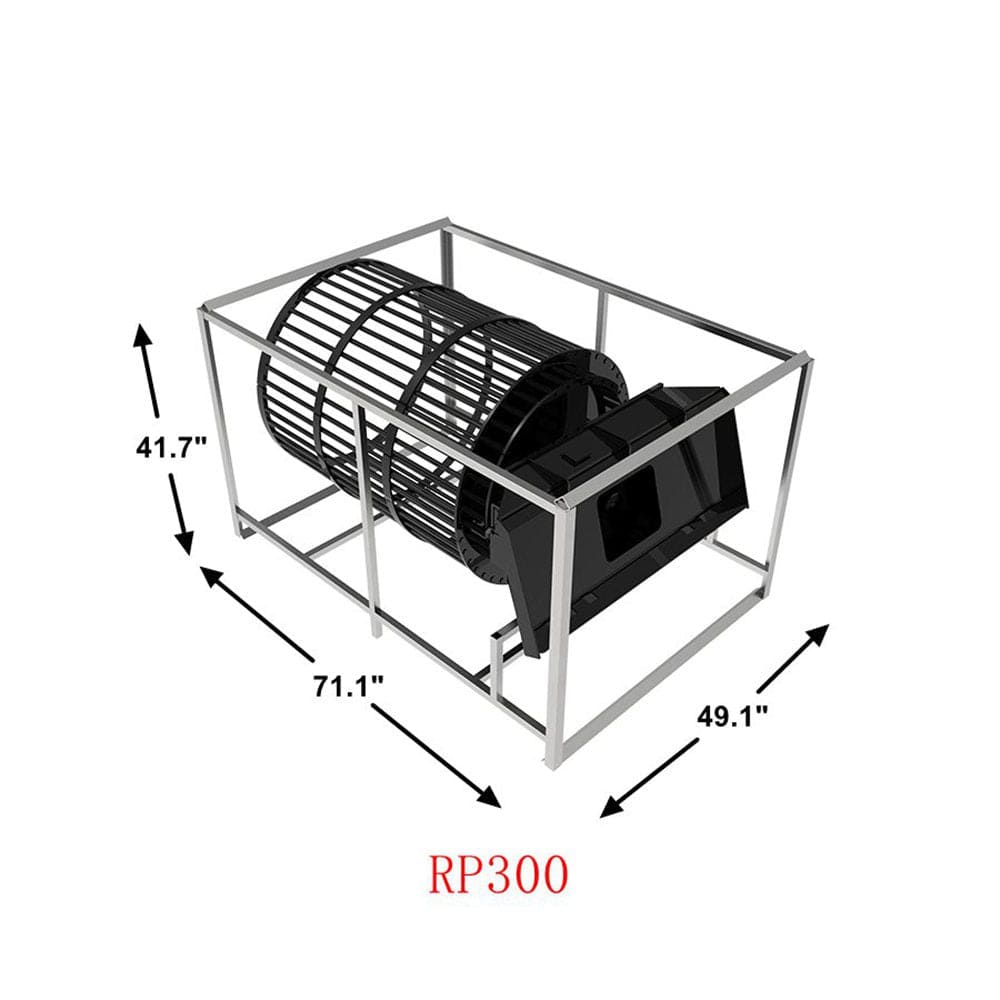

- This product is packed in a metal crate shipping box- Package Size (LxWxH): 71.1 x 49.1 x 41.7in
- Package Weight: 1043lb

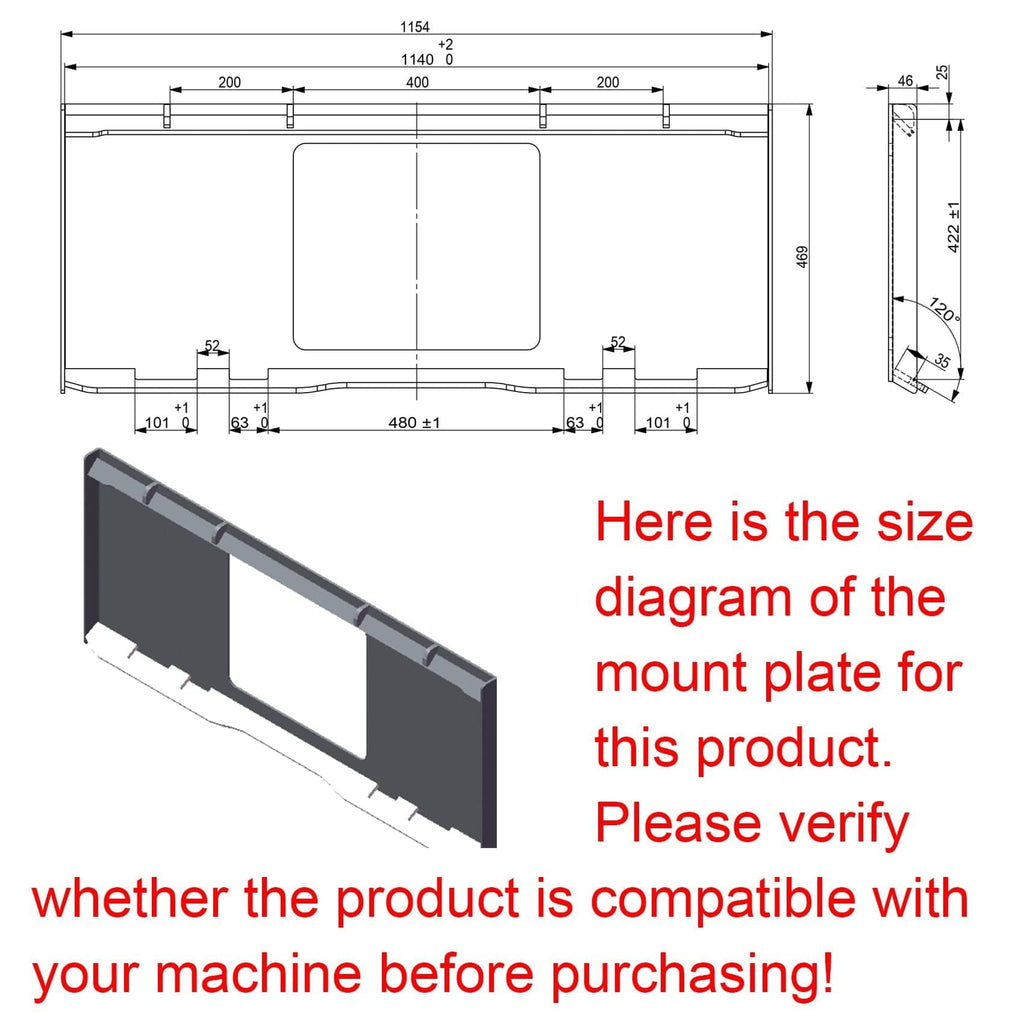

Technical Drawing:
Inner Width 44.9“ Universal Skid Steer Quick Attach：
ATTENTION: Please check the Mount Plate can fit your loader before purchase!
Due to the buyer's failure to verify the size of the mount plate before purchasing, the product cannot match the loader and needs to be replaced. Our company does not accept returns unless the buyer compensates the seller for the round-trip shipping cost. For refunds, we will not refund product fees unless we receive the product in our warehouse and confirm that it can be resold.
