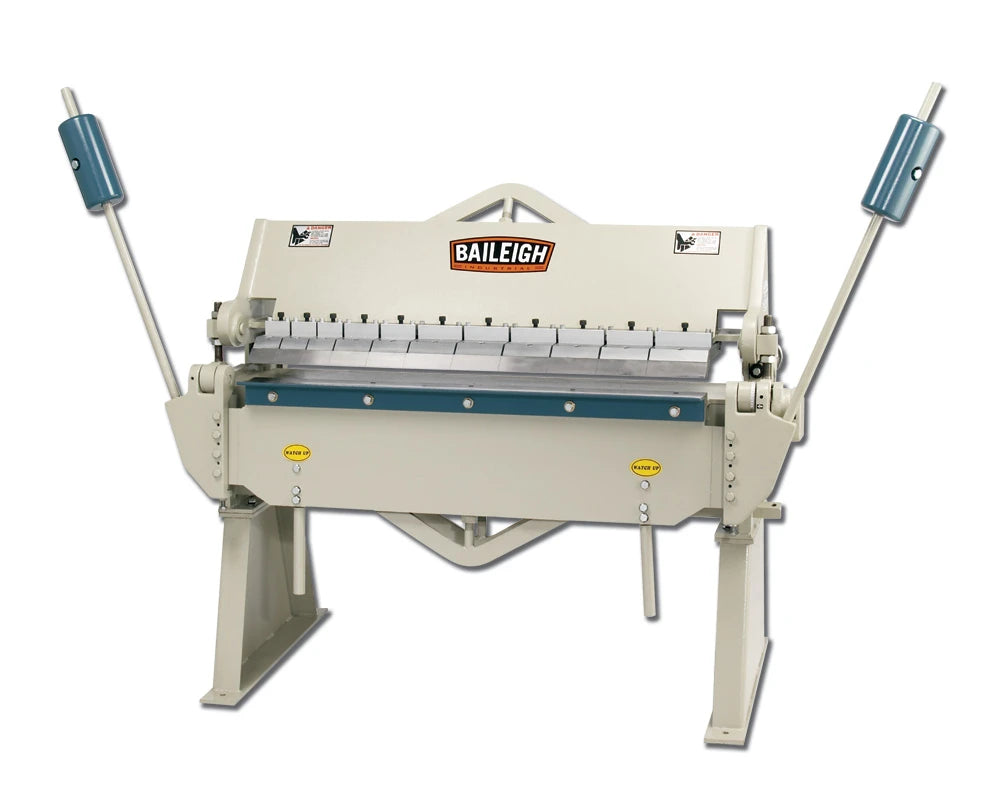

Baileigh 4 ft Box & Pan Brake 12 Gauge (1000404) | Heavy Duty Sheet Metal Bender

Description

    Baileigh Heavy Duty Manually Operated Box and Pan Brake 4' Length 12 Gauge (1000404) is designed for durability and precision. This robust machine is perfect for metal fabrication shops needing a reliable tool to handle various bending tasks.

    Constructed from thick steel plate, this heavy-duty box pan brake bends 12 gauge mild steel up to 4 feet in length. Its compact size fits well in tight spaces, while the massive torsion system ensures the beam remains steady during maximum capacity operations. With 11 hardened and polished 3-piece fingers, you can create multiple box sizes with ease.

Specifications and Dimensions


• Length: 70 in.

• Width: 32 in.

• Height: 42 in.

• Net Weight: 1690 lbs


Key Features and Benefits


• Bends 12 gauge mild steel

• 4 feet (48”) long with a maximum bend angle of 135°

• Compact size ideal for tight floor plans

• Includes 11 3-piece fingers of varying lengths for diverse box sizes

• Up to 6” box depth

• Adjustable gap with 2 handwheels for varying material thickness

• Heavy counterweights for ease of use

• Massive torsion system to prevent beam twisting

• Electro-welded steel framework for rigidity and accuracy

• 1-year parts warranty and lifetime technical support by phone
