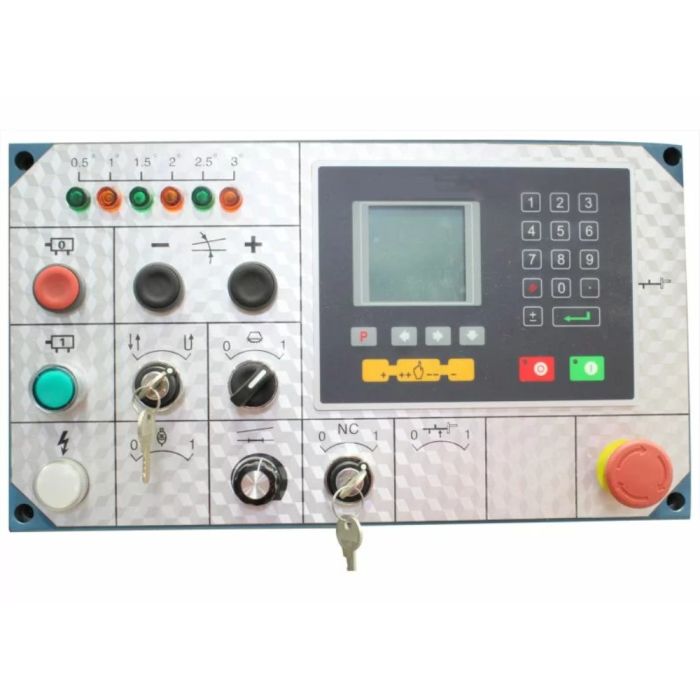

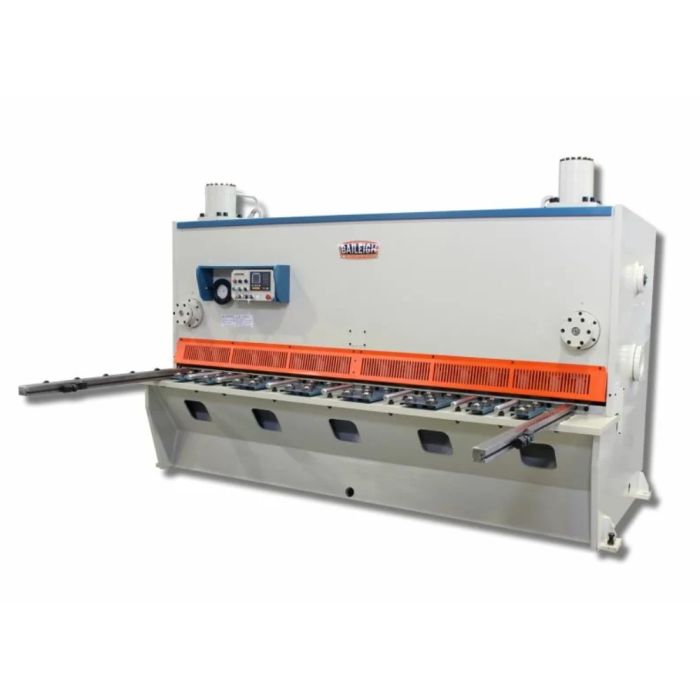

Weighing over 23,000 lbs. with a massive steel frame, this Hydraulic Shear will perform day in and day out for years. The NC controller lets you easily program the backGa.
Also available in a 96” model with ¼” maximum capacity and 120” model with ¼” maximum capacity.
You can add an optional sheet support system to this model at the time of order. Please call us for details.
Covered by a 1-year parts warranty. Includes lifetime technical support from our team of reps, all with hands-on metalworking experience.
More Information
| Manufacturer |
Baileigh Industrial |
| Condition |
New |
| UPC |
00731325413397 |
| Features |
- 120 " length
- 0.50" mild steel capacity
- 220V 3-phase power
- Adjustable blade gap and rake angle
- Maximum capacity of ½”-thick mild steel and produces 9 strokes per minute
- 20 hp motor runs on 220-volt 3-phase power with a 120” length for up to 10-foot sheets
- Uses only the best components, like Schneider electrical parts, Rexroth hydraulics, and NOK seals from Japan
- Hydraulics are in the front for simple fluid changes - Just lift the panels using the convenient handles

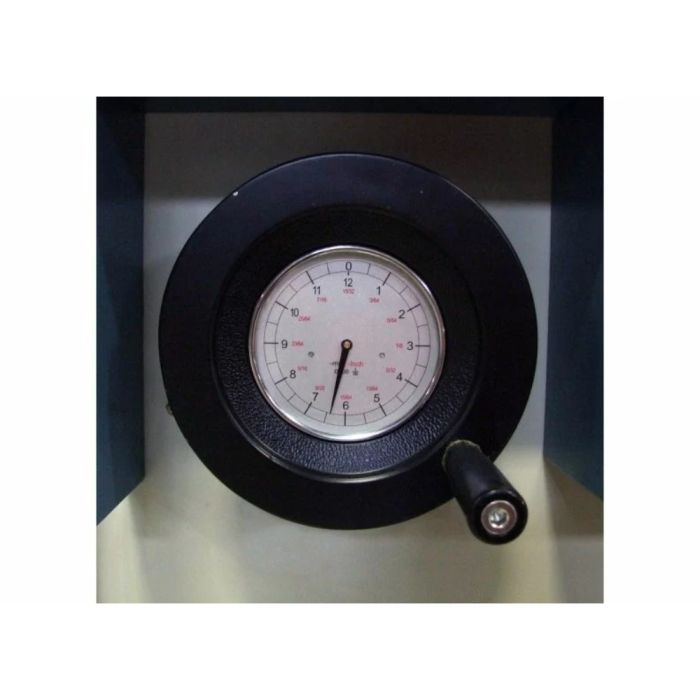

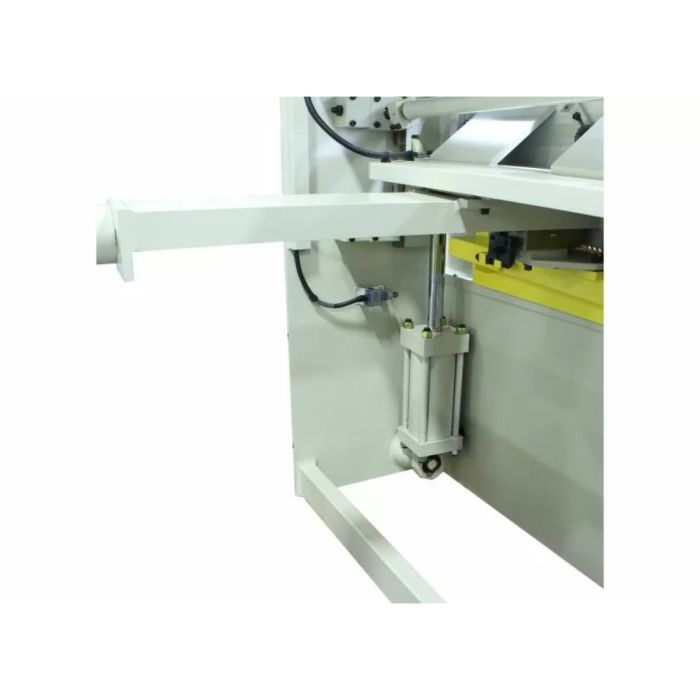

- Squaring arms support the material and keep it square to the blade while the adjustable blade gap prevents crimping or folding - Just turn the handwheel
- Roller infeed tables, mounted on the front, help you load heavy materials

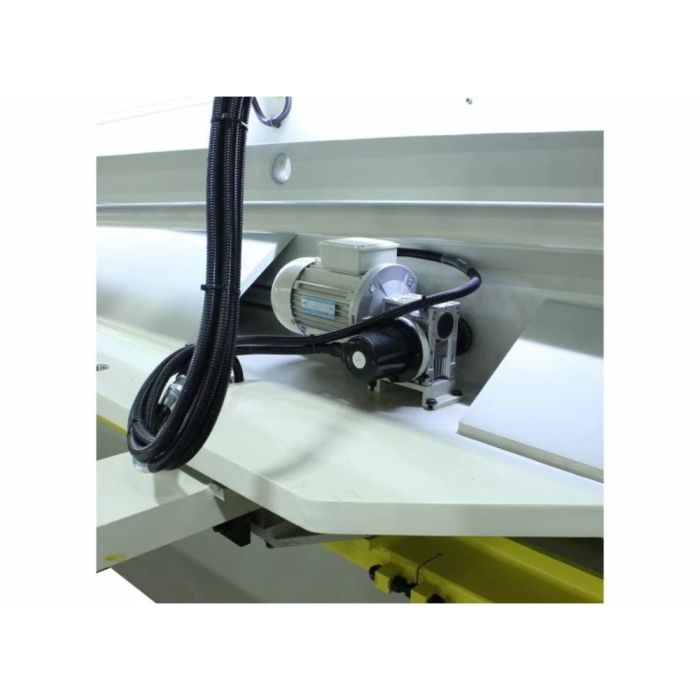

- Fully programmable back Ga is accurate to =/- .01mm and internal memory can hold up to 100 programs
- You can adjust the raked angle for your material thickness to minimize burr and reduce strain on the hydraulics - Press a button, then pull the lever until the light goes on
- Comes standard with shadow line positioner for accurate material placement
- Fully welded and integrated steel plate frame eliminates vibrations and stress on the cutting process
|
| Horsepower |
30 HP |
| Warranty |
1 Year |
| Type |
Hydraulic Shear |
| Input Power |
220 V / 3-Ph |
| Minimum Material Thickness (Ga) |
18 ga |
| Model Number |
SH-120500-HD |
| Shearing Length Capacity |
120" |
| Sheet Capacity (Mild Steel) |
0.50" |
| Speed Range (Stroke/min) |
9 |
| Squaring Arm Length |
48" |
| Weight |
23750 lbs
|
