Downdraft tables are becoming more popular with all of the air quality regulations that are now in place. The Heavy Duty Downdraft Table DDTM-8052-HD is the perfect table for large manufactureing facility has a need for a clean production. This easy to use down draft table takes all the little partials that float around the shop and pull them straight down into a contained unit and also help to clean the air. The DDTM-8052-HD has a list of features that make it one of the best tables on the market.
- 78" x 52" Working area
- Standard equipment included: HEPA filter, fire resistant cartridge filter, spark arresting metallic pre-filter, magnehelic gauge, hinged side walls w/ back wall, work light, auxiliary 110V and air tool outlets, 12” overhang, casters and leveling feet. These are all options other companies charge for, but come standard with Baileig
- CSAus listed
- 100% Tool free cleaning and filter maintenance/changes
- Air pulse cleaning – When flow is restricted, simply shut the machine off, and press the air pulse button (requires 60-90psi air connection). An internal air tank automatically backflushes the cartridge filter, knocking off accumulated dust and debris (he debris falls into a removable pan for easy cleanout). The table can now be turned on and work resumed
- Safety – Under OSHA decibel limit (hearing protection not required). HEPA filter is now required by OSHA for equipment that vents back into occupied space (HEPA is standard on these models)
- Fully Assembled – Simply uncrate, wire, and begin use.
TABLE LOAD CAPACITY
Maximum 1764lbs (800kgs) Evenly distributed over 80% - 100% of table surface.
Concentrated Contact Surface Contact Weight
10% 221lbs (100gs)
20% 441lbs (200kgs)
30% 661lbs (300kgs)
40% 882lbs (400kgs)
50% 1102lbs (500kgs)
60% 1323lbs (600kgs)
70% 1543lbs (700kgs)
80% 1764lbs (800kgs)
Specifications
Item Number DDTM-8052-HD
Working Table Size 78" x 52"
CFM 2340 at base
Motor Hp 5 HP

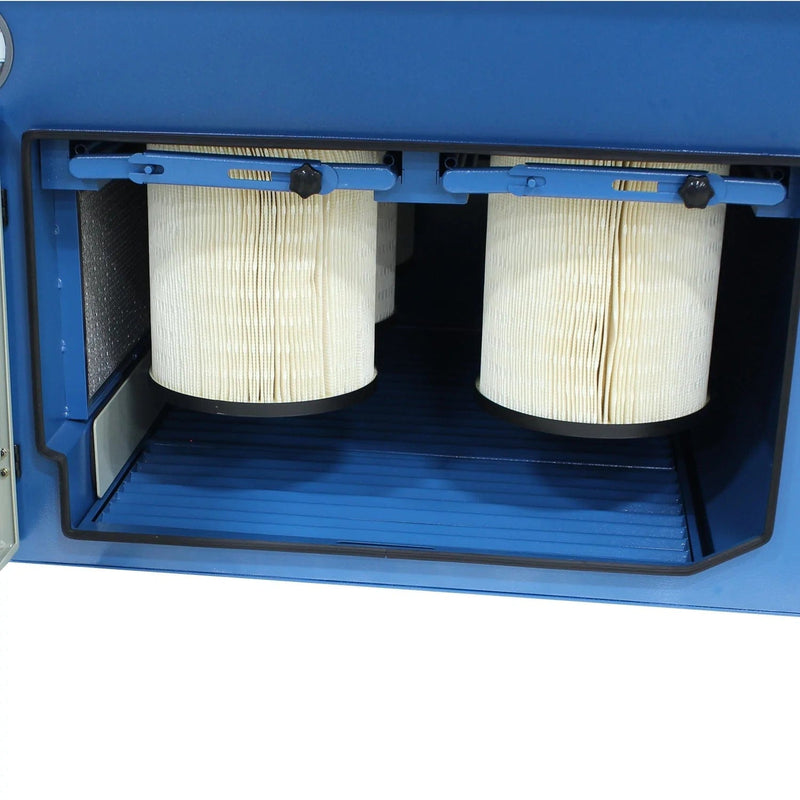

Filter Type Three Stage (Aluminum x 2, Teflon Cartridge x 6, HEPA)
Number of Filters 9
Filter Size Aluminum x 2 - 11.3" x 23.8" x 0.86", Cartridge x 6 - Ø11.25" x 13"L, HEPA - 18" x 20" x 5.9"
Table Load Capacity Maximum 1764lbs (800kgs) Evenly distributed over 80% - 100% of table surface. For concentrated weight spec, see chart in description.
Power 230V 3ph
Shipping Weight 1650lbs
Shipping Dimensions (Inches) 92x58x80
