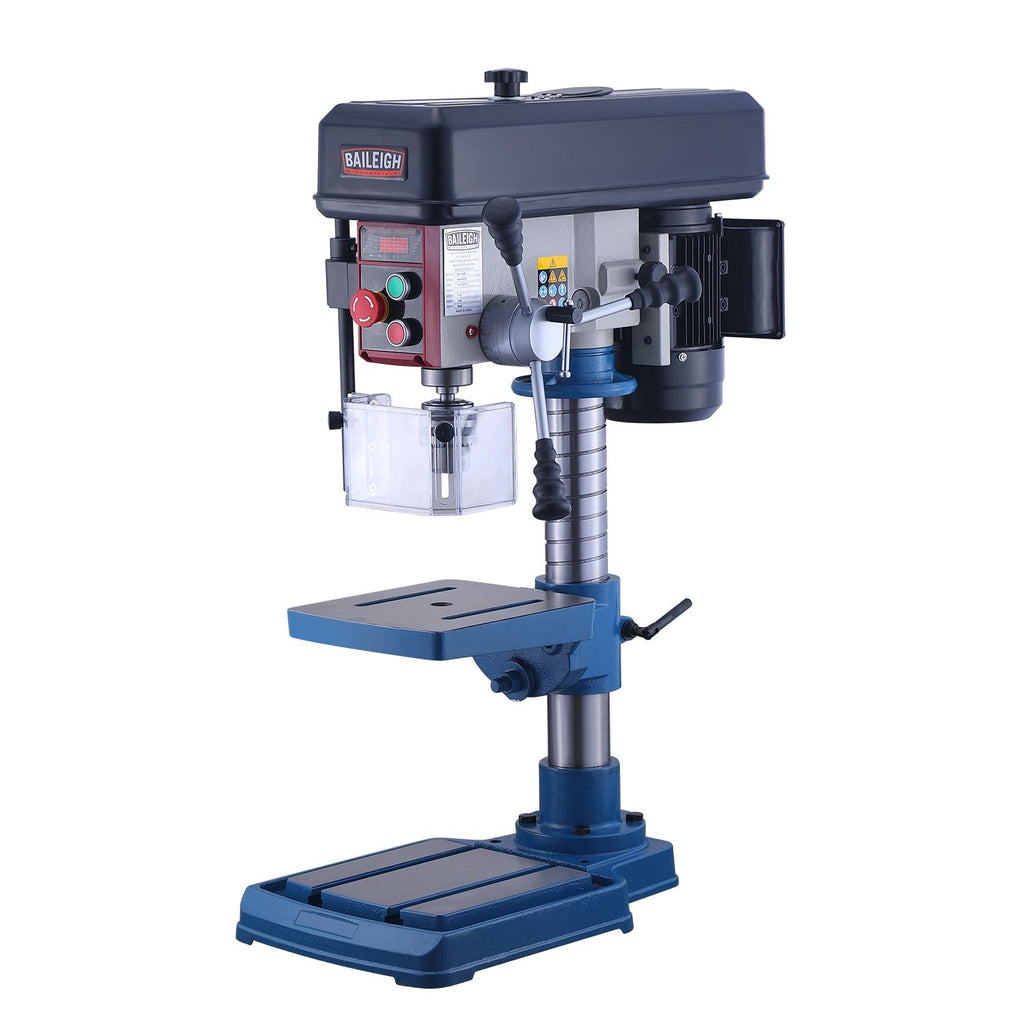

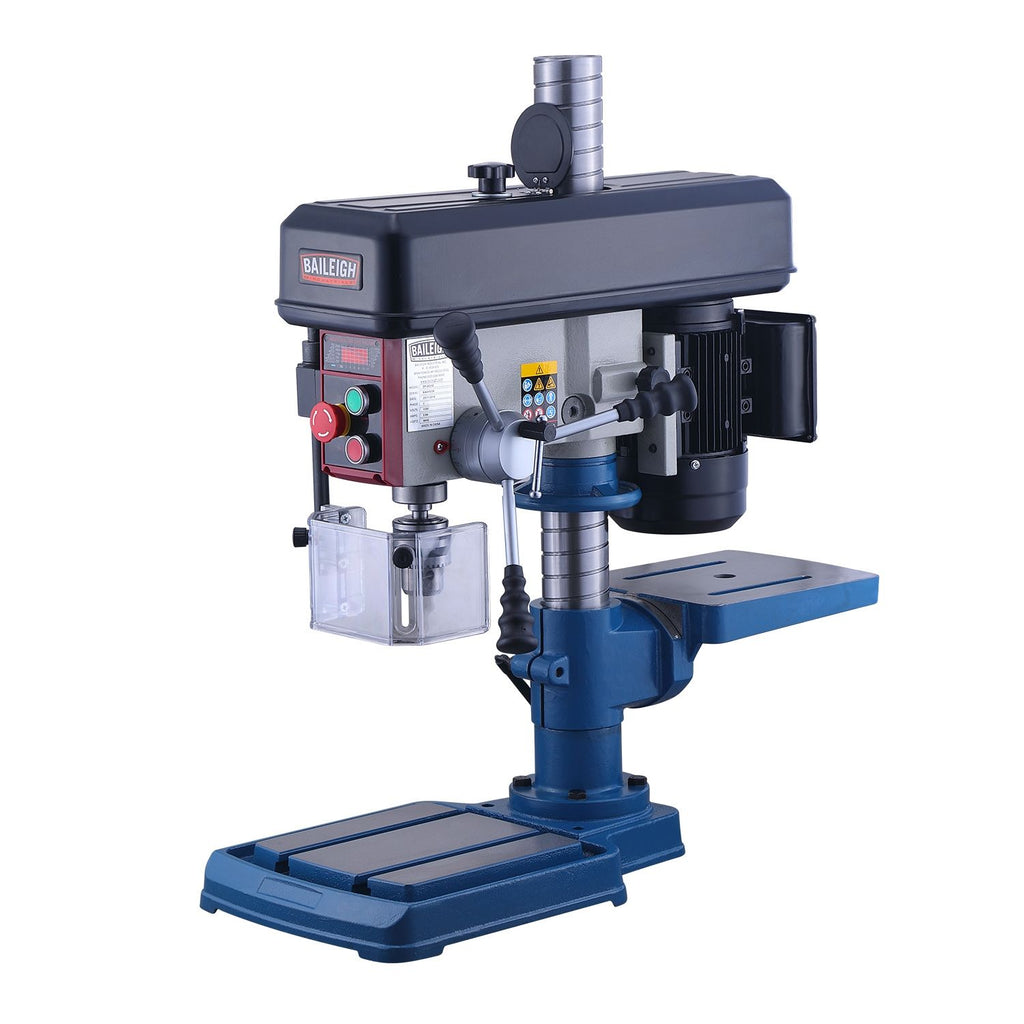

The Baileigh DP-3814B 14 inch bench top drill press delivers professional drilling performance in a compact, space-saving design. Perfect for small shops, garages, and job sites, this 5-speed drill press combines power and precision at an economical price point.
Key Features:
- 1/2 HP motor operates on standard 110V power for easy installation

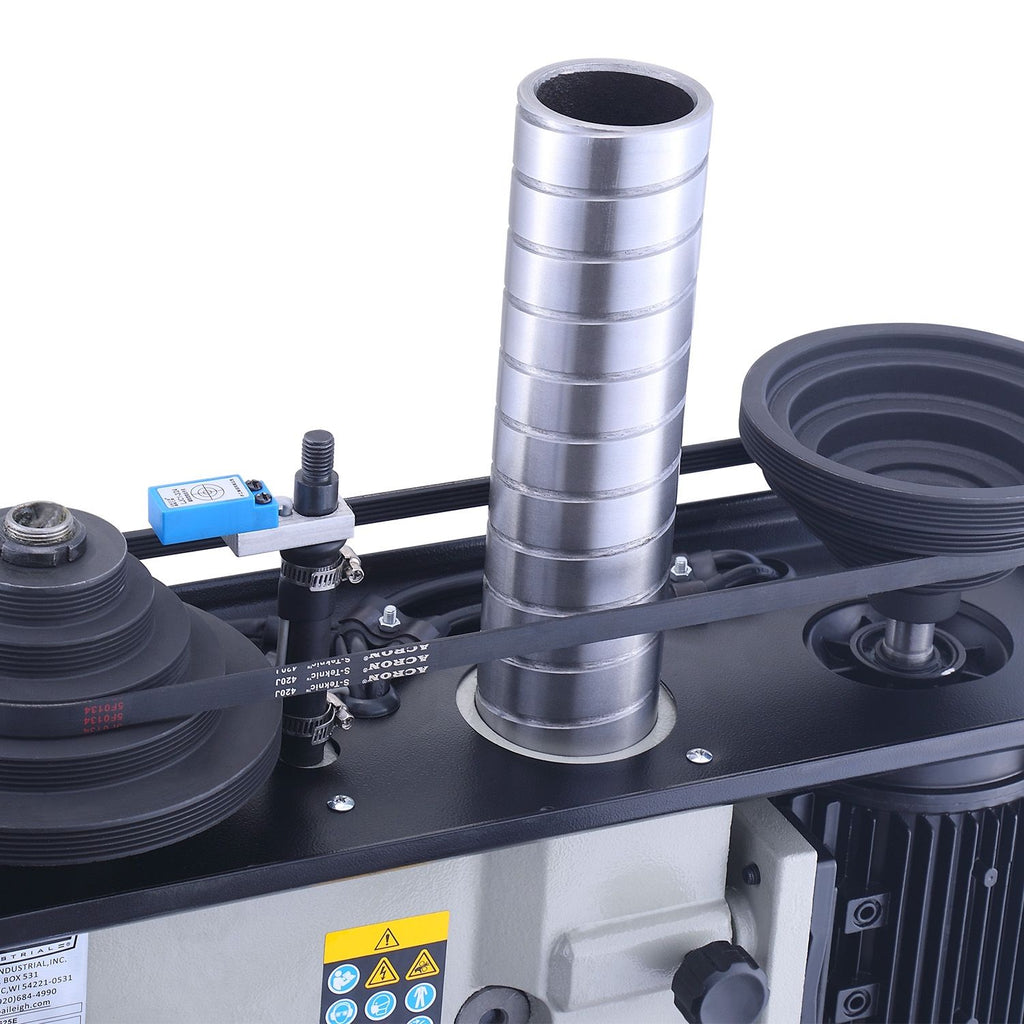

- 5 variable spindle speeds from 250 to 2900 RPM for different materials
- 14 inch swing capacity with 5/8 inch drilling capacity in mild steel
- Heavy-duty 2-3/4 inch steel column eliminates flexing during operation
- Cast iron base and table provide superior stability and durability

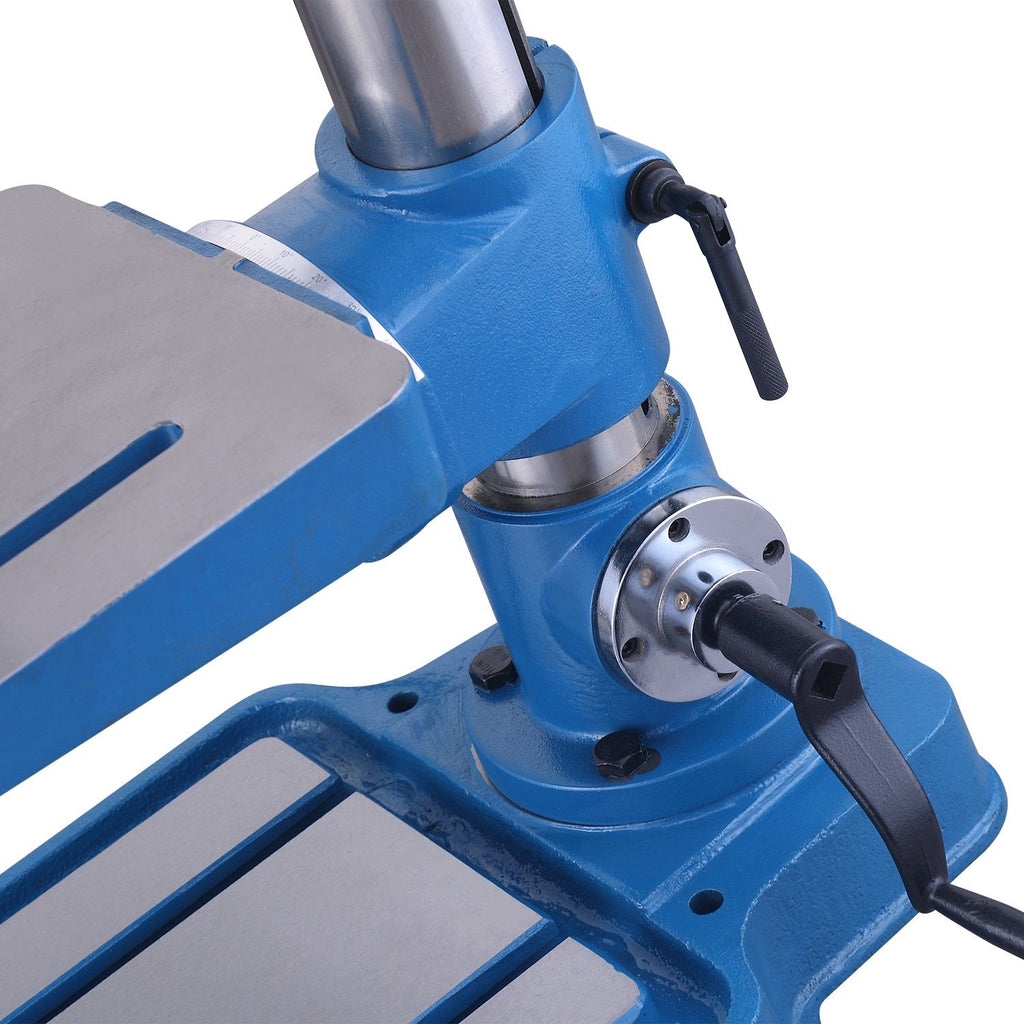

- Table tilts left or right up to 45 degrees for angled drilling
- Easy-adjust screw-type column for quick table and head positioning
- Safety shield protects operator during use
- B16 spindle taper with 3-1/2 inch quill travel
Specifications:
- Chuck Size: 0.03 to 0.625 inches
- Table Size: 9 x 10-1/4 inches with 2 T-slots
- Base Size: 18-3/4 x 12-1/2 inches
- Overall Height: 38-1/4 inches
- Maximum spindle to table distance: 11-1/2 inches
Built with rigid cast iron construction and backed by a 1-year warranty, the DP-3814B bench drill press runs smoothly even at full capacity and will serve your shop reliably for years to come.
