Hydraulic Double-Pinch Ring Roller - Professional Roll Bender

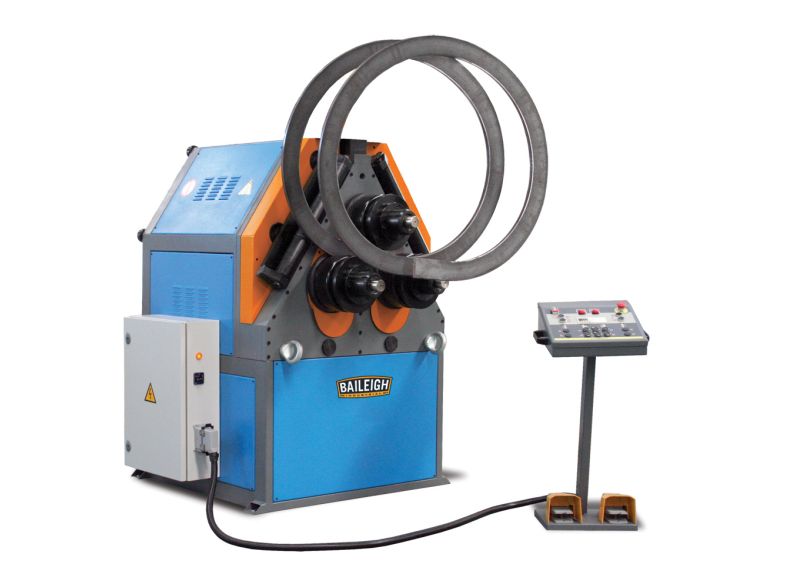

The Baileigh R-H85E hydraulic double-pinch roll bender reduces material waste and cuts down on bend time, making it the ideal choice for professional metal fabrication shops. This industrial-grade ring roller features double-pinch rolls that let you pre- and post-bend, minimizing those money-wasting pieces of straight material left over at the start and finish.
Why Choose the R-H85E Over Similar Machines?
- Double-pinch rolls let you pre- and post-bend, minimizing material waste at the start and finish
- Tough steel plate construction minimizes flex and maintains accuracy throughout the bending process
- Overload-protected inverter drive extends the machine's working lifetime
- Perform all machine functions at once from the well-organized control panel
- Choose from many optional tooling sets to suit specific applications, kept in stock for quick shipment
- Troubleshooting and project advice from Baileigh's knowledgeable team is always just a phone call away
Powerful Bending Capacity
This hydraulic roll bender runs on 220-volts 3-phase power and bends up to 3 inch schedule 40 pipe and 3.375 inch x 3.375 inch x 0.25 inch angle iron. All 3 rolls - 1 fixed top roll and 2 bottom rolls - are driven by industrial-grade hydraulic transmission with independent hydraulic cylinders for precise control.
Advanced Digital Controls
Digital readout programmers let you monitor the exact encoder-specified positions of each roll. You can easily input programmable stops or adjust roll positions from the movable podium control. Convenient foot pedals, located at the podium base, stop and start the roll bender in reverse and forward modes for hands-free operation.
Versatile and Durable Construction
Manually adjustable lateral angle guides help bend material to a wide range of coil widths. To accommodate longer pieces of material, you can safely tip the machine onto its back in horizontal mode. The R-H85E includes a set of hardened segmented rolls that can handle diverse profiles.
The fully welded steel plate framework gives this hydraulic roll bender the strength to bend at full capacity, day in and day out for years, while delivering accurate results every time.
Technical Specifications
- Model: R-H85E
- Stock Number: BA9-1009407
- Power: 220V 3-Phase
- Maximum Pipe Capacity: 3 inch schedule 40
- Maximum Angle Iron: 3.375 inch x 3.375 inch x 0.25 inch
- Weight: 3,550 lbs
- Warranty: 1 Year
- Includes hardened segmented rolls
