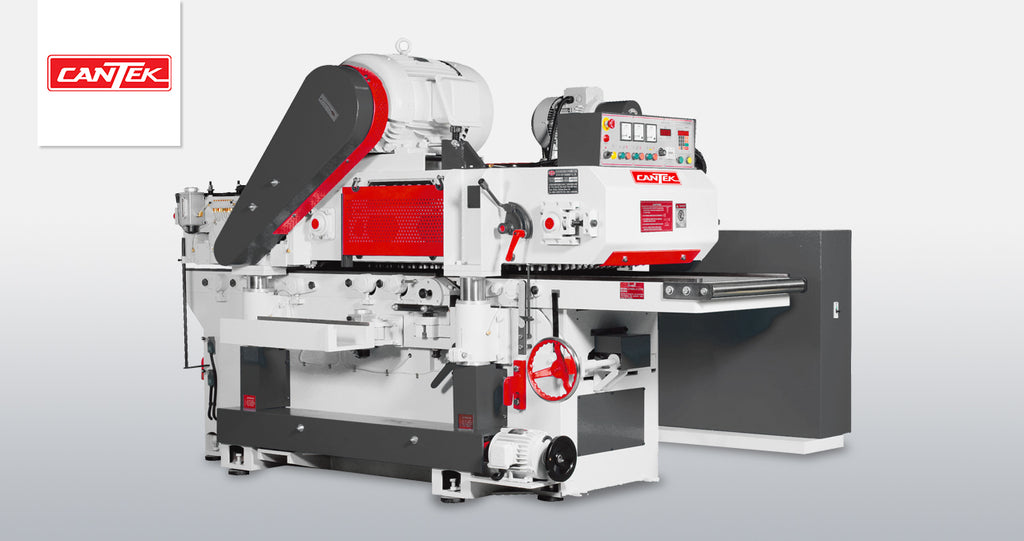

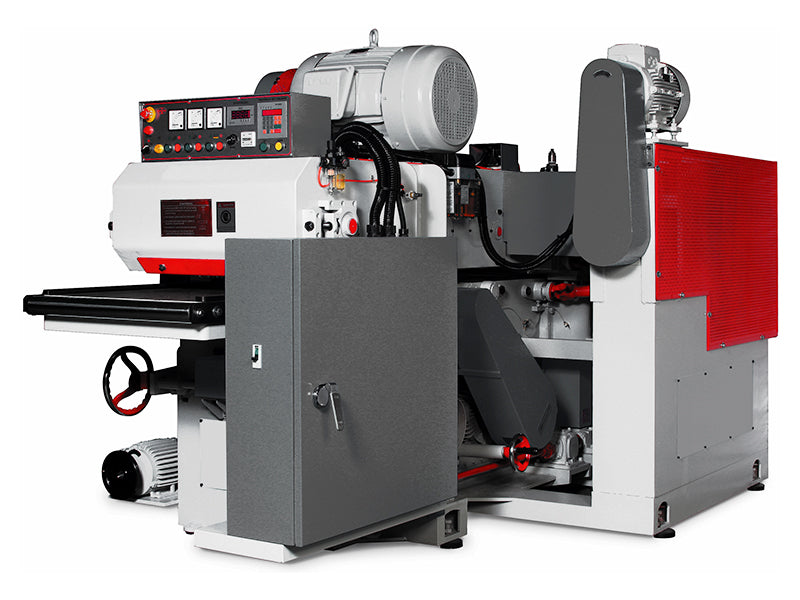

CANTEK GT-HD 32″ Series Extra Heavy Duty Double Surface Planer GT820HD
High speed production double surface planer for the most demanding planing applications.
The Cantek GT-HD Series Extra Heavy Duty Double Surface Planers are suitable for the most demanding planing applications. The HD series are capable of high feed speeds with maximum stock removal capabilities. They feature a robust cast-iron body and industrial cardan drive system ensure high production planing day in and day out.
Advanced Cutterhead Technology
The large diameter cutterheads are spiral type with two-sided solid carbide inserts which produce a clean finish with superior stock removal capacity. The material is passed over the bottom head with a spring-loaded pin feed system while the infeed bed is adjustable to determine how much material is removed. The final thickness is keyed in the digital control and the top head and feed assembly automatically move in place.
Why Choose CANTEK GT-HD Series Extra Heavy Duty Double Surface Planers?

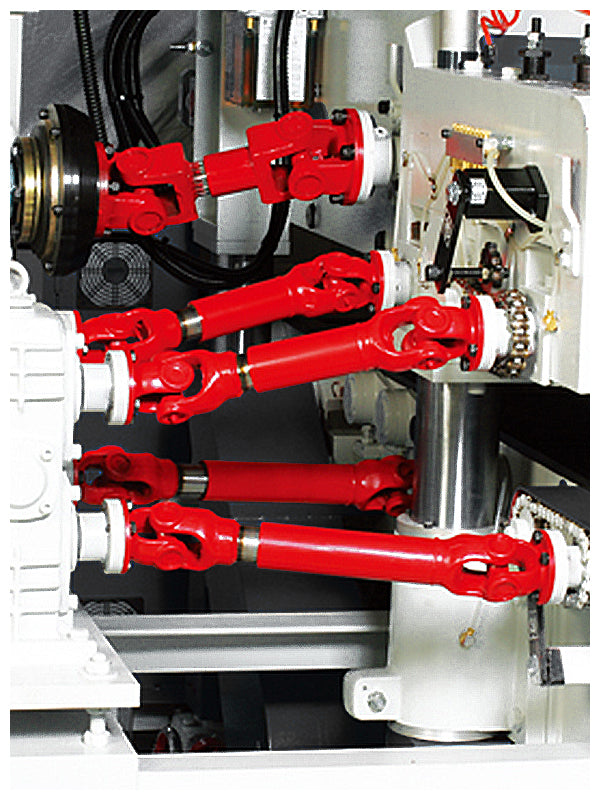

- Heavy-duty cardan shaft drive for the highest durability and increased feed speeds
- Solid cast-iron construction greatly reduces vibration resulting in improved output quality and machine durability
- Cast iron bed is precision machined and chrome plated to ensure longevity and precision
- Pin type carpet feed system passes the material over the bottom head to ensure a flat surface
- Spiral insert knife cutterheads with 8 rows of two-sided 30x12x2.5mm solid carbide insert knives provide superior stock removal, reduced machine load and noise, and optimum finish quality
- Additional idle and driven table rolls ensure consistent feeding of the workpiece
GT820HD Specifications
- Maximum working width: 32 inches
- Maximum working thickness: 7.78 inches
- Minimum working thickness: 0.47 inches
- Feed speed (variable): 32 - 82 FPM (131 FPM optional)
- Cutterhead diameter: 5.9 inches
- Cutterhead speed: 4300 RPM
- Bottom cutterhead motor: 60HP
- Top cutterhead motor: 60HP (75HP optional)
- Feed drive motor: 10HP (15HP inverter)
- Machine weight: 18,740 lbs
- CFM dust requirement: 6500 CFM
Perfect for high-volume production environments, cabinet shops, millwork facilities, and industrial woodworking operations requiring consistent, high-quality results with maximum efficiency.
