Description

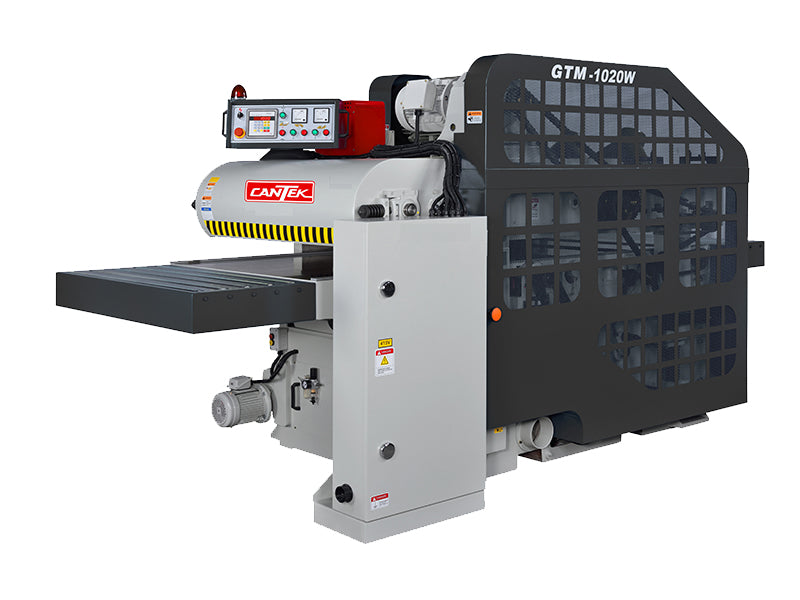

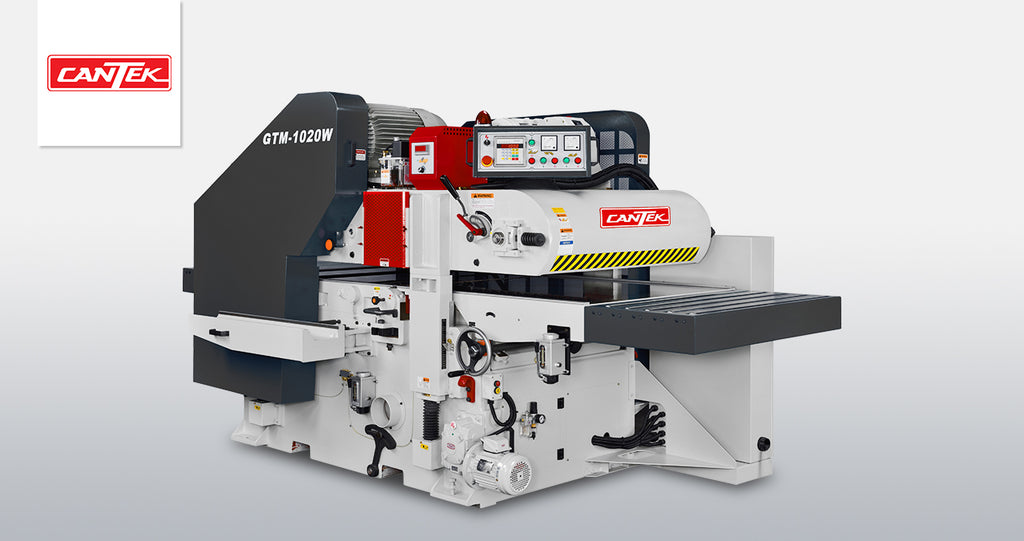

CANTEK | GTM1020W 40″ DOUBLE SURFACE PLANER


Wide double-sided planer with big capacity.

The Cantek GTM1020W 40” Double Surface Planer has a robust cast-iron body for industrial planing day in and day out.  The spiral insert knife cutterheads produce a smooth planed finish with maximum stock removal. The material is passed over the bottom head with a spring-loaded pin feed system while the infeed bed is adjustable to determine how much material is removed. The final thickness is keyed in the digital control and the top head & feed assembly automatically move in place.  This wide planer is ideal for increasing production on narrow boards and capable of planning live edge slabs, countertops, table tops, door panels, and more.


Why Cantek GTM1020W 40” Double Surface Planer?

  • Big capacity of up to 40″ wide x 11.8″ thickness

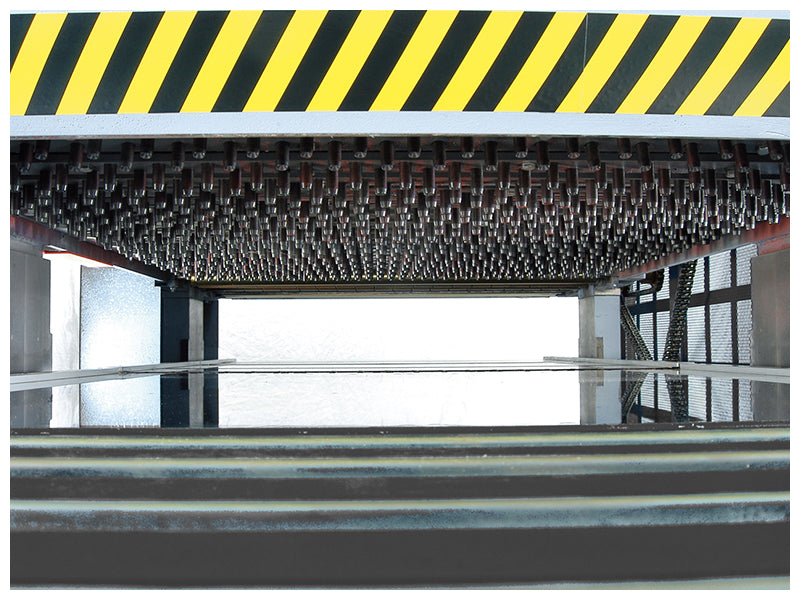

  • Spring loaded conveyor pin system ensures material is passed over the bottom cutterhead to resulting in a flat and uniform board prior to planing to thickness on the top head

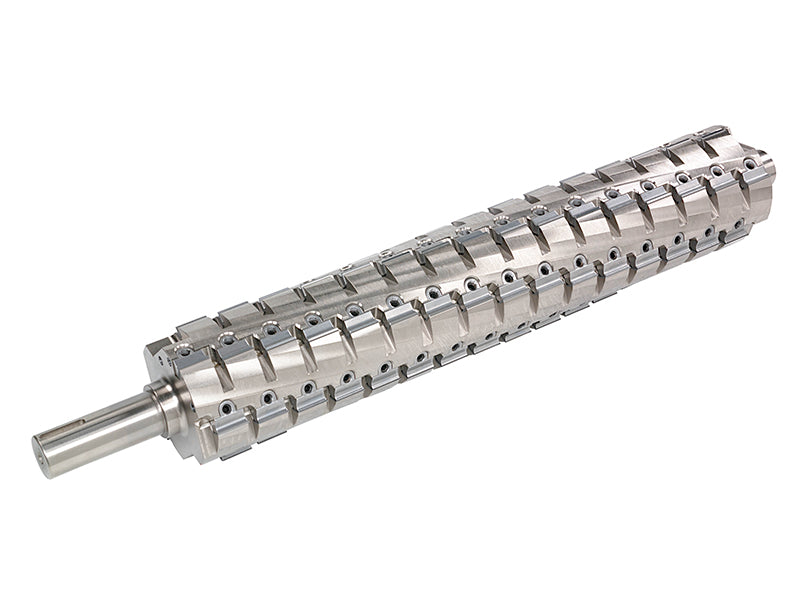

  • Spiral insert knife cutterheads with two-sided solid carbide knives produce a smooth finish with increased stock removal capacity and extremely quiet operation
  • Heavy-duty cast-iron machine body and table for vibration free cutting

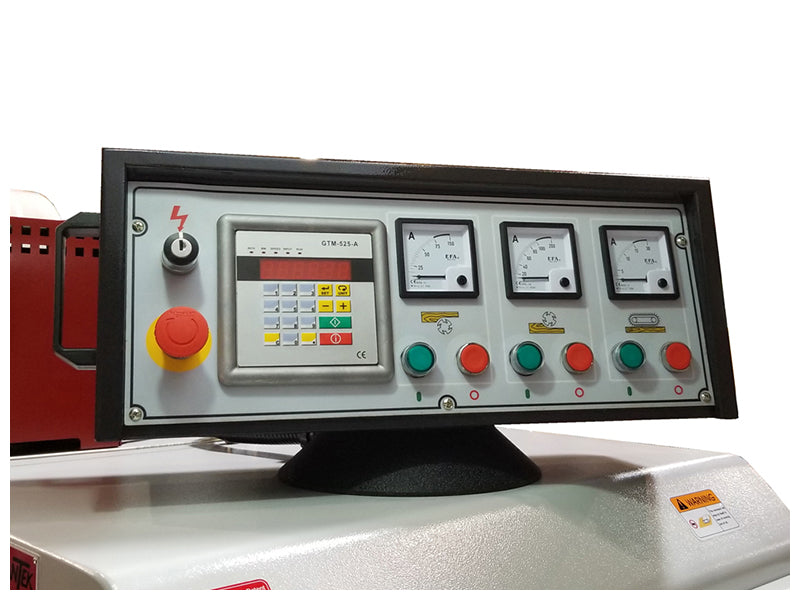

  • Digital electronic thickness adjustment in INCH and MM (Inch = 0.001” / mm = 0.01mm resolution) for precise thickness control

 Specification:

Maximum working Width
40”
Maximum working Thickness
11.8”
Minimum workpiece length
12.2”
Bottom Cutterhead motor
30 HP (Standard) – Optional 40HP
Top Cutterhead motor
40 HP (Standard) – Optional 50HP
Feed motor
7.5 HP
Table elevation motor
1 HP
Cutterhead diameter
5.16”
Knife information
30mm x 12mm x 1.5mm
Cutterhead speed
4000 RPM
Feed speed (variable)
23-65 FPM
Dust collection
4 @ 6” diameter
Table size
40” x 103” high
Machine dimensions (LxWxH)
108 ¼” x 76 ¾” x 74.8”
Net weight
12,125 lbs. (5511 kgs.)
Packaging dimensions
112.2” x 80.7” x 80.7”
Gross weight
12,787 lbs. (5812 kgs.)
