Plane your material efficiently in a single pass.

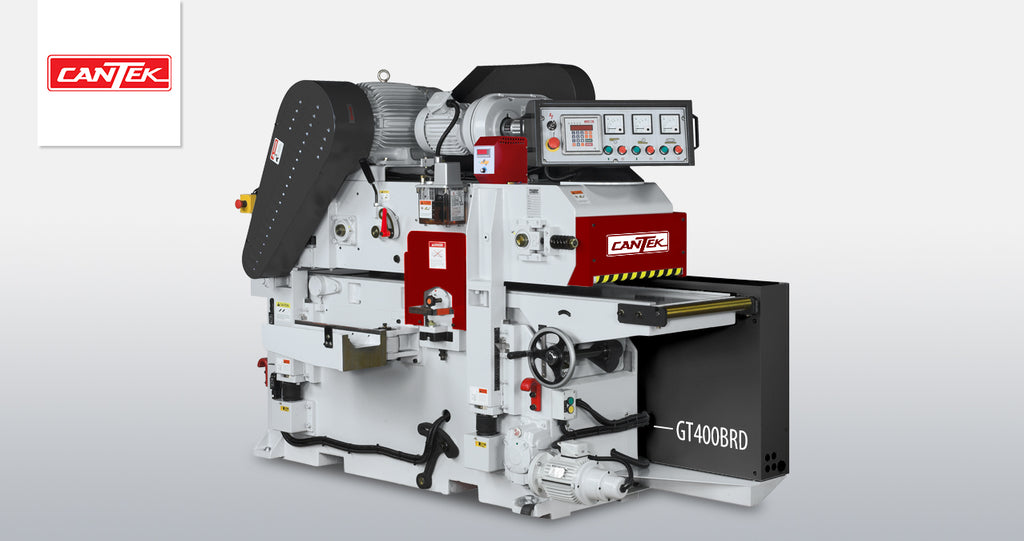

The Cantek GT400BRD 16 inch Double Surface Planer has a robust cast-iron body for industrial planing day in and day out. The spiral insert knife cutterheads produce a smooth planed finish with maximum stock removal. The material is passed over the bottom head with a spring-loaded pin feed system while the infeed bed is adjustable to determine how much material is removed. The final thickness is keyed in the digital control and the top head and feed assembly automatically move in place.
Why Cantek GT400BRD 16 inch Double Surface Planer?

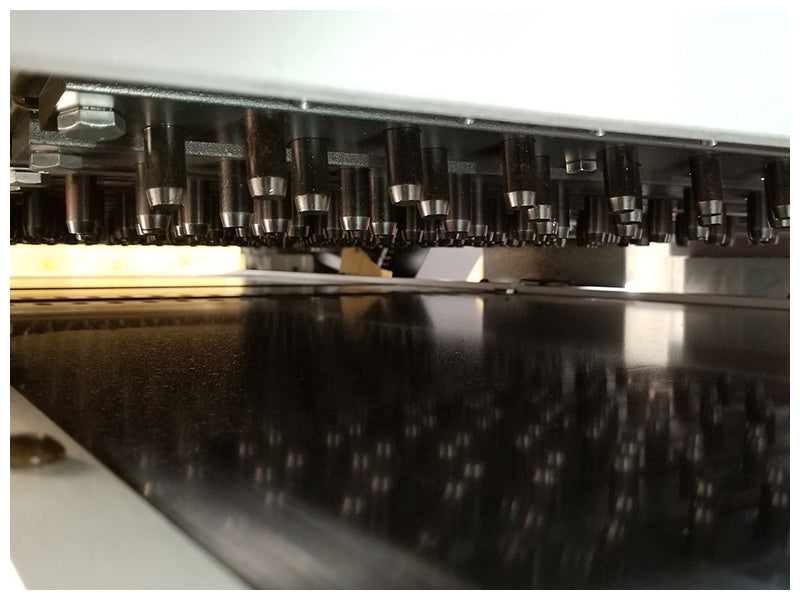

Spring loaded conveyor pin system ensures material is passed over the bottom cutterhead to resulting in a flat and uniform board prior to planing to thickness on the top head

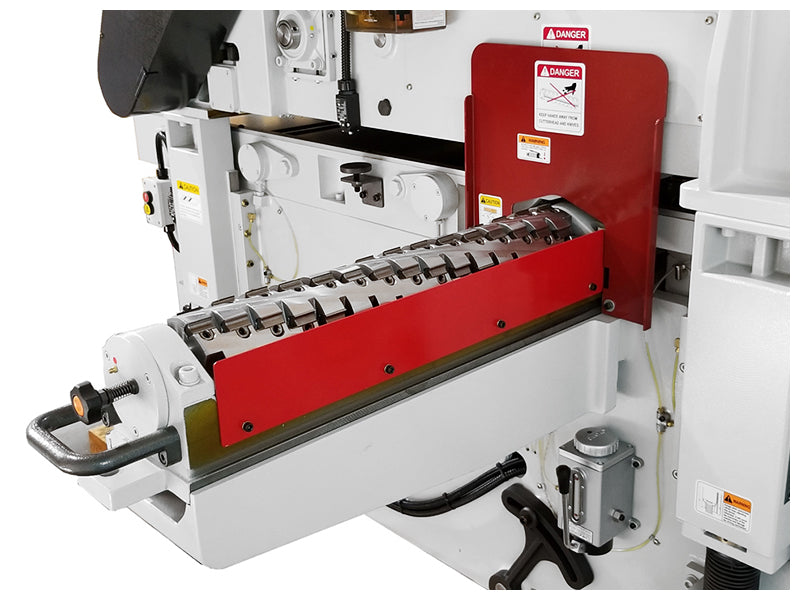

Spiral insert knife cutterheads with two-sided solid carbide knives produce a smooth finish with increased stock removal capacity and extremely quiet operation
Heavy-duty cast-iron machine body and table for vibration free cutting
Digital electronic thickness adjustment in INCH and MM (Inch = 0.001 inch / mm = 0.01mm resolution) for precise thickness control
Key Specifications and Features:
16 inch wide x 6.7 inch thick planing capacity
Cutterheads are spiral insert type with six (6) rows of carbide inserts
(2) driven and (1) idle bed roll for superior feeding of even difficult material

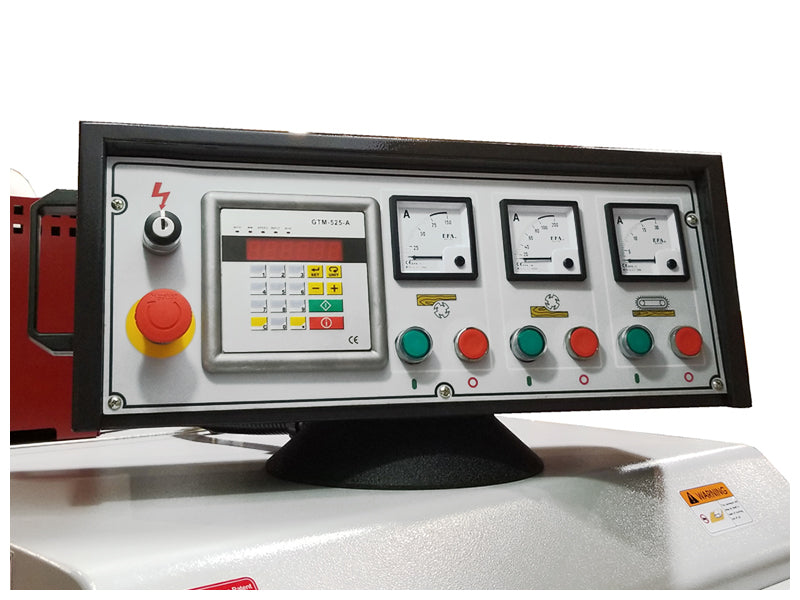

Swiveling control panel for more ergonomic access to machine controls

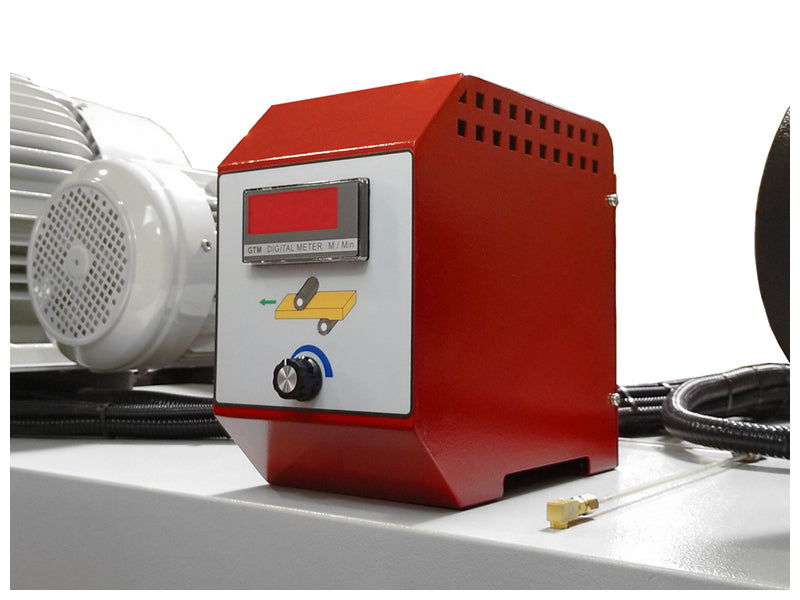

Inverter variable speed control with feed speeds from 23 to 65 FPM
Easy to access external handwheel adjustment of infeed bed
Hard chromed worktable for high wear resistance
Auto lubrication to conveyor chain, central lubrication for dovetail elevation guideways
Section chipbreaker and sectional feed roller before top cutterhead
Rubber outfeed top roller to prevent chip marking
Over thickness safety shut-off bar across infeed
Ammeter for each motor on control panel to monitor motor load
