Quality Affordable Dust Collection Solution

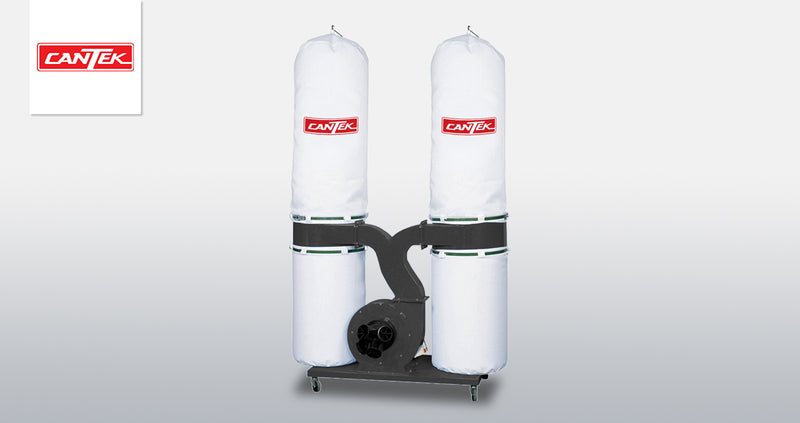

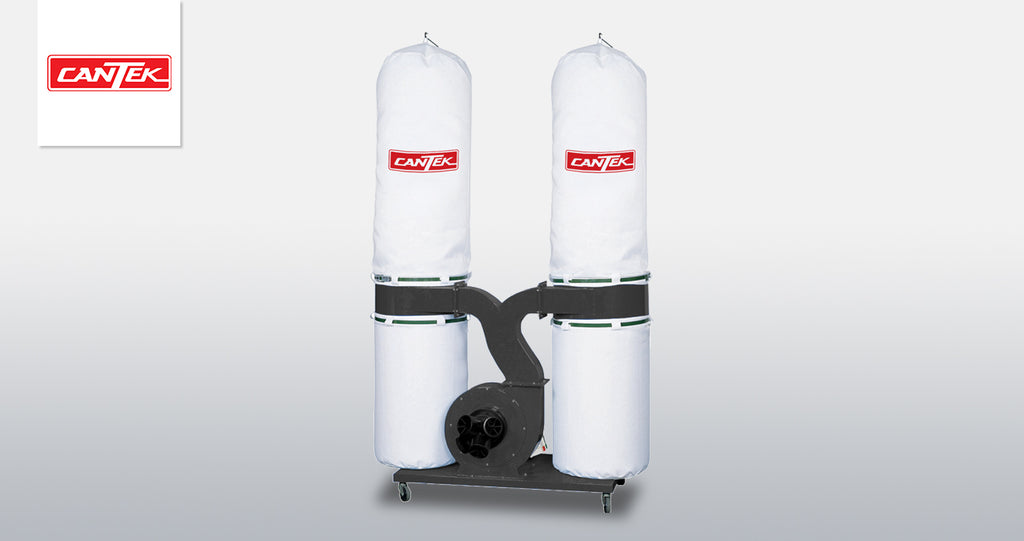

The CANTEK PDC205 5HP Dust Collector is ideal for small shops looking to collect wood dust or larger shops needing additional dust collection beyond their central system capacity. This portable industrial dust collector features durable cotton filter bags and mobile caster base for maximum versatility.
Why Choose CANTEK PDC205 5HP Dust Collector?
-
5 HP motor generating 3200 CFM - Powerful suction for effective dust collection
-
Mobile caster base - Easy to move around the shop where needed
-
Durable cotton filter bags - Superior filtration with optional plastic disposal bags
-
Magnetic starter included - Professional-grade electrical components
Technical Specifications
-
CFM: 3200 CFM
-
Motor: 5 HP
-
Main inlet diameter: 8 inches
-
Connector inlet diameter: (3) 4 inch ports
-
Fan diameter: 14 inches
-
Static pressure: 19 inches of water
-
Top filter bags (2): 5 micron (20 inch dia. x 48 inch long)
-
Bottom collection bags (2): 30 micron (20 inch dia. x 33.5 inch long)
-
Net weight: 253 lbs
-
Shipping weight: 363 lbs
-
Shipping dimensions: 46 inch x 23 inch x 23 inch
-
Noise Level: 90dB
-
Machine electrics: 230/3/60 = 15.2 amps, 575/3/60 = 6.1 amps
Perfect for woodworking shops, cabinet makers, and furniture manufacturers requiring reliable dust collection. The upper and lower cotton bags filter collected air before recycling it back into the shop while collecting dust for easy disposal.
