Large Capacity Crosscutting Solution

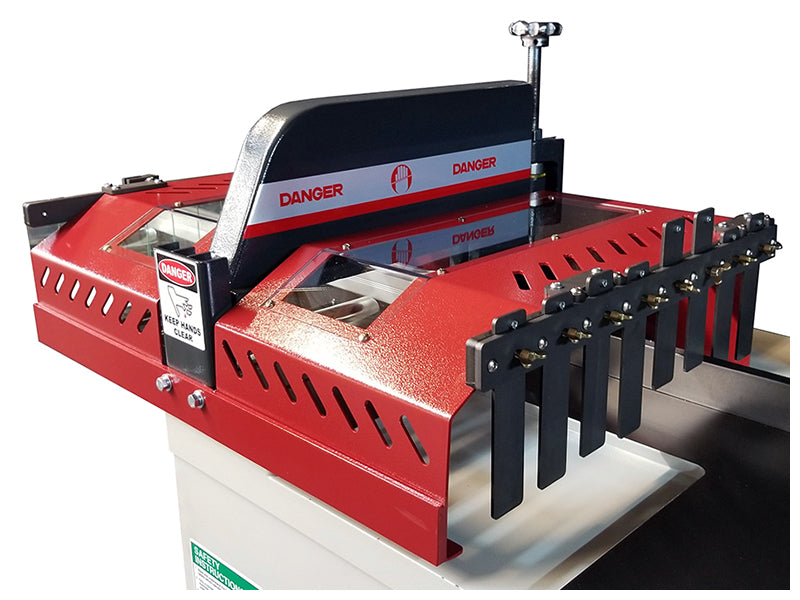

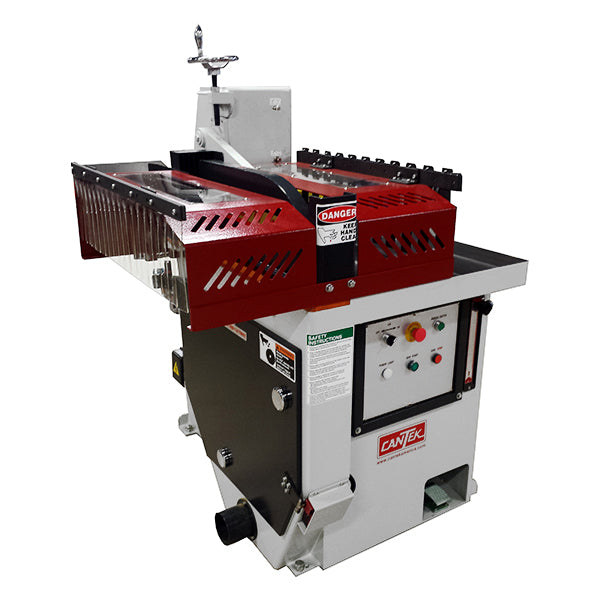

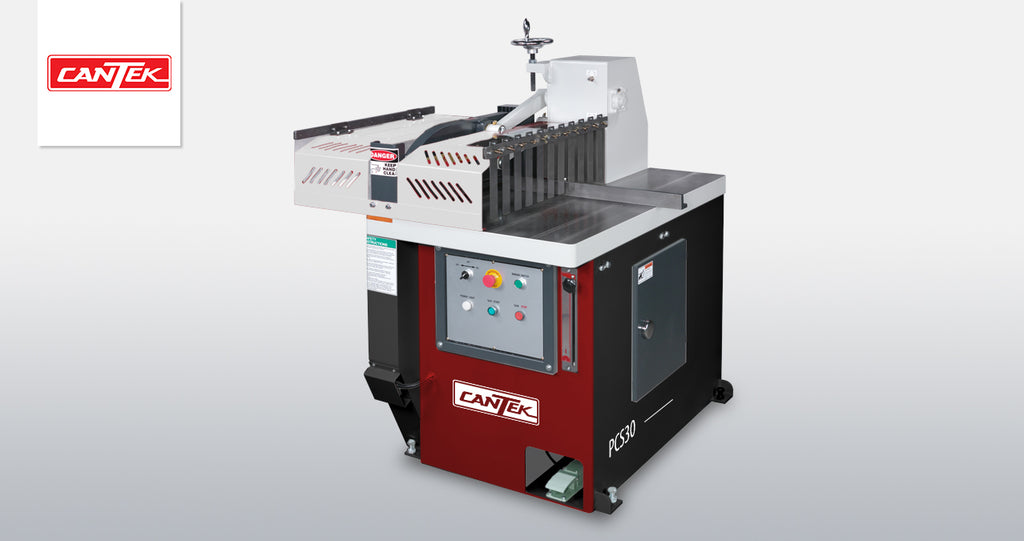

The Cantek PCS30 30-inch Pneumatic Cut-Off Saw is the ideal solution for increasing production on crosscut operations while maintaining optimum safety. Its powerful motor and adjustable cutting stroke ensure it can effortlessly cut through a wide range of materials and dimensions. A number of features are included to ensure safe operation such as the infeed/outfeed safety guard, microswitches on all access doors, and a security bolt on the saw access door. Available in either left-hand or right-hand operation depending on your ideal production flow.
Why Cantek PCS30 30-inch Pneumatic Cut-Off Saw?
- Large cutting capacity from 1.9 inches x 26.7 inches up to 9.8 inches x 9.8 inches
- Adjustable cutting stroke to ensure optimum cutting speed and cut quality
- Reliable performance day in and day out
- Added safety features
Specifications
- Available in Right-Hand and Left-Hand configuration

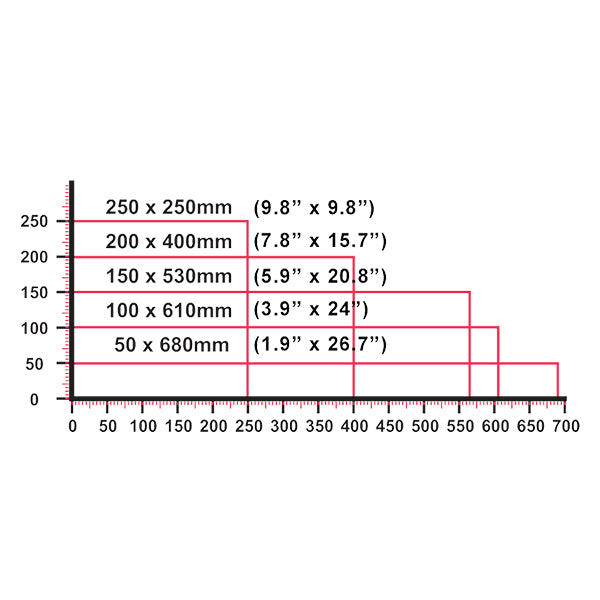

- Cut off capacity (thickness x width): 1.9 inches x 26.7 inches, 3.9 inches x 24 inches, 5.9 inches x 20.8 inches, 7.8 inches x 15.7 inches, 9.8 inches x 9.8 inches
- Powerful 15HP main motor (20HP optional)

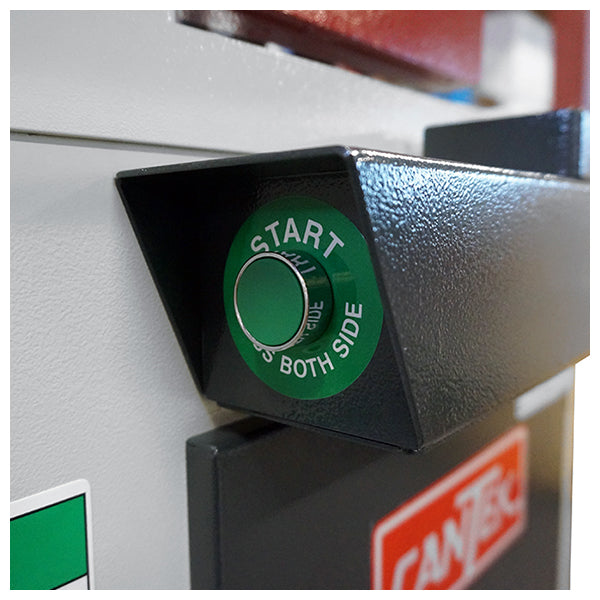

- Pneumatic foot pedal operation with adjustable cutting speed from the front of the machine (Optional dual push button control)
- Adjustable cutting cycle from 10 to 15 strokes per minute
- Cast iron table surface is precision ground assuring high cutting accuracy

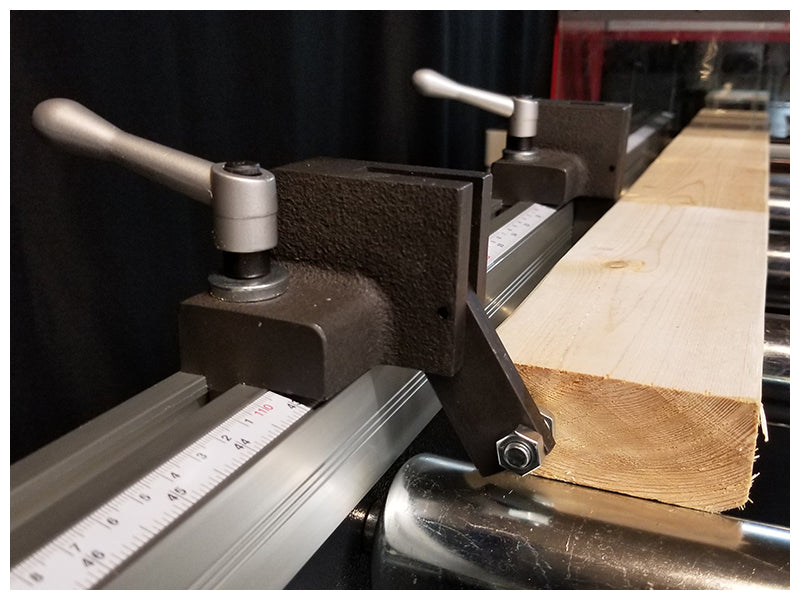

- Material clamp is easily adjusted for workpiece thickness variation
- CSA/UL magnetic switch
