Product Description

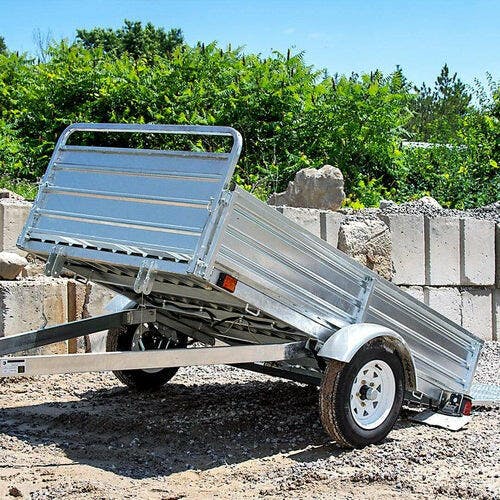

DK2 5FT X 7FT SINGLE AXLE UTILITY TRAILER KIT WITH DRIVE UP GATE - GALVANIZED
THE DK2 MMT5X7 GALVANIZED WITH DRIVE UP GATE SINGLE AXLE MULTI-UTILITY TRAILER IS ONE OF THE MOST VERSATILE TRAILERS ON THE MARKET.
Sitting on a solid square tube cambered axle with 12 inch. 6 ply bias tires, and a load capacity of 1,639lb. When the front and back load-bearing gates are down, the trailer bed extends to nearly 11.58 ft. Another great feature is the tilt/dump capability that makes it easy to load or unload heavy items. Fabricated from 100% steel, all of the components are reinforced, adjustable, removable and / or interchangeable.
DK2 MANUFACTURES THE MOST IDEAL, EVERYDAY MULTI-UTILITY TRAILERS.
-
Single axle, multi-utility trailer is one of the most versatile trailers on the market
-
Sits on a solid square, tube cambered axle with 30.5 cm (12”), 6 ply bias tires
-
Load capacity of 1,639 lb (743.4 kg)
-
When the front and back load-bearing gates are down, trailer bed extends to nearly 3.5 m (11.58 ft)
-
Tilting bed allows for easy dump capability
-
Fabricated from 100% hot-dipped galvanized steel
-
All components are reinforced, adjustable, removable and/or interchangeable
Specification
| ITEM NUMBER | MMT5X7G-DUG |
|---|---|
| PAYLOAD CAPACITY | 1,639 LB (743.4 KG) |
| GVW | 2,090 LB (948 KG) |
| CURB WEIGHT | 451 LB (204.6 KG) |
| BED DIMENSIONS | 52 x 88" → 52 x 136" (1.32 x 2.24 m → 1.32 x 3.45 m) |
| OVERALL LENGTH | 177" (4.5 m) TONGUE EXTENDED |
| FLOOR HEIGHT | 20" (50.8 cm) |
| CONSTRUCTION | FULLY WELDED HOT-DIPPED GALVANIZED TUBULAR STEEL |
| SIDE PANELS | 14" (35.6 cm) HEIGHT CORRUGATED STEEL |
| DROP GATES | 24" (61 cm) HEIGHT CORRUGATED DRIVE-UP GATE |
| LIGHTING | PRE-WIRED, QUICK CONNECT LED LIGHTING, USES D.O.T. STANDARDS |
| ADJUSTABLE REAR LIGHT PROTECTORS & PROTECTED SIDE MARKERS | |
| DUMP BED | 2 POSITION |
| HITCH HEIGHT | 16" (40.6 cm) |
| FLOORING | 100% WELDED, CORRUGATED & REINFORCED STEEL BED |
| SHIPPING DIMENSIONS | 88.5 x 55 x 8" (224.79 x 139.7 x 20.32 cm) |
