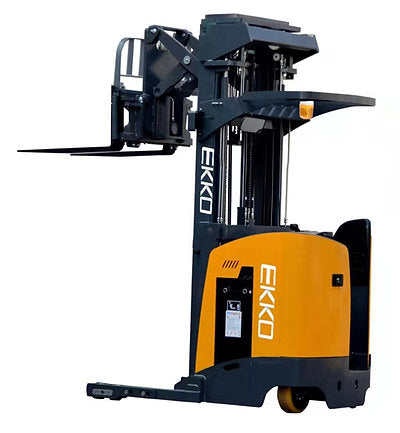

EKKO EK18RR Stand-Up Narrow Aisle Reach Truck – 4,000 lb Capacity
The EKKO EK18RR Stand-up Narrow Aisle Reach Truck is designed to combine the versatility
of a forklift, reach truck, and walkie stacker in one powerful machine. It is ideal for
loading and unloading trucks, loading docks, stock rooms, manufacturing floors, and
warehouse applications.
Built from high-quality steel and durable components, the EK18RR is engineered to withstand
demanding terrain, heavy usage, impact, and directional changes—giving operators confidence,
reliability, and performance in a wide range of material handling environments.

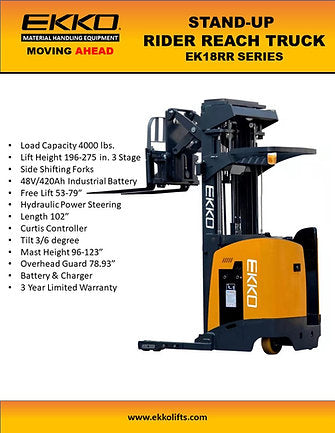

Key Features
- 4,000 lb load capacity
- Raised height of 275" (22.91 ft)
- 22.44" reach distance
- Side shifting forks
- Free lift
- Tilt function
- Adjustable forks from 7.9" to 35"
- 42" fork length
- Triple mast
- Curtis Instrument Controller
- EPS (Electronic Power Steering)
- German AC drive motor
- 48V/420Ah battery
- 48V/65A 480V charger
- Polyurethane wheels
- Ergonomic handle and controls
- Heavy-duty steel construction
- Robotic welding
- Charger included
- Batteries included
- 3 years limited warranty

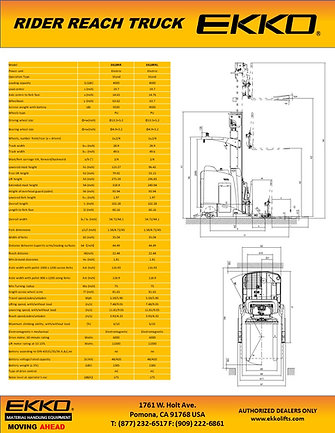

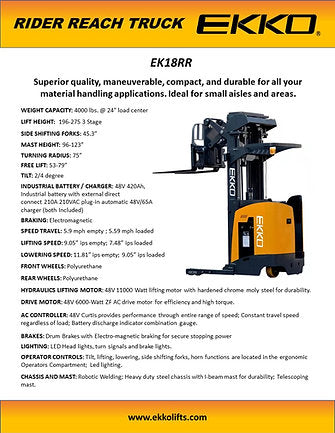

Product Information
-
Model: EK18RR
-
Lift Type: Electric
-
Drive Type: Electric
-
Load Capacity: 4,000 lb
-
Load Center Distance: 24 in
-
Lifting Height: 275 in
-
Side Shifting Forks: 3 Way Valve
-
Free Lift: 79.92 in
-
Lowered Mast Height: 123.27 in
-
Overall Length / Extended: 102.28 in
-
Overall Width: 54.72 in
-
Fork Size (Thickness / Width / Length): 1.58 / 4.72 / 42 in
-
Fork Adjust Width: 35.04 in
-
Reach Distance: 22.44 in
-
Turning Radius: 75 in
-
Charger: 48V / 65A
-
Driving Motor: 48V / 6000W
-
EPS Steering Motor: Yes
-
Lifting Motor: 48V / 11000W
-
Battery Voltage: 48V / 420Ah
-
Service Weight: 9,330 lb
Ideal Applications
- Loading and unloading trucks
- Loading dock operations
- Stock rooms
- Manufacturing floors
- Warehouse and narrow aisle material handling
