EKKO ES60E-LI Aerial Work Platform Lift Height 19' (228'')
The EKKO ES60E-LI Scissor Aerial Work Platform is a 506-lb capacity compact platform with four wheels and Curtis controller which allows you to make lifting, transporting loads, and moving products easily and safely. This product also complys with GB25849 and EN280 standards.
Features
- -Load Capacity 500 lb
- -Raised Height 19' (228")
- -Lowered Height 86''
- -Size: Length 65" x Width 30"
- -Steel construction
- -3 Years Limited Warranty
Specification
| ES60E-LI | ||
| product dimensions | ||

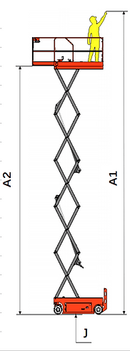

| A1 Max working height | Inch | 25.5' (307'') |
| A2 Max platform height | Inch | 19' (228'') |

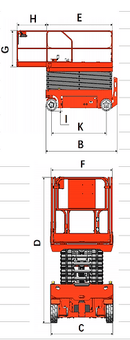

| B Length | Inch | 72.44 |
| C Width | Inch | 29.92 |
| D Overall height (guardrail not folded) | Inch | 85.75" |
| Overall height (folding guardrail) | Inch | 72.5" |
| Platform size (length EX width FX height G) | Inch | 64.96x29.92 |
| G Guardrail height | Inch | 43.31 |
| H Platform extension size | Inch | 35.43 |
| I Ground clearance (closed state) | Inch | 2.36 |
| J Ground clearance (lifting state) | Inch | 0.59 |
| K Wheelbase | Inch | 1.36 |
| product performance | ||
| Maximum number of workers (indoor/outdoor) | 2 / – | |
| load rating | LBS | 506 |
| Extended platform load rating | LBS | 264 |
| Driving speed (folding state) | km/h | 0~4 |
| Driving speed (lifting condition) | km/h | 0~0.8 |
| Minimum Turning radius (inside) | Inch | 0 |
| Minimum turning radius (outside) | Inch | 61 |
| Rise/fall time | s | 18/28 |
| Maximum allowable tilting Angle (front/left/right) | ° | 3°/1.5° |
| Maximum allowable wind speed (indoor/outdoor) | m/s | 0/0 |
| Maximum allowable lateral force (indoor/outdoor) | N | 400/0 |
| Gradeability | % | 30 |
| control | proportional control | |
| actuator | Double front wheels | |
| braking | Double rear wheels | |
| Tyre specification/type | Inch | 12.71*3.93 |
| Product power | ||
| Lift/drive motor | kw | 2.2/0.7x2 |
| Battery voltage/capacity | V/Ah | 25.6V/150AH Lithium |
| Charger input voltage | VAC | 25.6V |
| Charger output current | A | 36A |
| control voltage | VDC | 24 |
| Hydraulic tank capacity | L | 8 |
| total weight | lbs | 3356 |
