Professional CNC Mill with 10-Position Automatic Tool Changer G0877
If you are producing parts with cycle time as a priority, this is your machine. The G0877 Enclosed CNC Mill with Auto Tool Changer is packed with features, including a 10-position automatic tool changer and powered pull stud for fast, worry-free tooling changeovers.
Advanced Siemens CNC Control
With the Siemens Sinumerik 808D CNC controller, programming is simple. Just hit start and focus on other shop tasks while your mill efficiently handles the job.
Power and Precision
The 3 HP motor and smooth servo motors drive ball screws on all axes for the highest degree of accuracy. Variable spindle speeds from 50 to 10,000 RPM and rapid feed rates of up to 400 in./min. gets the job done fast.
Built-In Coolant System
A built-in 42-gallon, high flow coolant system helps keep parts cool and improves tool-life.

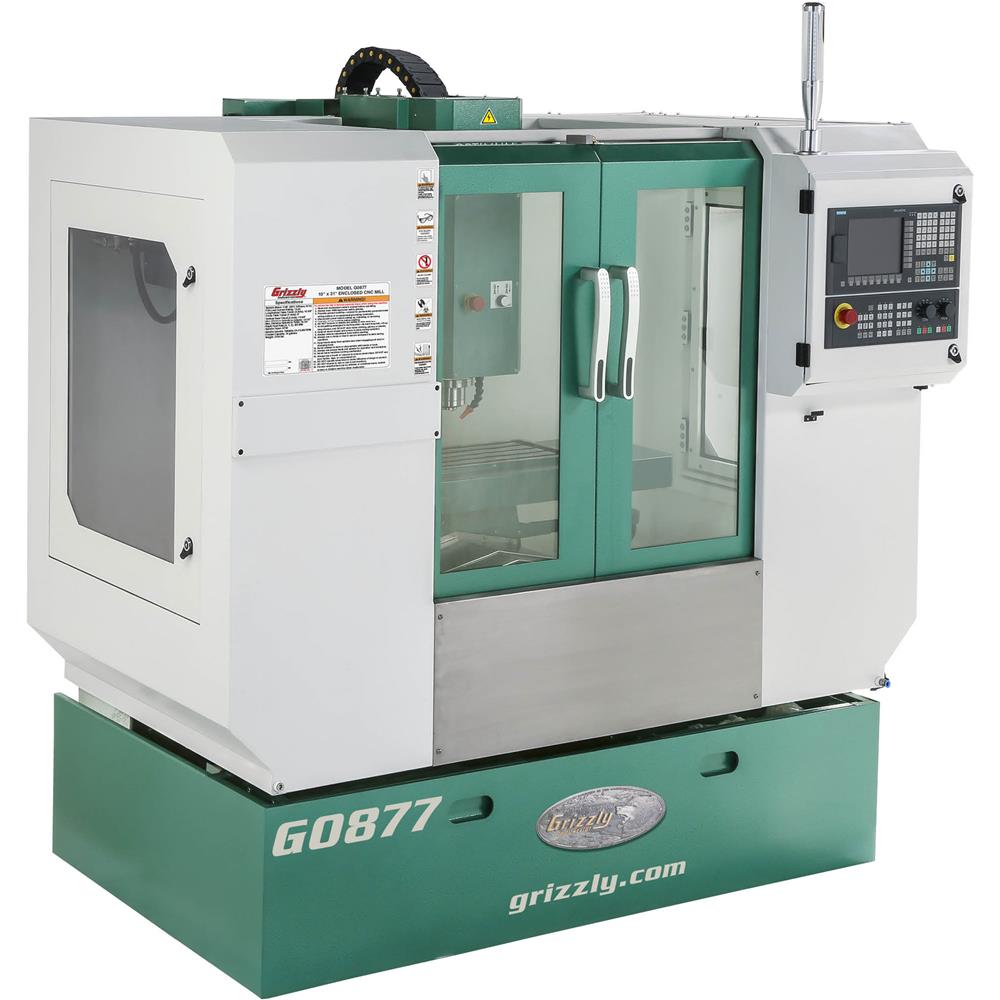

Enclosed Design
All of this is wrapped in an easy access enclosed cabinet with large viewing windows for safe operation and easy monitoring.
Key Features
- Siemens Sinumerik 808D CNC controller for easy programming

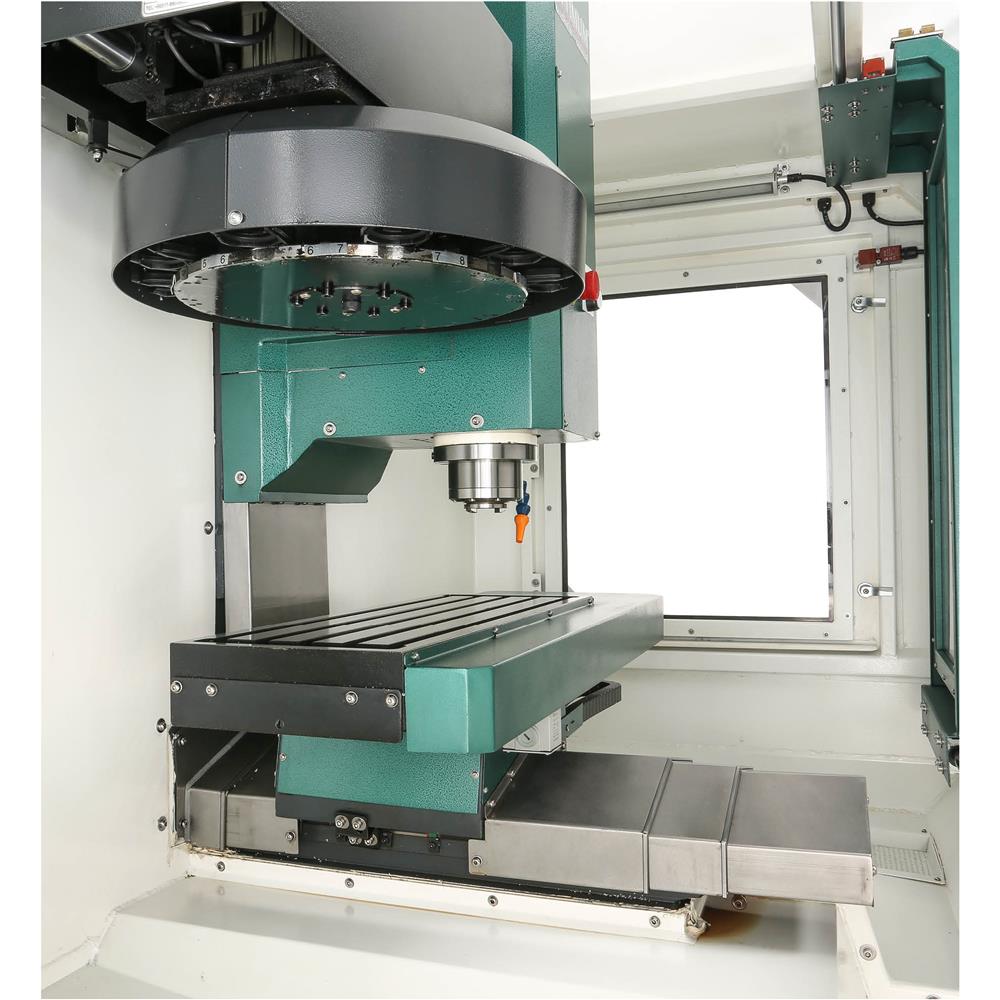

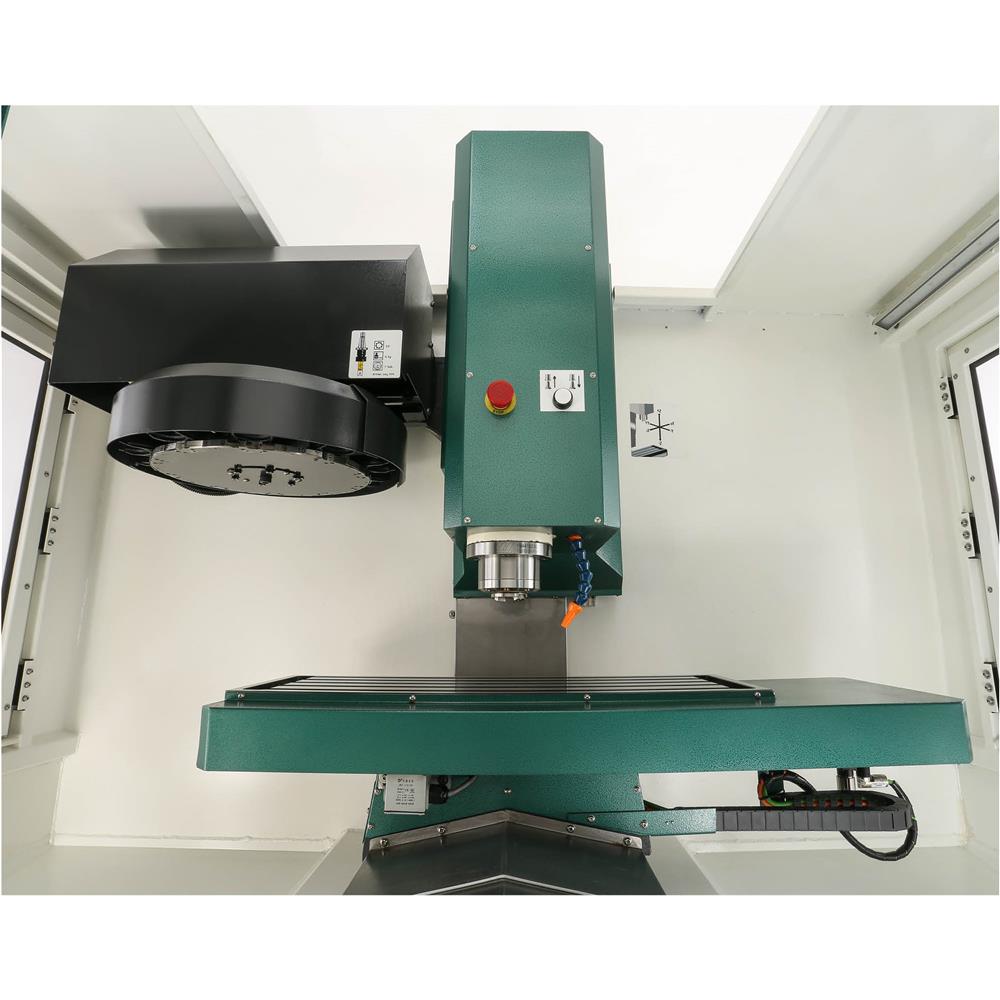

- 10-position automatic tool changer with 6-second tool change speed
- Servo motors with ball screws on all axes for precision
- Powerful 3 HP, 3-phase main motor
- Variable spindle speeds: 50-10,000 RPM
- BT30 spindle taper included
- Rapid table speeds up to 400 in./min.
- 42-gallon coolant tank capacity
- Easy access to table from three sides

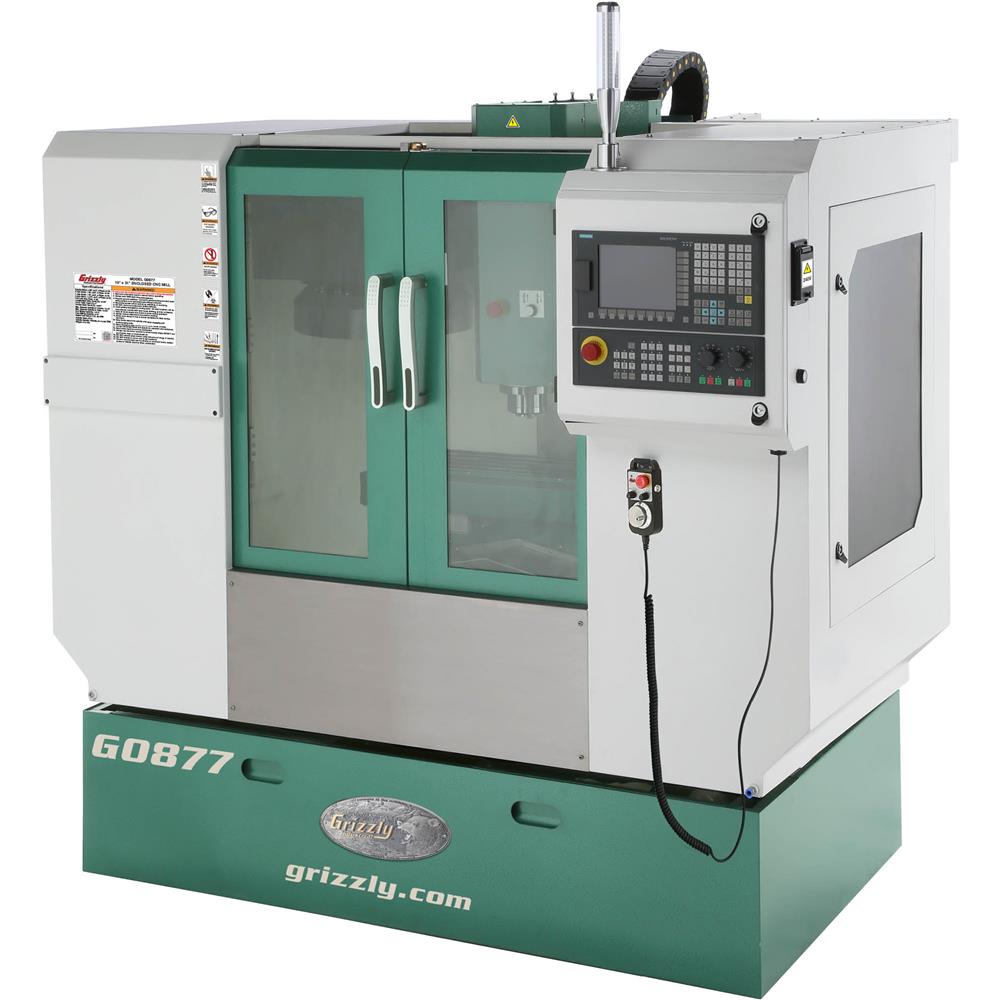

- Built-in pendant/hand controller
Specifications
- Table size: 10-1/4 inch x 31-1/2 inch
- Longitudinal travel: 15-5/8 inch
- Cross travel: 9 inch
- Vertical travel: 15-5/8 inch
- Position resolution: +-0.0008 inch
- Repeat position resolution: +-0.0005 inch
- Table weight capacity: 330 lbs.
- Max tooling weight: 13 lbs.
- Overall dimensions: 77 inch W x 68 inch D x 87 inch H
Quality and Support
Made in an ISO 9001 factory and backed by a 1-year warranty covering parts and factory defects. The Grizzly Customer Service and Technical Support Teams are U.S. based, and parts are available online and shipped from the Grizzly parts warehouse in Springfield, MO.
Note: Due to product size, this item must be delivered to a loading dock or unloaded with a forklift. Liftgate not available.
