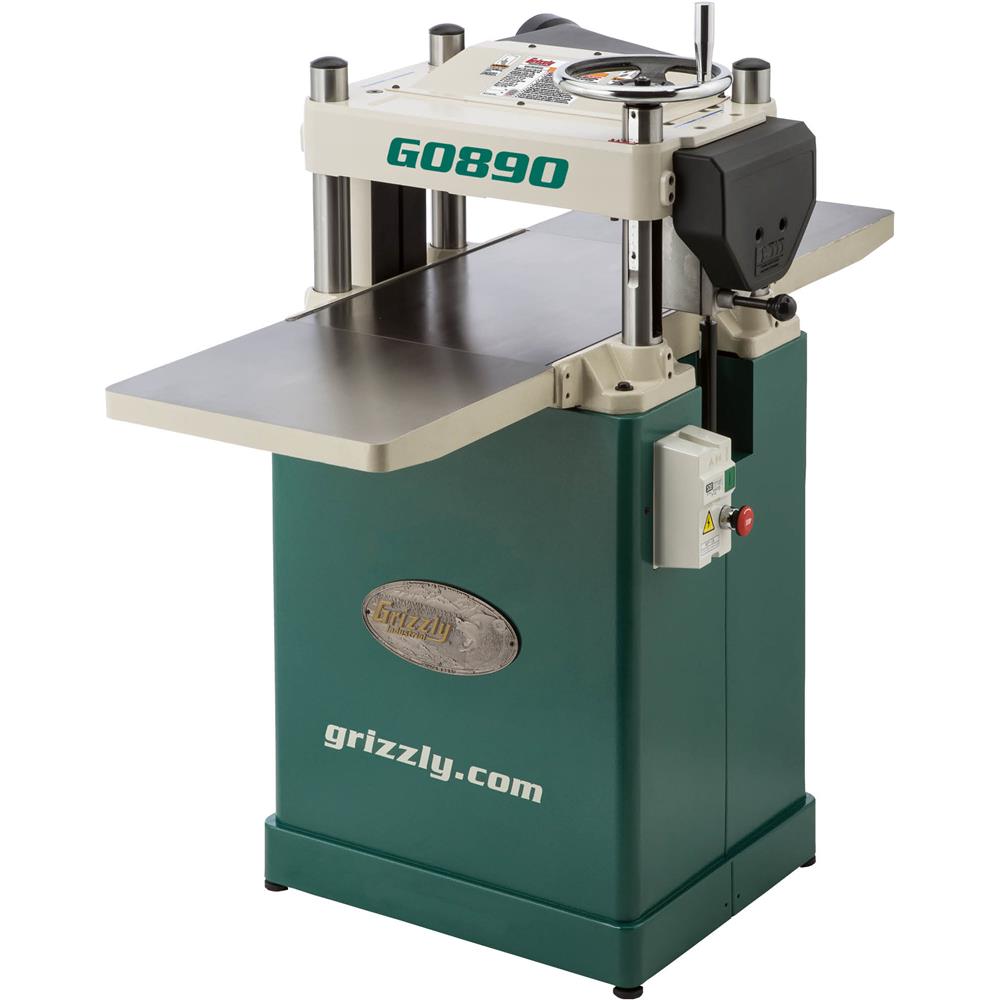

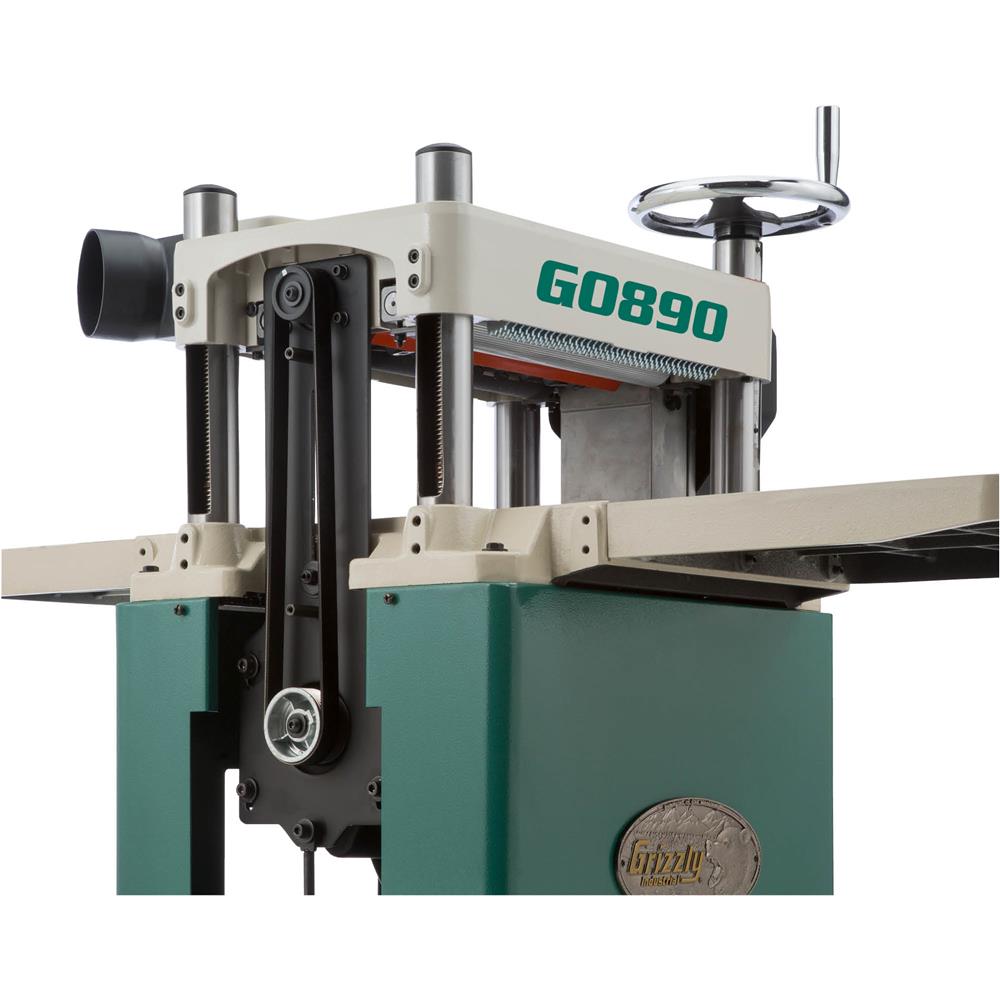

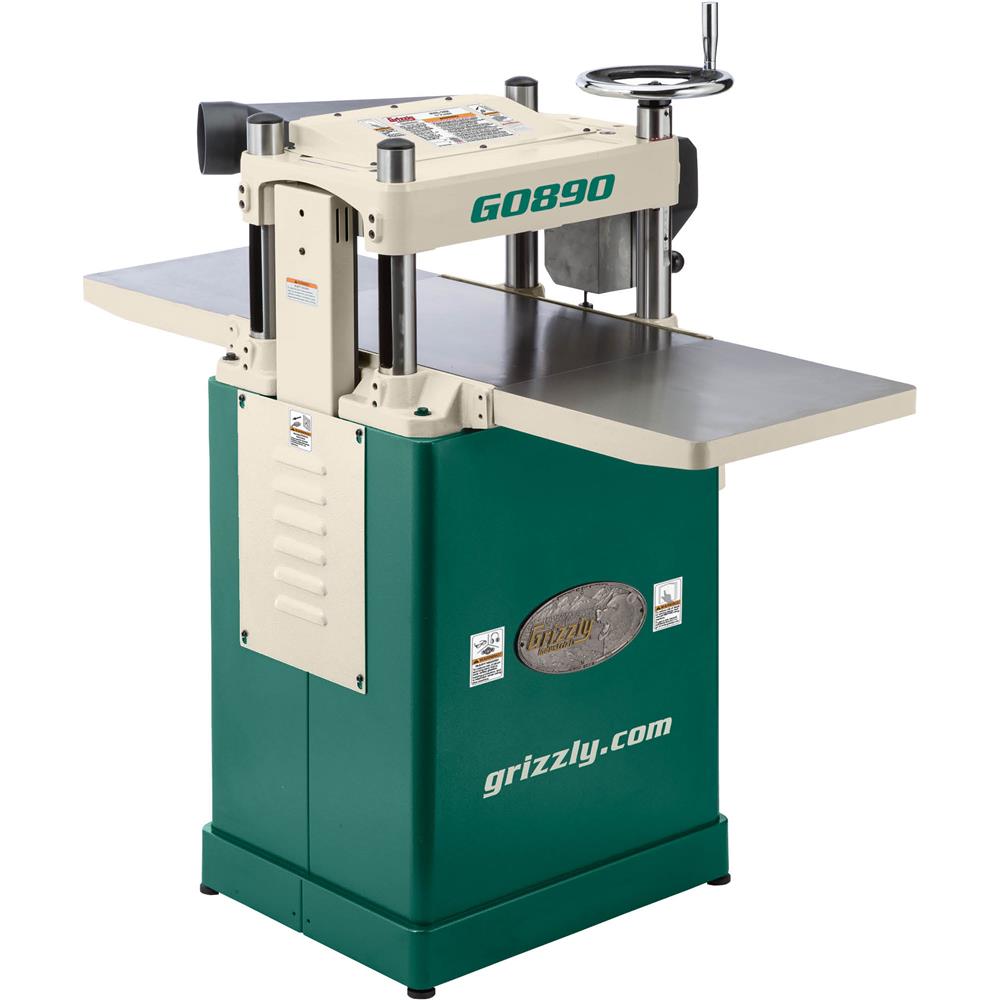

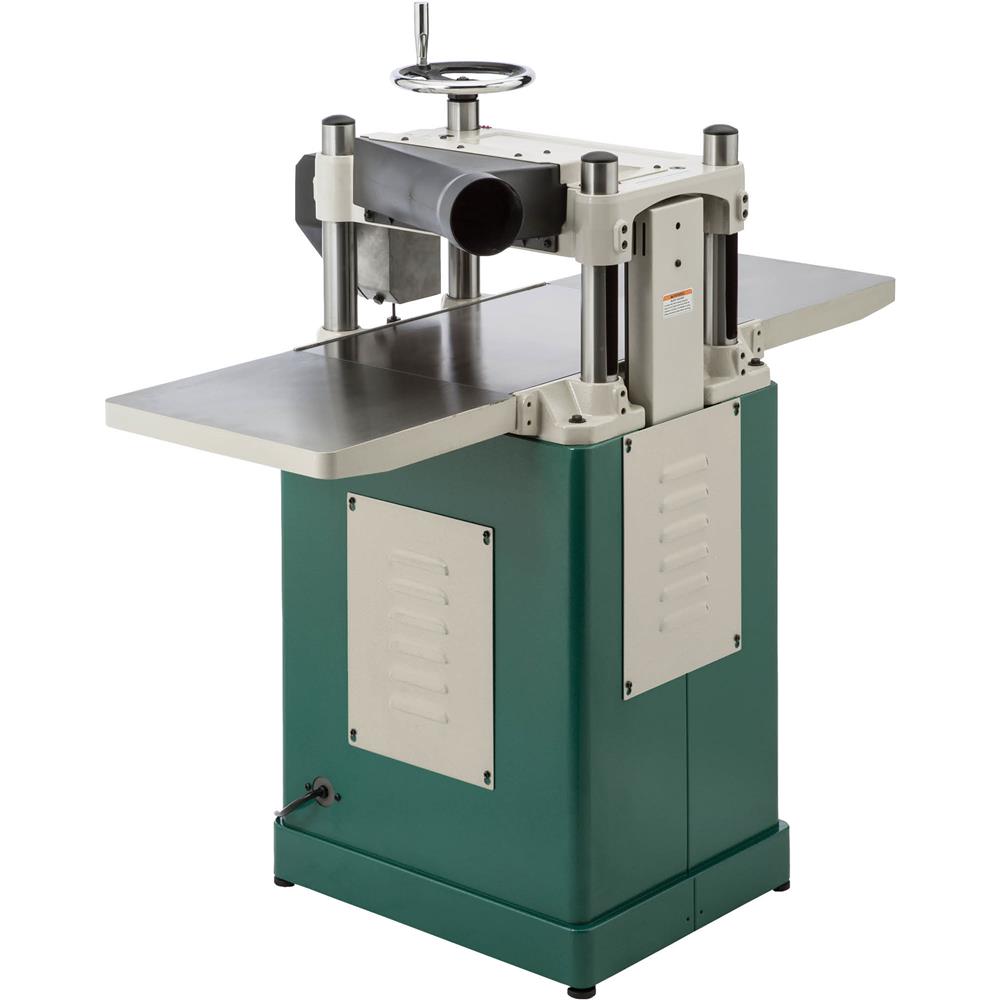

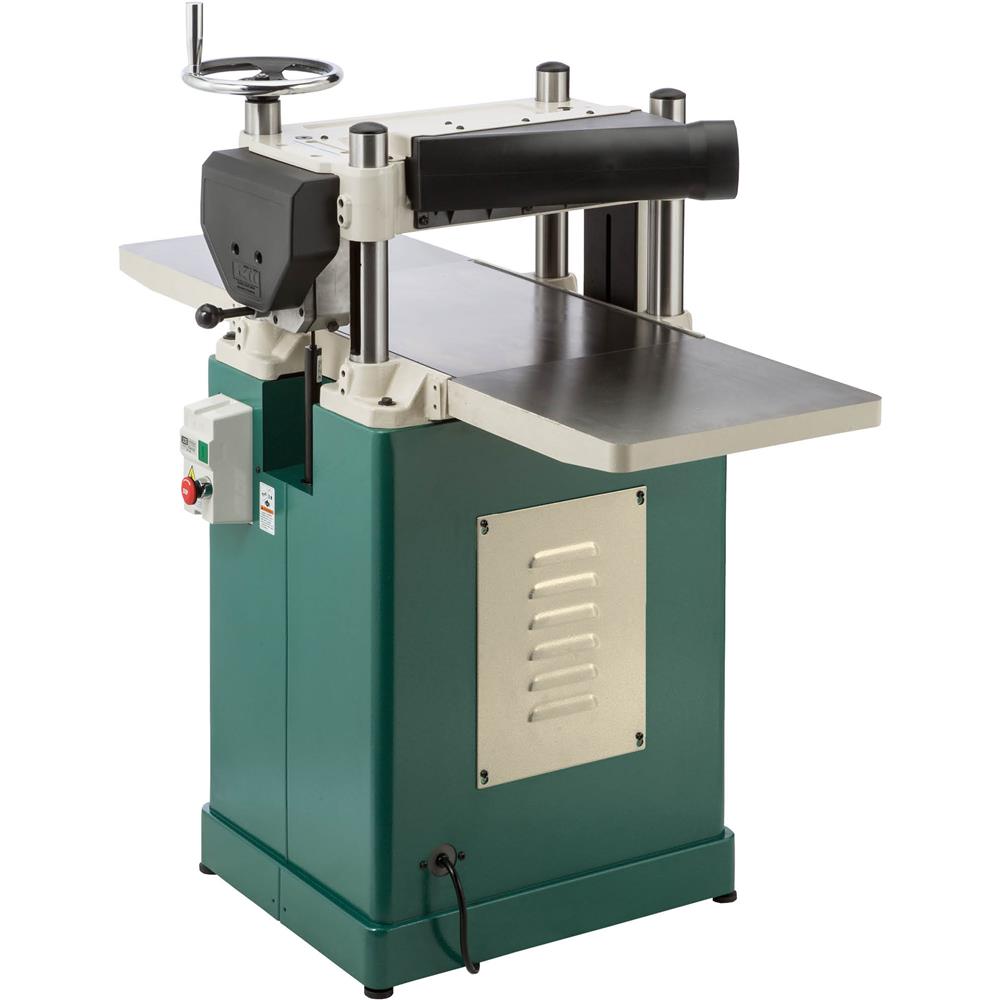

Professional 15 Inch Thickness Planer - Built for Production Woodworking
The Grizzly G0890 is a professional-grade 15 inch thickness planer designed to maximize efficiency in your woodworking shop. With its innovative fixed-table design and powerful 3 HP motor, this wood planer delivers consistent, precision results for both production runs and fine furniture making.
Why Choose the G0890 Fixed-Table Planer?
Revolutionary Fixed-Table Design: Unlike traditional planers, the G0890 features a fixed table height that allows you to set up permanent infeed and outfeed roller tables. This unique design dramatically increases productivity by eliminating constant table adjustments, making it perfect for high-volume production shops.

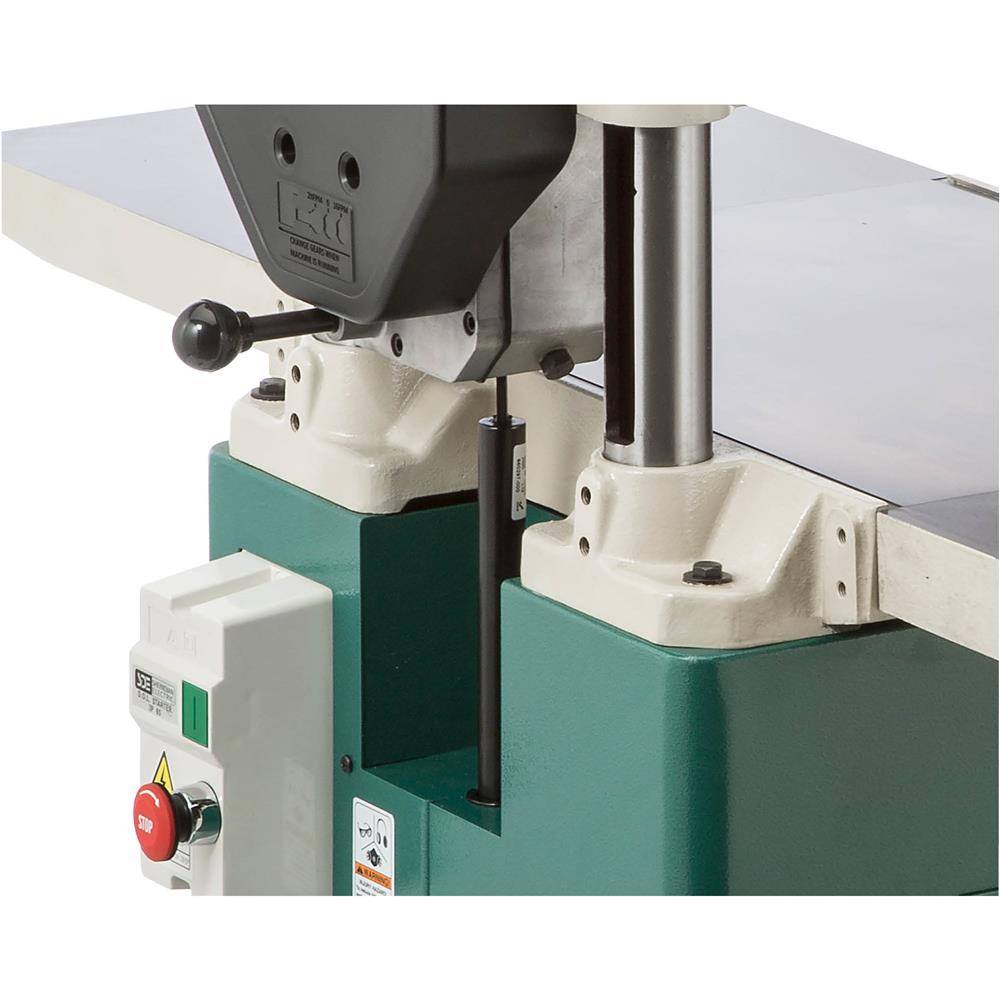

Effortless Thickness Adjustments: Twin gas struts provide smooth, easy lifting of the headstock to accommodate different board thicknesses. Your infeed and outfeed tables remain perfectly aligned while you adjust for material from 3/16 inch to 6 inches thick.
Professional 3 HP Power: The robust 230-volt, single-phase motor delivers reliable power for demanding applications. Cut up to 1/8 inch deep across the full 15 inch width, or take 3/16 inch deep cuts on material up to 6 inches wide.
Dual-Speed Versatility: The 2-speed gearbox gives you complete control over your planing operations. Select 16 FPM for smooth, glass-like finishing passes on hardwoods, or switch to 28 FPM for rapid stock removal and high-production rough planing.
Premium HSS Cutterhead: The 2-5/8 inch diameter, 3-knife cutterhead is equipped with heat-treated high-speed steel (HSS) blades. These professional-grade blades maintain their sharp edge significantly longer than standard carbon steel, reducing downtime and blade changes.
Professional Features for Serious Woodworkers
The G0890 thickness planer is built with professional-grade components throughout. The heavy-duty cabinet-style stand provides rock-solid stability, while the cast-iron extension tables create an expansive 57 inch by 25 inch work surface for handling long boards with ease.
Additional features include a precision thickness scale for accurate depth settings, a large top-mounted handwheel for smooth adjustments, an angled 4 inch dust port for efficient chip collection, and a magnetic switch with thermal overload protection for safe operation.
Complete Technical Specifications
- Motor: 3 HP, 230V, single-phase, 12A
- Minimum circuit requirement: 20A
- Maximum stock width: 15 inches
- Maximum stock thickness: 6 inches
- Minimum stock thickness: 3/16 inch
- Minimum stock length: 6 inches
- Maximum cut depth at full width: 1/8 inch
- Maximum cut depth at 6 inch width: 3/16 inch
- Cutterhead diameter: 2-5/8 inches
- Cutterhead configuration: 3-Knife with HSS blades
- Knife dimensions: 15 x 1 x 1/8 inch, HSS
- Cutterhead speed: 5200 RPM
- Feed rates: 16 FPM and 28 FPM
- Table dimensions: 57 L x 25 W inches
- Dust collection port: 4 inches
- Machine footprint: 21 x 18-1/2 inches
- Overall dimensions: 25 W x 49 L x 47-1/2 H inches
- Shipping weight: 374 lbs
Grizzly Quality and Support
Manufactured in an ISO 9001 certified factory and CSA certified for safety compliance. Every G0890 comes with a comprehensive manual written by Grizzly's U.S.-based Technical Documentation Department, packed with setup instructions, maintenance tips, and troubleshooting guidance.
Backed by Grizzly's 1-year warranty and supported by U.S.-based Customer Service and Technical Support teams. Replacement parts and accessories are readily available online and ship quickly from the Grizzly parts warehouse in Springfield, Missouri.
Investment in Long-Term Performance
The G0890 15 inch thickness planer is engineered to be your workshop workhorse for decades. Its fixed-table design, professional-grade construction, and powerful performance make it an essential tool for cabinet makers, furniture builders, millwork shops, and serious woodworking enthusiasts who demand precision and productivity.
Experience the efficiency advantage of fixed-table planing technology. Order your Grizzly G0890 professional thickness planer today and transform your woodworking production.
