G0988 32" Planer with V-Helical Cutterhead
Wide-capacity planing, tailored for the pro.
Designed to tackle the challenges of planing wide stock up to 32", the G0988 Planer will make your life easier as a professional woodworker. With its combination of precision, power, and ease of use, this planer effortlessly handles live-edge tabletops, large edge-glued panels, countertops, and more.
A 6-row V-helical cutterhead with 201 indexable carbide inserts delivers a 32" capacity, reducing noise, minimizing tearout, improving finishes, and efficiently directing chips for dust collection.
This wide planer offers an extensive list of features designed to maximize productivity and efficiency.
FEATURES:
- 15 HP motor for unstoppable power

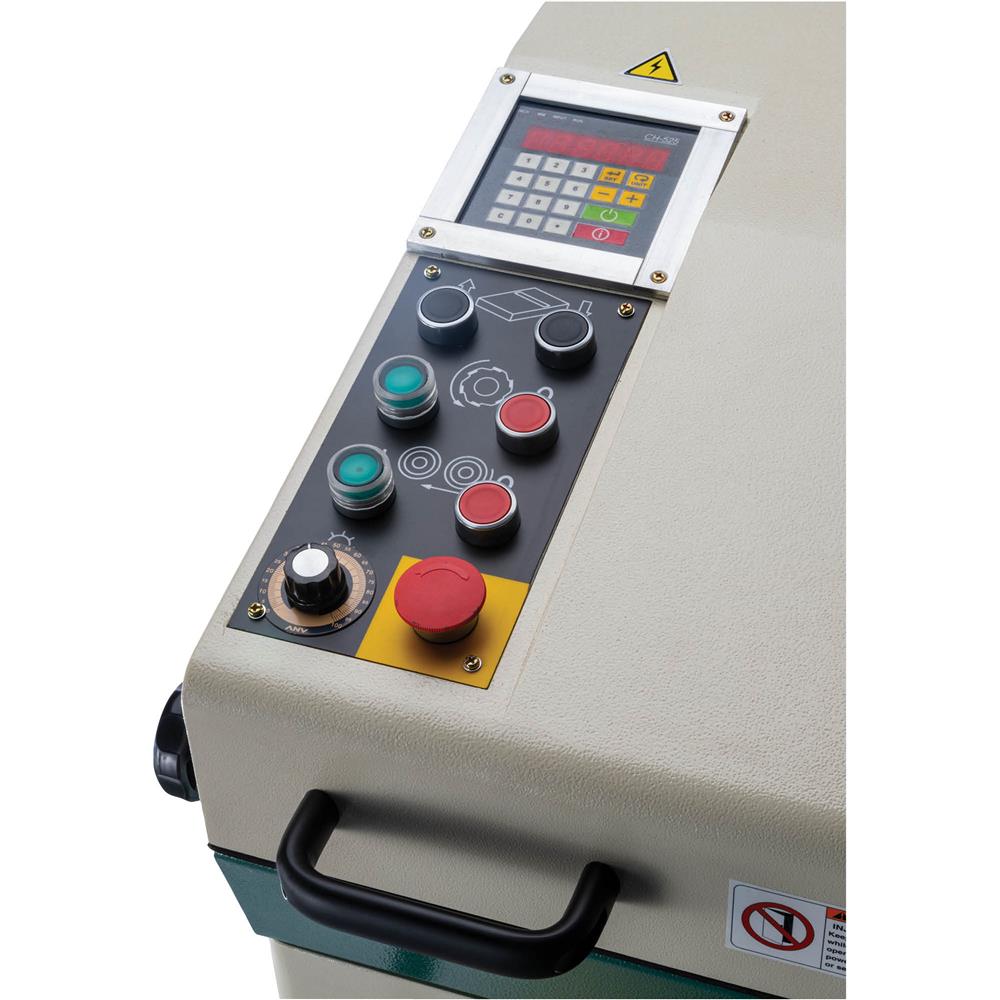

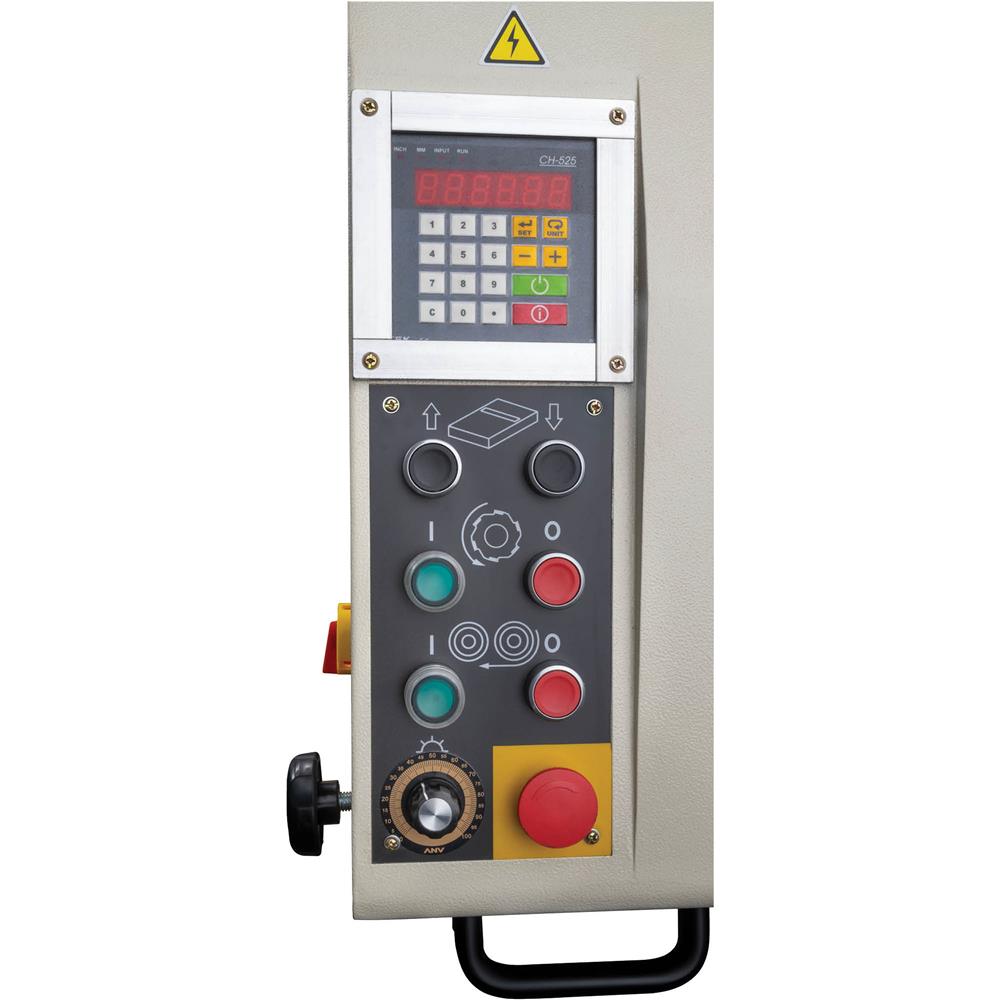

- Digitally controlled table elevation with 5 presets for repeat production
- Hinged headstock cover for easy access to cutterhead
- Built-in steel infeed roller for easy board feeding
- Chain-driven feed rollers ensure reliable and consistent feed rate
- Smooth polyurethane-coated steel outfeed roller prevent material slippage
- Anti-kickback fingers significantly reduce the risk of kickback incidents
- Secondary, rear-mounted e-stop button for added safety
- Heavy-duty steel construction throughout
- Two 5" dust ports optimize dust extraction
Keep your live-edge table production, custom furniture manufacturing, and high-end cabinetry projects on time and on budget with this heavy-duty planer! Experience the solution for wide stock planing with the G0988 Planer.
SPECIFICATIONS:
- Required power source: 220V or 440V, 3-phase, min. 60A circuit at 220V, 30A at 440V
- Main motor: 15 HP, 220V/440V* (prewired for 220V)
- Feed motor: 2 HP
- Elevation motor: 1/2 HP
- Maximum stock width: 32"
- Maximum stock thickness: 11-3/4"
- Minimum stock thickness: 1/4"
- Minimum stock length: 16-1/2"
- Maximum cutting depth full width: 1/8"
- Maximum cutting depth 6": 1/4"
- Cutterhead diameter: 5"
- Cutterhead type: 6-Row helical, 201 inserts
- Cutterhead speed: 5200 RPM
- Insert size & type: 15 x 15 x 2.5mm, indexable carbide
- Feed rate: Variable, 16–59 FPM
- Table size: 32" x 39-3/8"
- Dust port: 2 at 5"
- Footprint: 26-1/2" x 37"
- Overall dimensions: 53" W x 43" D x 51" H
- Approximate shipping weight: 2670 lbs.
