Professional 5x6 Metal Cutting Bandsaw with Swivel Head

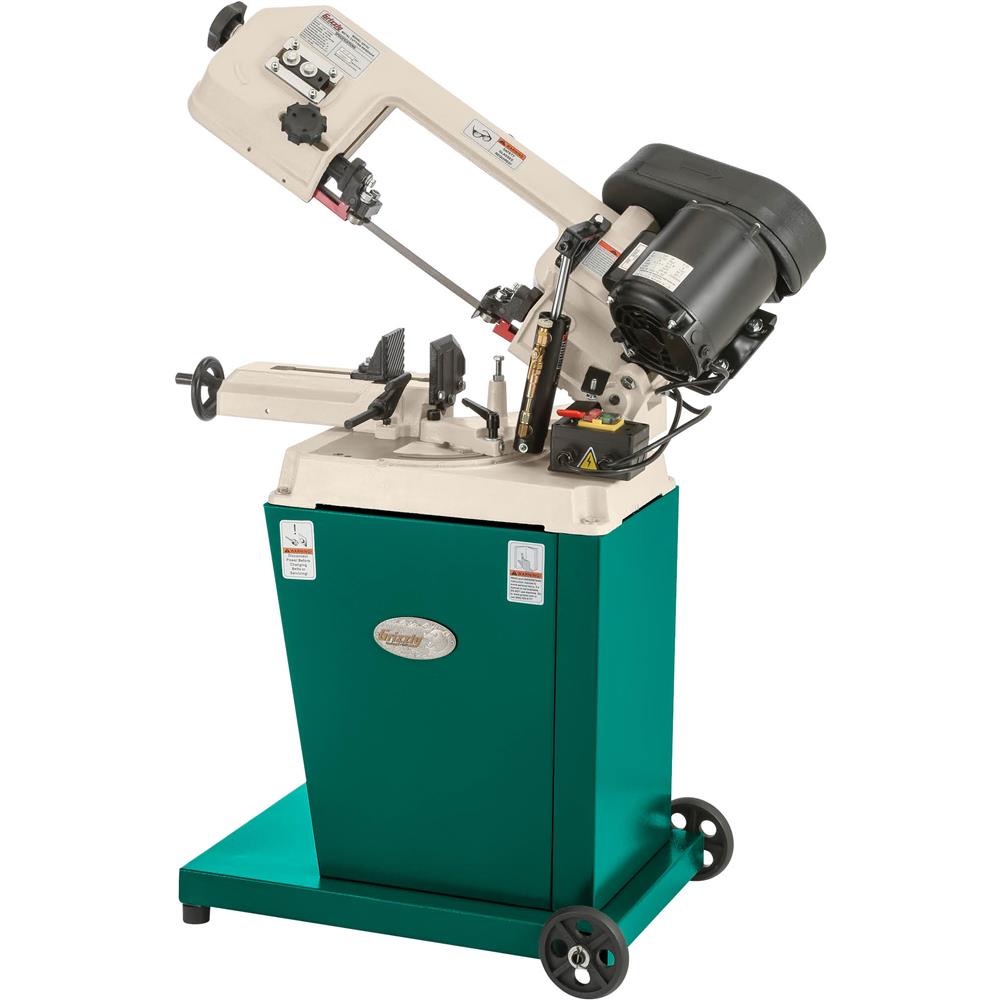

The Grizzly G9742 is a versatile metal cutting bandsaw designed for both small and large fabrication shops. With its innovative swivel head design and robust 1/2 HP motor, this horizontal bandsaw delivers precision cuts on round and rectangular metal stock up to 5 inches by 6 inches.
Why Choose the G9742 Metal Cutting Bandsaw?
Revolutionary Swivel Head Design: What sets the G9742 apart from other metal cutting bandsaws in its class is the swivel head capability. Cut angles from -45 degrees to 60 degrees without changing your vise backing jaw. This innovative feature saves time and increases productivity by eliminating the need to reposition workpieces for angled cuts.

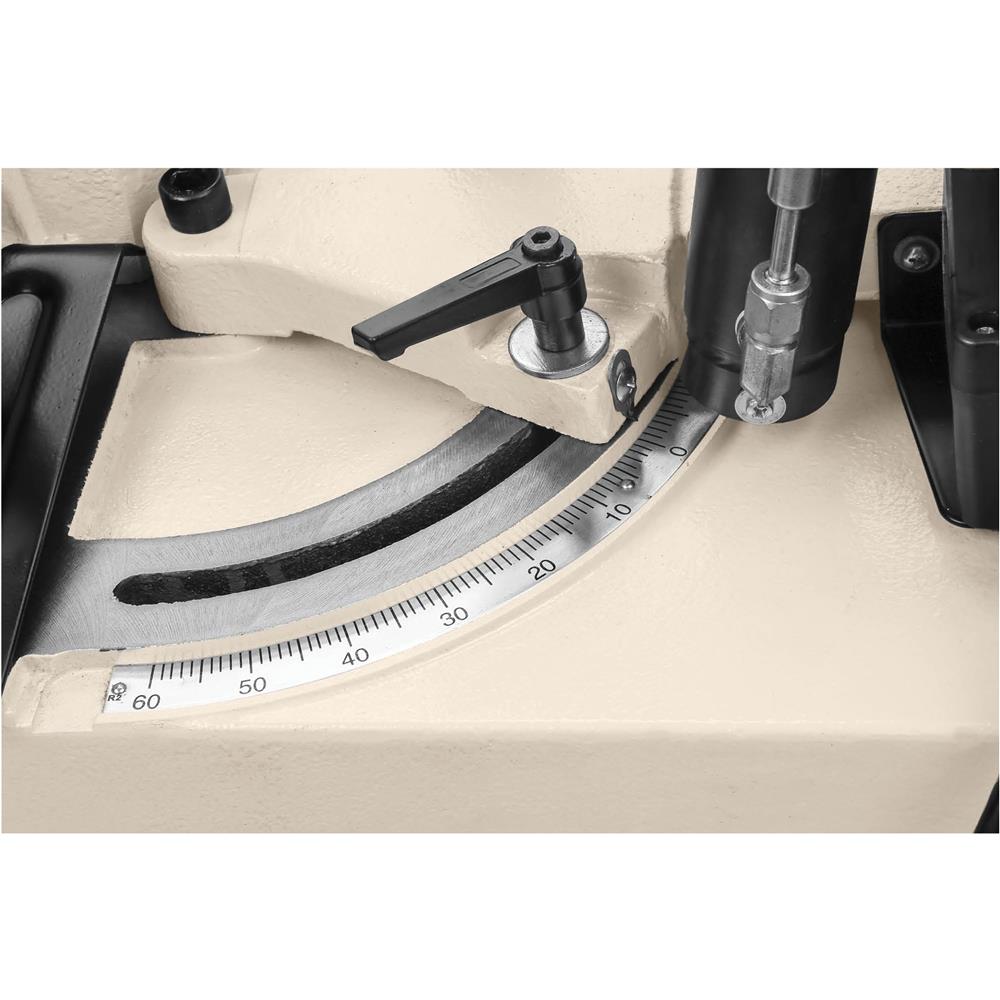

Easy Angle Adjustments: The head swivel features convenient stops at all the right angles, making it quick and easy to set up for common cuts. No more struggling with vise jaw changes just to get a 45 degree cut - simply swivel the head to your desired angle.
Superior Workpiece Support: The rigid vise backing jaw is taller than traditional designs, providing better support for your workpiece during cutting operations. This results in more accurate cuts and improved safety.
Three Blade Speeds: The 1/2 HP motor powers the 64-1/2 inch blade at three different speeds: 80, 120, and 200 feet per minute. This versatility allows you to optimize cutting speed for different materials, from soft aluminum to hard steel.

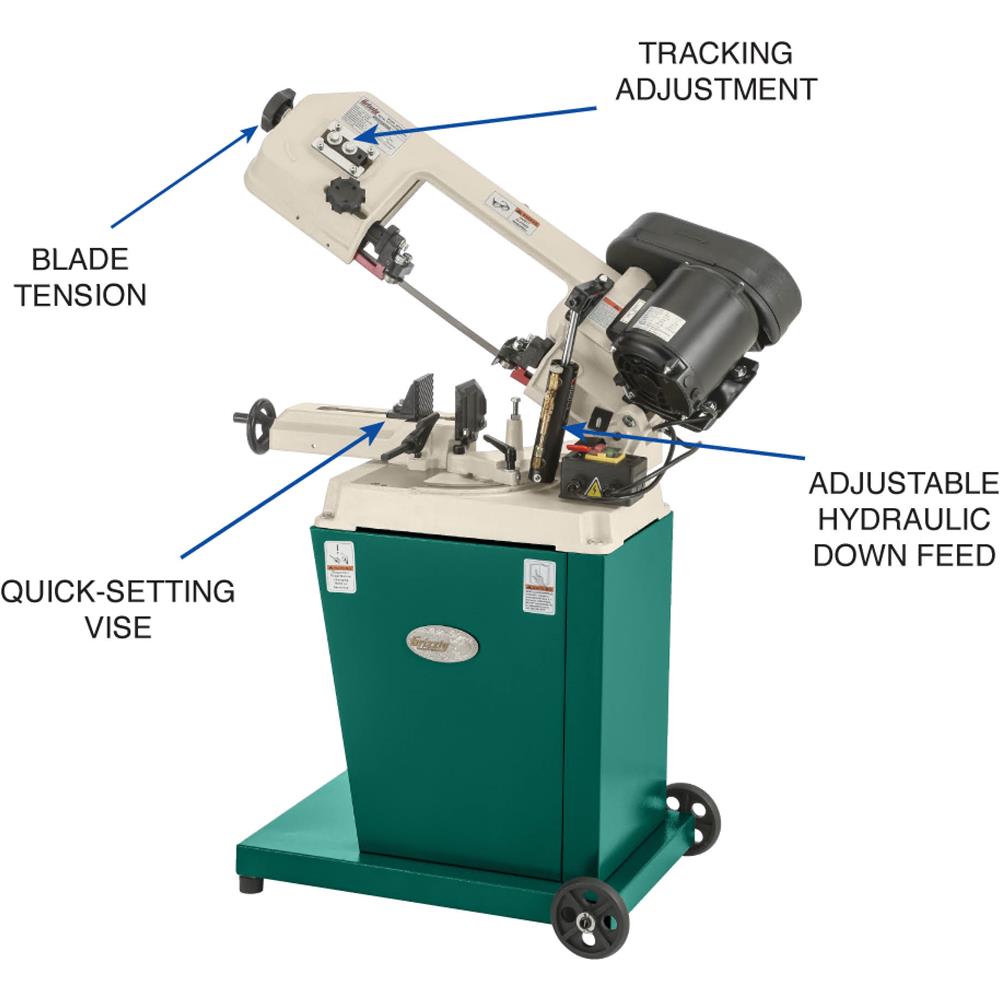

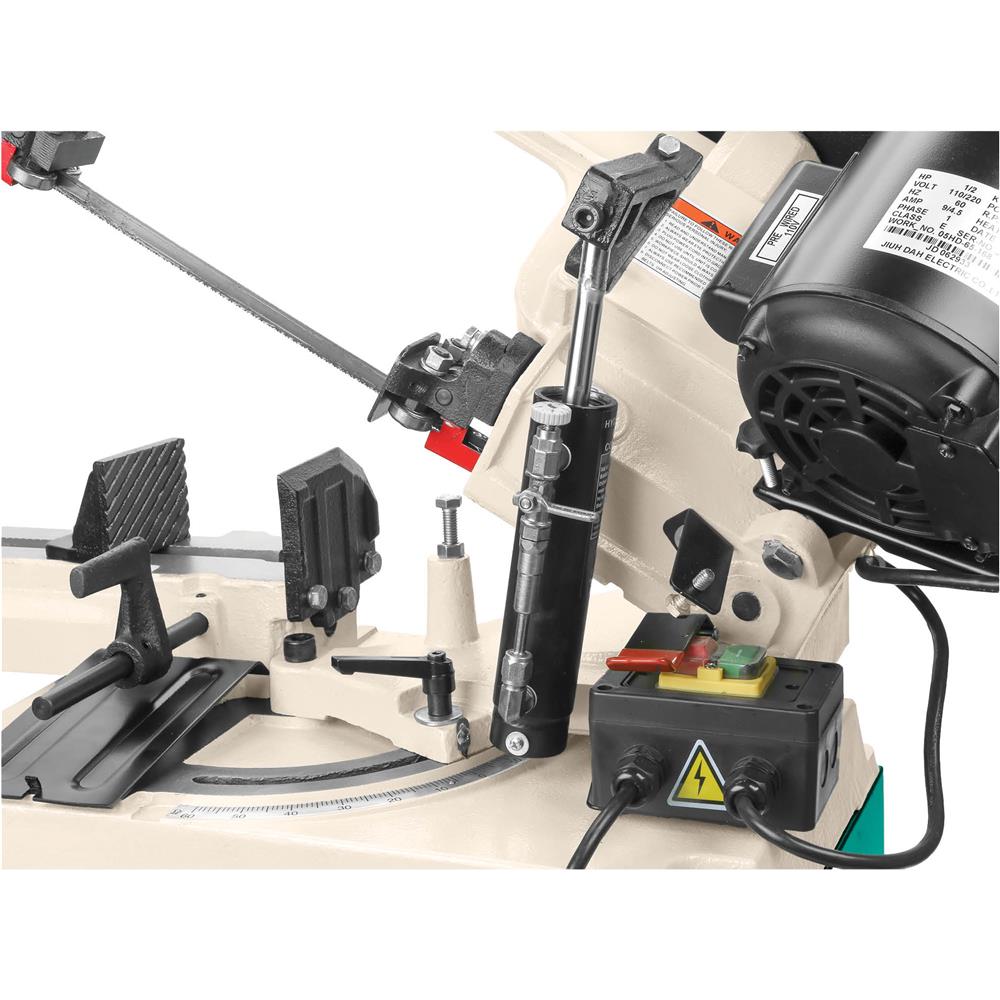

Hydraulic Feed Control: Precision hydraulic downfeed with adjustable feed rate gives you complete control over cutting speed. The valve lever and feed rate dial on the hydraulic cylinder allow you to fine-tune the cutting action for optimal blade life and cut quality.
Impressive Cutting Capacity
The G9742 metal bandsaw handles a wide range of stock sizes with ease:
At 90 Degrees: Cut round stock up to 5 inches in diameter or rectangular material up to 5 inches by 6 inches.
At 45 Degrees: Handle round stock up to 3-3/4 inches or rectangular material up to 2-15/16 inches by 3-3/4 inches.
At 60 Degrees: Cut round stock up to 1-3/4 inches or rectangular material up to 2-3/16 inches by 1-3/4 inches.
Professional Features for Metal Fabrication
The G9742 is built with professional-grade features throughout. The conveniently located control panel puts all functions within easy reach. Ball-bearing upper and lower blade guides ensure smooth operation and extended blade life.

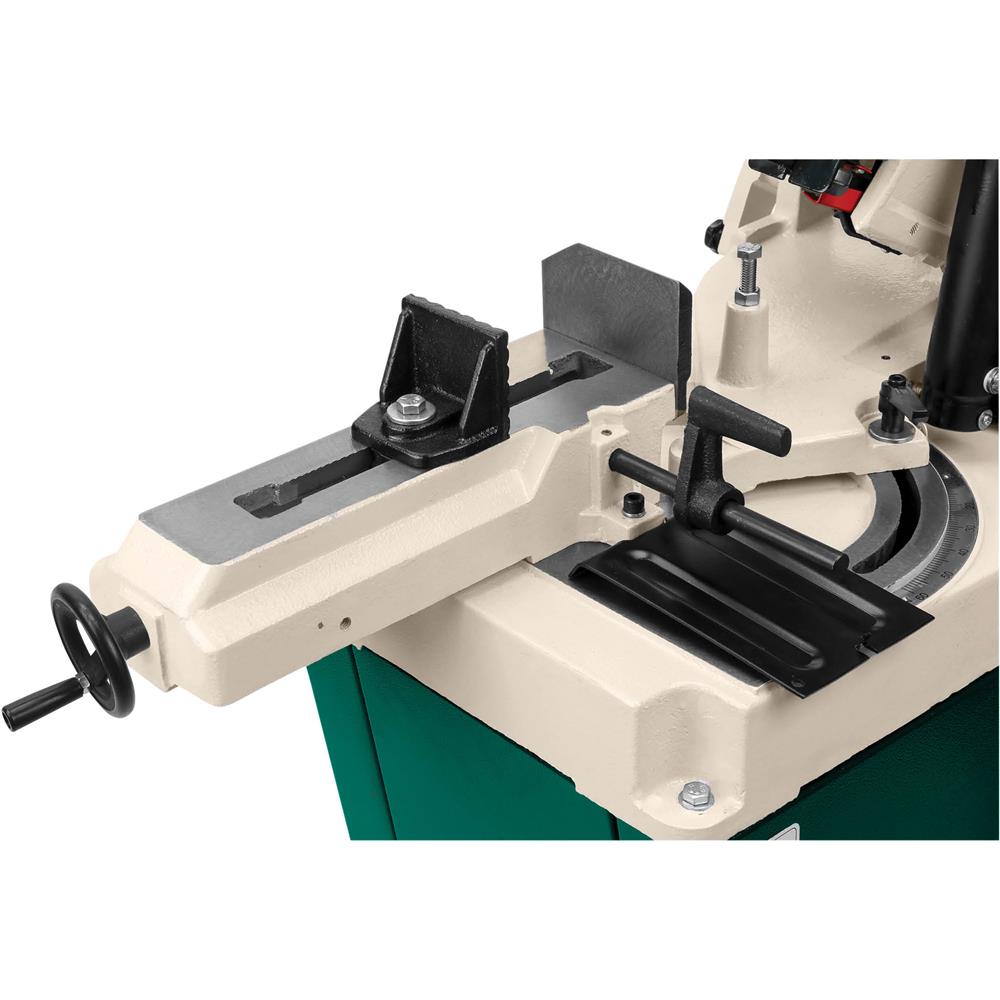

The quick-release vise allows for rapid workpiece changes, maximizing productivity in production environments. The 2-1/2 inch tall vise jaws with 4-3/8 inch depth provide secure clamping for a variety of stock sizes.
Easy access wheels make blade changes quick and simple, minimizing downtime. The 4-1/2 inch by 12 inch work table provides a stable surface at a comfortable 29 inch floor-to-table height.
Complete Technical Specifications
- Motor: 1/2 HP, 110V/220V (prewired 110V), single-phase, 8.8A/4.4A
- Blade size: 64-1/2 x 1/2 inch
- Included blade: 64-1/2 x 1/2 inch, 15 TPI
- Blade speeds: 80, 120, 200 FPM
- Angle cut range: -45 degrees to 60 degrees
- Cutting capacity at 90 degrees - Round: 5 inches
- Cutting capacity at 90 degrees - Rectangular: 5 x 6 inches
- Cutting capacity at 45 degrees - Round: 3-3/4 inches
- Cutting capacity at 45 degrees - Rectangular: 2-15/16 x 3-3/4 inches
- Cutting capacity at 60 degrees - Round: 1-3/4 inches
- Cutting capacity at 60 degrees - Rectangular: 2-3/16 x 1-3/4 inches
- Vise jaw height: 2-1/2 inches
- Vise depth: 4-3/8 inches
- Table size: 4-1/2 x 12 inches
- Floor-to-table height: 29 inches
- Machine footprint: 26-1/2 x 20-1/2 inches
- Overall dimensions: 39 W x 23-3/8 D x 54-3/4 H inches
- Shipping weight: 168 lbs
Premium Construction Features
- Swivel head with angle cuts from -45 to 60 degrees
- Convenient angle stops for quick setup
- Ball-bearing upper and lower blade guides
- Adjustable hydraulic downfeed control
- Valve lever and feed rate dial for precise control
- Quick-release vise for rapid workpiece changes
- Tall, rigid vise backing jaw for superior support
- Easy access wheels for quick blade changes
- Control panel conveniently located
- Dual voltage capability (110V/220V)
- Includes 64-1/2 x 1/2 inch, 15 TPI blade
Grizzly Quality and Support
Manufactured in an ISO 9001 certified factory for consistent quality. The comprehensive G9742 manual is written by Grizzly's U.S.-based Technical Documentation Department and includes detailed setup instructions, operation guidelines, maintenance procedures, and troubleshooting tips.
Replacement blades for the G9742 are readily available in various tooth configurations to handle different materials and cutting applications. Shop the full range of compatible blades to keep your saw performing at its best.
Ideal for Metal Fabrication and Machine Shops
The G9742 metal cutting bandsaw is perfect for fabrication shops, machine shops, maintenance departments, and metalworking professionals who need a reliable, versatile cutting solution. The swivel head design eliminates the time-consuming process of repositioning workpieces for angle cuts, dramatically improving productivity.
Whether you're cutting steel, aluminum, brass, or other metals, the G9742's three-speed capability and hydraulic feed control ensure optimal cutting performance and blade life. The compact footprint makes it ideal for shops with limited space, while the professional features deliver the performance of much larger machines.
Experience the efficiency and versatility of swivel head technology. Order your Grizzly G9742 metal cutting bandsaw today and transform your metal cutting operations.
