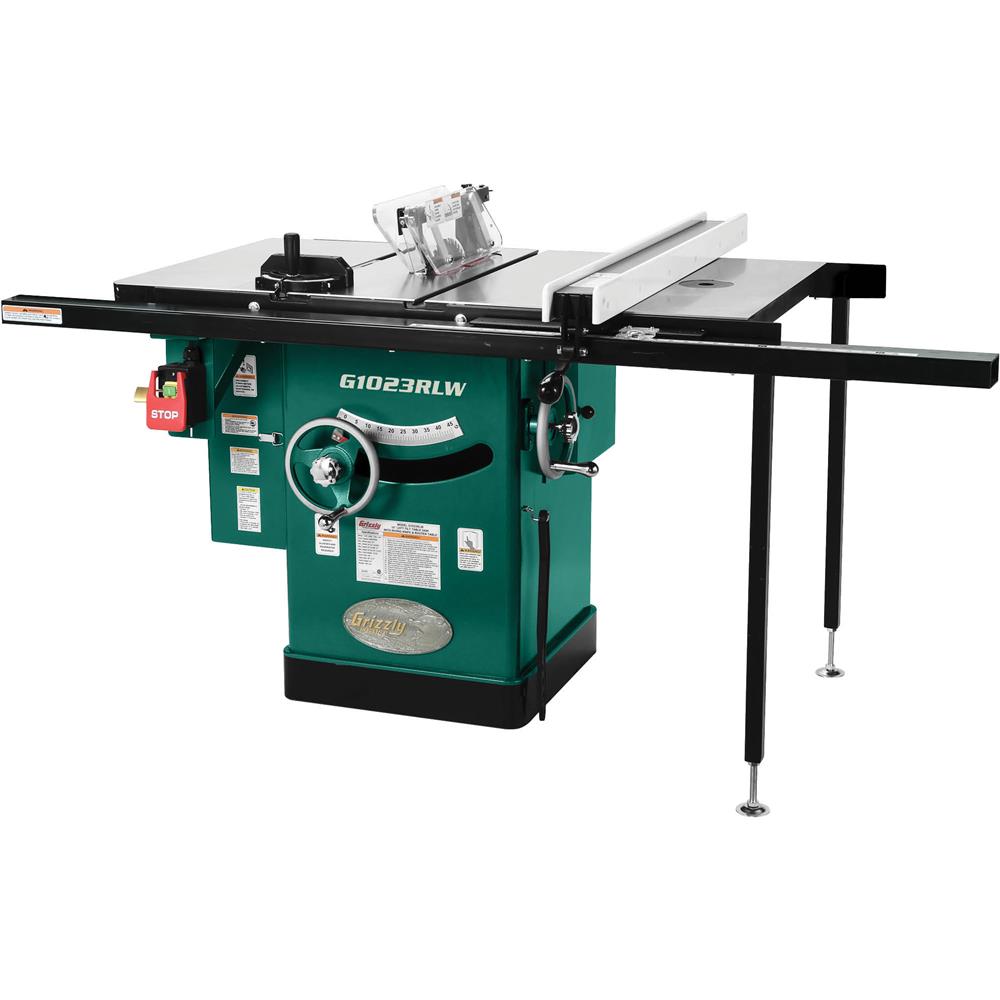

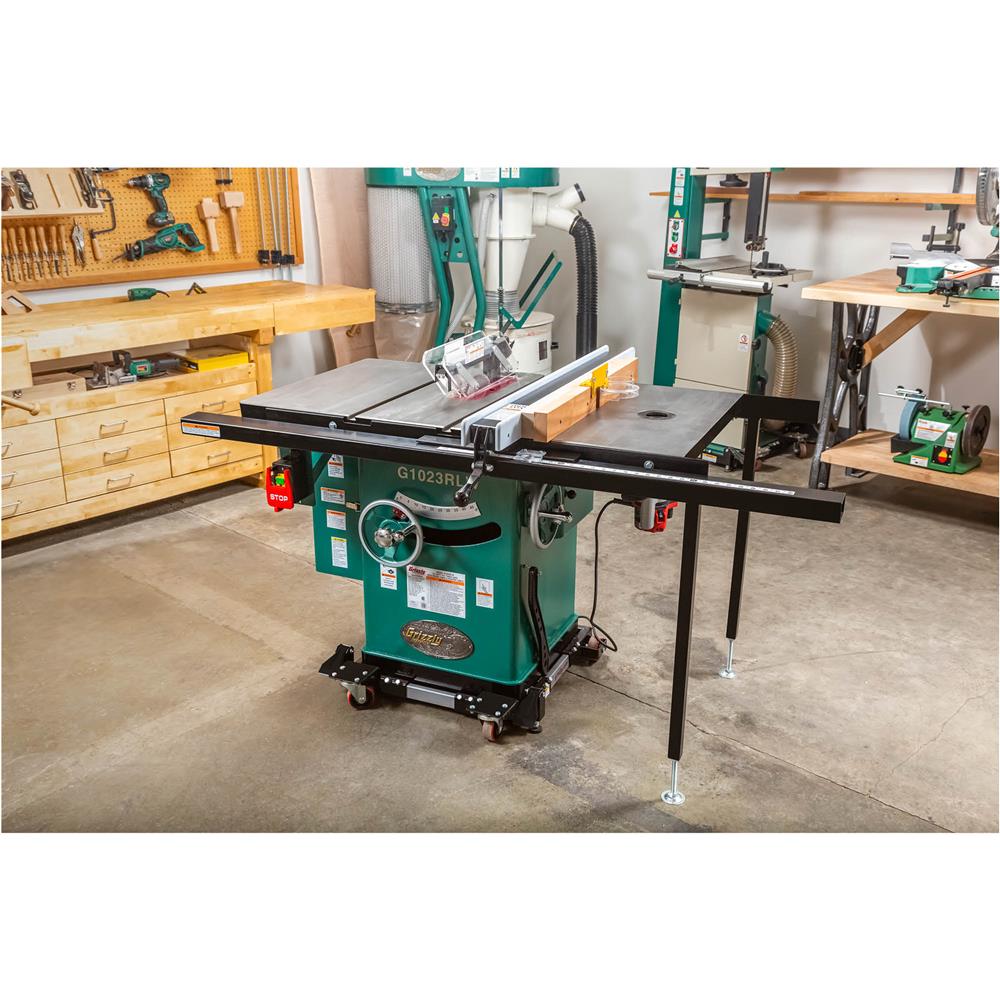

Professional 10 Inch Cabinet Table Saw with Built-in Router Table
The Grizzly G1023RLW is the ultimate 2-in-1 woodworking solution, combining a premium 10 inch cabinet table saw with an integrated cast-iron router table extension. This professional-grade hybrid system delivers exceptional versatility and performance for serious woodworkers, cabinet makers, and production shops.
Why Choose the G1023RLW Cabinet Table Saw?
Built-in Router Table Extension: This innovative design features a cast-iron router table that doubles as a table extension wing, eliminating the need for a separate router table in your shop. The integrated system includes support legs and a universal T-track router clamping system for secure, precise routing operations.

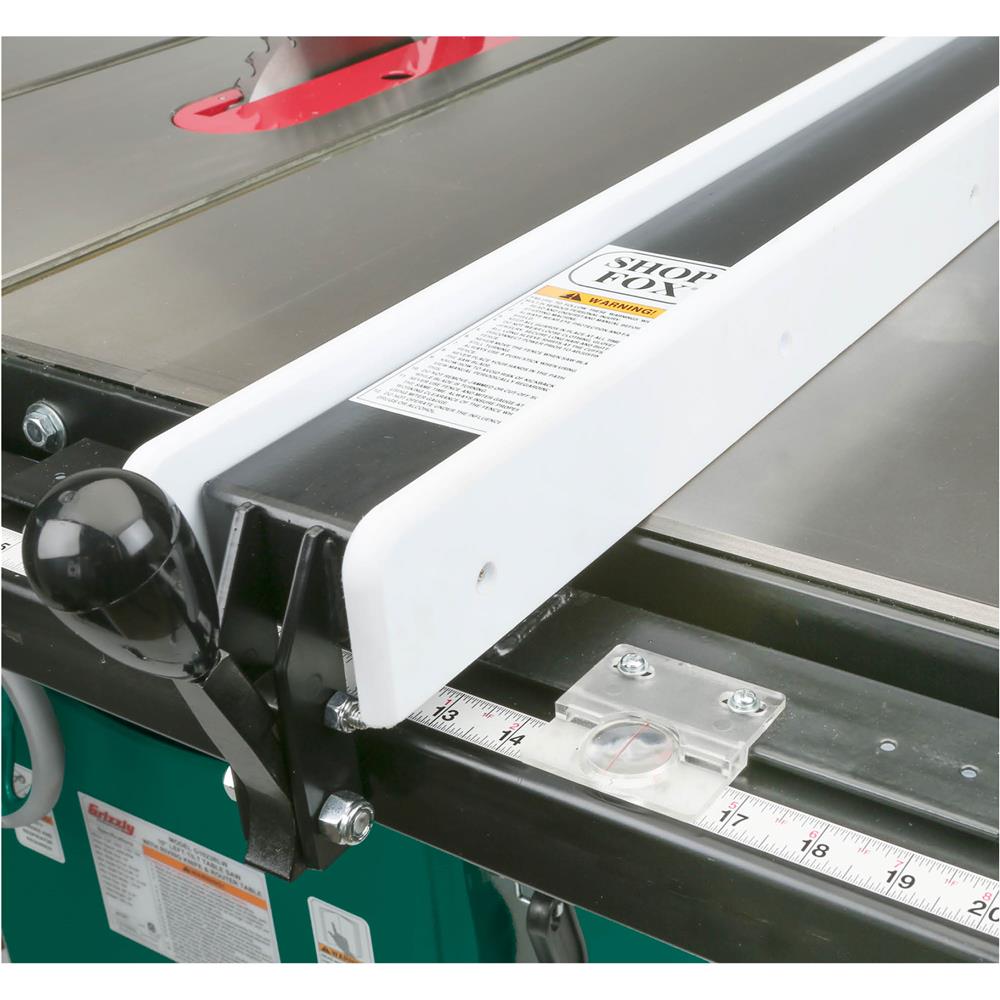

Dual-Purpose Shop Fox Fence: The included Shop Fox Classic Fence serves double duty as both your table saw fence and router table fence. This clever design provides exceptional convenience and accuracy for both sawing and routing operations, making it more efficient than using separate tools.

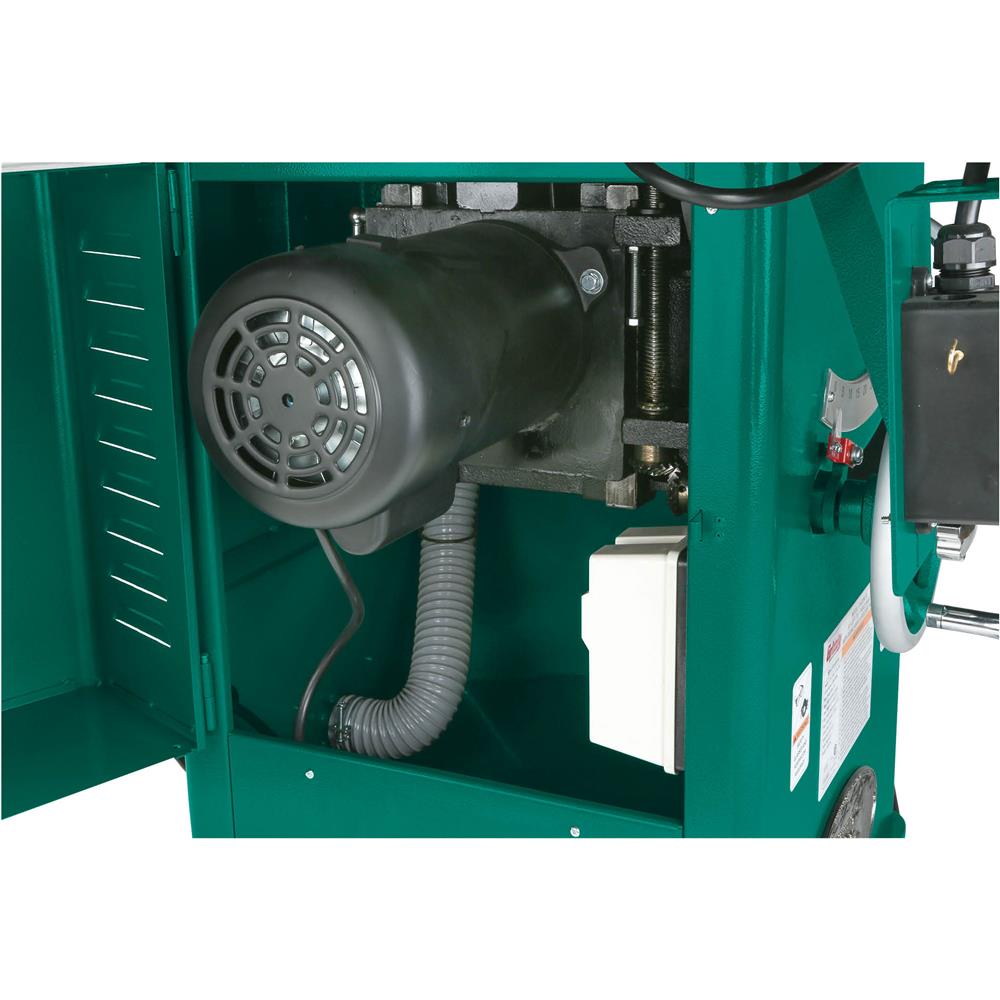

Professional 3 HP Power: The robust 240-volt, single-phase, 3 HP motor delivers consistent power for demanding applications. With 4200 RPM arbor speed and the ability to handle dado stacks up to 13/16 inch wide, this saw tackles everything from ripping hardwoods to cutting precise joinery.
Generous Rip Capacity: Cut large panels and sheet goods with ease thanks to the impressive 32 inch rip capacity to the right of the blade and 14 inches to the left. The precision-ground cast-iron table measures 48 inches wide by 27 inches deep, providing a stable, flat surface for accurate cuts.
Superior Cutting Depth: Achieve maximum depth of cut at 90 degrees of 3 inches and 2-1/8 inches at 45 degrees, allowing you to work with thick hardwoods and dimensional lumber with confidence.
Professional Features for Serious Woodworking
The G1023RLW is engineered with professional-grade components throughout. The precision-ground cast-iron table ensures flatness and durability, while the one-piece steel cabinet-type stand provides rock-solid stability and superior dust collection capabilities.
Extra-large handwheels make arbor adjustments smooth and precise. The quick-change riving knife and blade guard system allows for fast setup changes, while the 29mm and 60mm opening table inserts accommodate different blade configurations.

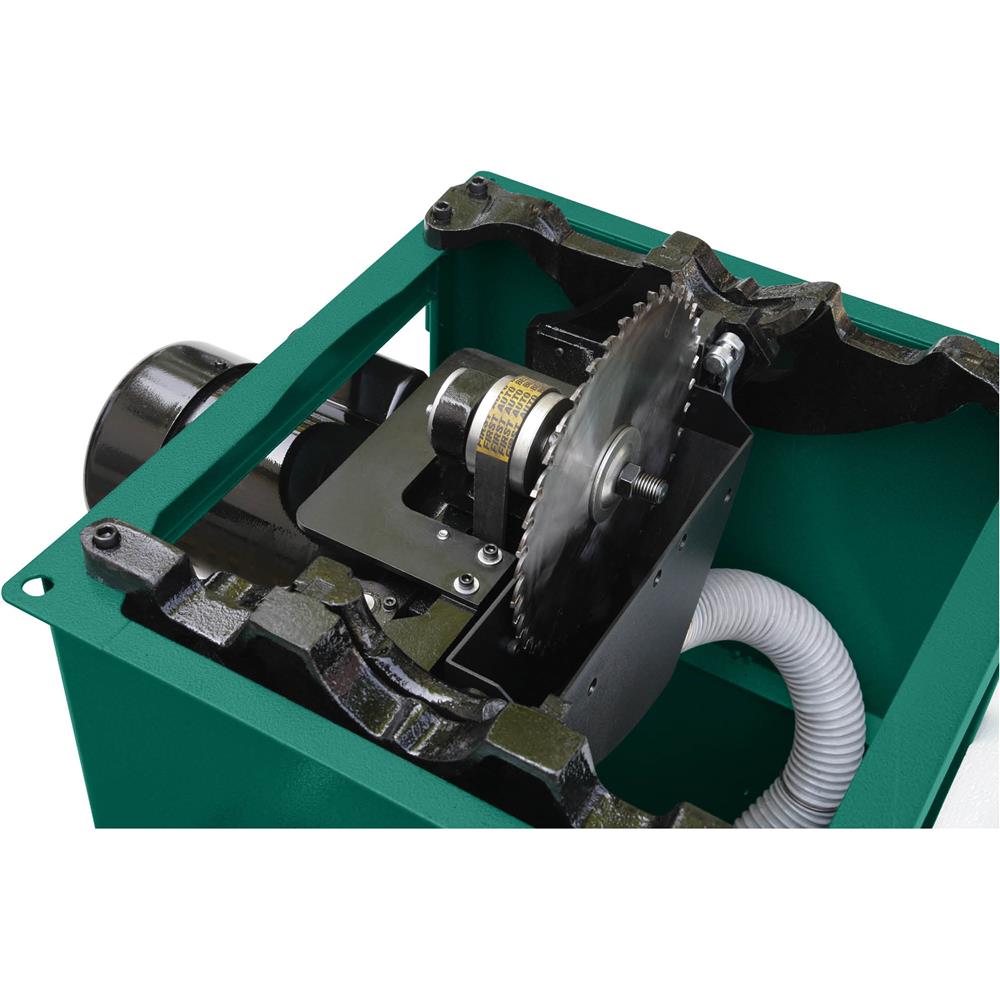

The Poly-V serpentine belt system transfers power more efficiently and quietly than standard V-belts, while the all-sealed ball-bearing construction ensures smooth operation and long service life. The underside of the blade is fully encapsulated for superior dust collection, keeping your shop cleaner and healthier.
Router Table Advantages
The integrated router table design offers significant advantages over traditional standalone router tables. Make laser-straight dadoes without changing table saw blades, perform edge profiling with the fence support of your table saw setup, and enjoy the convenience of working on a large, stable surface with outfeed support.
Note: This router table is designed for full-size routers and does not accommodate small trim routers.
Complete Technical Specifications
- Motor: 3 HP, 240V, single-phase, 14A
- Rip capacity: 32 inches right, 14 inches left of blade
- Maximum depth of cut at 90 degrees: 3 inches
- Maximum depth of cut at 45 degrees: 2-1/8 inches
- Overall table dimensions: 48 W x 27 D inches
- Distance from front of table to center of blade: 17 inches
- Floor-to-table height: 34 inches
- Arbor diameter: 5/8 inch
- Arbor speed: 4200 RPM
- Maximum dado width: 13/16 inch
- Dust port size: 4 inches
- Overall dimensions: 66 W x 47 D x 40 H inches
- Machine footprint: 20-1/2 x 20-1/2 inches
- Shipping weight: 550 lbs
Premium Construction Features
- Built-in cast-iron router table extension wing
- Precision-ground cast-iron main table
- Universal T-track router clamping system
- Shop Fox Classic Fence for saw and router operations
- Extra-large handwheels for smooth adjustments
- Quick-change riving knife and blade guard
- 29mm and 60mm opening table inserts
- One-piece steel cabinet stand
- All-sealed ball-bearing construction
- Poly-V serpentine belt drive system
- Encapsulated blade area for superior dust collection
- 4 inch dust collection port
Grizzly Quality and Support
Manufactured in an ISO 9001 certified factory and CSA certified for safety compliance. The comprehensive G1023RLW manual is written by Grizzly's U.S.-based Technical Documentation Department and includes detailed assembly instructions, setup procedures, maintenance guidelines, and troubleshooting tips.
Backed by Grizzly's 1-year limited warranty and supported by U.S.-based Customer Service and Technical Support teams. Replacement parts and accessories are readily available online and ship quickly from the Grizzly parts warehouse in Springfield, Missouri.
The Ultimate Space-Saving Workshop Solution
The G1023RLW cabinet table saw with built-in router table is the perfect solution for woodworkers who demand professional performance but need to maximize shop space. By combining two essential tools into one integrated system, you'll save valuable floor space while gaining the convenience of a unified work surface.
Ideal for cabinet makers, furniture builders, professional woodworkers, and serious hobbyists who need the precision of a cabinet saw and the versatility of a router table. Experience the efficiency and convenience of this innovative 2-in-1 system.
Order your Grizzly G1023RLW professional cabinet table saw with built-in router table today and transform your woodworking capabilities.
