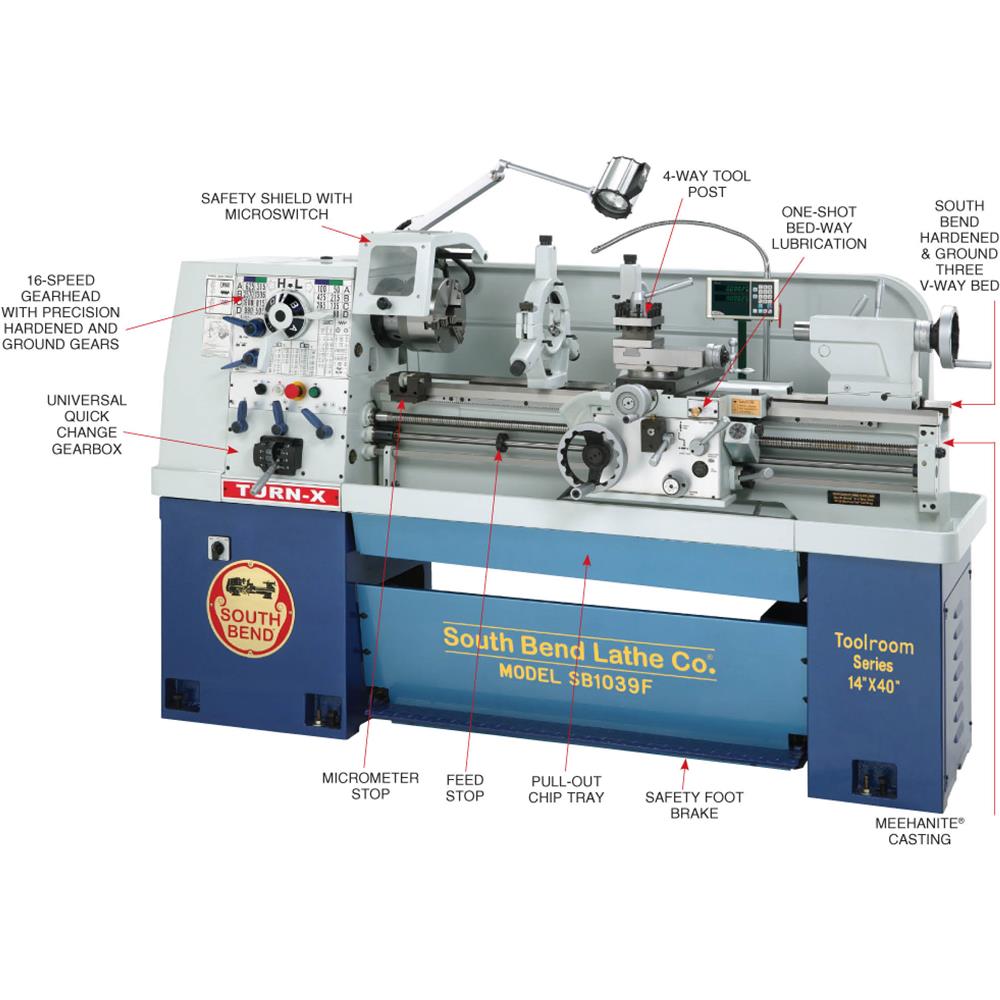

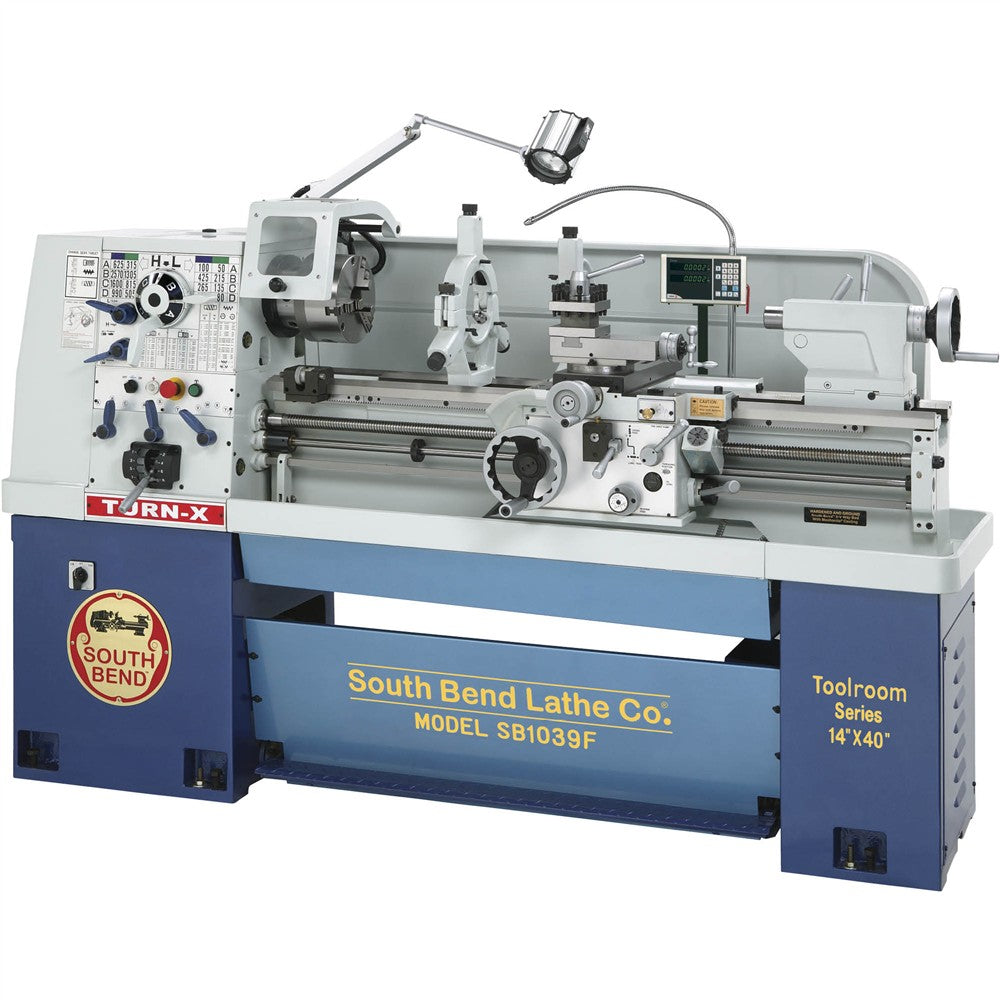

SB1039F 14" x 40" 16-Speed 220V 3-Phase Lathe with Fagor DRO
A precision toolroom lathe equipped for tough metalworking production environments.
Our toolroom lathes offer different capacities based on your production needs.
The SB1039F 14" x 40" Lathe is equipped with Japanese spindle bearings. The spindles are D1-5 camlock with an MT#5 taper and 1.57" bore. The tailstocks have an MT#3 taper and 4.5" of quill travel.

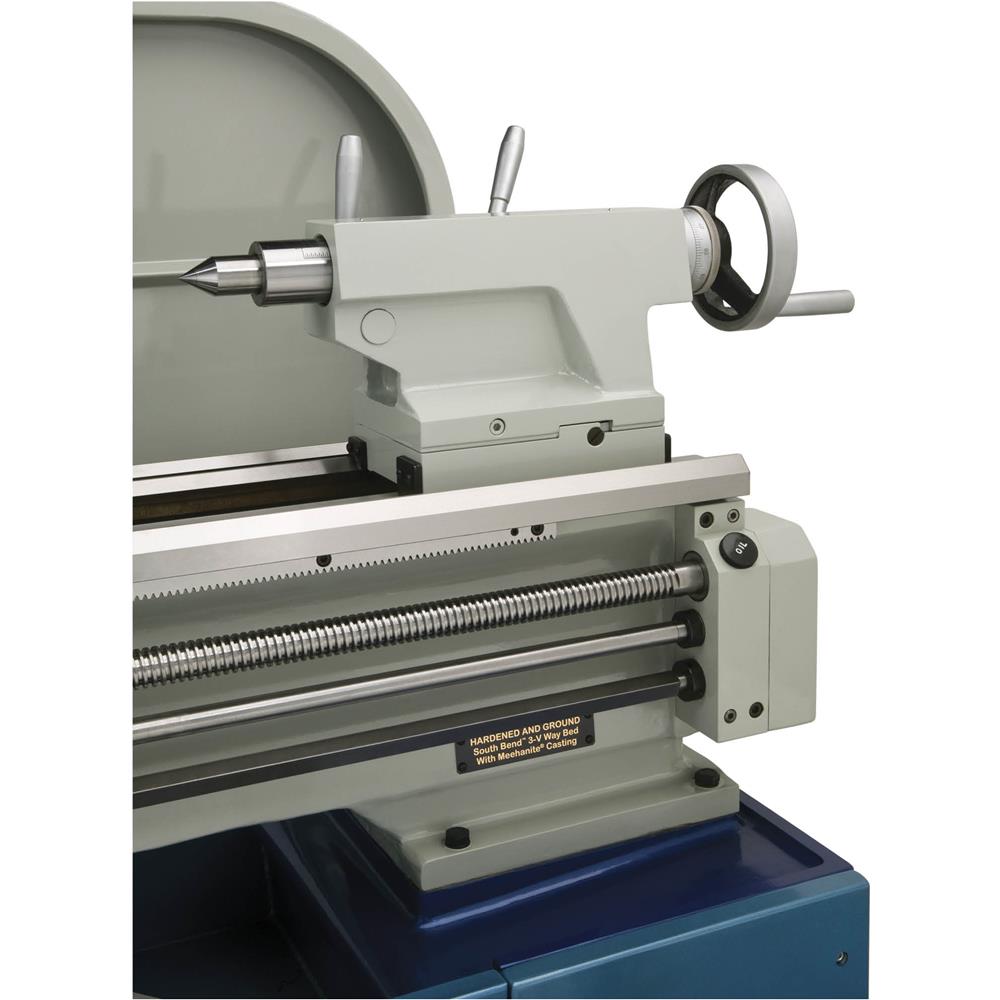

The bed of the lathe is constructed with Meehanite® castings that are hardened and precision-ground in the traditional three V-way prismatic design.
Quality Allen-Bradley® electrical components and attention to detail provide dependable electrical control of the powered movements.

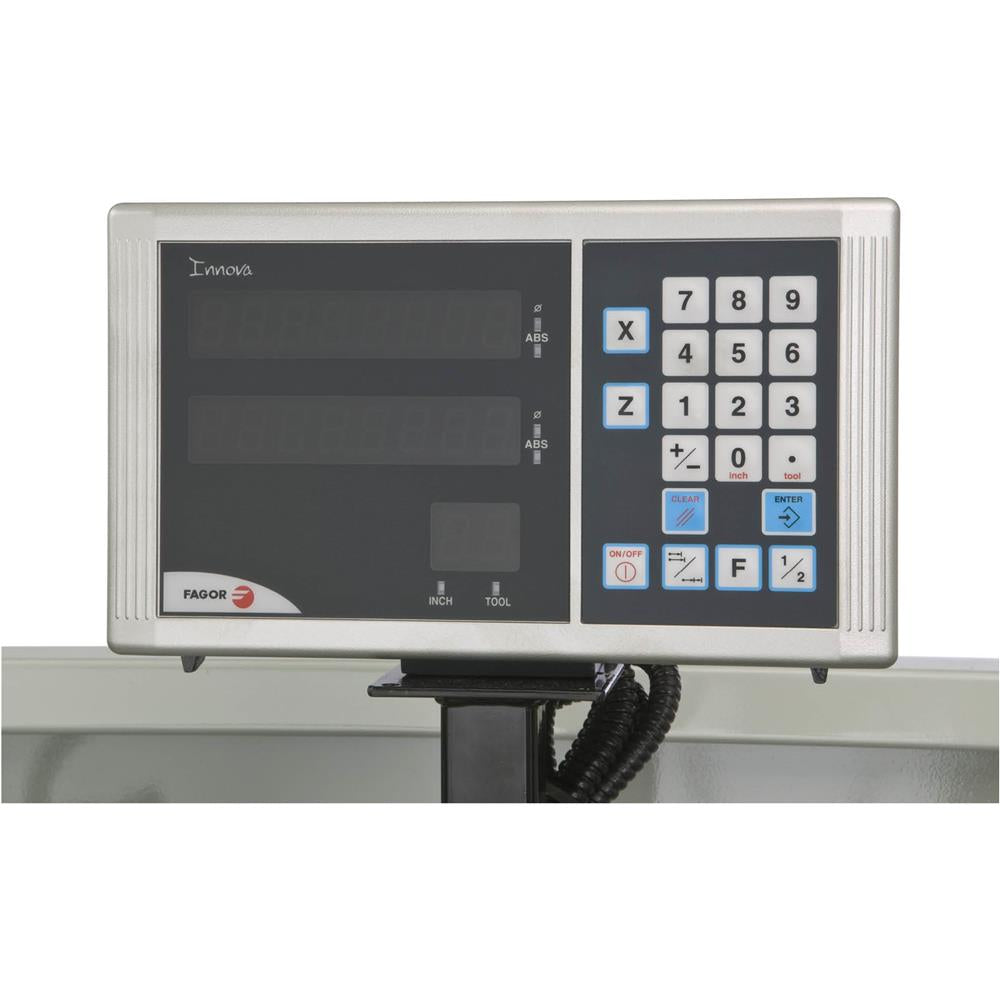

Created for adaptability and durability, this high-powered lathe offers the recognized Fagor® 2-axis DRO that ensures metalworking accuracy.

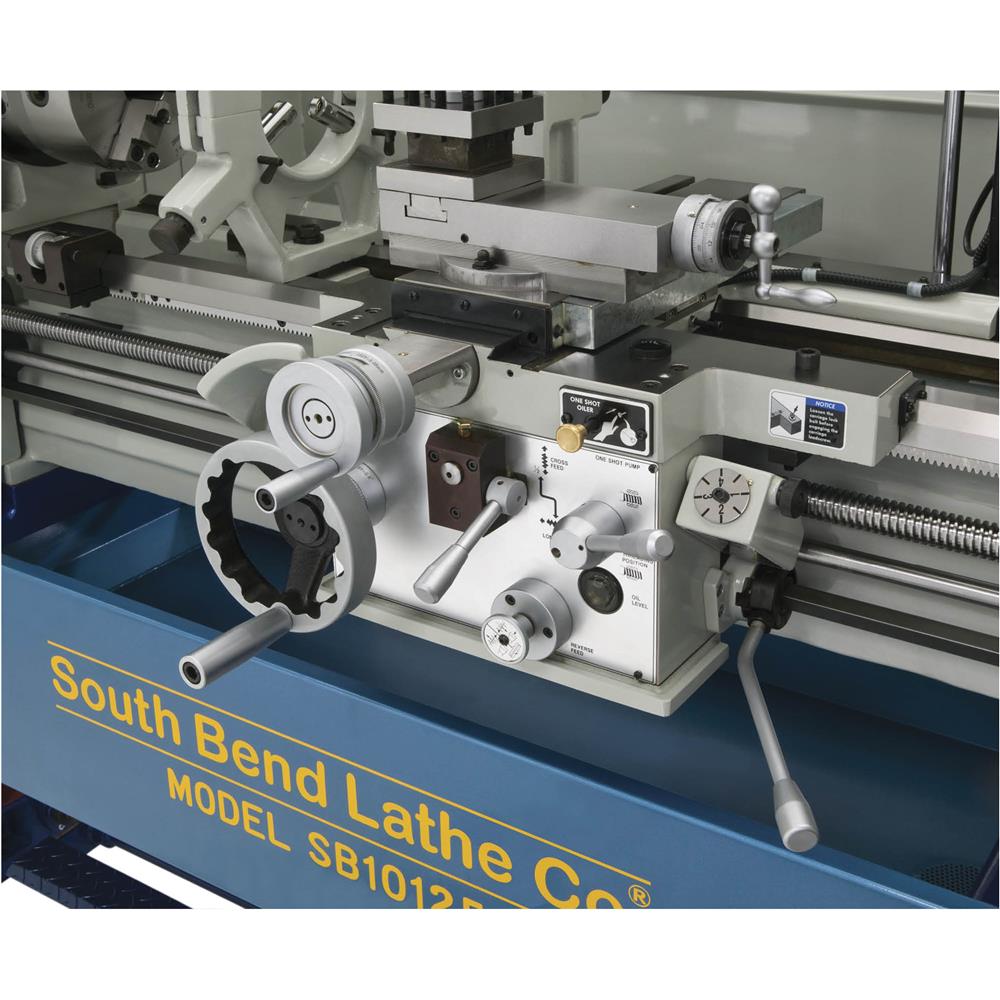

To reduce the time spent doing daily lubrication, this milling machine is outfitted with a one-shot lubrication system that is as quick-and-easy as one pump of a lever.
And finally, this lathe comes with a circulating coolant system to help extend tool life and provide an improved surface finish.
Like all South Bend lathes, the SB1039F comes with a 2-year warranty covering parts and assuring the unit is free from factory defects.
The SB1039F manual was written by our U.S.-based Documentation Department and is packed with useful information. The easy-to-read manual makes it easier to assemble and maintain your lathe.
Parts for the lathe are available online and shipped from the parts warehouse in Springfield, MO.
SPECIFICATIONS
- Spindle motor: 5 HP/2-1/2 HP, 220V, 3-phase, 14A/10A
- Coolant motor size: 1/8 HP
- Swing over bed: 14"
- Distance between centers: 40"
- Swing over cross slide: 8.66"
- Swing over gap: 20.94"
- Width of bed: 9"
- Cross slide travel: 7"
- Compound slide travel: 4"
- Spindle nose: D1-5 camlock
- Spindle taper: MT #5
- Spindle speed: 16, 50–2570 RPM
- Tailstock taper: MT #3
- Tailstock travel: 4-1/2"
- Inch thread range: 2 to 72 TPI (45 pitches)
- Metric thread range: 0.2 to 14 mm (39 pitches)
- Modular threads: 0.3 to 3.5 (18 pitches)
- Diametral threads: 8 to 44 (21 pitches)
- Overall dimensions: 80-3/4" W x 32-1/8" D x 54-3/8" H
- Approximate shipping weight: 2498 lbs.
FEATURES:
- Fagor 2-axis DRO
- Meehanite® castings, signature South Bend 3 V-bed
- Allen-Bradley® controls
- NTN Japanese spindle bearings
- Full-length splash guard
- Front removable sliding chip tray
- Micrometer carriage stop
- Jog button and emergency stop
- Halogen work light
- U.S.-based customer service and technical support
INCLUDES:
- 10" 4-Jaw independent chuck D1-5
- 8" 3-Jaw scroll chuck mounted to D1-5 plate
