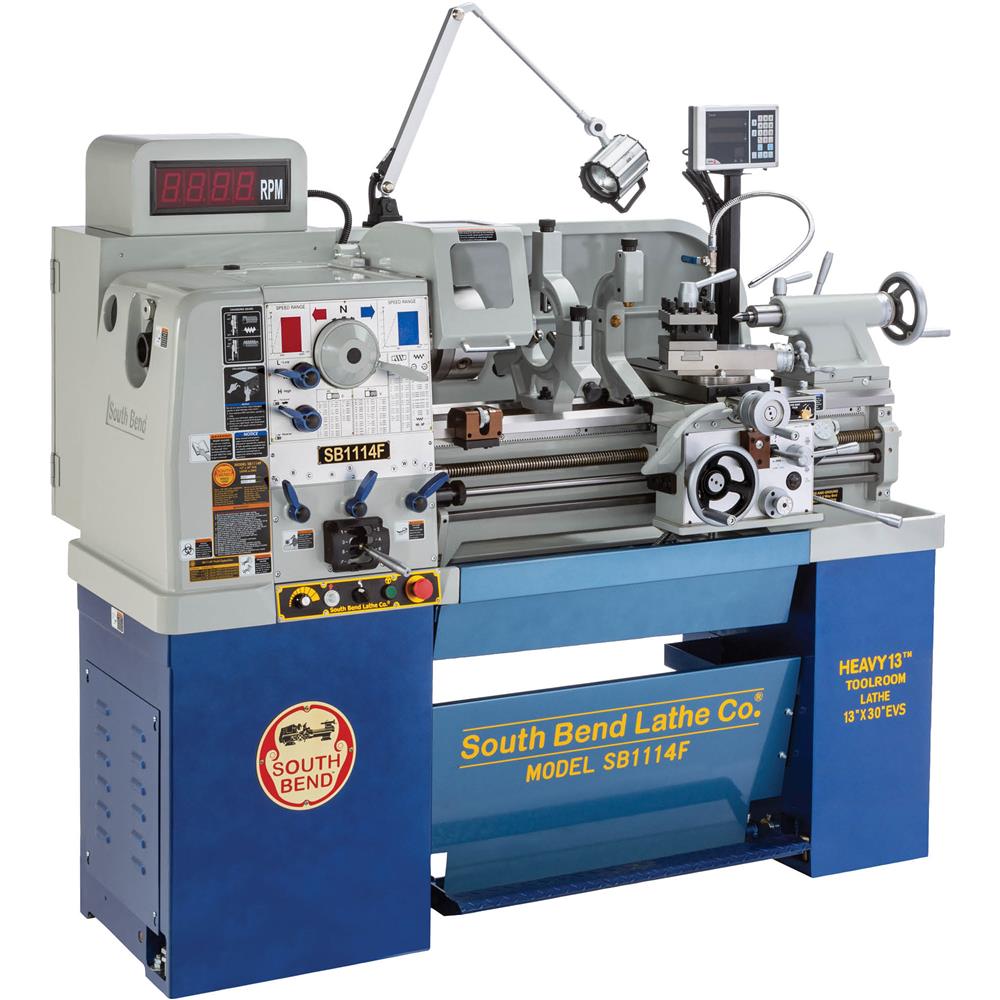

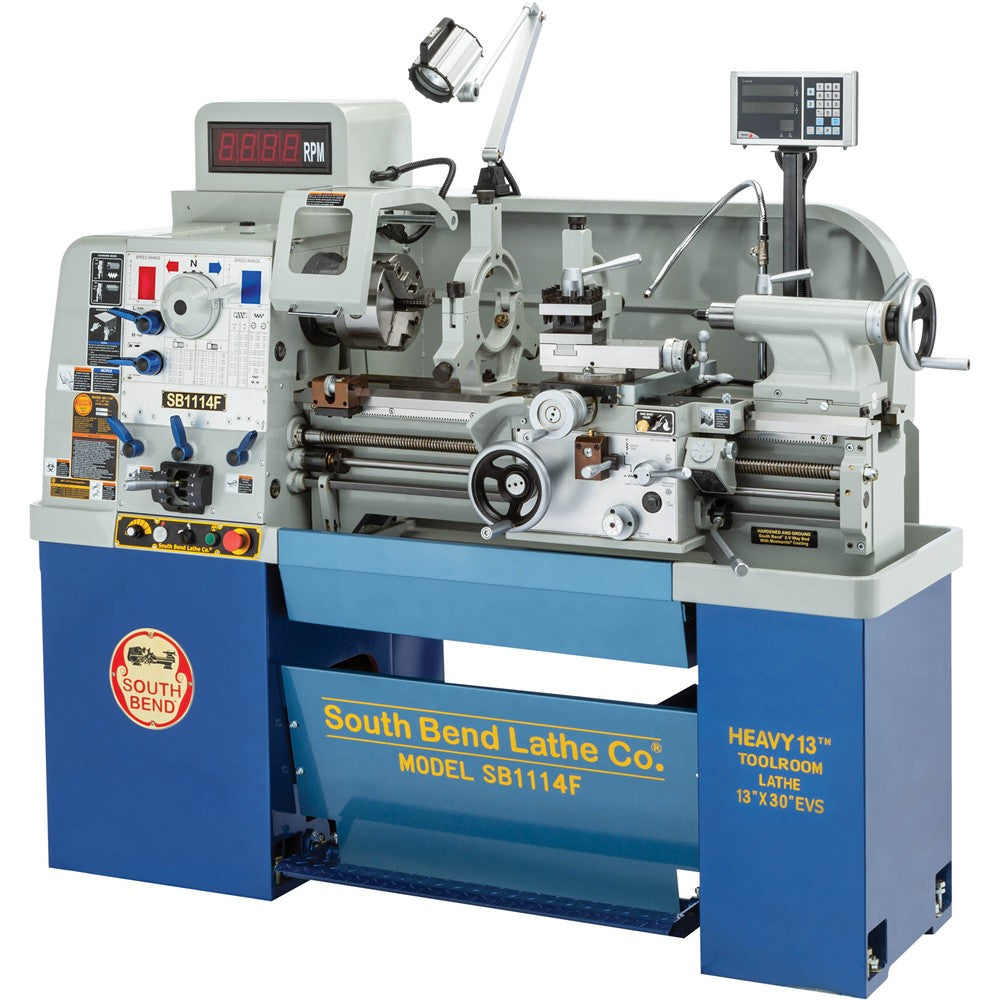

SB1114F 13" x 30" EVS Lathe with Fagor DRO
Extraordinarily engineered from the ground up in the truest South Bend fashion.
The SB1114F Heavy 13® Gearhead Lathe is driven by a 5 HP motor with electronic variable speed to control spindle speeds between 100–3000 RPM.
A factory-installed Fagor two-axis digital readout displays the positioning of the carriage and cross slide.
The bed of the lathe is constructed with Meehanite® castings that are hardened and precision-ground in the traditional three V-way prismatic design.
Quality Allen-Bradley® electrical components and attention to detail provide dependable electrical control of the powered movements.

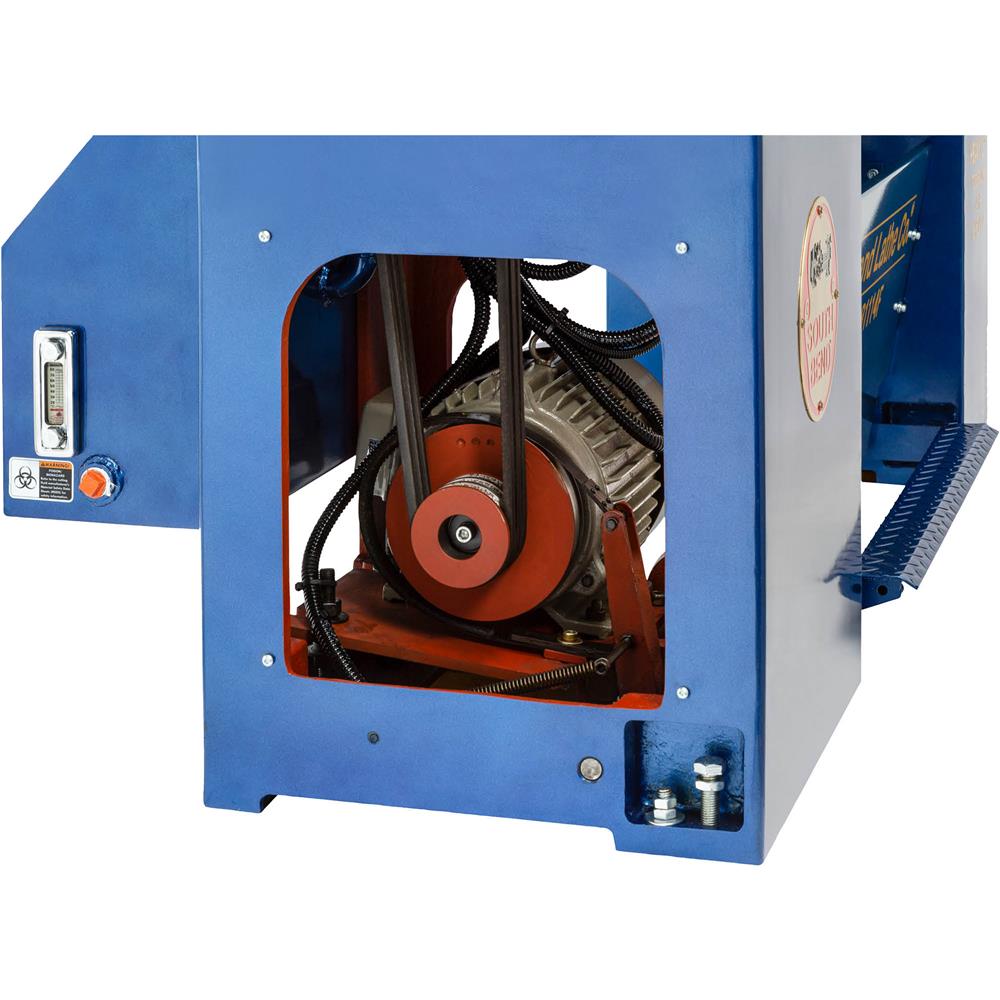

The lathe is equipped with a foot brake to quickly stop the spindle instead of allowing it to coast to a stop on its own. Pushing the foot brake while the spindle is on also cuts power to the motor and stops the spindle.
The complete and easy-to-read SB1114F manual was written by our U.S.-based Technical Documentation Department and is packed with useful information.
Parts for the lathe may be available online and shipped from the South Bend parts warehouse in Springfield, MO.
SPECIFICATIONS:
- Required power source: 220V, single-phase, min. 30A circuit
- Spindle motor: 5 HP, 220V
- Coolant pump motor: 1/8 HP, 0.4A
- Oil pump motor: 1/4 HP, 1.3A
- Distance between centers: 30"
- Swing over bed: 13-1/4"
- Swing over cross slide: 8-1/6"
- Swing over saddle: 13"
- Maximum tool bit size: 5/8"
- Compound travel: 3-3/4"
- Carriage travel: 25-9/16"
- Cross slide travel: 7"
- Spindle taper: MT #5
- Spindle speed: Variable, 100–3000 RPM
- Tailstock taper: MT #3
- Tailstock travel: 4-1/2"
- Footprint: 68-1/2" x 19-1/2"
- Overall dimensions: 71" W x 38" D x 60-1/2" H
- Approximate shipping weight: 2602 lbs.
FEATURES:
- 2-year limited warranty
- Variable frequency drive (VFD) for smooth, high-torque variable speed using single-phase power
- Meehanite® castings
- Allen-Bradley® controls
- Complete recycling coolant system
- Micrometer carriage stop
- Threading dial indicator

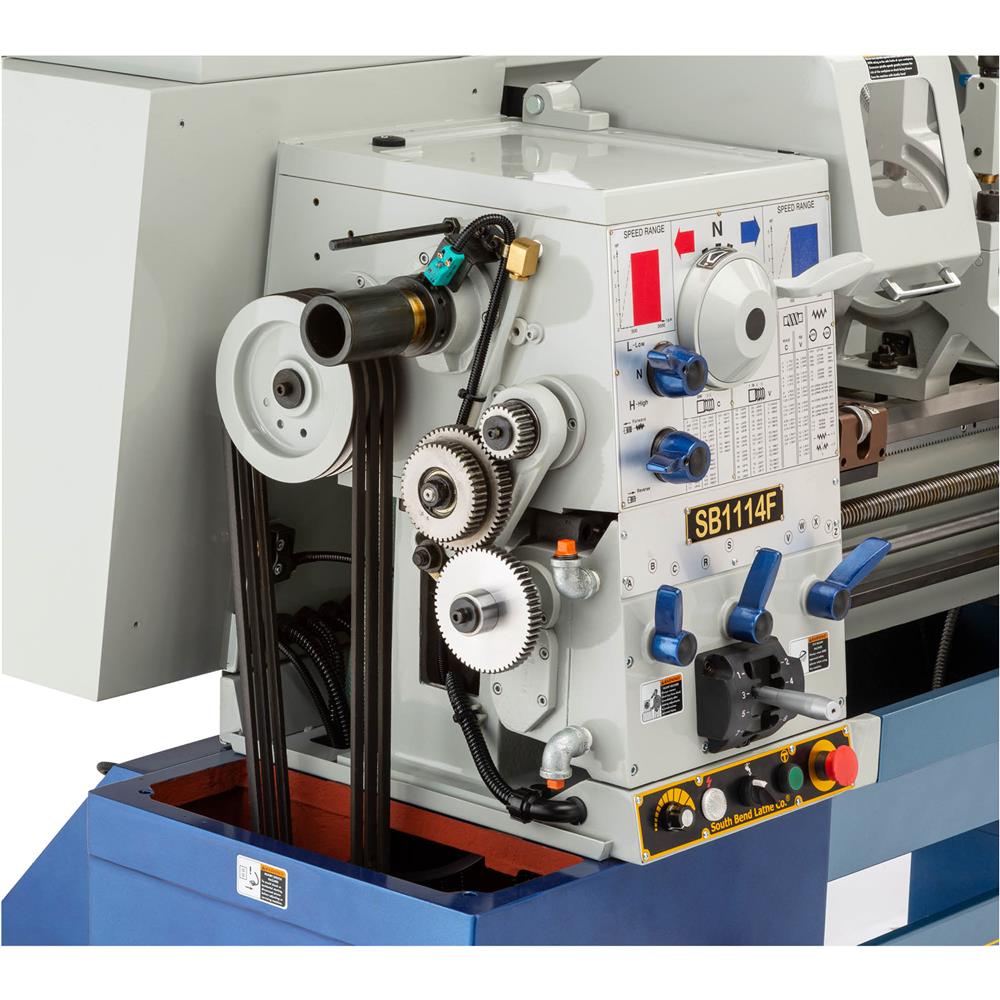

- Enclosed universal gearbox for cutting inch, metric, modular, and diametral pitches
INCLUDES:
- 8" 4-jaw independent chuck D1-5
- 7" 3-jaw scroll chuck mounted to D1-5 plate
- 10" faceplate D1-5
- Follow rest
- Steady rest with roller bearing tips
- Two morse taper #3 dead centers
