Product Description

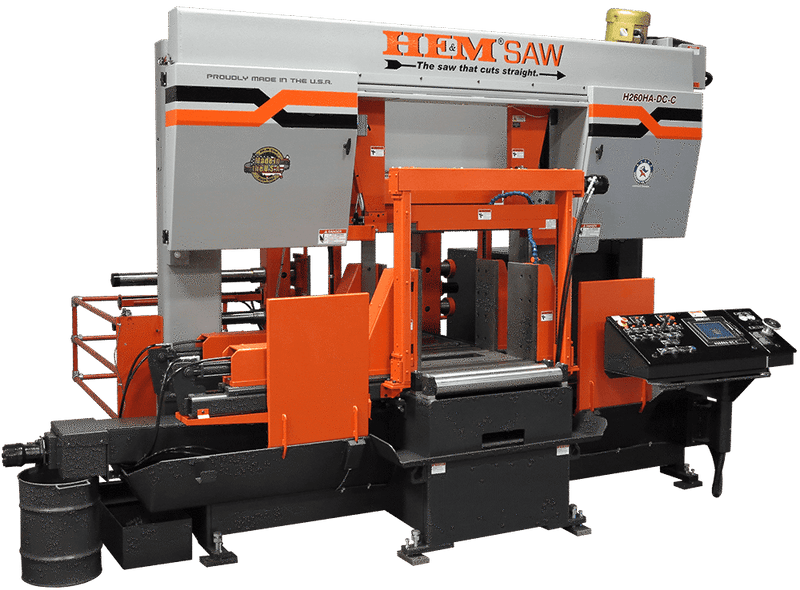

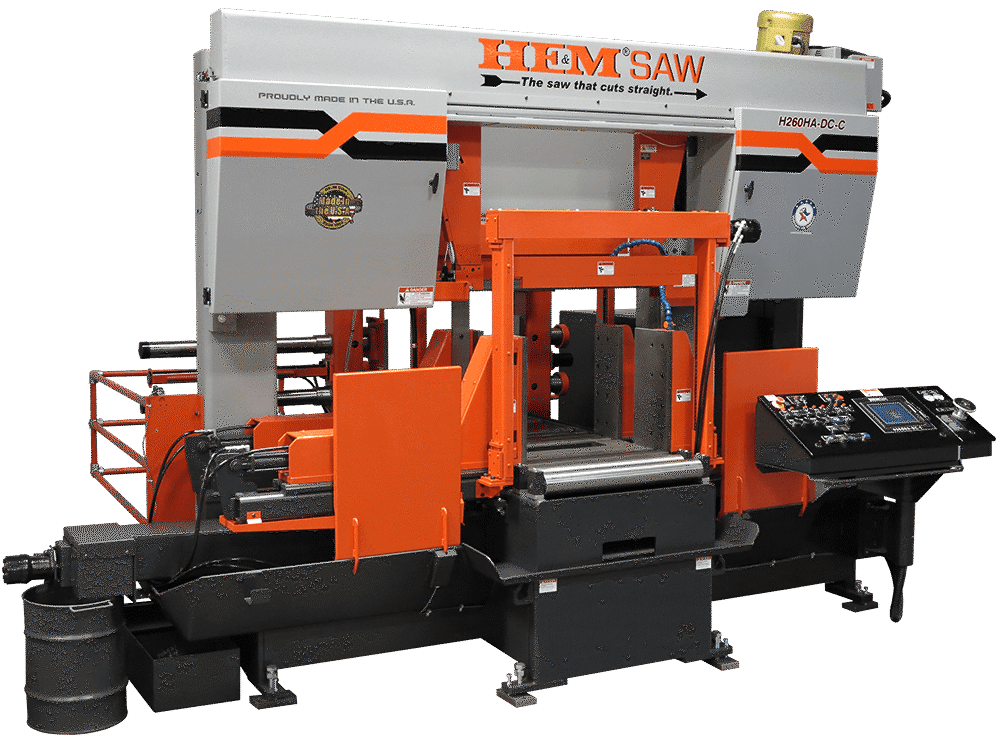

The H260M-DC operates using touch screen mounted in a swing-away console. The patented Cut Watcher® System and Chip Auger are standard features. A full-stroking main vise positions automatically with the powered guide arm, patented Cut Watcher® system and Chip Auger are standard and many optional features are available.
Technical Highlights
-
Main Capacity: 0-26" W x 0-26" H
-
Bar-feed: N/A
-
Blade: 22' 0" L x 2" H x .063"
-
Motor: 15 HP
-
Hydraulic Motor: 10 HP
-
Operation: Semi-Automatic
- Swing-Away Control Console w/ 7" Touch Screen
- 36" Roller Load Table w/ Filler Plates
- 24" Solid Discharge Table
- Vise - Full Stroking Main
- Adjustable Clamping Force
- Carbide Blade Guides
- Lead In/Lead Out Roller Guides
- Passive "Cut Watcher®" System
- Guide Arm Moves in Conjunction w/ Main Vise
- Variable Blade Speed w/ Readout on Touch Screen
- Powered Blade Tension
- Adjustable Feed Rate
- Adjustable Cutting Pressure
- Chip/Swarf Removal System - Chip Auger
- Coolant System - Flood w/ Wash-Down Hose
- Broken Blade Function
- Two-Hand Operation Controls
- Automatic Blade Idle
- Blade Change Interlock
- 220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine
