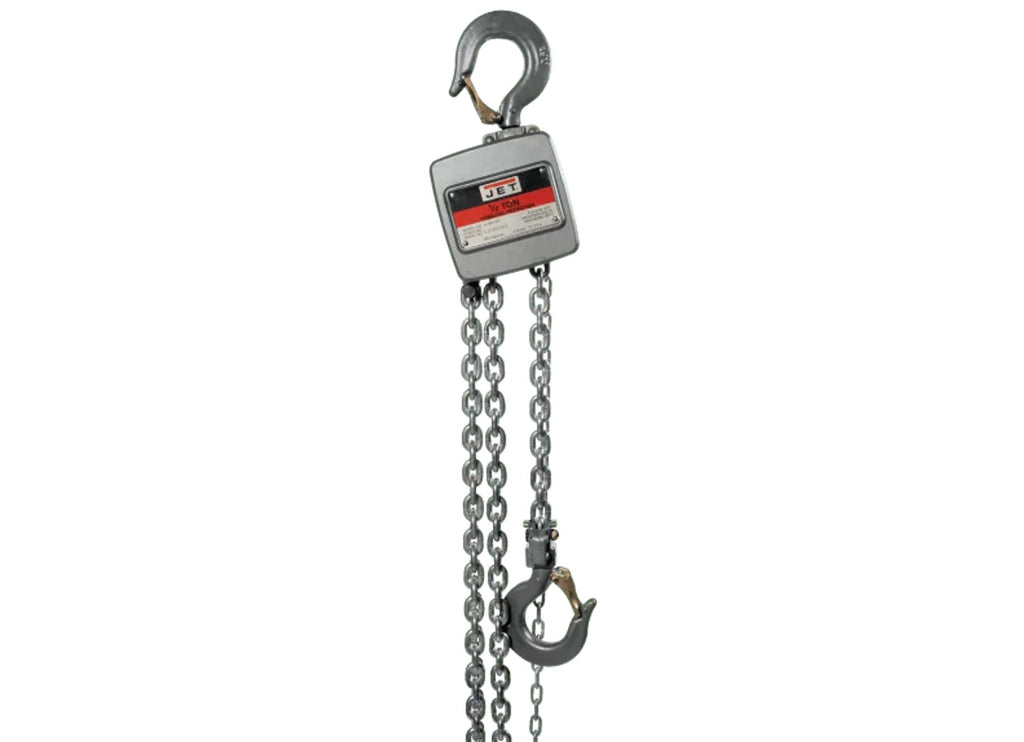

JET AL100-050-20 1/2-Ton Hand Chain Hoist w/ 20' Lift (133053)
The JET AL100-050-20 is a reliable and efficient lifting solution designed for various industrial tasks. Its compact design and lightweight aluminum construction make it easy to handle, while its robust features ensure safe and dependable operation.
KEY FEATURES AND BENEFITS:
-
Powerful Lifting: Effortlessly lift up to 1100 pounds with a 20-foot lift height
-
Durable Construction: Built with high-quality aluminum for corrosion resistance and long-lasting performance
-
Enhanced Safety: Equipped with cast steel safety latches and a dual pawl Weston style brake for secure lifting
-
Easy Operation: Extra-large hand chain opening allows for comfortable and efficient pulling
-
Weather Protection: Sealed housing protects internal components from the elements
-
Grade 100 Load Chain: For superior strength and durability
-
Patented Fused Brake Design: For enhanced safety and longevity
SPECIFICATIONS:
-
Capacity: 1/2 Ton (1100 lbs)
-
Lift Height: 20 feet
-
Load Chain Dimensions: 4.3 x 12 mm
-
Weight: 17.51 lbs
-
Headroom: 10-7/16 inches
-
Hand Chain Pull Per Foot: 40
-
Complies with: ANSI/ASME B30.16 and HAST-2 Standards
HOW TO USE:
-
Inspect the hoist: Check for any damage or wear and tear before use
-
Attach the load: Securely hook the load chain to the lifting point of the load
-
Operate the hand chain: Pull the hand chain to lift the load
-
Lower the load: Release the hand chain to lower the load
-
Lock the brake: Engage the brake to securely hold the load in position
BENEFITS OF USING JET AL100-050-20:
-
Increased Efficiency: Quickly and safely lift heavy objects
-
Improved Safety: Reduce the risk of injuries from manual lifting
-
Cost-Effective: Durable construction ensures long-term use and minimal maintenance
-
Versatility: Suitable for a wide range of applications
PREMIUM FEATURES:
- Extra-Large Hand Chain Opening for easy pulling
- Sealed Housing for protection against elements
- Cast Steel Safety Latches for added security
- Dual Pawl Weston Style Brake for reliable stopping
- Grade 100 Load Chain for strength and durability
- Patented Fused Brake Design for safety and longevity
Model: AL100-050-20 | Part Number: 133053 | Brand: JET Tools
