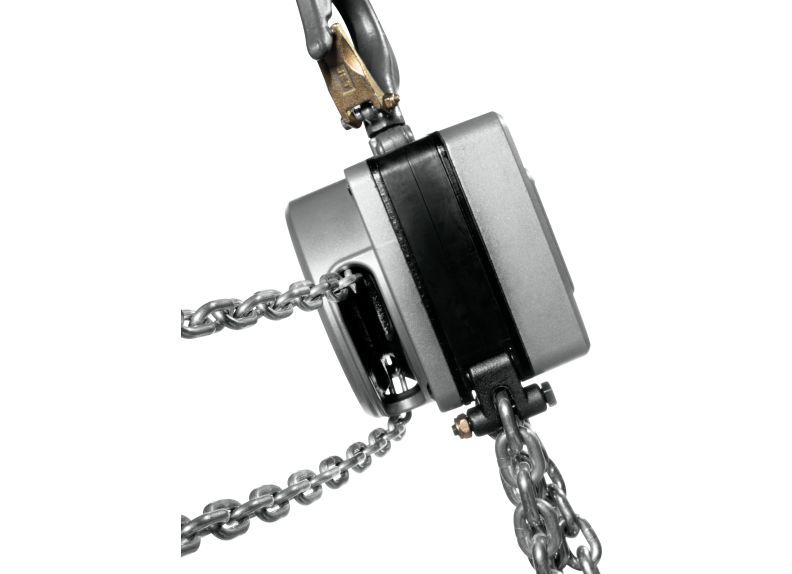

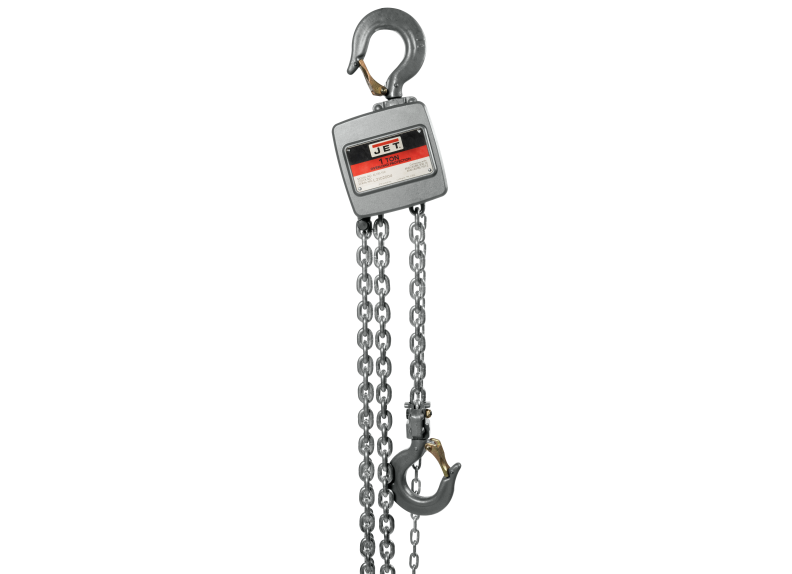

JET AL100-100-10 Manual Chain Hoist - Revolutionary Aluminum Design JT9-133110
The JET AL100-100-10 manual chain hoist delivers reliable 1-ton (2,200 lb) lifting capacity with 10-foot lift height, featuring breakthrough aluminum construction that's 20% lighter and 20% thinner than competitors while offering the smallest headroom on the market.
Revolutionary Design Features:
-
20% Lighter Construction - Advanced aluminum design reduces operator fatigue
-
20% Thinner Profile - Compact design for tight spaces
-
Smallest Headroom - Only 11-5/8 inches headroom requirement
-
Extra Large Hand Chain Opening - Designed for side chain pulling with enhanced ergonomics
-
Sealed Housing - Extra protection against harsh environmental elements
Safety and Performance Features:
-
Dual Pawl Weston Style Brake - Superior load control and safety
-
Grade 100 Load Chain - Heat treated for maximum strength and zinc plated for corrosion resistance
-
Cast Steel Safety Latches - Enhanced security and reliability
-
Patented Fused Brake Design - Lifetime replacement warranty for ultimate durability
-
ANSI/ASME B30.16 and HAST-2 Compliant - Meets all industry safety standards
Technical Specifications:
- Lifting Capacity: 2,200 lb (1 ton)
- Maximum Lift Height: 10 feet
- Net Weight: 14.82 lbs
- Headroom Required: 11-5/8 inches
- Load Chain Dimensions: 5.6 x 15.7mm
- Pull Force Required: 53 lbs to lift full capacity
The AL100 Series represents a game-changing advancement in manual chain hoist technology. Perfect for industrial applications, warehouses, and construction sites where weight reduction and compact design are critical. Experience the future of manual lifting with JET's innovative aluminum construction.
