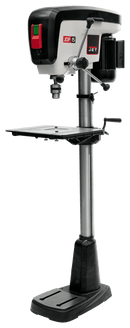

The JET JDP-15F, 15” Floor Standing Drill Press. From a full 3-1/8” of spindle travel to the sturdy cast iron head with a poly v-belt drive system, this drill press is designed to perform. This drill press features a long-lasting, built-in LED work light to provide direct lighting while reducing shadows. Another feature includes the one-handed belt-tensioning system and a large 12-1/2" x 17" work table which are all CSA Certified.
FEATURES
- Integrated depth stop makes repetitive drilling quick and easy
- Large cast iron base provides stability
- One-handed belt tensioning allows for rapid speed changes
- Power switch features a safety key and large, paddle-style off button
- Powered by an efficient 3/4HP, 1Ph, 115V TEFC motor and poly-v belt drive system
- Replaceable MDF table insert
- Table edge lip designed to make clamping easy
- Xacta-X laser system easily identifies the drill center
SPECIFICATIONS
- Swing (In.)15
- Spindle Travel (In.)3-1/8
- Style (Type)Floor standing Model
- Number of Spindle Speeds16
- Table Size (L x W) (In.)12-1/2 x 17
- Weight (Lbs.)172
- Spindle Distance to Base (In.)46-1/2
- Spindle Distance to Table (Max.) (In.)30-1/2
- Chuck Size (In.)5/8
- Motor Power (HP)3/4
- Column Diameter (In.)2-3/4
- Assembled Machine Dimensions (L x W x H) (In.)27 x 17 x 63-1/4
- Motor Voltage (V.)115
- Prewired Voltage (V.)115
WARRANTY INFORMATION
JET warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these JPW Industries Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JET tools.
JET RED ASSURANCE 5-YEAR WARRANTY
