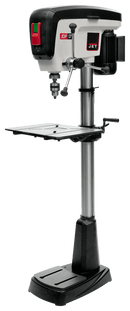

Introducing the new JET JDP-17, 17” Drill Press. From a full 5” of spindle travel to the sturdy cast iron head with a poly v-belt drive system, this drill press is designed to perform. This drill press also features a long-lasting, built-in LED work light to provide direct lighting while reducing shadows. A large 14" x 19" work table provides plenty of support with an edge designed for easy clamping. CSA Certified.
FEATURES
- Integrated depth stop makes repetitive drilling quick and easy
- Large cast iron base provides stability
- One-handed belt tensioning allows for rapid speed changes
- Power switch features a safety key and large, paddle-style off button
- Powered by an efficient 3/4HP, 1Ph, 115V TEFC motor and poly-v belt drive system
- Replaceable MDF table insert
- Table edge lip designed to make clamping easy
- Xacta-X laser system easily identifies the drill center
SPECIFICATIONS
- Swing (In.)16-7/8
- Spindle Travel (In.)5
- Style (Type)Floor standing Model
- Number of Spindle Speeds16
- Table Size (L x W) (In.)14 x 19
- Weight (Lbs.)187
- Spindle Distance to Base (In.)46-1/2
- Spindle Distance to Table (Max.) (In.)30
- Chuck Distance to Base (In.)42-7/8
- Chuck Distance to Table (In.)25-7/8
- Chuck Size (In.)5/8
- Motor Power (HP)3/4
- Column Diameter (In.)3-5/32
- Assembled Machine Dimensions (L x W x H) (In.)28-1/2 x 19 x 65
- Recommended Circuit Size (Amps.)15
WARRANTY INFORMATION
JET warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these JPW Industries Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JET tools.
JET RED ASSURANCE 5-YEAR WARRANTYYour payment information is processed securely. We do not store credit card details nor have access to your credit card information.
