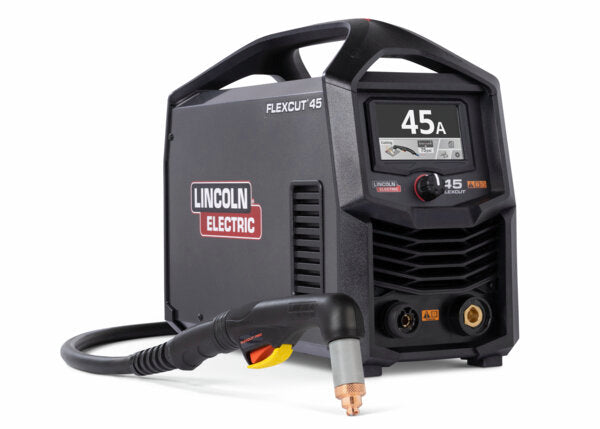

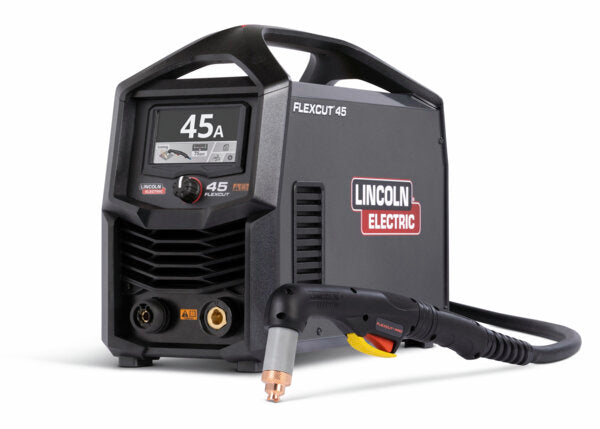

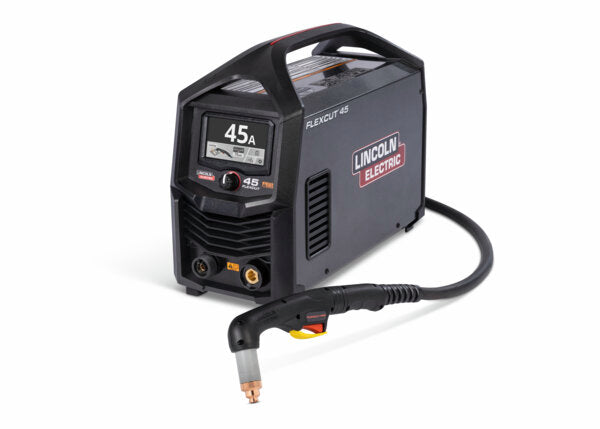

FlexCut® 45 Plasma Cutter Handheld Ready-Pak®
Details
The FlexCut 45 delivers dependable cutting performance with steady power, high-duty cycles, and continuous output, so you can work without interruptions. Built for professionals, it combines precision, portability, and durability, maintaining consistent performance even during long cutting sessions.
Designed to run cooler and longer, it’s ideal for demanding applications and cuts through mild steel, aluminum, stainless steel, and grating with ease. Compatible with our FlexConnect™ Torch System, giving you the flexibility to switch between torch heads or cables in seconds.
For more information, please visit the FlexCut Plasma Cutter Resource Center.
Features
-
45 Amps of Cutting Power: Tackle thicker materials with confidence and precision.
-
High Duty Cycle: Built for demanding applications without overheating or slowing down.
-
LCD Display: Bright, easy-to-read screen with simple controls for quick and precise adjustments.
-
Dual Voltage Flexibility: Plug into 120V or 230V power sources.
-
Plug-and-Play CNC Integration: Seamless integration with CNC tables with automatic table detection for fast, precise setup.
-
Multi-Process Capability: Drag cutting, fine cutting, gouging, and marking with one machine for maximum versatility.
-
Portable Yet Rugged: Portable design without compromising strength—easy to move, hard to damage.
-
Ideal for: Plasma cutting, grid cutting, gouging, and marking.
-
Warranty: 5 year warranty.
Specifications
Machine Inputs & Outputs
| Specification |
Value |
| Phase 1: Input Voltage #1 (Voltage/Phase/Hertz) |
120/1/60 |
| Phase 1: Rated Output #1A (Current/Voltage/Duty Cycle) |
27A / 90.8V / 20% |
| Phase 1: Rated Output #1B (Current/Voltage/Duty Cycle) |
16A / 86.4V / 60% |
| Phase 1: Rated Output #1C (Current/Voltage/Duty Cycle) |
15A / 86V / 100% |
| Phase 1: Input Current at Max Rated Output #1 |
26A |
| Phase 1: Input Voltage #2 (Voltage/Phase/Hertz) |
230/1/60 |
| Phase 1: Rated Output #2A (Current/Voltage/Duty Cycle) |
45A / 98V / 50% |
| Phase 1: Rated Output #2B (Current/Voltage/Duty Cycle) |
42A / 96.8V / 60% |
| Phase 1: Rated Output #2C (Current/Voltage/Duty Cycle) |
32A / 92.8V / 100% |
| Phase 1: Input Current at Max Rated Output #2 |
22.5A |
Product Weights & Dimensions
| Specification |
Value |
| Dimensions (H x W x D) |
14.1 in x 8.1 in x 18.4 in (359 mm x 205 mm x 468 mm) |
| Net Weight |
26.8 lbs (12.2 kg) |
General Specification
| Specification |
Value |
| Machine Processes |
Plasma Gouging, Plasma Cutting |
| Open Circuit Voltage |
320 VDC |
| Ingress Protection Rating |
IP23 |
Plasma Machines
| Specification |
Value |
| Plasma Machines Process |
Cutting, Gouging, Marking |
| Torch Included |
Yes |
| Torch Cooling |
Air |
| Gas Supply |
Air or Nitrogen |
| Gas Pressure Required |
90–130 psi |
| Recommended Cutting Capacity (Mild Steel) |
5/8 in @ 16 ipm |
| Maximum Cutting Thickness (Mild Steel) |
7/8 in @ 7 ipm |
| Maximum Severance (Mild Steel) |
1 in @ 5 ipm |
Application
| Category |
Value |
| Typical Application |
Construction, Automotive, General Fabrication, Marine Fabrication & Repair, Structural Fabrication |
Warranty
| Category |
Value |
| Warranty |
5 Years |
