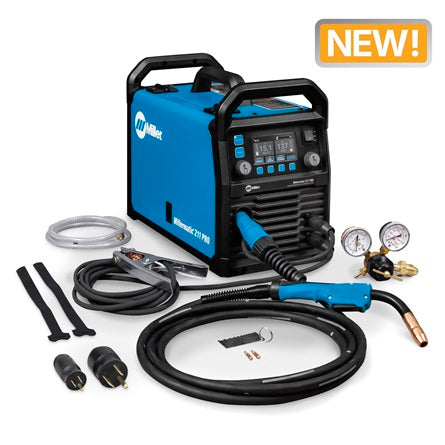

What's Included
Millermatic 211 PRO15 ft. (4.6 m) MDX™-100 MIG gun15 ft (4.6 m) Work cable with clamp6.5 ft (2 m) power cord and MVP™ adapter plugs for 120V and 240VArgon and AR/CO2 mix regulator/flow gauge with hose
Two contact tips for .030 in (0.8 mm) wireQuick Select™ drive roll for .024 in (0.6 mm) or .030/.035 in (0.8/0.9 mm) solid wire, and .030/.035 (0.8/0.9 mm) flux cored wireMaterial thickness gauge #229895Hook-and-loop cord wraps
Not Included
Shielding gasSafety Equipment
Magnifying lenses
Processes
Flux Cored (FCAW)
MIG (GMAW)
General Specifications
| Title |
Millermatic® 211 PRO |
| Applications |
Automotive Welding
Car Restoration
Fabrication
Garage/Shop
Mobile Fabrication & MRO
Welding Projects |
| Industries |
Auto Repair
Construction & Fabrication
Manufacturing
Racing, Customizing & Restoring |
| Amperage |
30 A - 230 A |
| Material Thickness |
Aluminum 18 ga. (1.2 mm) - 3/8 in. (9.5 mm)
Mild Steel 24 ga. (0.5 mm) - 3/8 in. (9.5 mm) |
| Weldable Metals |
Aluminum
Stainless Steel
Steel |
| Current Type |
DC |
| Rated Output |
120V: 110 A at 19.5 VDC, 60% duty cycle 240V: 160 A at 22.0 VDC, 60% duty cycle |
| Max Open Circuit Voltage |
57 VDC |
| Wire Feed Speed |
1.5 m/min - 15.2 m/min
60 IPM - 600 IPM |
| Wire Diameter |
Stainless 0.024 in. - 0.035 in.
Stainless 0.6 mm. - 0.9 mm.
Solid Steel 0.6 mm. - 0.9 mm.
Solid Steel 0.024 in. - 0.035 in.
Flux Cored 0.03 in. - 0.035 in.
Flux Cored 0.8 mm. - 0.9 mm. |
| Spool Size |
4-inch or 8-inch (102 mm or 203 mm) |
| Portability |
Handle(s)
Running Gear / Cart (Optional) |
| Weld Output |
CV |
| Input Voltage |
120/240 V |
| Input Phase |
1-Phase |
| Net Width |
9.75 in |
| Net Height |
14.625 in |
| Net Length |
20 in |
| Net Weight |
35 lbs |
| Warranty |
3 Years
Miller's True Blue Warranty
|
