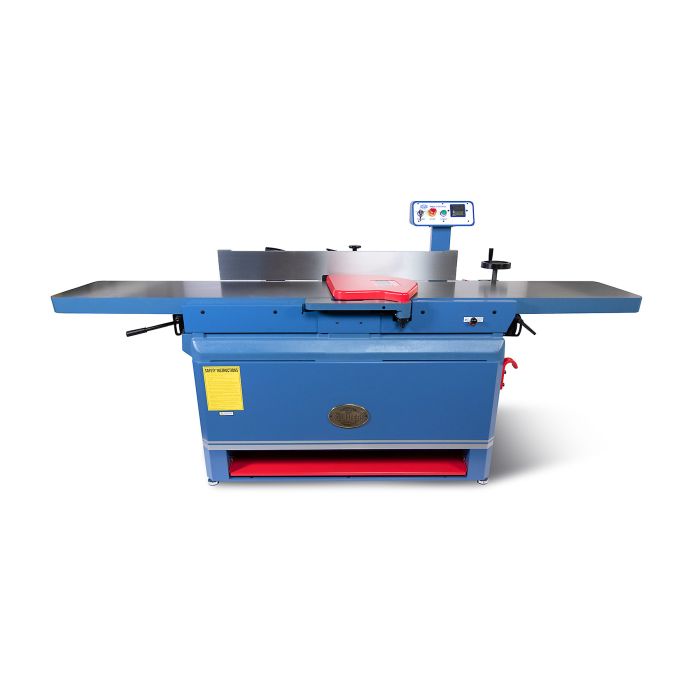

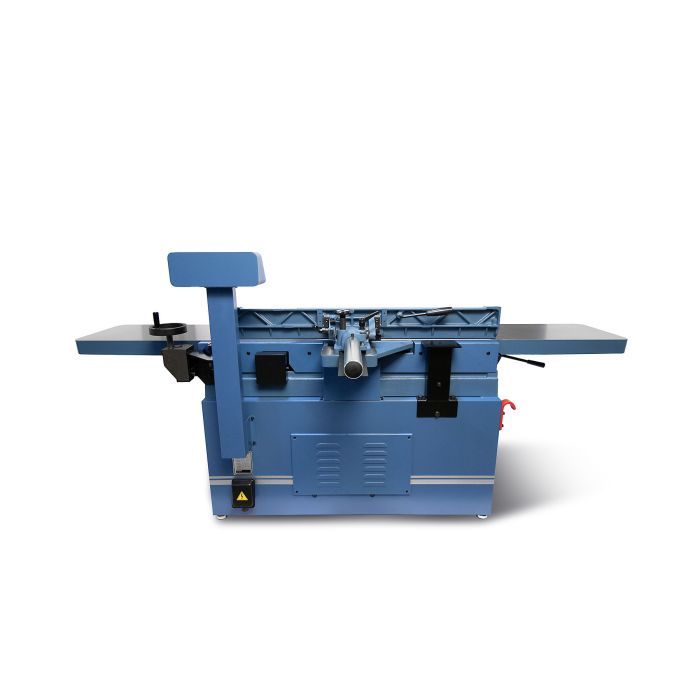

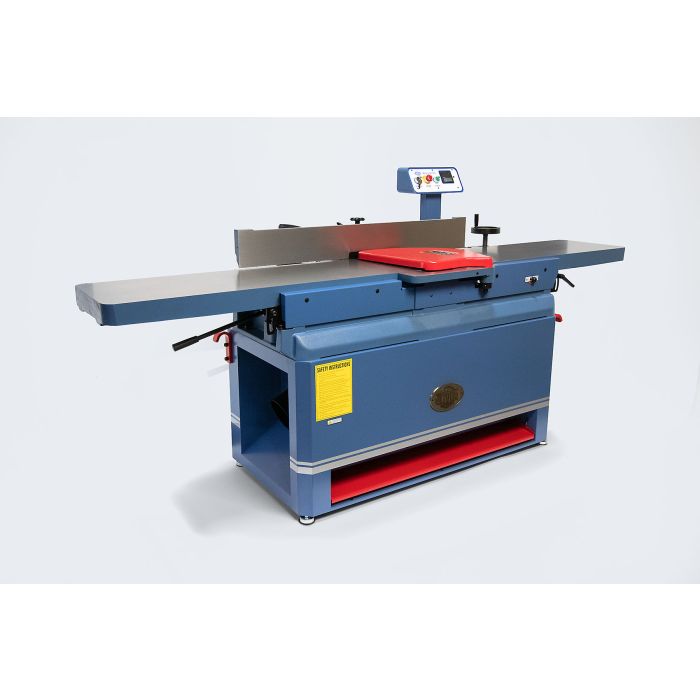

Oliver Machinery 16" Parallelogram Jointer w/Oliver HCX Helical Cutterhead - M4275C.753T - 7.5HP, 3PH

• Extra-long precision ground tables provide a stable work surface
• Parallelogram design provides smooth accurate cuts
• Massive cast iron frame offers stable table support
• Fully enclosed cabinet with 6” port for superior dust management
• Oliver HCX Helical cutterhead with premium carbide inserts
• 4-sided cutting inserts are indexed and easy to replace
• Elevated control panel with key lock and emergency off switch
• Wixey DRO shows table infeed table movement for precision cuts
• Pre-drilled bracket for easy (optional) powerfeed mounting

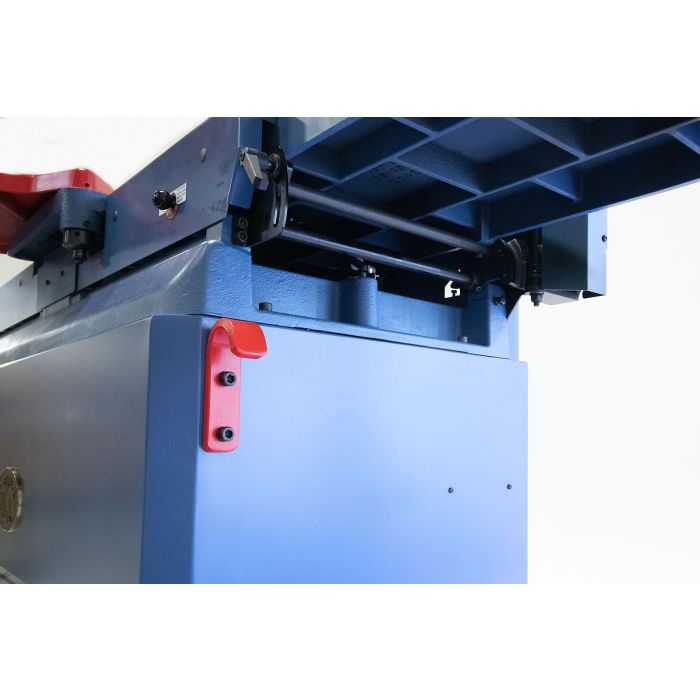

• Foot activated emergency power shutoff.

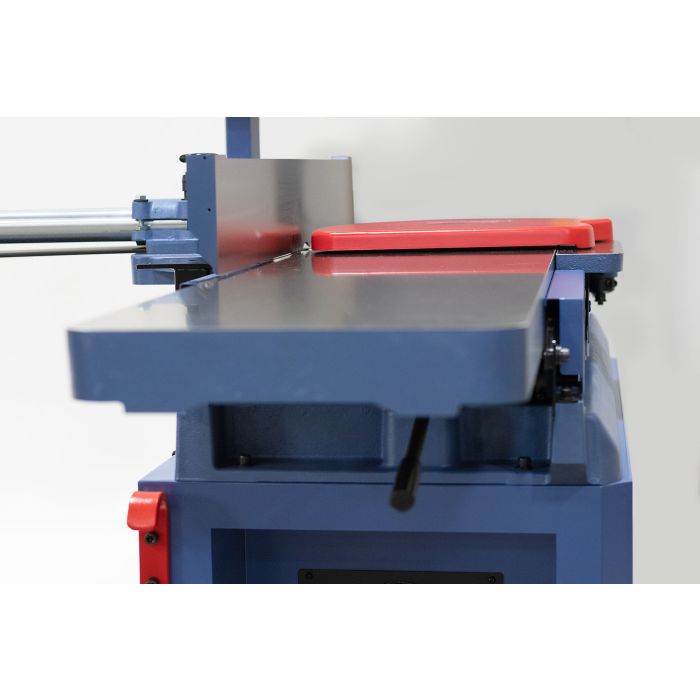

• Handwheel controlled infeed table allows for quick adjustment and auto-lock during operation
• Lever controlled outfeed table allows easy adjustment

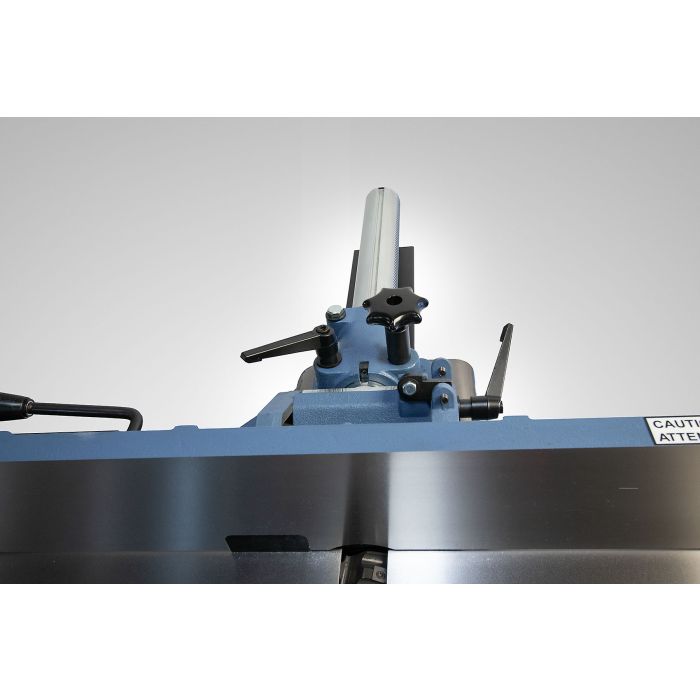

• Long solid cast iron fence features positive stops at 45° and 90°

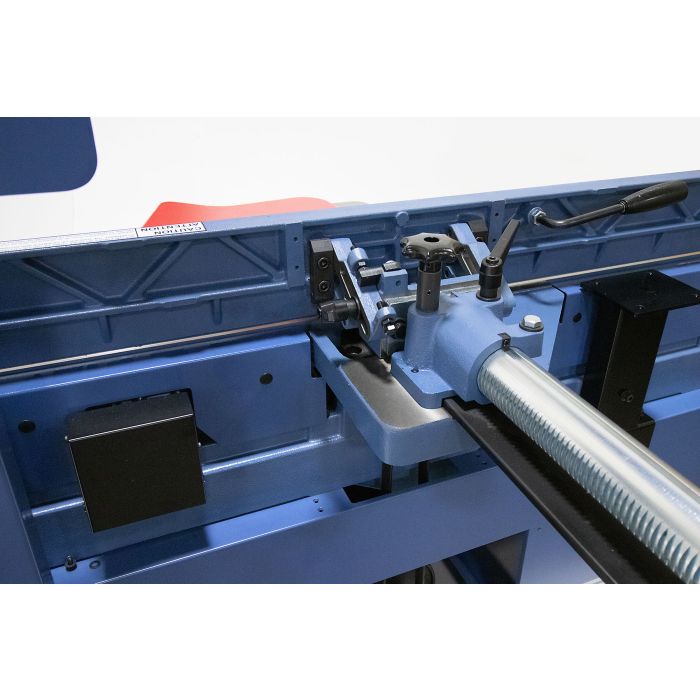

• Quick slide and lock fence adjustment
• Easy to read depth of cut gauge
• Powerful TEFC Baldor motor available in three phase
• Ploy V-belt drive efficiently delivers power to the cutter head
• CSA Listed



  Model Number	4275
  Ph	3Ph
  Stock Number	4275C.753T (7.5HP, 3Ph)
  Infeed Table Travel	3/4"
  Cutterhead Speed	5,500 RPM
  Number of Knives (helical)	6 rows of 15 inserts - 90 inserts total
  Maximum Depth of Cut	1/8"
  Rabbeting Capacity	3/4"
  Dust Port Diameter	6" / Recommended 700CFM
  Table Dimensions	16" x 100"
  Table Height	34-3/4”
  Fence Dimensions	47”L x 6”W
  Fence Tilts	45°
  Positive Stops	90° and 45°
  Motor 3Ph	7.5HP, 230V/460V* Prewired 230V (3Ph 16.8/8.4 Amp)
  Overall Dimension	99-3/4”(L) x 45”(W) x 50”(H)
  Net Weight	1,020
  Gross Weight	1,390 lbs
