Oliver Machinery 25” 230V Single Phase Planer with HCX Helical Cutterhead 4470.101T

• Max Stock Thickness: 9-¼”
• Min Stock Thickness: 1/8” Manual - 15/64” Automatic
• Min Stock Length: 10”
• Feed Speeds: 20, 25, and 30 FPM

Features

• Oliver HCX Helical Cutterhead
• Carbide inserts are indexed for quick changing
• Massive cast iron construction throughout allows up to a ¼’ cut
• Polished built-in table roller assists movement of rough stock
• Segmented infeed roller and sectional chip breaker easily handle rough stock
• Dual outfeed rollers assist with heavy stock
• 3-speed gear box provides the perfect feed rate
• Magnetic controls with emergency off switch for safer operation

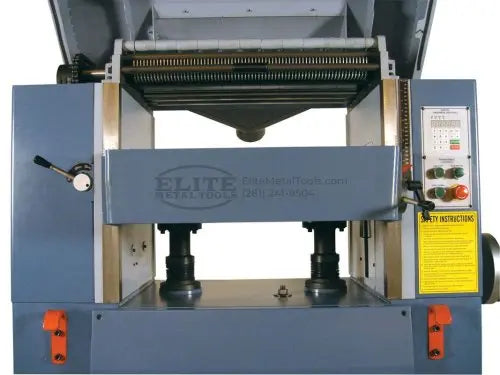

• Control panel with digital readout allows precise thickness setting
• Power assisted table makes for quick, accurate, adjustments

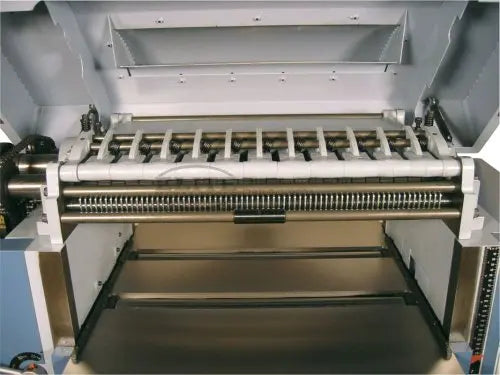

• Hinged access to cutter head and feed rollers for quick set-up
• 5” dust chute easily handles chip removal
• Easy access to motor, drive train, and gearbox assist in maintenance and adjustment
• Powerful TEFC motor

Specifications

• Max Stock Width: 25”
• Max Depth of Cut: ¼” for 0” – 11-¾” and 1/8” for 11-¾”-25”
• Max Stock Thickness: 9-¼”
• Min Stock Thickness: 1/8” Manual - 15/64” Automatic
• Min Stock Length: 10”
• Dust Port Diameter: 5”
• Min CFM Required: 900 CFM
• Infeed Roller Diameter: 3”
• Steel Outfeed Roller Diameter”: 3” (x2)
• Feed Speeds: 20, 25, and 30 FPM
• Bed Rollers: 2, Adjustable
• Table Size: 26” x 32”
• Cutterhead Diameter: 3-3/8”
• Cutterhead Speed: 4,800 RPM
• Number of Knives (helical): 125
• Table Support: 2-Column
• Motor: 230V / Single Phase / 10HP / 43 Amps
• Overall Dims (LxWxH): 46” x 23” x 56”
• Net Weight: 1,732 lbs
• Gross Weight: 1,850 lbs
