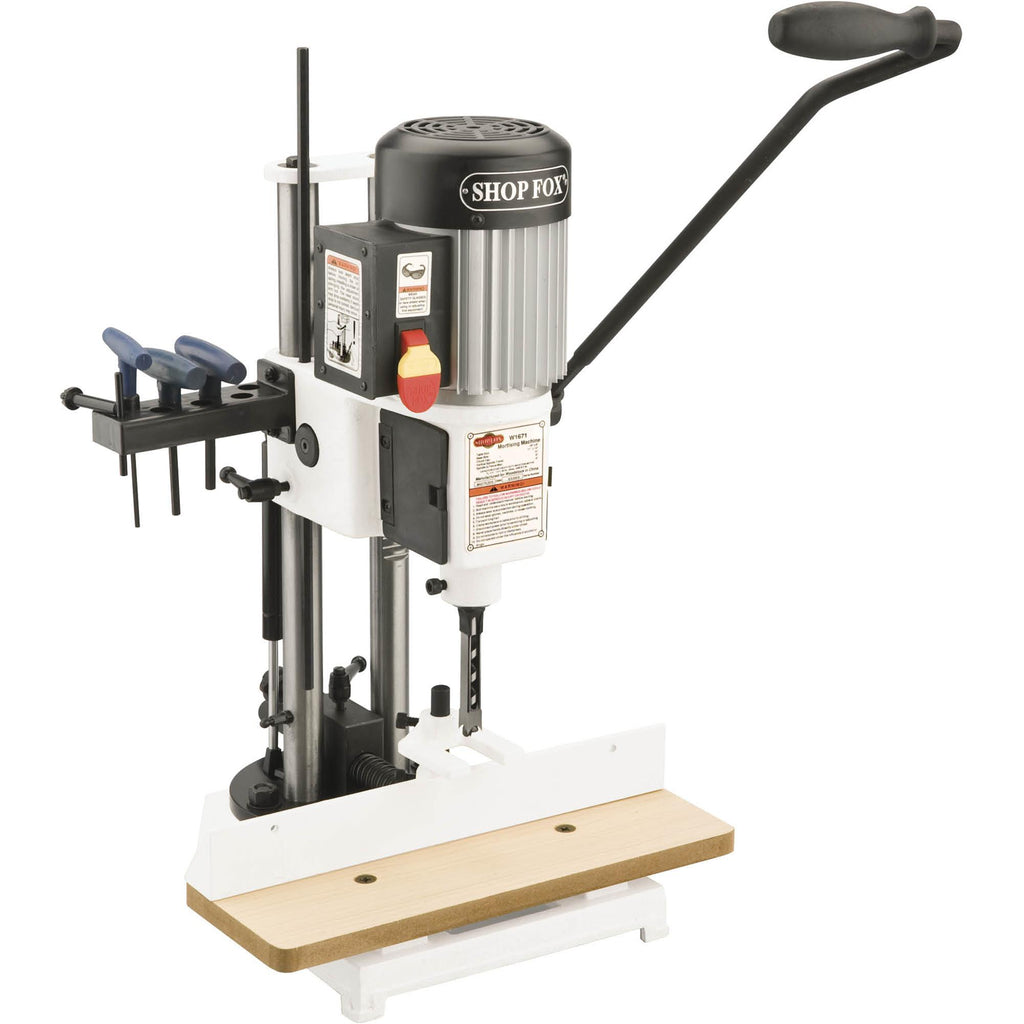

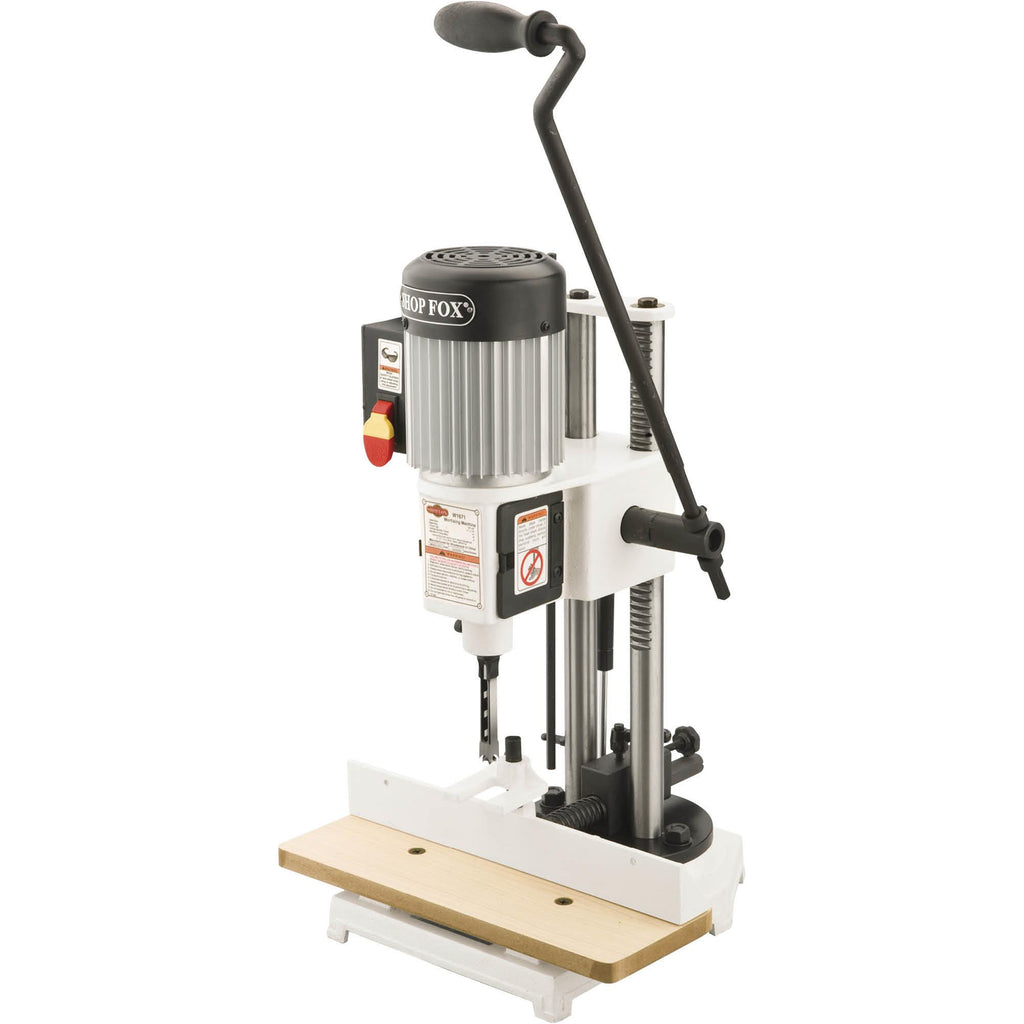

Shop Fox W1671 Mortising Machine
Cut straight, square-sided mortises in short order.
The W1671 Mortising Machine is a rugged, high-quality machine with all the features found in the best mortisers, but with none of their faults.
The super heavy-duty fence and hold down eliminate unwanted wood movement and "sticking chisels," (an all-too-common complaint with all mortisers), ensuring accurate and fast operation.
The solid-steel arm is especially easy to adjust and its length makes it possible to cut with less effort.
The unique swiveling base allows easy off-the-bench operations and opens new possibilities for custom mortises.
The precision 1/2" chuck eliminates the need to modify chisels and bits, and the extra height capacity allows the use of stock up to 7-3/8" thick.
The all-steel, quick-adjust depth stop is easy to set and designed with a positive stop mechanism to ensure the highest level of repeatable accuracy for repeatable operations.
With features like an 8-piece tool holder, easy two-door chuck access, and twin hardened-and-ground columns, you'll see why this is one of the most popular mortising machines on the market!
Like all Shop Fox machines, the W1671 comes with a 2-year warranty which covers parts and assures the unit is free from factory defects.
The W1671 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your mortiser.
The Shop Fox Customer Service and Technical Support Teams are U.S.-based. Parts may be available online and shipped from the Shop Fox parts warehouse in Springfield, MO.
SPECIFICATIONS:
- Motor: 3/4 HP, 110V, single-phase, 8A
- Maximum stock width: 8"
- Maximum stock thickness: 7-3/8"
- Maximum mortising depth: 4-1/2"
- Maximum chisel travel: 4-3/4"
- Spindle taper: JT #2
- Spindle speed: 3450 RPM
- Collar size: 5/8", 3/4"
- Table dimensions: 16" W x 6" L x 3/4" T
- Chuck: 1/2"
- Overall dimensions: 16" W x 16" D x 29-1/2" H
- Approximate shipping weight: 92 lbs.

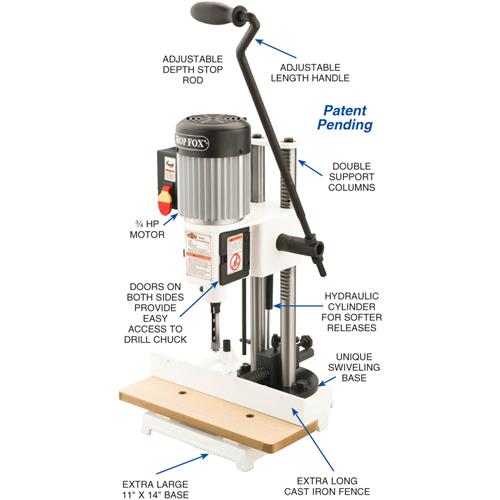

FEATURES:
- Two-year warranty!!
- Hydraulic cylinder for softer releases
- Double support columns
- Unique swiveling base
- Micro-adjustable fence
- Heavy cast-iron construction
- Adjustable depth-stop rod
- Extra-long (22") quick-set handle
- Includes 1/2" mortising chisel
