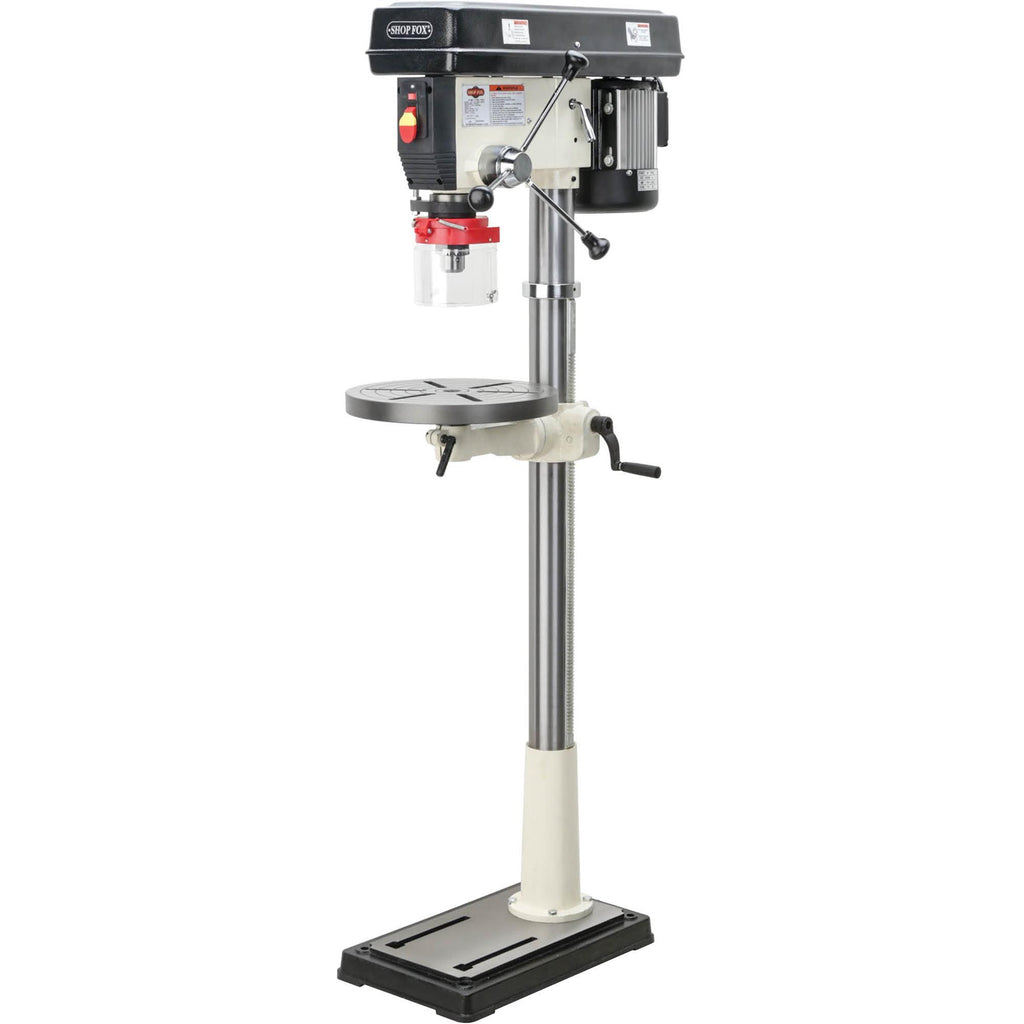

W1680 17" Floor Drill Press

A best in class drill press for long-lasting performance and reliability.

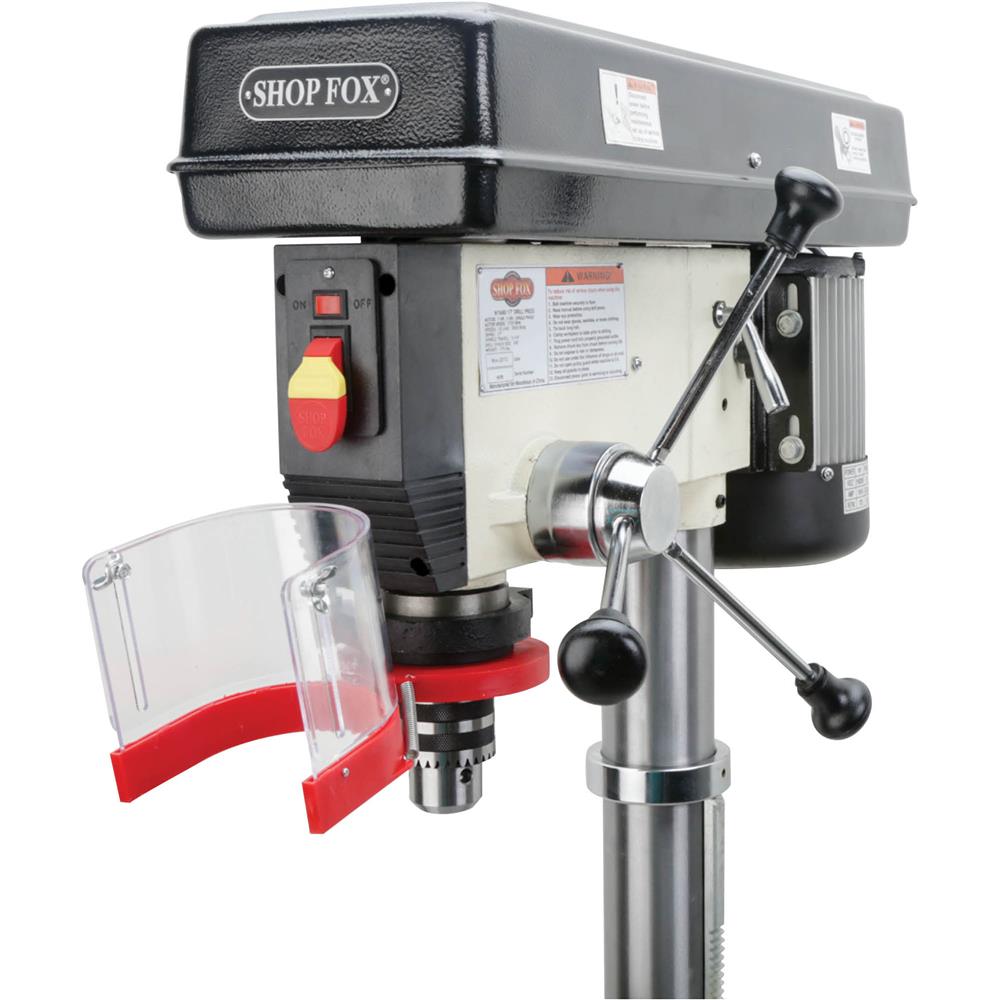

The Shop Fox W1680 17" Floor Drill Press is perfect for the average size cabinet shop or small machine shop.

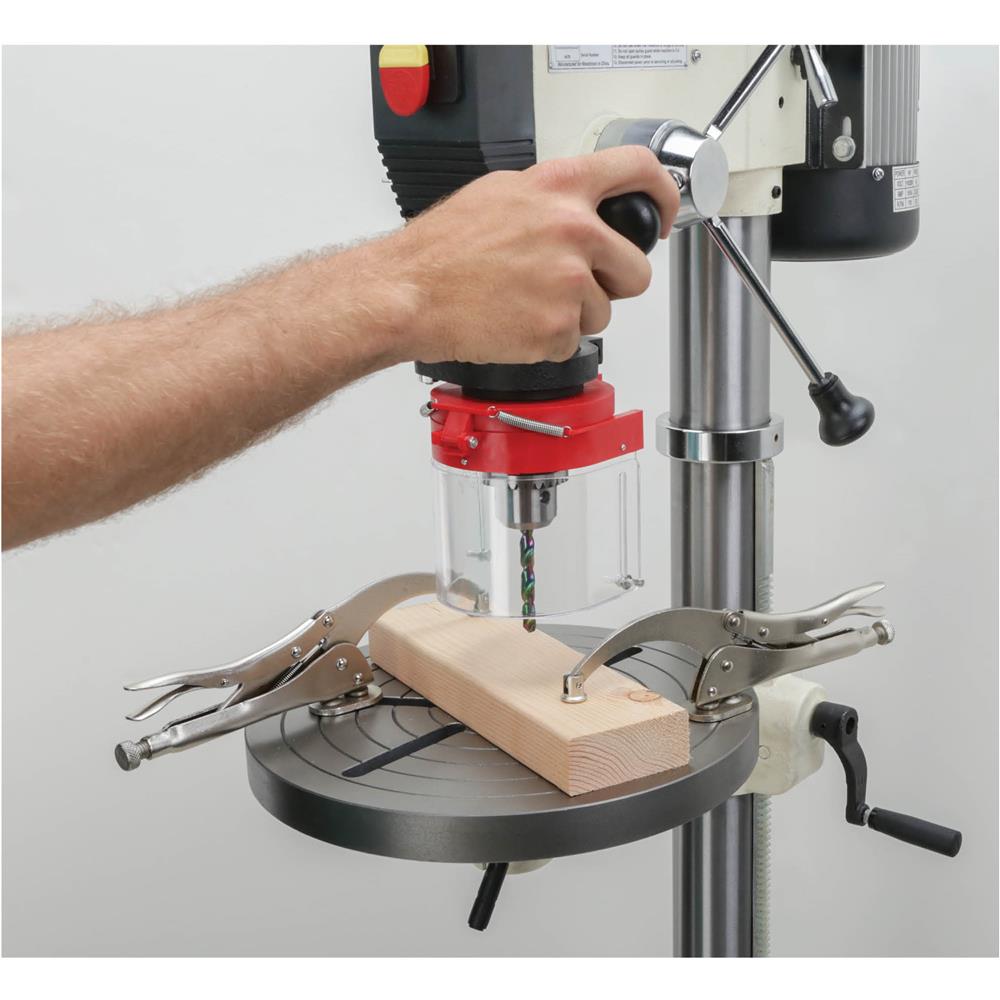

The W1680 is fitted with a 1/16" to 5/8" JT-3 keyed drill chuck and a Morse Taper #3 for the larger direct mount bits.

This 17" Floor Drill Press offers 3-1/4" of spindle travel and a drilling capacity of 1" through mild steel.

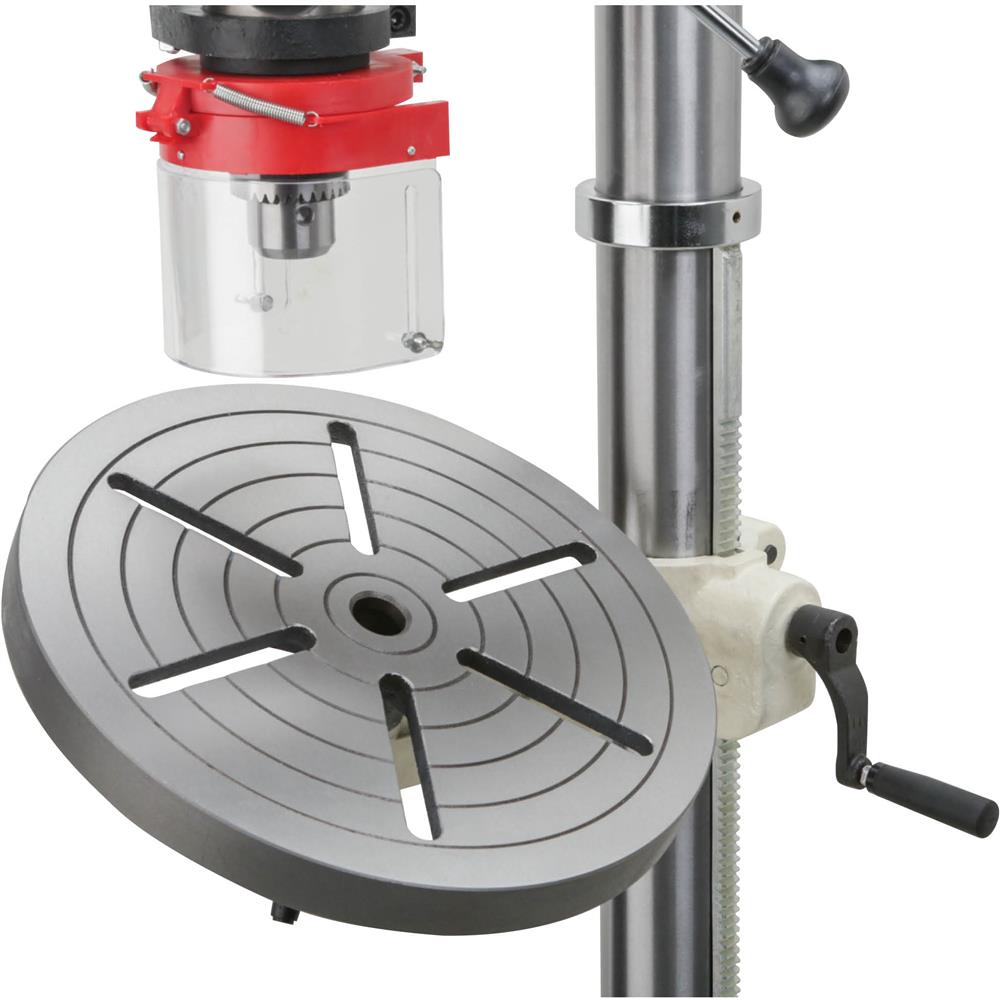

The 14" diameter, round table can swivel 360° around the column and allows for drilling at different angles as it tilts 90° in both directions.

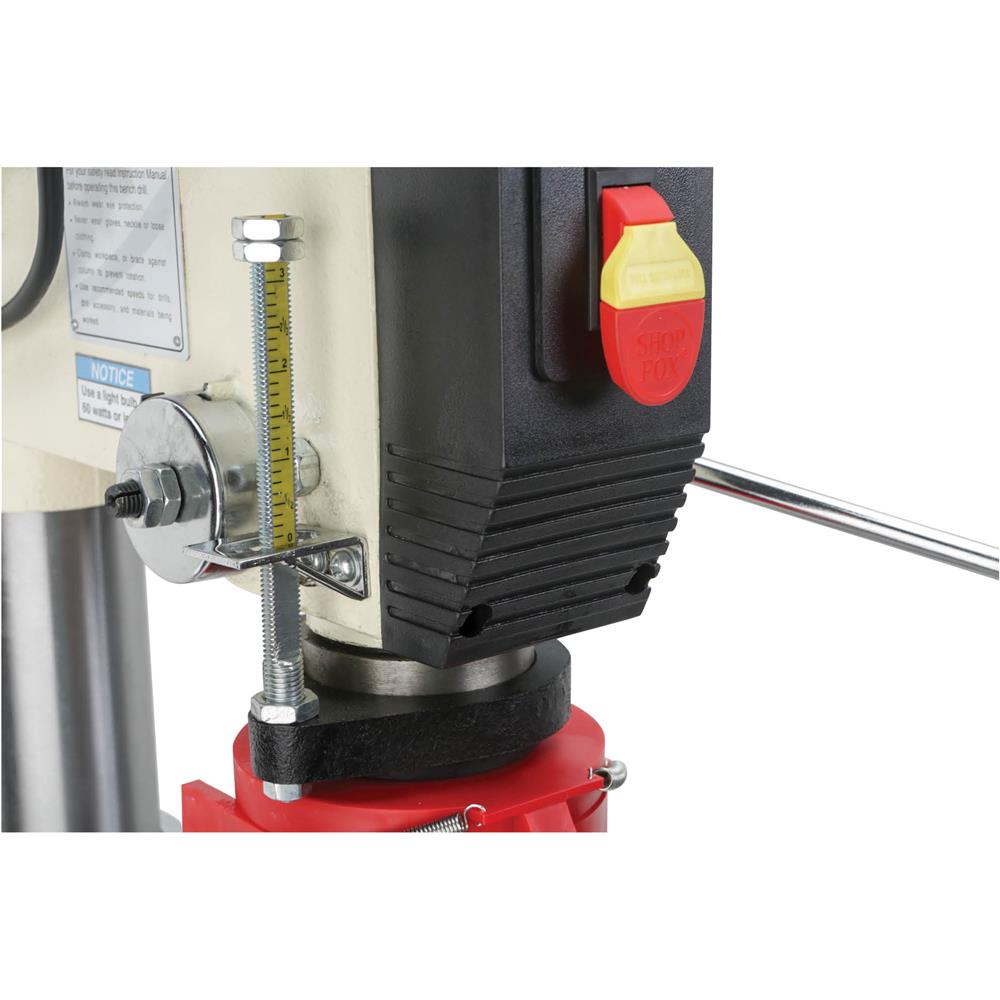

Setting the adjustable depth stop allows for predetermined and repeatable drilling.

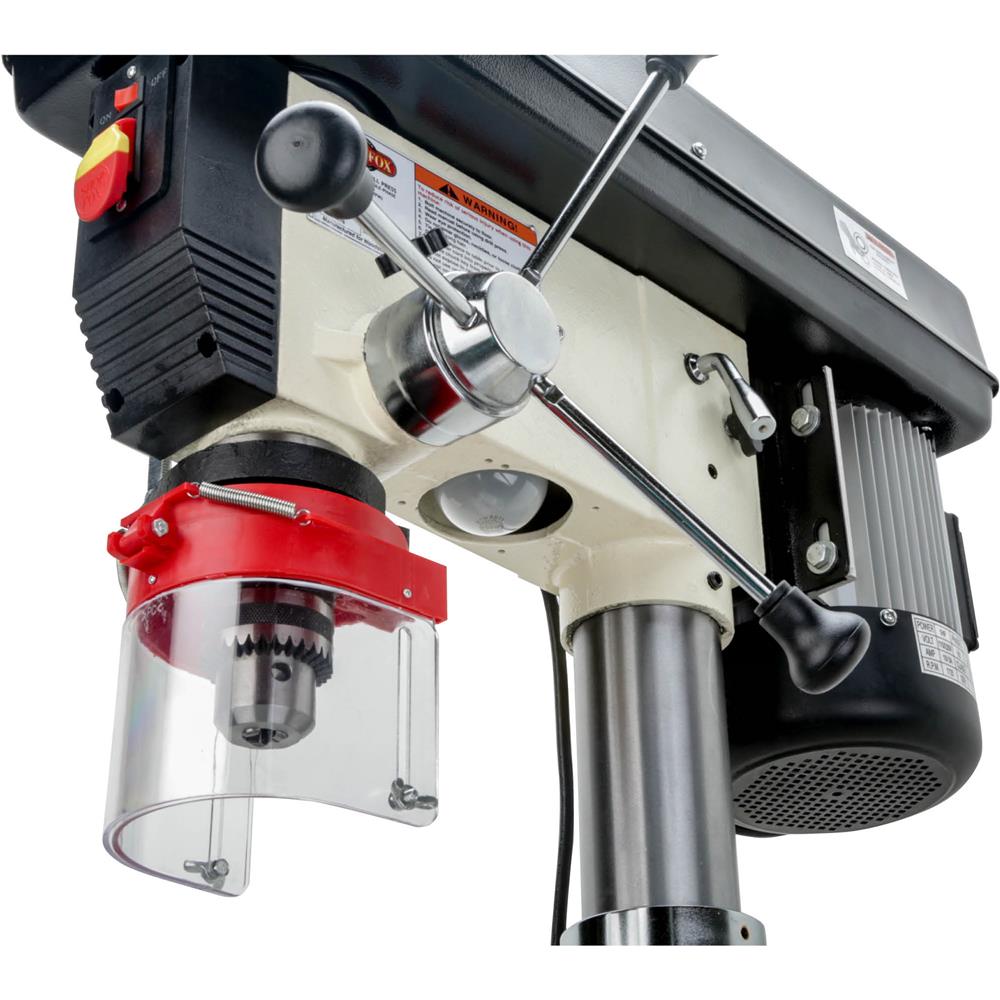

With solid cast-iron construction, sealed ball bearings, and rubber coated quick-adjust handles, the W1680 has the quality and convenience you want in a machine investment.

There is even a built-in light so you can see what your workpiece.

The W1680 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your drill press.

Made in an ISO 9001 Factory

SPECIFICATIONS:

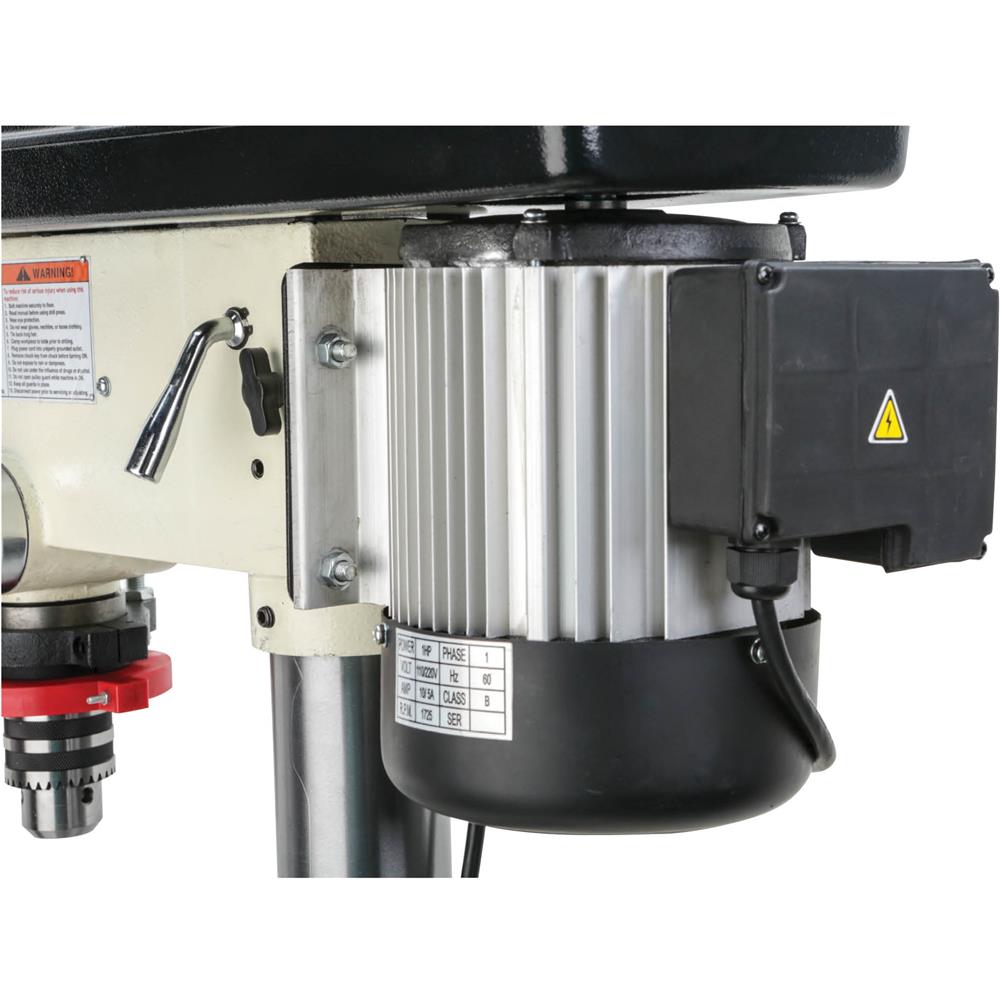

Motor: 1 HP, 110V, single-phase, 10A
Swing: 17"
Spindle taper: MT3
Spindle travel: 3-1/4"

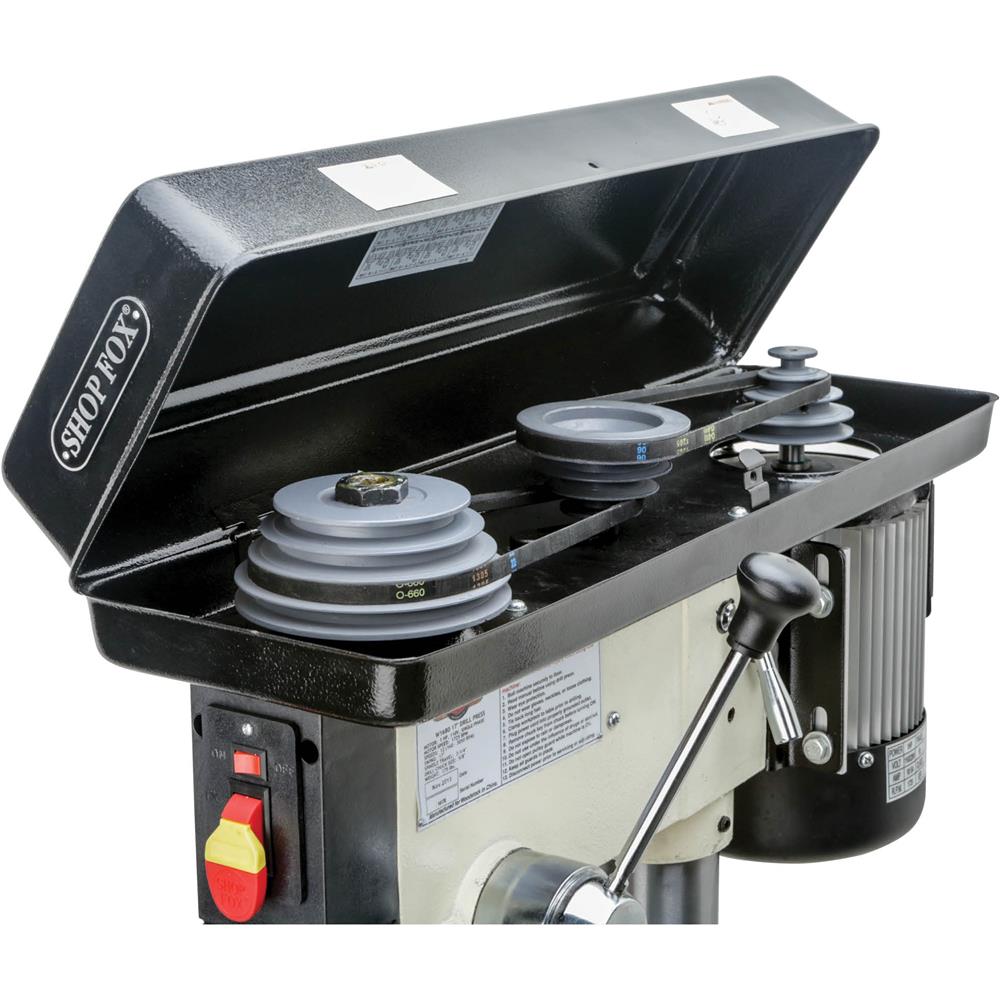

Spindle speed: 12, 140–3050 RPM
Drill chuck: 1/16"-5/8", JT-3
Drilling capacity: 1" mild steel
Maximum distance from spindle to table: 31-1/2"
Head swivel: 360°
Table: Round, 14" diameter
Table tilt: 90° left/right
Table swing: 360°
Table T-slots: 6 @ 5/8"
Footprint: 11" x 22-1/2"
Overall dimensions: 15" W x 27-1/2" D x 66" H
Approximate shipping weight: 235 lbs.

FEATURES:

Two-year warranty!!
Low RPM for metal working
Threaded depth stop

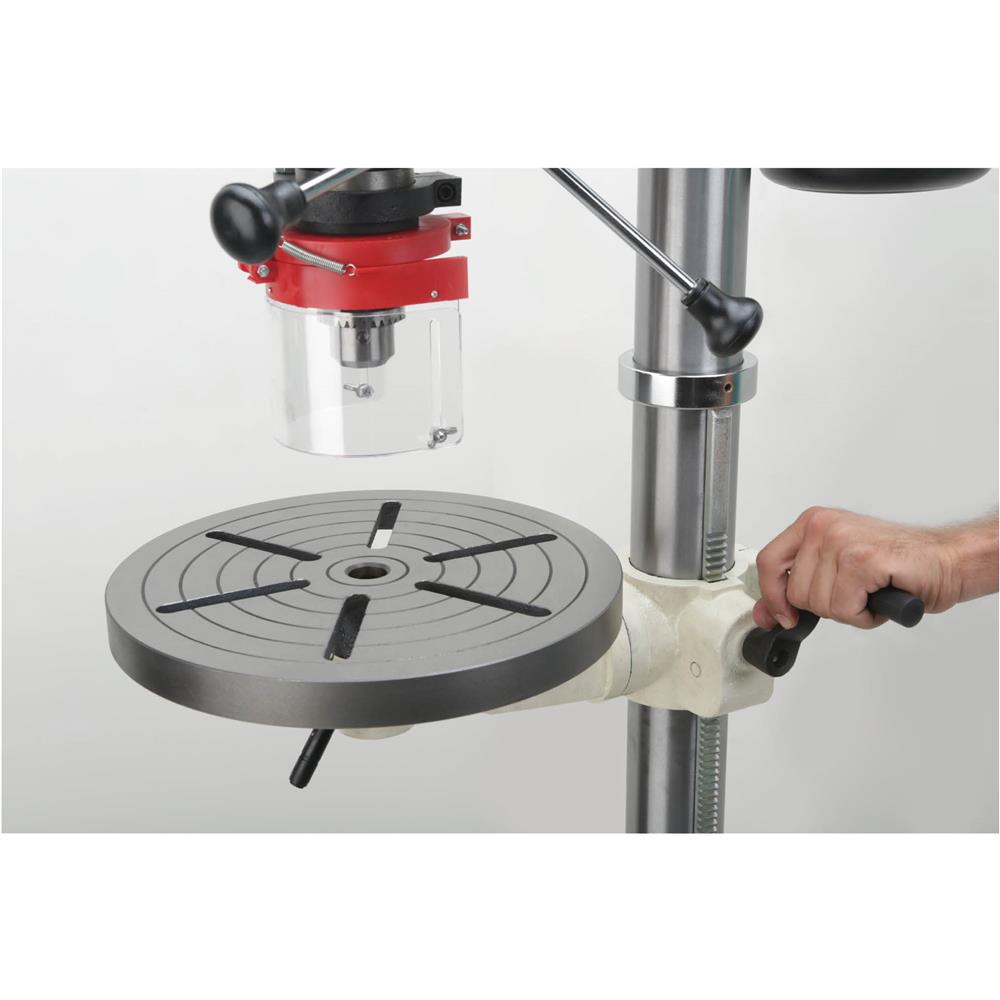

Crank handle operated rack-and-pinion vertical table movement
Includes built-in light

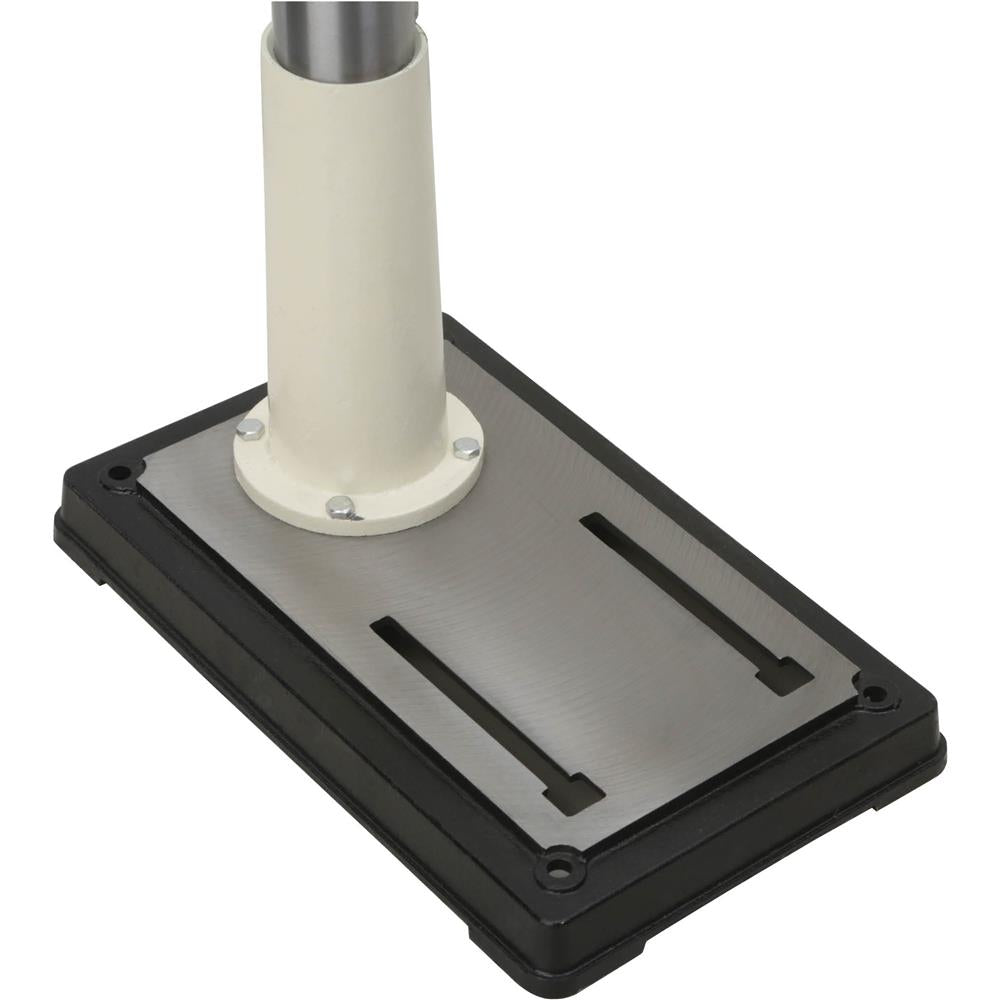

Table and base are cast-iron
1 HP motor
12 Speeds
3-1/4" spindle travel
Cushioned grip quill handles
1/16"-5/8" Drill chuck
