BMP.3200.IR
The BMP.3200.IR Platinum is the most powerful sliding panel saw from Maksiwa, equipped with a 7.5HP main motor and ¾ HP Scoring motor (3 phase). The 126” sliding table is constructed of anodized aluminum and runs on precision linear guide rails that gives you an ultra-smooth movement allowing you to move the table effortlessly. Designed with a European style 51″ rip fence, it has a digital readout with a micro adjustment for fine-tuning; simply lock it in place and adjust fence incrementally. The rip fence consists of a heavy-duty casting riding on a micro-polished solid steel bar.
Our heavy-duty anodized aluminum crosscut fence features two solid flip-stops, telescoping function (max 140″), 45° miter and is ergonomically designed to make it easier to read the tape. The control panel is conveniently located on an eye-level position with easy access to the main operation buttons. It comes standard with two overhead guards 90° and 45° featuring a quick-change and swing-away function, easily switch from one to the other in a matter of seconds and move the guard out of the way easily if necessary. It also includes a push handle, hold-down clamp and wedge clamp.
1. MOBILE ARM
2. MOBILE TABLE SUPPORT
3. BLADE TILT CONTROL HANDLE
4. WEDGE CLAMP
5. MAIN TABLE LOCK
6.WOOD PANEL CLAMP
7 REAR EXTENSION TABLE
8 DIGITAL DISPLAY FOR RIP FENCE
9. REAR EXTENSION TABLE GUIDE
10. REAR EXTENSION TABLE
11. EMERGENCY BUTTON/SWITCHES
12. CONTROL PANEL
13. DUAL BLADE PROTECTOR COVER
14. SUPPORT TABLE
15. SCORING BLADE ADJUSTMENT HANDLES
16. MEASURING TAPE
17. ALUMINIUM TABLE GUIDE
18. WOOD PANEL STOPPER
19. ALUMINIUM GUIDE EXTENSIONS
Parts Images
Control Panel
Adjustable Table Handle
Aluminum Table Guide

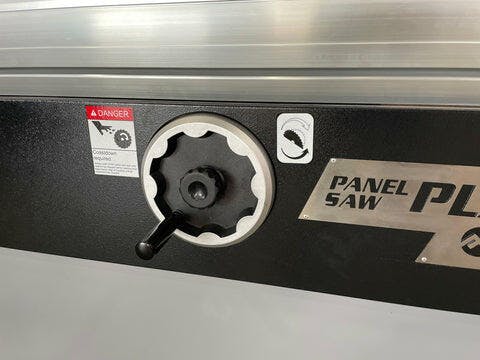

Blade Tilt Control Handle

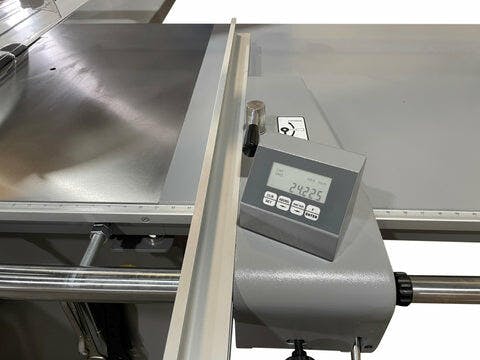

Digital Rip Fence Readout
Dual Blade Cover Protector
Emergency Buttons
Expended Crosscut Fence
Eye Level Control Panel with Digital Angle Display
Flip Stops
Heavy Duty Extended Crosscut Fence Bar
Mobile Table Support
Rear Extension Table Guide
Rear Extension Table
Rip Fence
Scoring Blade Adjustment
Sliding Table Handle
Sliding Table Lock
Support Table
Up-Down Blade Handle
Wood Panel Clamp
Wood Stopper
Dimensions
Specifications
| Technical Information | BMP.3200.IR |
|---|---|
| Main Motor | 7.5 HP/ 4000 RPM 5.5 Kw |
| Max Blade Diameter | 14" | 355mm |
| Main Blade Arbor | 1 3/16" | 30mm |
| Main Blade Max cutting Height at 90° | 3 1/2" | 90 mm |
| Main Blade Cutting Height at 45° | 2 7/16" | 63mm |
| Scoring Motor | 3/4 HP / 8000 RPM .74Kw |
| Scoring Motor Blade | 4 3/4" | 12mm |
| Scoring Blade Arbor | 3/4" | 20mm |
| Scoring Blade Type | Conical |
| Max Ripping Capacity | 51" | 1295mm |
| Crosscut Capacity | 126" | 3200 mm |
| Crosscut Fence Capacity Closed/Open | 78" / 120" | 1981mm / 3048 mm |
| Machine Working Dimensions (LxWxH) | 132" x 137" x 75" | 3352 x 3479 x 1905 mm |
| Cast Iron Table Dimension (LxWxH) | 35" x 21" x 34" | 896 X 548 X 864 mm |
| Sliding Table Dimension (LxW) | 126" x 14 " | 3200 x 358 mm |
| Dust Collection Port (2) | 4" | 100mm |
| Minimum Dust Collection Requirements | 1000 CFM | 28m/min |
| Electrical Specs | 3 Phase 220V 30 Amps 60 Hz |
| Main Body Crate Dimensions (LxWxH) | 83" x 45" x 45" | 2108x 1143 x 1143 mm |
| Main Body Crate Weight Net/Gross | 1470 LBS | 667 KGS |
| Sliding Table Crate Dimensions (LxWxH) | 133" x 18" x 15" | 3378 x 457 x 381 mm |
| Sliding Table Crate Weight Net/Gross | 274 LBS | 124 KGS |
Additional Technical Info
| Technical Info | BMS.1600.IR | BMS.3200.IR | BMT.3200.IR | BMP.3200.IR |
|---|---|---|---|---|
| Warranty | 2 Years | 2 Years | 2 Years | 2 Years |
| Digital Angle Display | Yes | Yes | Yes | Yes |
| Eye Level Control Panel | No | No | No | Yes |
| Digital Fence Readout | Yes | No | Yes | Yes |
| Rip Fence Micro Adjustment | Yes | Yes | Yes | Yes |
| Main Motor | 5HP 4000 RPM 3.7 Kw | 5HP 4000 RPM 3.7 Kw | 5HP 4000 RPM 3.7 Kw | 7.5 HP 4000 RPM 5.5 Kw |
| Max Blade Diameter | 12" | 305 mm | 12" | 305 mm | 12" | 305 mm | 14" | 355 mm |
| Main Blade Arbor | 30 mm | 30 mm | 30 mm | 30 mm |
| Main Blade Max Cutting Height at 90º | 3 1/2" | 90mm | 3 1/2" | 90mm | 3 1/2" | 90mm | 3 1/2" | 90mm |
| Main Blade Cutting Height at 45º | 2 1/8" | 53 mm | 2 1/8" | 53 mm | 2 7/16" | 63 mm | 2 7/16" | 63 mm |
| Scoring Motor | 1 HP 8000 RPM .74 Kw | 1 HP 8000 RPM .74 Kw | 3/4 HP 8000 RPM .55 Kw | 3/4 HP 8000 RPM .55 Kw |
| Scoring Motor Blade | 4 3/4" - 120 mm | 4 3/4" - 120 mm | 4 3/4" - 120 mm | 4 3/4" - 120 mm |
| Scoring Blade Arbor | 3/4" | 20 mm | 3/4" | 20 mm | 3/4" | 20 mm | 3/4" | 20 mm |
| Scoring Blade Type | Conical | Conical | Conical | Conical |
| Max Ripping Capacity | 35 1/2" | 51" | 1300 mm | 51" | 1300 mm | 51" | 1300 mm |
| Crosscut Capacity | 63" | 1600mm | 126" | 3200 mm | 126" | 3200 mm | 126" | 3200 mm |
| Crosscut Fence Capacity Closed / Open | 48" | 80" | 74 3/4" | 108" | 78" | 120" | 78" | 120" |
| Machine Working Dimensions (LxWXH) | 79" x 115" x 66" | 126" x 137" x 52" | 132" x 137" x 52" | 132" x 137" x 75" |
| Cast Iron Table Dimension (LxWxH) | 32 1/2" x 21" x 35 1/2" | 31 1/2" x 21" x 34 3/4" | 35" x 21" x 34" | 35" x 21" x 34" |
| Sliding Table Dimension (LxW) | 63" x 12" | 126" x 14 3/4" | 126" x 14" | 126" x 14" |
| Dust Collection Port (2) | 4" | 4" | 4" | 4" |
| Minimum Dust Collection Requirement | 1000 CFM | 1000 CFM | 1000 CFM | 1000 CFM |
| Electrical Specs | 1 PH 220V 30 Amps 60 Hz | 1 PH 220V 22 Amps 60 Hz
3 PH 220V 11 Amps 60 Hz |
1 PH 220V 30 Amps 60 Hz | 1 PH 220V 30 Amps 60 Hz |
| Main Body Crate Dimension (LxW XH) | 31 1/2" x 21" x 32" | 88" x 48" x 43" | 83" x 45" x 45" | 83" x 45" x 45" |
| Main Body Crate Weight | 1000 lbs | 1257 lbs | 1254 Lbs | 1470 lbs |
| Sliding Table Crate Dimensions (LxWxH) | 63" X 12" | 140" x 19" x 8 1/2" | 133" x 18" x 15" | 133" x 18" x 15" |
| Sliding Table Crate Weight | 282" | 274" | 274" | |
| Sliding Table Width | 14 3/4" | 14 3/4" | 14" | 14" |
| Sliding Table Mechanism | Roller Bearings | Roller Bearings | Roller Bearings | Roller Bearings |
