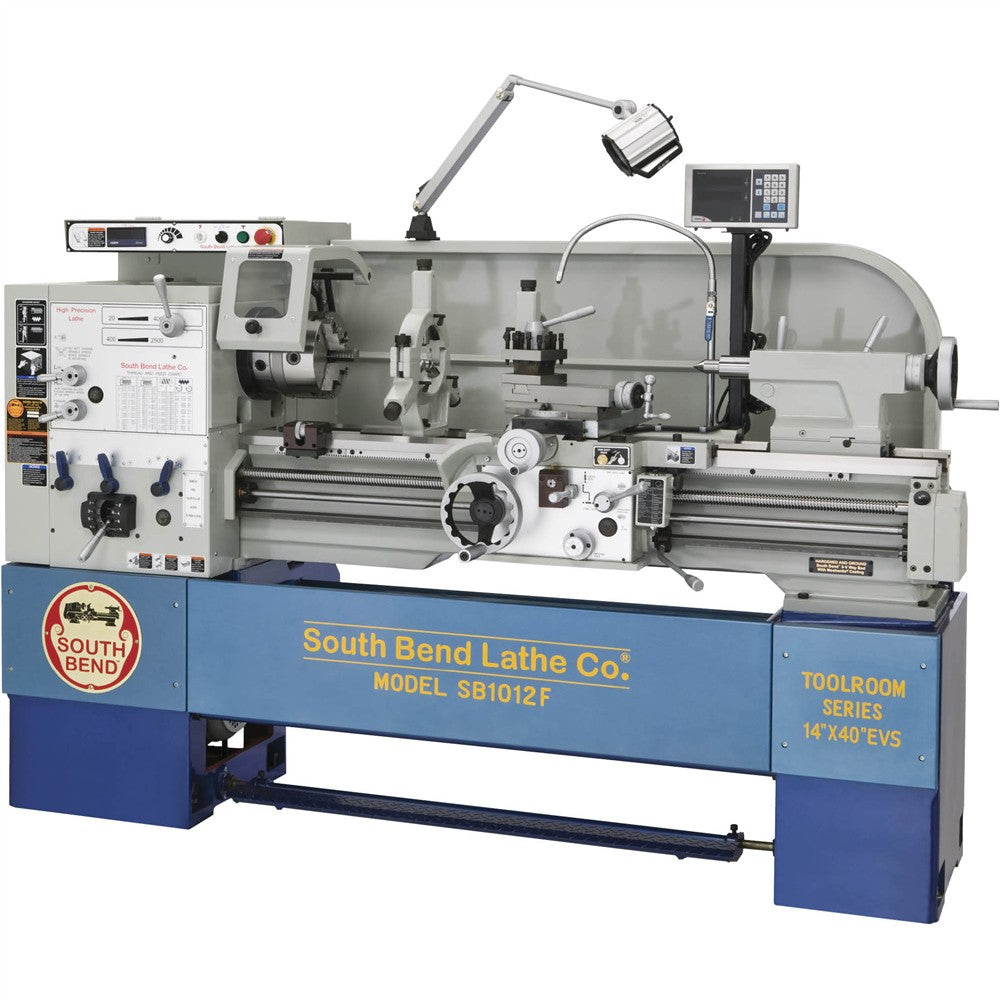

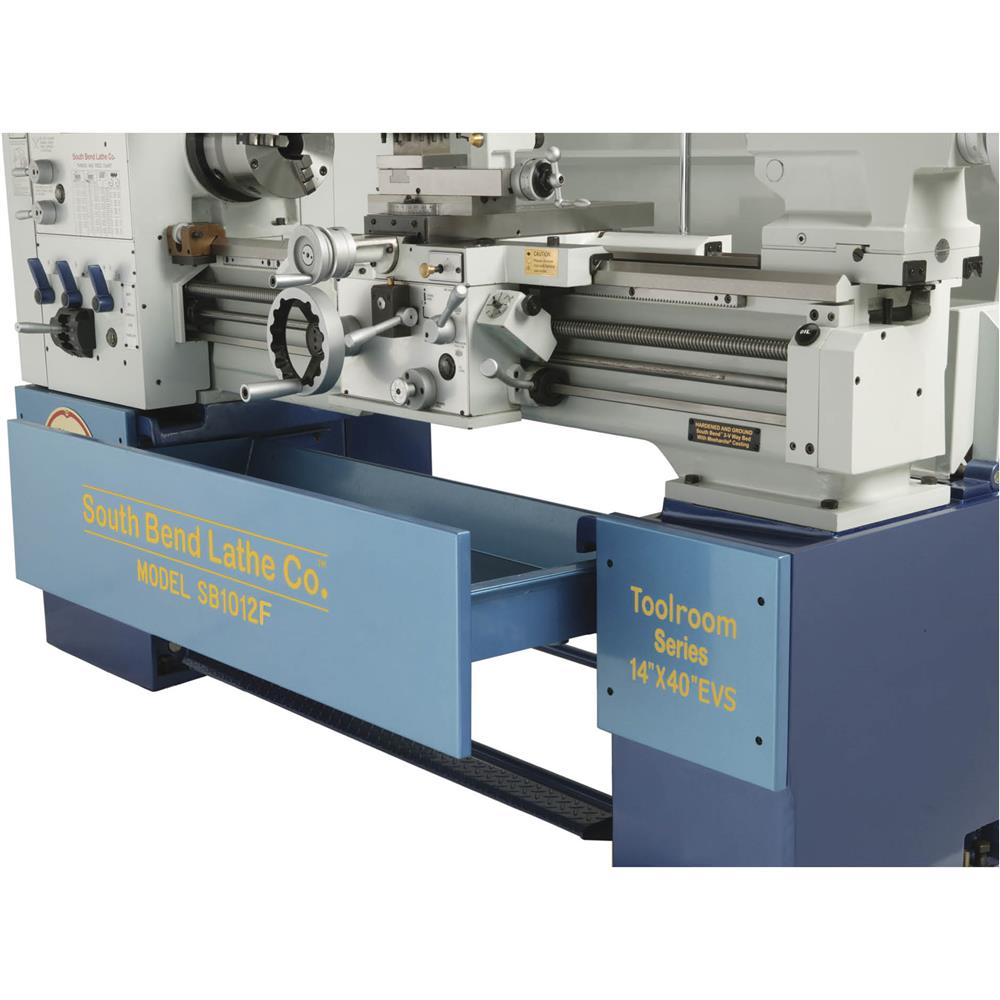

SB1012F 14" x 40" EVS Toolroom Lathe
For when Electronic Variable-Speed (EVS) is the minimum requirement of your toolroom.
Loaded with all the essential features and high-precision parts, the SB1012F 14" x 40" EVS Toolroom Lathe excels at making dies, fine tools, jigs and fixtures.
Featuring EVS (Electronic Variable-Speed) spindle control, which allows the operator to quickly set the exact spindle speed within the available range of 20–2500 RPM.

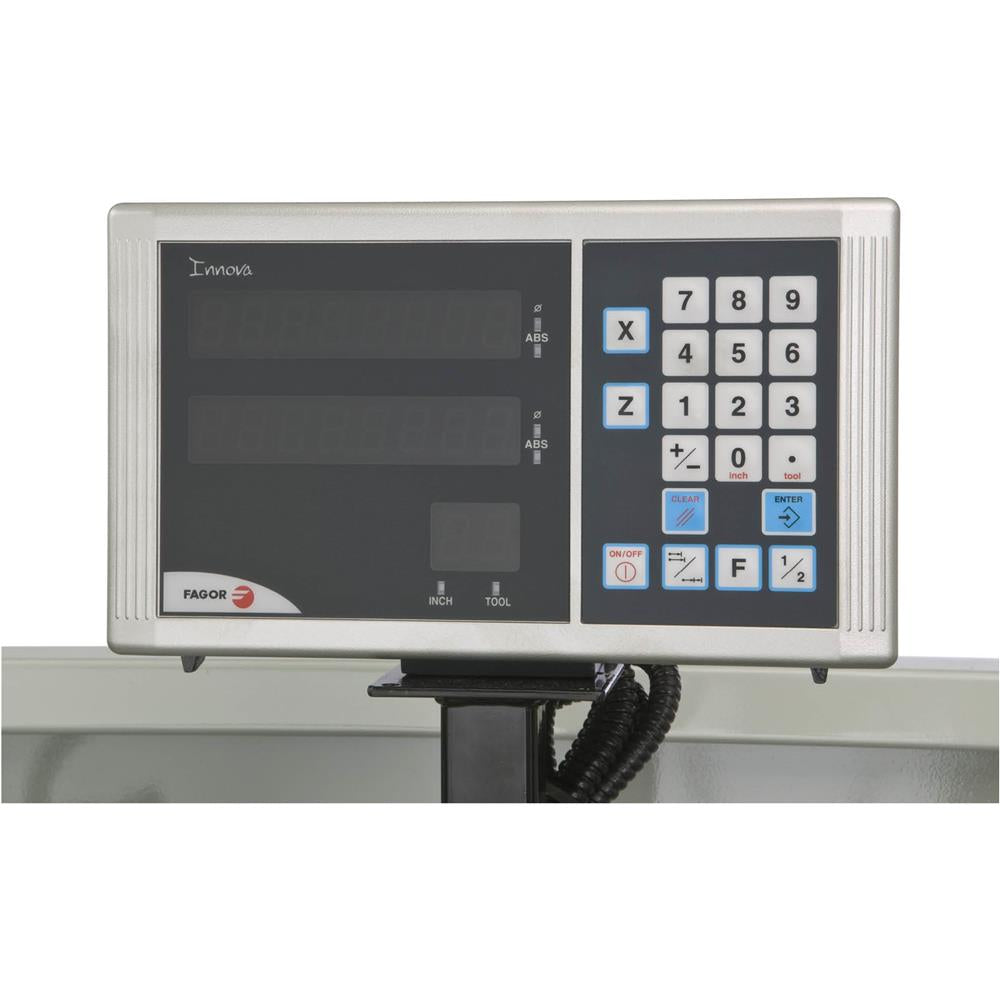

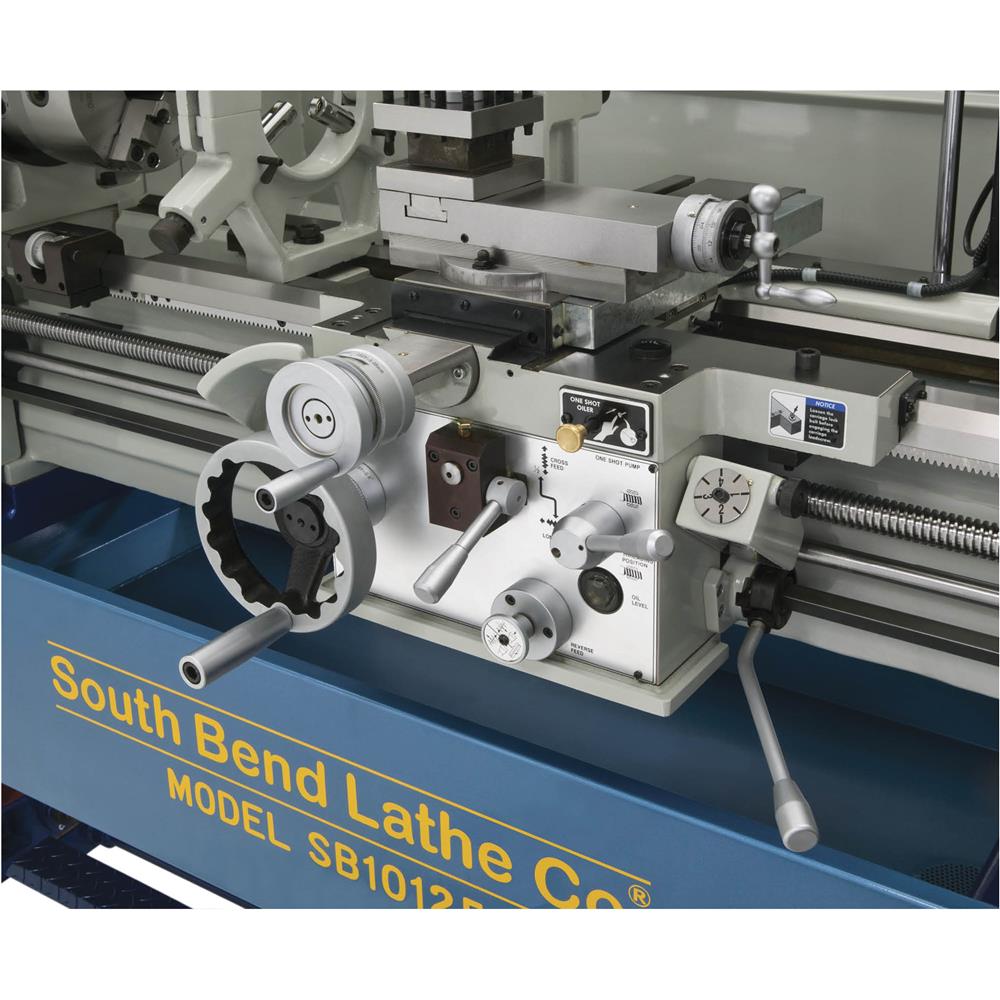

A Fagor DRO conveniently reads the position of the apron or cross slide movement.

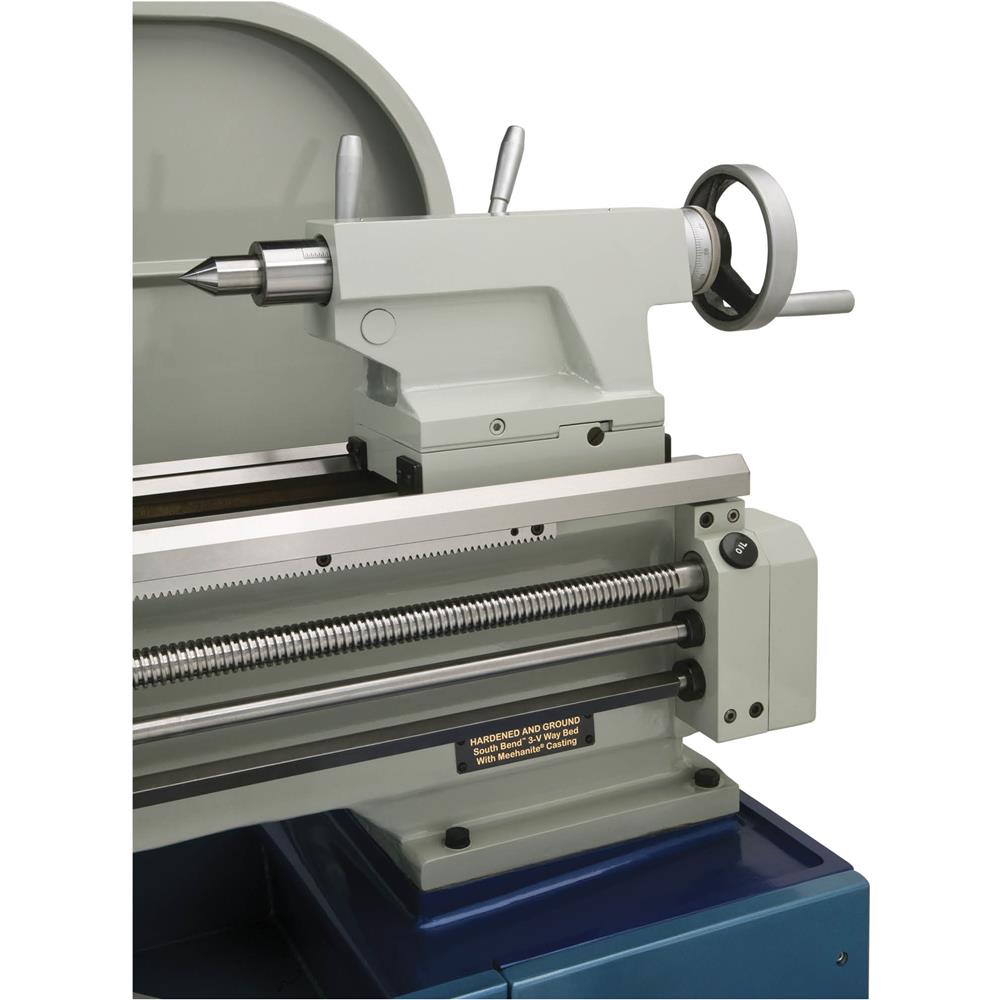

The bed of the SB1012F is constructed with Meehanite® castings that have been induction-hardened and ground in the traditional 3-V prismatic design.
The SB1012F manual was written by our U.S.-based Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your lathe.
The South Bend Technical Support team is based in the USA.
SPECIFICATIONS
- Required power source: 220V, 3-phase, min. 20A circuit
- Spindle motor: 5 HP, 220V
- Oil pump motor: 1/4 HP
- Coolant Pump Motor: 1/8 HP
- Swing over bed: 14.17"
- Swing over gap: 20.98"
- Swing over cross slide: 8.38"
- Cross slide travel: 9.25"
- Compound travel 5.10"
- Distance between centers: 40.00"
- Spindle bore: 2.0625"
- Spindle speeds: Variable, 20–2500 RPM
- Spindle taper: MT#6
- Tailstock taper: MT#4
- Tailstock quill travel: 6.00"
- Inch threads: (45) 2 to 72 TPI
- Metric threads: (39) 0.20 to 14.00mm
- Modular pitches: (18) 0.30 to 3.5 MP
- Diametral pitches: (21) 8 to 44.00 DP
- Longitudinal range: (17) 0.002 to 0.067 IPR
- Cross range: (17) 0.001 to 0.034 IPR
- Footprint: 82" x 19-1/2"
- Overall dimensions: 91-1/2" W x 39-1/2" D x 59" H
- Approximate shipping weight: 3086 pounds
FEATURES:
- 2-year limited warranty
- Fagor 2-axis DRO
- Meehanite® casting
- Allen-Bradley® controls
- Safety chuck guard w/ micro-switch shut-off
- Complete recycling coolant system
- Micrometer carriage stop
- Japanese spindle bearings
- 8" 3-Jaw scroll chuck w/ D1-6 plate
- 10" 4-Jaw ind. chuck D1-6
- 12" faceplate
Due to product size, this item must be delivered to a loading dock or unloaded with a forklift. Liftgate not available.
