- Swing Over Bed: 19.7” (500mm)
- Swing Over Cross-Slide: 11.8” (300mm)
- Swing Over Gap: 28” (710mm)
- Gap Length: 9.44” (240mm)
Description

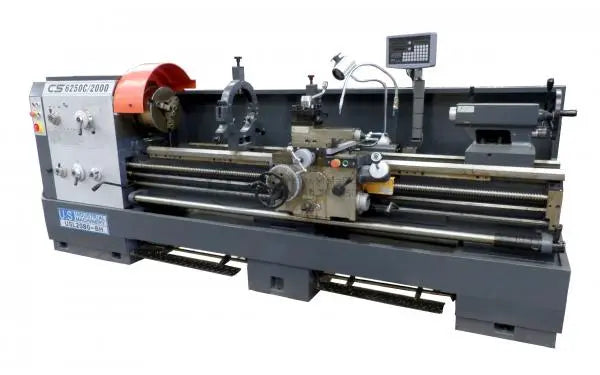

This precision, heavy duty geared head engine lathe incorporates hardened and precision ground bedways on longitudinal and cross ways, and wide, precision ground gears. It has a gap-bed design, feed-rod/lead screw safety interlock system, weight bearing tailstock and forward/reverse levers at both the aprons and the head stock.
As with all U.S. Industrial lathes, it comes with a plethora of standard accessories, 3 and 4-jaw chucks, follower and steady rests, 4-way rapid travel, work lamp, a coolant system and an operator/service manual.
Standard Equipment: (Items below are INCLUDED with the machine)
- 12” 3-jaw chuck. Universal, self-centering with an American standard tongue and groove top Jaws.
- 16” 4-jaw independent chuck
- Steady rest
- 4-way toolpost
- Thread Dial
- Work lamp
- Flood coolant system
- Sino 2-axis digital readout inch/metric (installed)
- Inch reading dials on Apron, Cross-Slide and compound
- Manual with test certificate
- 25” Face Plate & Dog Plate
- Foot brake with microswitch and brake
- Follow rest
- 4-way rapid travel
- Safety chuck shield
- Taper attachment (installed)
- Large spindle bore to pass 4”
- Full length backsplash
- Slide out chip pans
Specifications
- Swing Over Bed: 19.7” (500mm)
- Swing Over Cross-Slide: 11.8” (300mm)
- Swing Over Gap: 28” (710mm)
- Gap Length: 9.44” (240mm)
- Maximum Workpiece Length with 3-jaw chuck: 78.74” (2000mm)
- Maximum Turning Length: 76.77” (1950mm)
- Spindle Bore: 4.134” (105mm)
- Spindle Type: D1-8 Camlock
- 12 Spindle Speeds: 36 to 1600 RPM
- 65 Longitudinal Feeds: .0023 to .0937 IPR
- 65 Cross Feeds: .0011 to .0404 IPR
- 22 Metric Threads: 1 to 14mm
- 27 Inch Threads: 2 to 28 TPI
- 18 Module Threads: 0.5 to 7mm
- 24 Diametral Pitch Threads: 4 to 56 DP
- Compound Rest Travel: 5.75”
- Cross-Slide Travel: 12.125”
- Tailstock Taper: No. 5 Morse Taper
- Tailstock Spindle Travel: 5.906” (150mm)
- Tailstock Spindle Diameter: 2.953” (75mm)
- Main Motor HP: 10 HP (7 kw) 220V or 440V, 3-Phase
- Rapid Feed Motor: 0.4 HP
- Coolant Pump Motor: .16 HP, 11 gallons per minute
- Lathe Gross Weight: 6,500 lbs.
- Dimensions: 147” long, 40” wide, 50” tall
Options
- Quick Change Toolpost Kit with Holders
- ISO Cutting Tool Package
| Manufacturer |
|
| SKU |
USL2080
|
| Shipping Method |
Flatbed
|
| Weight |
6,500 lb
|
| Dimensions |
147 × 40 × 50 in
|
| Warranty |
(Parts) |
