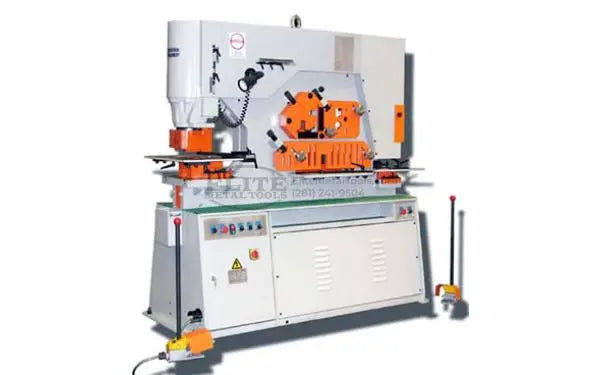

U.S. Industrial Machinery 125 Ton Dual Operated Hydraulic Ironworker USHI125XT

• Punch Throat Depth: 24"
• Punching Thickness: 1"
• Bar Shear: 2-3/8" round
• Flat Bar Shear: 14" x 1"

Standard Equipment

• Dual hydraulic cylinders for two man operation with two moveable foot pedals
• Five workstations: punch, plate shear, angle shear, rod shear and notcher. This machine also comes with a press brake attachment
• Punch station has large two-piece gauging table with fence
• Punch station has quick acting swing-away stripper with 3 inserts
• Punch station has removable sections for punch leg of channel or I-beam
• Quick change coupling nut and sleeve for punch
• Electric backgauge, 3’ long
• Electrically interlocked safety guard for notching station
• Magnetic base workstation light
• 15 HP, 3-phase operation
• This machine weighs 10,560 lbs
• Three sets of round punch and die
• Spare parts and tools

Specifications

• Punch
  • Punch Tonnage: 125
  • Punching Thickness: 1"
  • Punching Diameter: 1-1/2"
  • Throat Depth: 24"
  • Stroke Length: 0 to 3-1/8"
• Flat Bar Shear
  • Maximum Thickness: 14" x 1"
  • Maximum Length: 23.5" x 5/8"
  • Blade Length: 23.5"
• Angle Shear
  • Capacity 90°: 6" x 6" x 5/8"
  • Capacity 45°: 3" x 3" x 1/4"
• Bar Shear
  • Round: 2-3/8"
  • Square: 2-1/8"
• Notcher
  • Thickness: 1/2"
  • Width: 2-1/4"
  • Depth: 4"
• Other Information
  • Motor: 15 HP
  • Weight: 10,560 lbs
  • Dimensions (L x W x H): 92" x 37" x 82"
  • Oil Capacity: 33 Gal.
