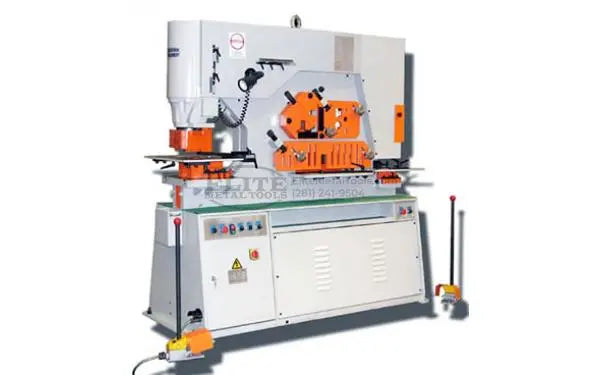

U.S. Industrial Machinery 90 Ton Dual Operated Hydraulic Ironworker USHI90XT

• Punch Throat Depth: 20"
• Punch Stroke: 0" to 3-1/8"
• Flat Bar Shear: 14" x 3/4"
• Notcher Thickness: 1/2"

Standard Equipment

• Dual hydraulic cylinders for two man operation with two movable foot pedals
• Five workstations: punch, plate shear, angle shear, rod shear and notcher. This machine also comes with a press brake attachment
• Punch station has large two-piece gauging table with fence
• Punch station has quick acting swing-away stripper with 3 inserts
• Punch station has removable sections for punch leg of channel or I-beam
• Quick change coupling nut and sleeve for punch
• Electric backgauge, 3’ long
• Electrically interlocked safety guard for notching station
• Magnetic base workstation light
• 10 HP, 3-phase operation
• This machine weighs 5,260 lbs
• Three sets of round punch and die
• Spare parts and tools

Specifications

• Punch
  • Punch Tonnage: 90
  • Punching Thickness: 3/4"
  • Punching Diameter: 1-1/4"
  • Throat Depth: 20"
  • Stroke Length: 0" to 3-1/8"
• Flat Bar Shear
  • Maximum Thickness: 14" x 3/4"
  • Maximum Length: 18" x 5/8"
  • Blade Length: 19"
• Angle Shear
  • Capacity 90°: 5-1/2" x 5-1/2" x 1/2"
  • Capacity 45°: 2" x 2" x 3/8"
• Bar Shear
  • Round: 2"
  • Square: 2"
• Notcher
  • Thickness: 1/2"
  • Width: 2-1/4"
  • Depth: 4"
• Other Information
  • Motor: 10 HP
  • Weight: 5,260 lbs
  • Dimensions (L x W x H): 73" x 35" x 74"
  • Oil Capacity: 25 Gal.
