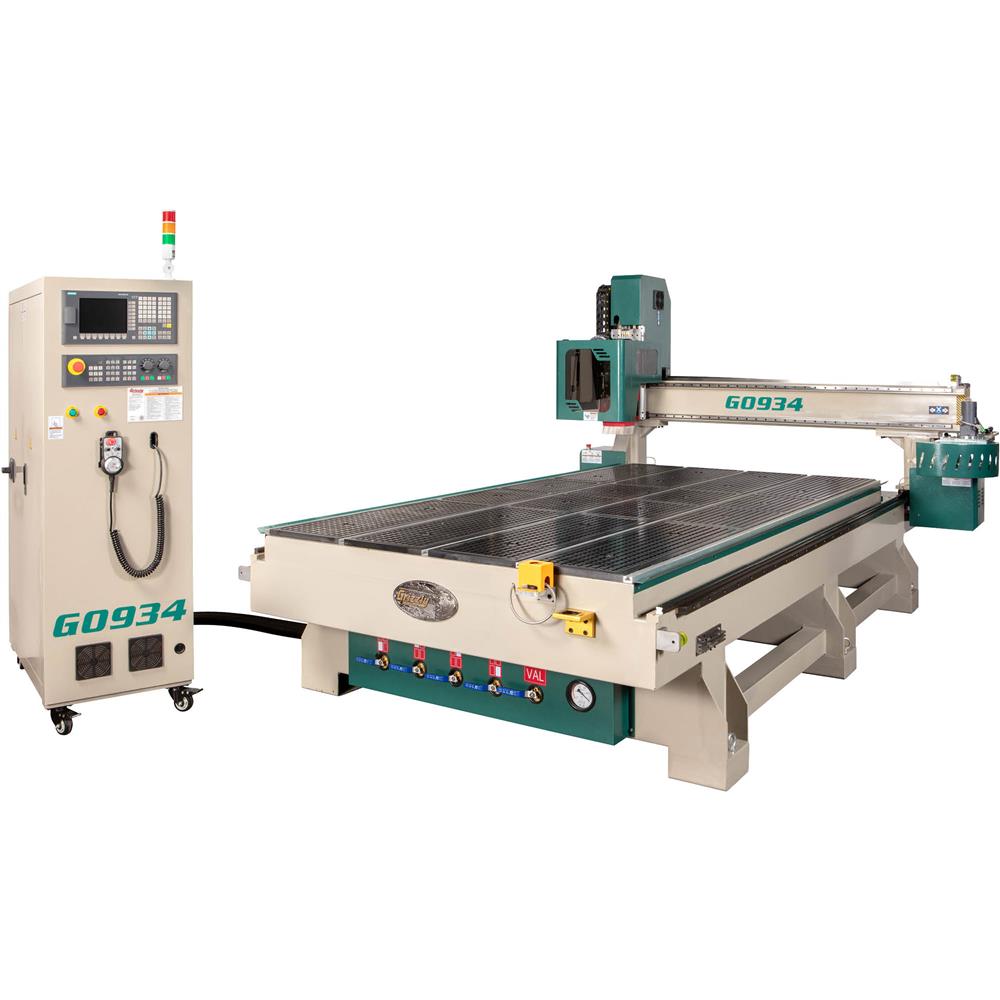

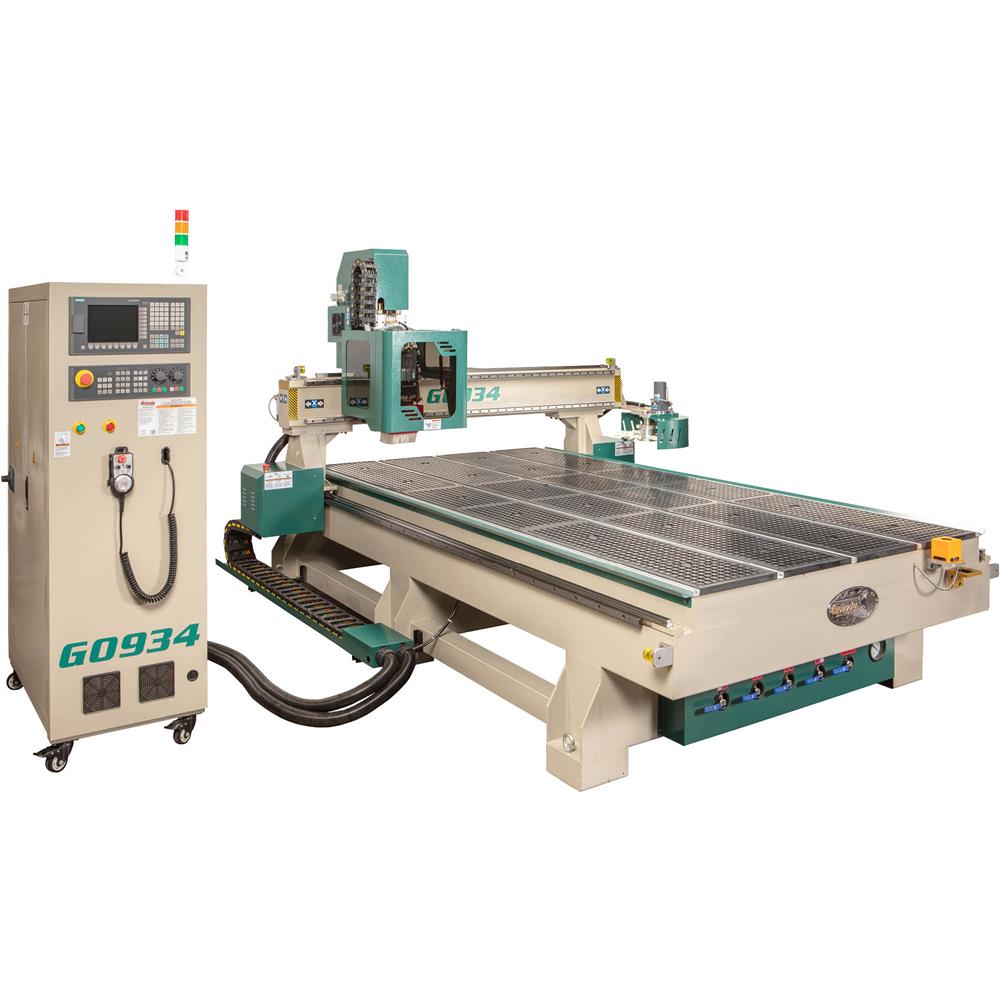

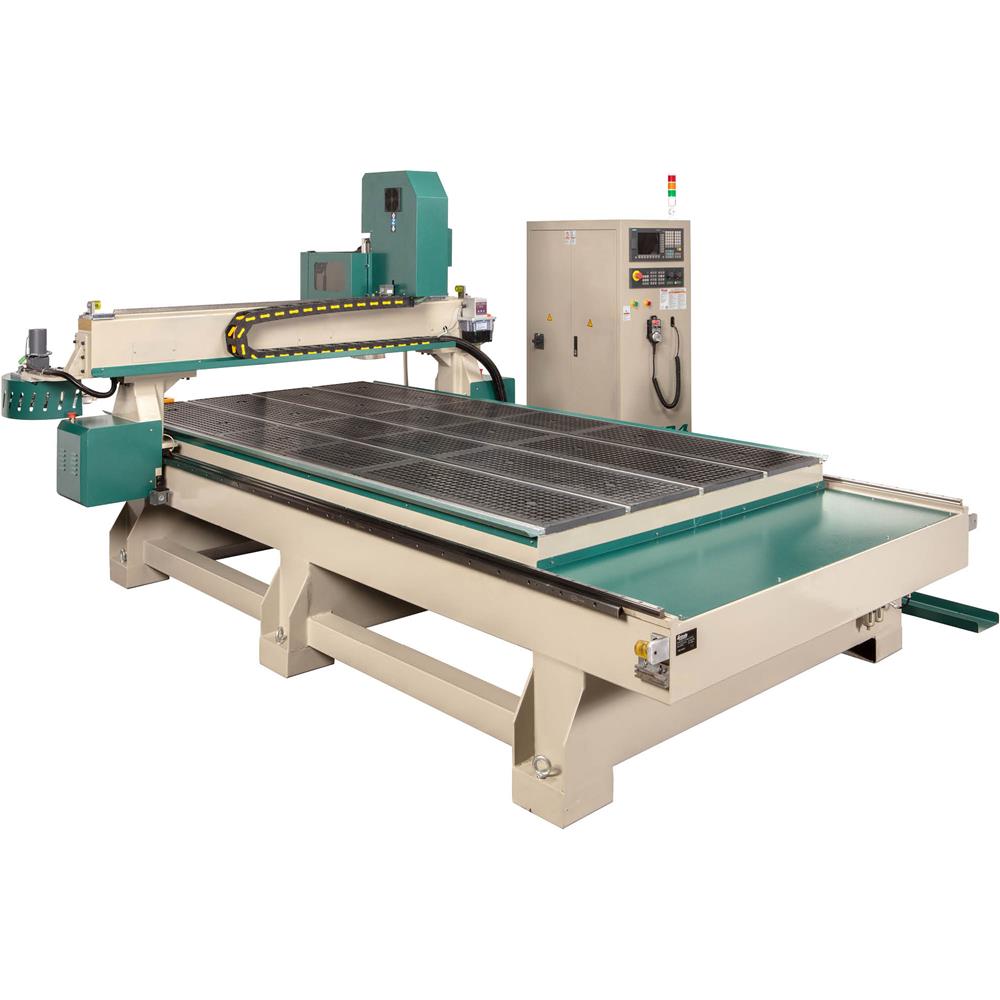

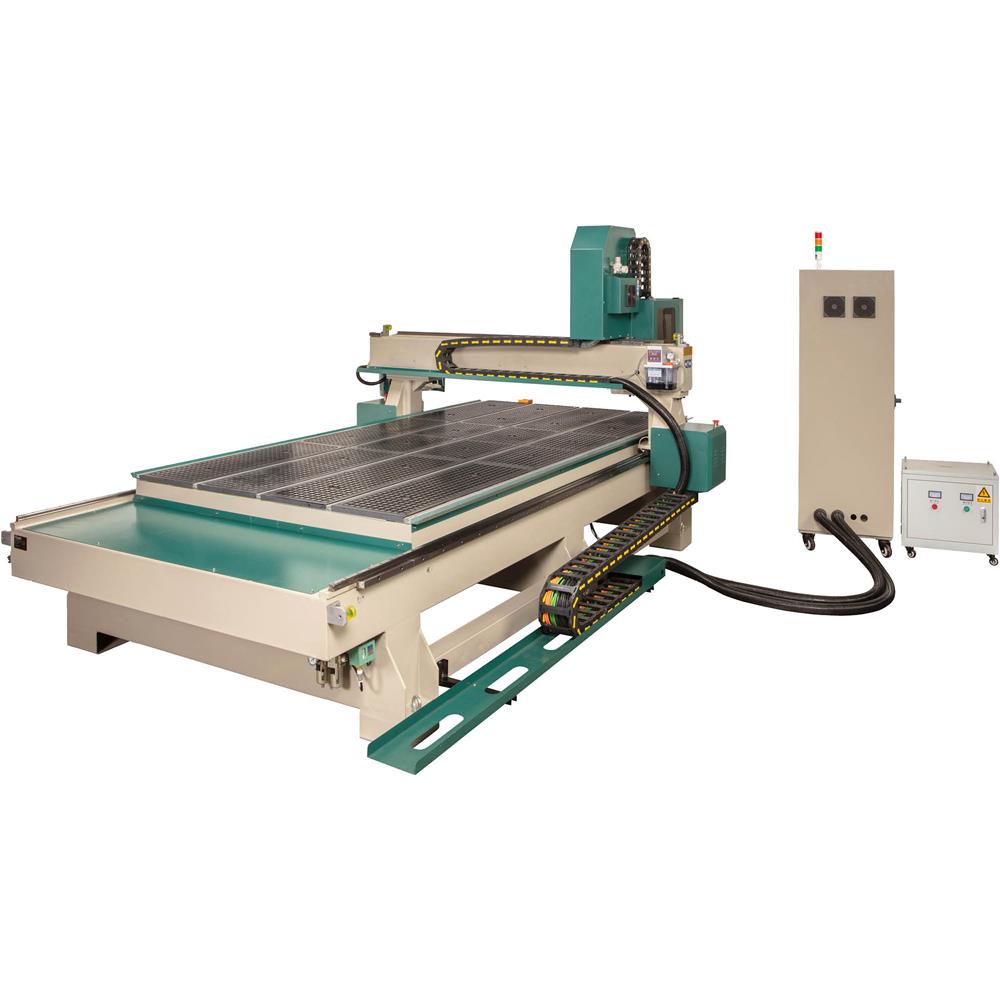

Grizzly G0934 5' x 10' CNC Router with Vacuum Table and 8-Position Rotary Tool Changer
The Grizzly G0934 CNC Router is a professional-grade machine featuring a massive 5' x 10' vacuum table with six independently controlled zones, making it ideal for high-volume production environments and custom fabrication shops.
Key Features

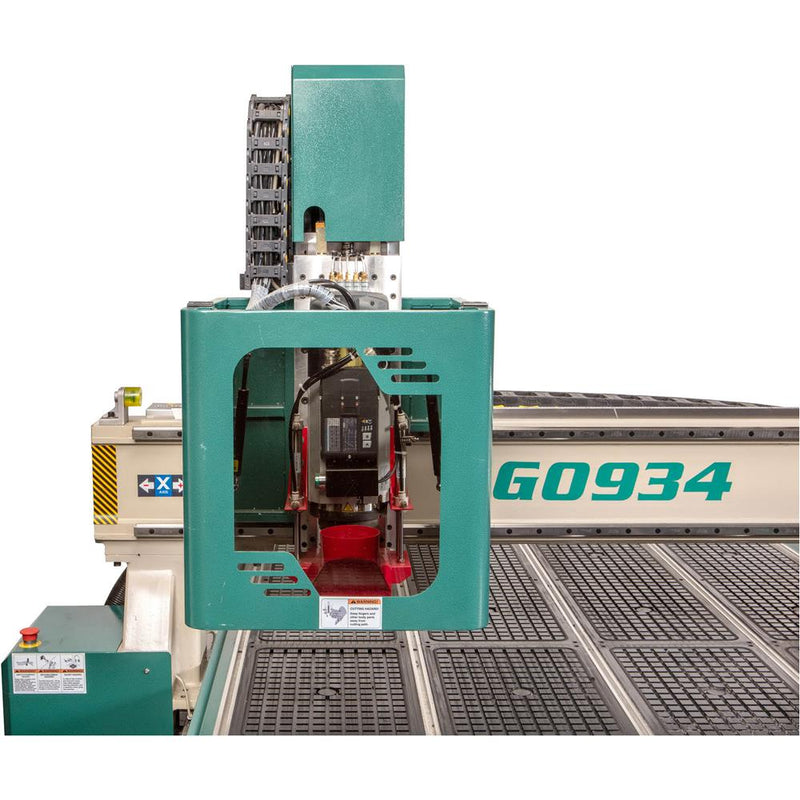

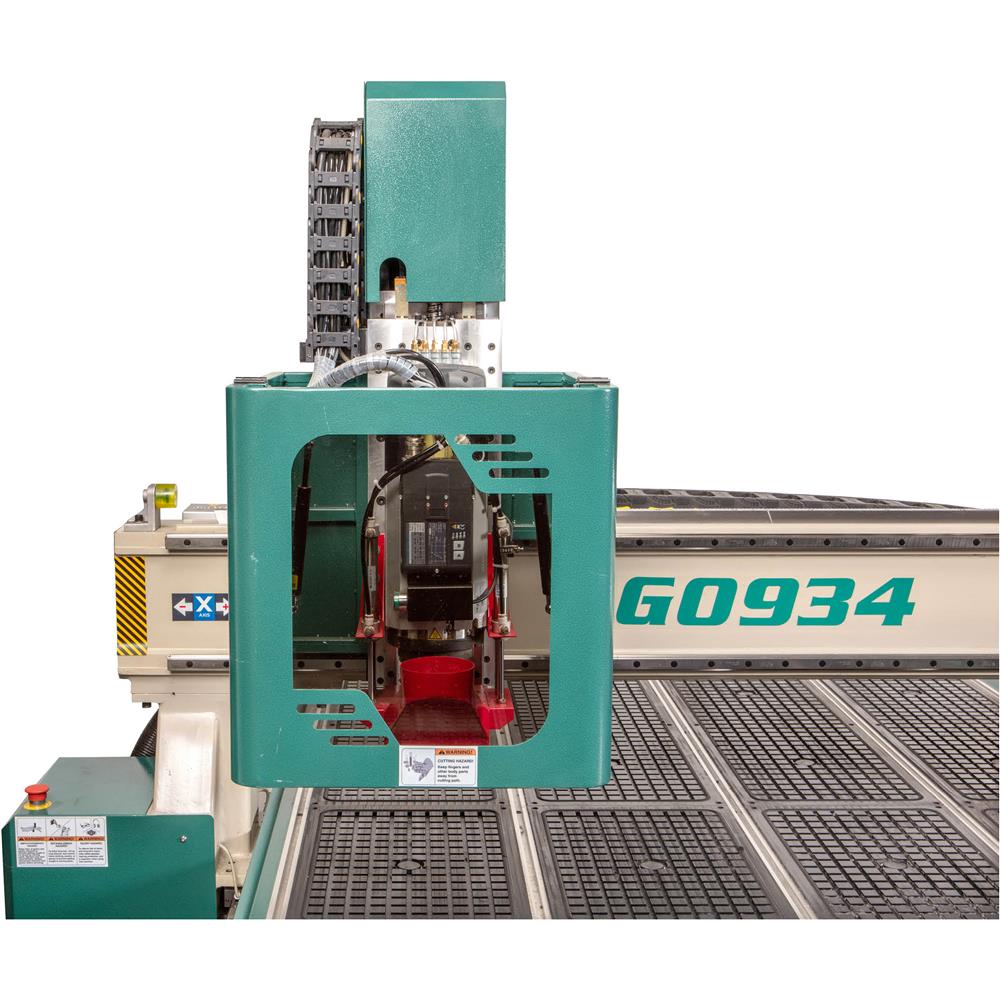

- 8-tool rotary automatic tool changer mounted on gantry for fast tool changes
- 59-1/16 inch x 118-1/8 inch cutting area with 7-7/8 inch Z-axis travel
- 12 HP HSD air-cooled spindle motor with 0-24,000 RPM speed range

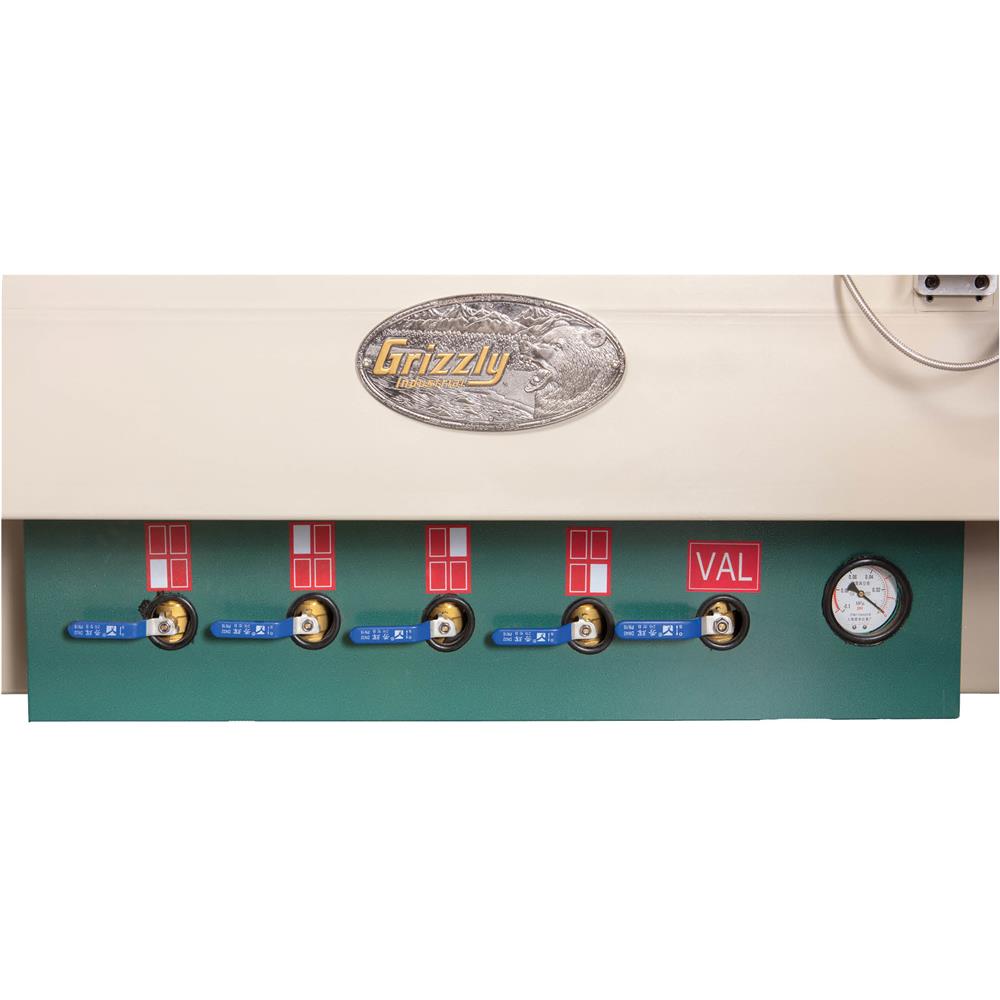

- Six independently controlled vacuum zones for quick workpiece changeover

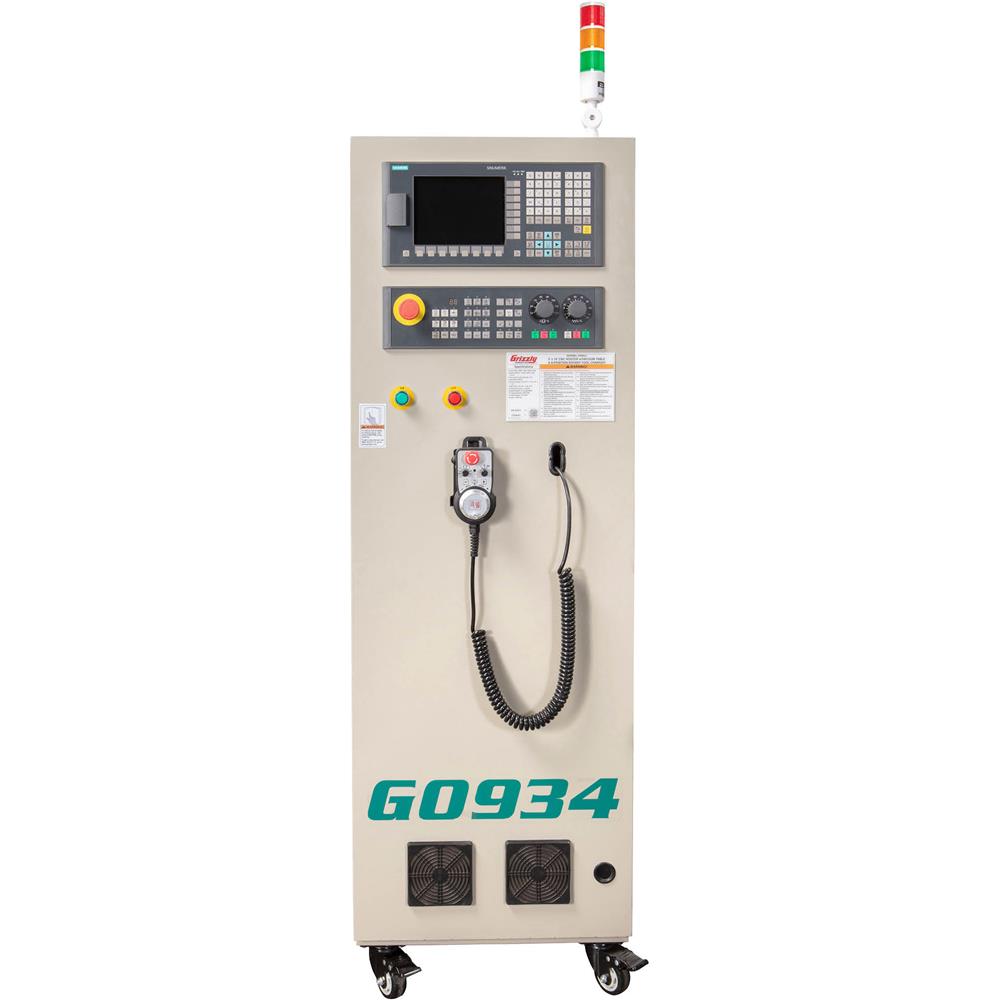

- Siemens Sinumerik 808D Advanced CNC control with built-in digital display
- Bed-mounted tool setter for repeatable cutting accuracy
- High-speed travel: 1969 IPM on X and Y axes, 787 IPM on Z axis
- Helical rack-and-pinion gantry system for smooth, precise movement
Technical Specifications
This industrial CNC router delivers exceptional performance with its 12 HP spindle motor and servo-driven axes. The vacuum table system enables efficient production workflows by allowing operators to remove finished parts and fixture new workpieces quickly without stopping the machine.
CAD/CAM Compatibility
The G0934 works seamlessly with popular design software including Vcarve, Vcarve Pro, Aspire, Cut2D, Fusion360, and Solidworks, making it easy to integrate into your existing workflow.
Complete Package Includes
- ER32 collet wrench and collets (1/4 inch, 1/8 inch, 4mm, 6mm)
- Six T-track hold down clamps
- Vacuum table plugs
- Dust collection shoe with hose attachment
- Automatic oiler for bearing rails
- Two-stage air vacuum pump
Professional Support and Warranty
Backed by a 1-year warranty covering parts and factory defects. U.S.-based customer service and technical support teams are ready to assist. Replacement parts available online and shipped from Springfield, MO warehouse.
Note: Due to product size, delivery requires loading dock or forklift for unloading. Liftgate service not available. Vacuum pump requires separate 3-phase, 220V hardwire connection.
