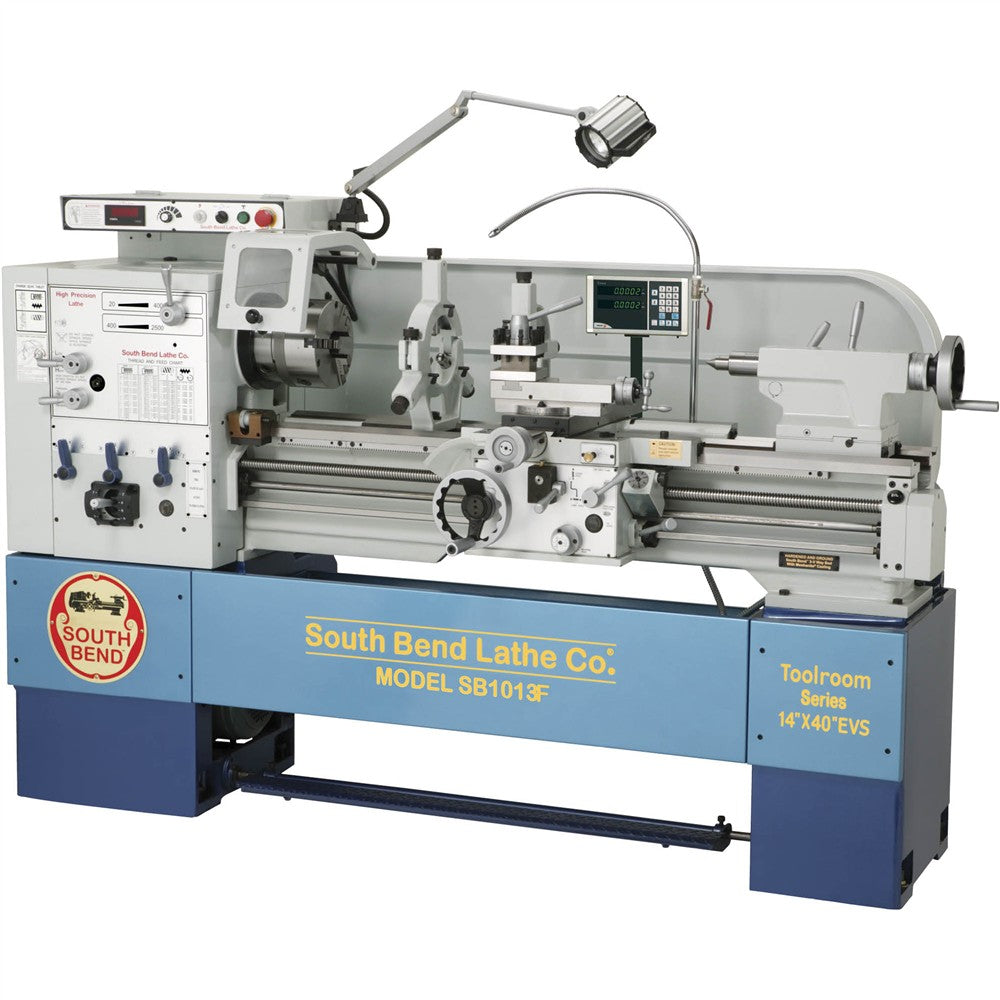

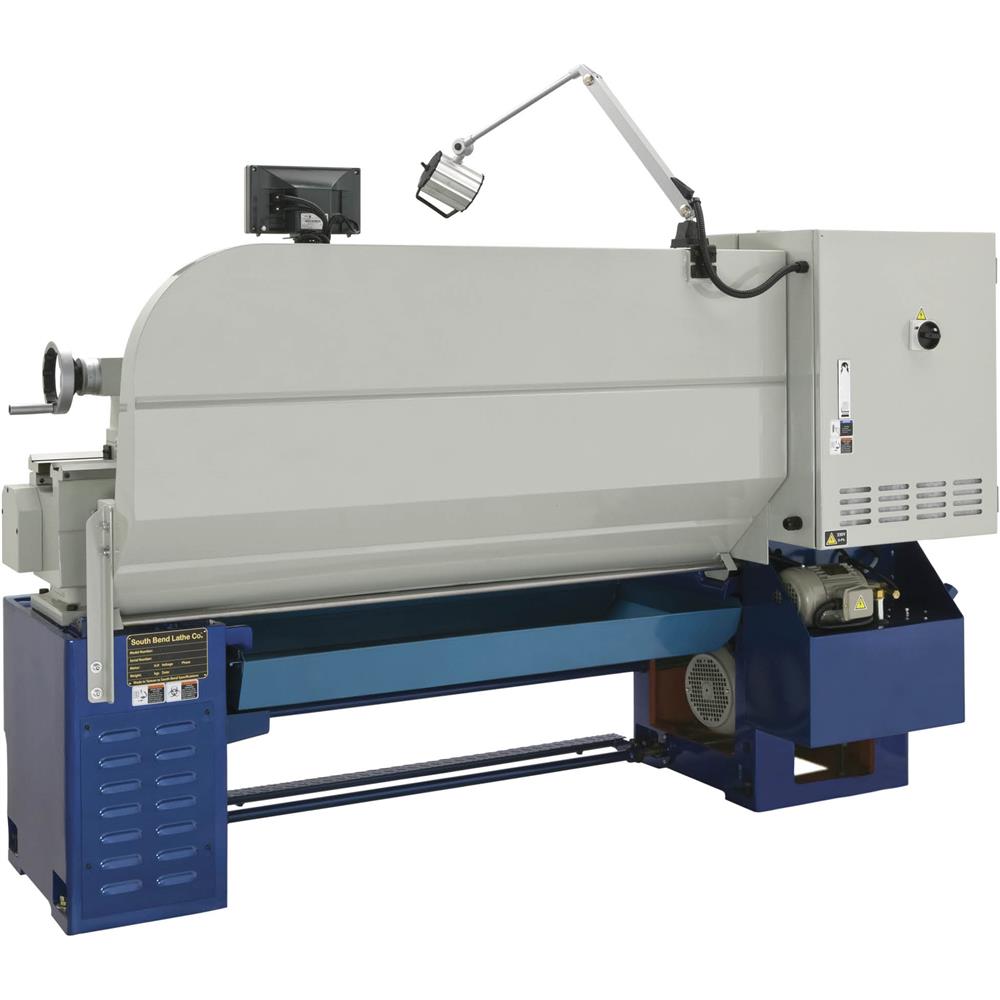

Baileigh Industrial SB1013F 14" x 40" EVS 440V Toolroom Lathe with Fagor DRO
For when EVS is the minimum you require on a 440V lathe.

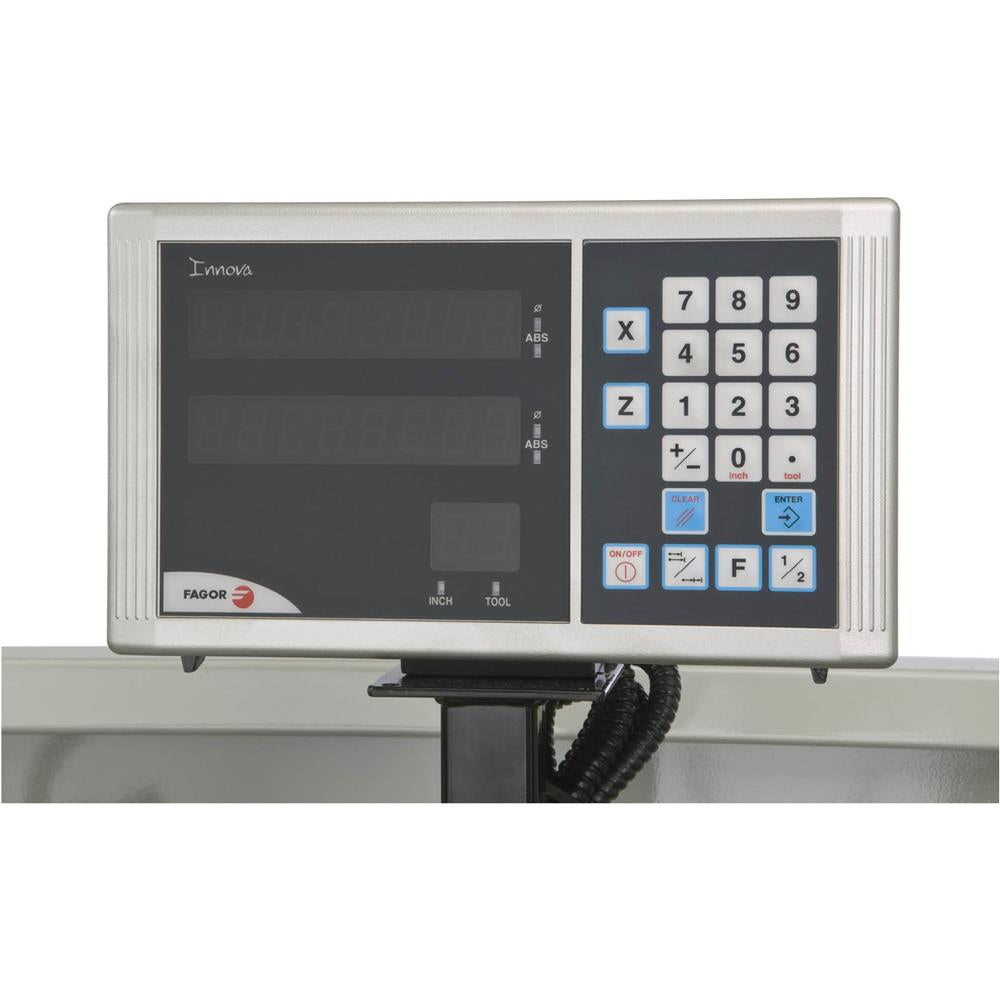

The electronic variable-speed (EVS) spindle control of the SB1013F allows the operator to quickly set the exact spindle speed within the available range of 20–2500 RPM. Spindle speed is displayed on the digital readout.

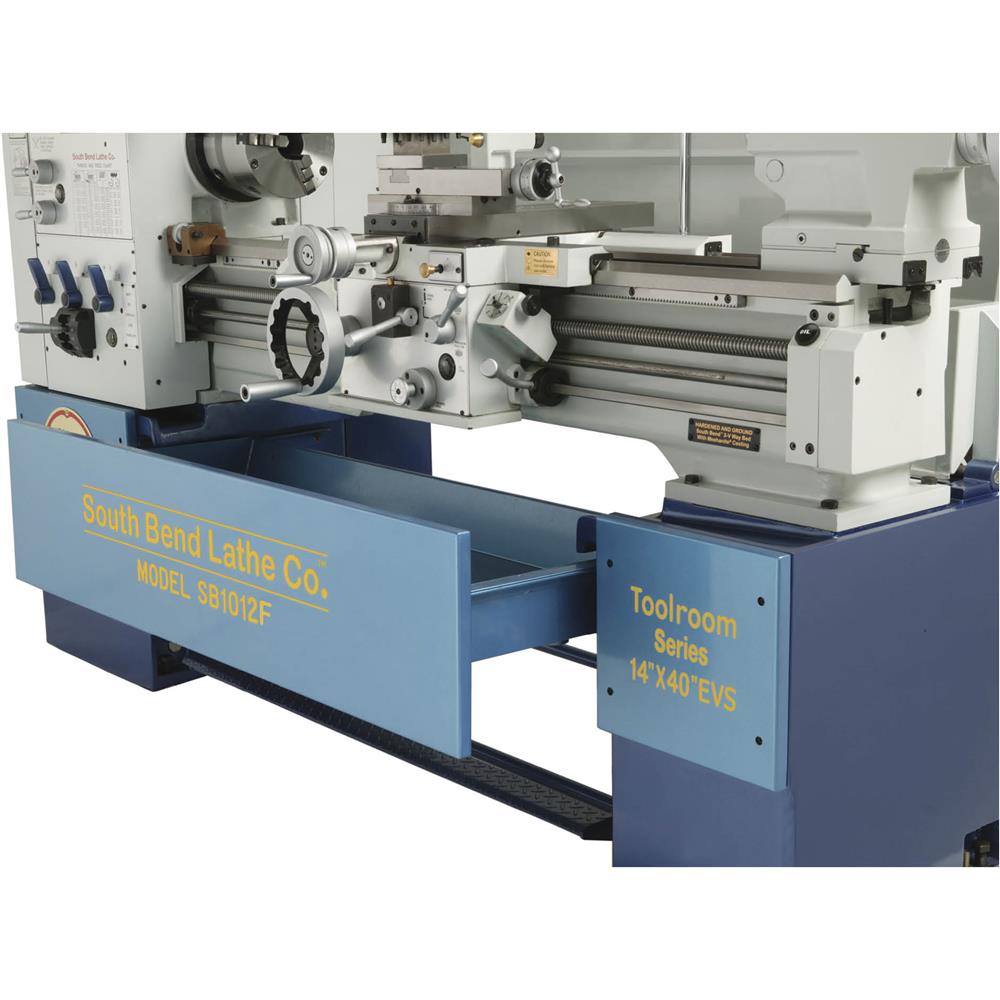

The beds are constructed with Meehanite® castings that have been precision-ground and hardened in the traditional three-V prismatic design.

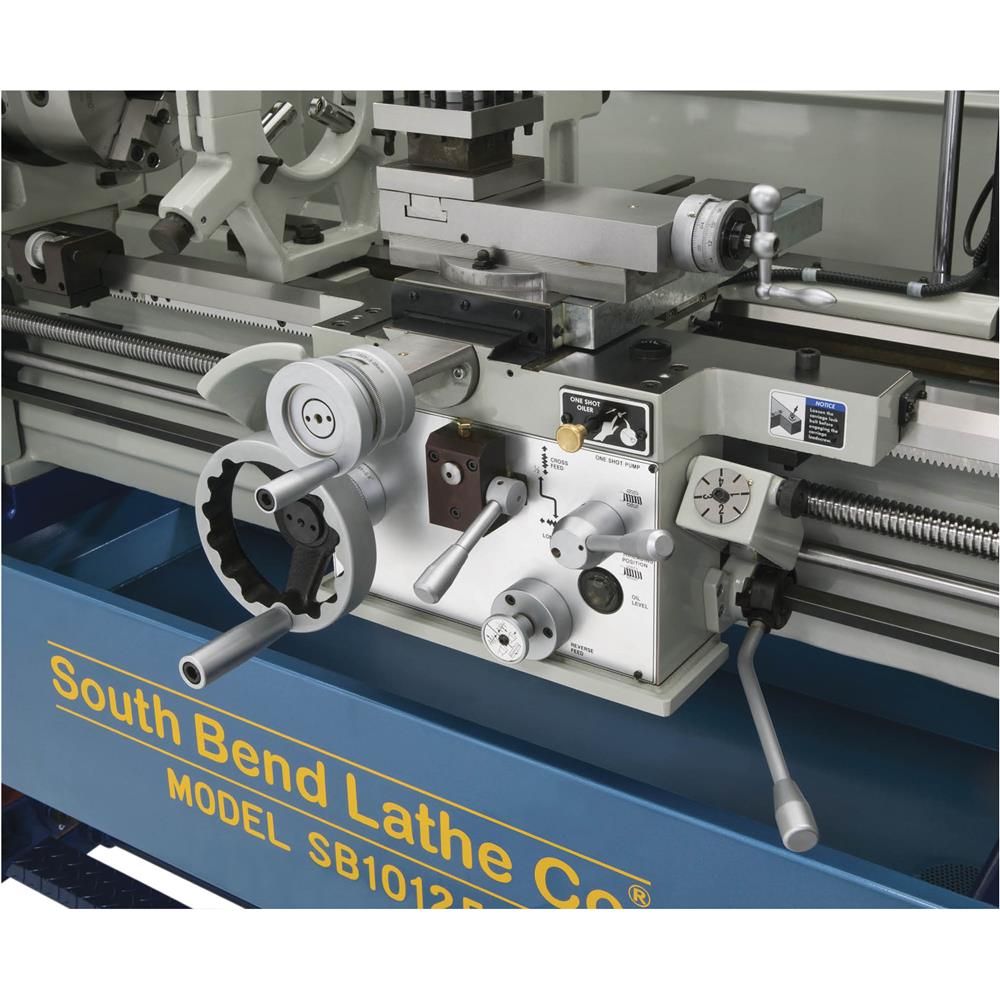

The feed rod includes a slip clutch that disables automatic carriage feed in the event of a crash or when it contacts the feed stop.

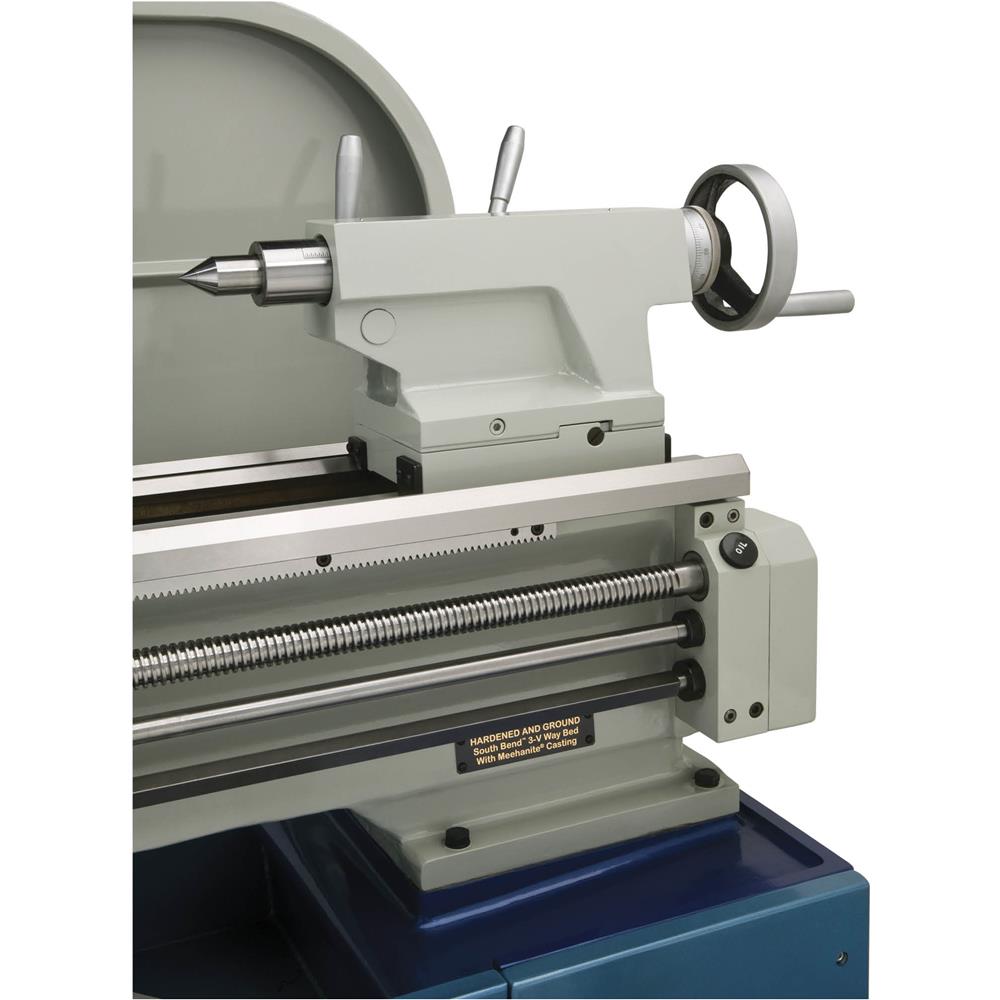

The spindles are the D1-6 camlock type with an MT#6 taper and 2.0625" bore. The tailstock quills offer 6" of travel and have a MT#4 taper.
The SB1013F manual was written by our U.S.-based Technical Documentation Department. The complete and easy-to-read manual provides full instructions on how to assemble and maintain your lathe.
The South Bend Technical Support team is U.S.-based. Parts for the lathe may be available online and shipped from the parts warehouse in Springfield, MO.
SPECIFICATIONS:
- Required power source: 440V, 3-phase, min. 15A circuit
- Spindle Motor: 5 HP, 440V
- Oil pump motor: 1/4 HP
- Coolant Pump Motor: 1/8 HP
- Bed width: 10.25"
- Swing over bed: 14.17"
- Swing over saddle: 13.78"
- Swing over gap: 20.98"
- Distance between centers: 40.00"
- Cross slide travel: 9.25"
- Compound slide travel: 5.10"
- Carriage travel: 38.58"
- Spindle nose: D1-6 camlock
- Spindle taper: MT#6
- Spindle speeds: Variable, 20–2500 RPM
- Tailstock taper: MT#4
- Tailstock quill travel: 6.00"
- Inch threads: (45) 2–72 TPI
- Metric threads: (39) 0.20–14.00mm
- Modular pitches: (18) 0.30–3.5 MP
- Diametral pitches: (21) 8–44.00 DP
- Longitudinal feeds: (17) 0.002–0.067 IPR
- Cross feeds: (17) 0.001–0.034 IPR
- Maximum tool bit size: 3/4"
- Overall dimensions: 91-1/2" W x 39-1/2" D x 59" H
- Approximate shipping weight: 2984 pounds
FEATURES:
- 2-year limited warranty
- Fagor 2-axis DRO
- Meehanite® castings
- Allen-Bradley® controls
- Full-length splash guard
- Front-removable sliding chip tray
INCLUDES:
- 8" 3-Jaw scroll chuck w/ D1-6 plate
- 10" 4-Jaw independent chuck D1-6
- 12" Faceplate
- Follow rest
- Steady rest with roller bearing tips
- #6 to #4 Morse taper spindle sleeve
