Autostacker A6S-OPT1-G 6K Capacity Parking Lift / STANDARD / STD Console w/PU / Galvanized / 208-240V, 50/60HZ, 1-Phase - 5260298


The Autostacker is the latest-model parking lift to hit the home and commercial markets. With the strength to handle loads up to 6,000 lbs. and the minimal footprint necessary for a home garage lift, the Autostacker is the perfect garage parking lift for any home or shop owner.

Features

There are enough features and cool parking lift tweaks on Autostacker to keep you safer, happier and better cared for than with virtually any home car lift out there. Everything about the Autostacker screams, “Upgrade!” From the impressive lift capacity and superior drive-through clearance to the simple, post-free design that fits in most parking spaces, this is the parking lift you want with all the protection you deserve.

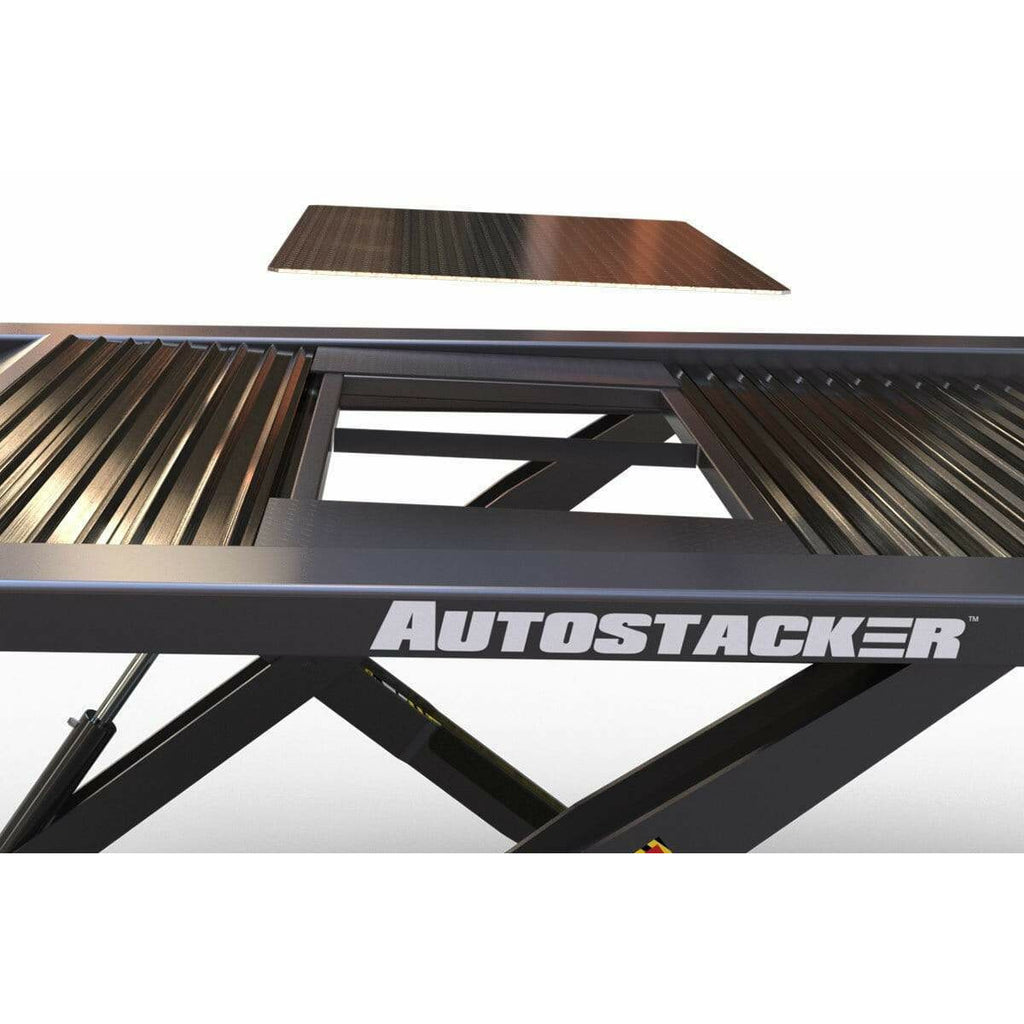

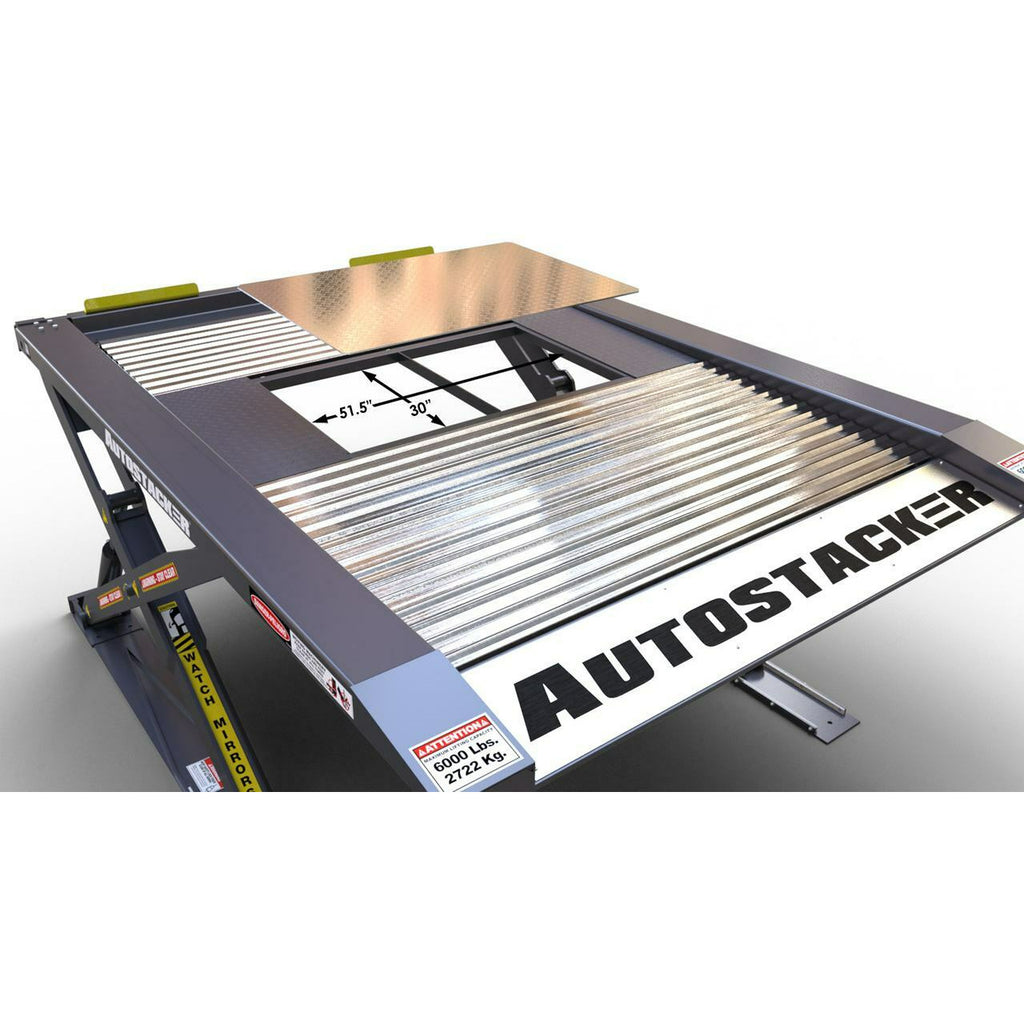

Optional Removable Center Access Panels

Want to change your oil or access the undercarriage of your car for routine maintenance and service? Autostacker's removable access panels permit operators at home or in the shop to get underneath the lift and get work done. The rugged diamond-plate welded-steel assembly replaces four of the standard galvanized decks. A lightweight, pull-out aluminum panel stows smartly in the middle but can be quickly removed. This kit is easy to install and maximizes the versatility of your lift and gives you more freedom to do what you want in the garage.

Removable Center Access Panels

6,000-lb. lifting capacity

Most low-clearance parking lifts have pathetic weight capacities and are only suited for lightweight race cars, miniature hybrids and compacts. Not anymore. When you make Autostacker your home parking lift, you get enough storage capacity to lift light trucks and SUVs. Not to mention, nearly 8’ of clearance means most larger vehicles that weigh over 6,000 lbs. fit comfortably in the lower space.

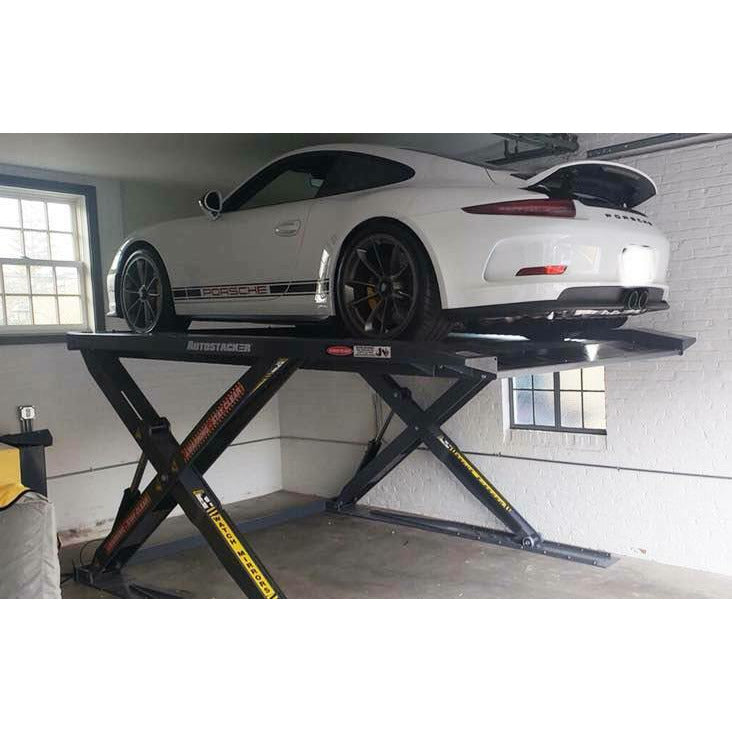

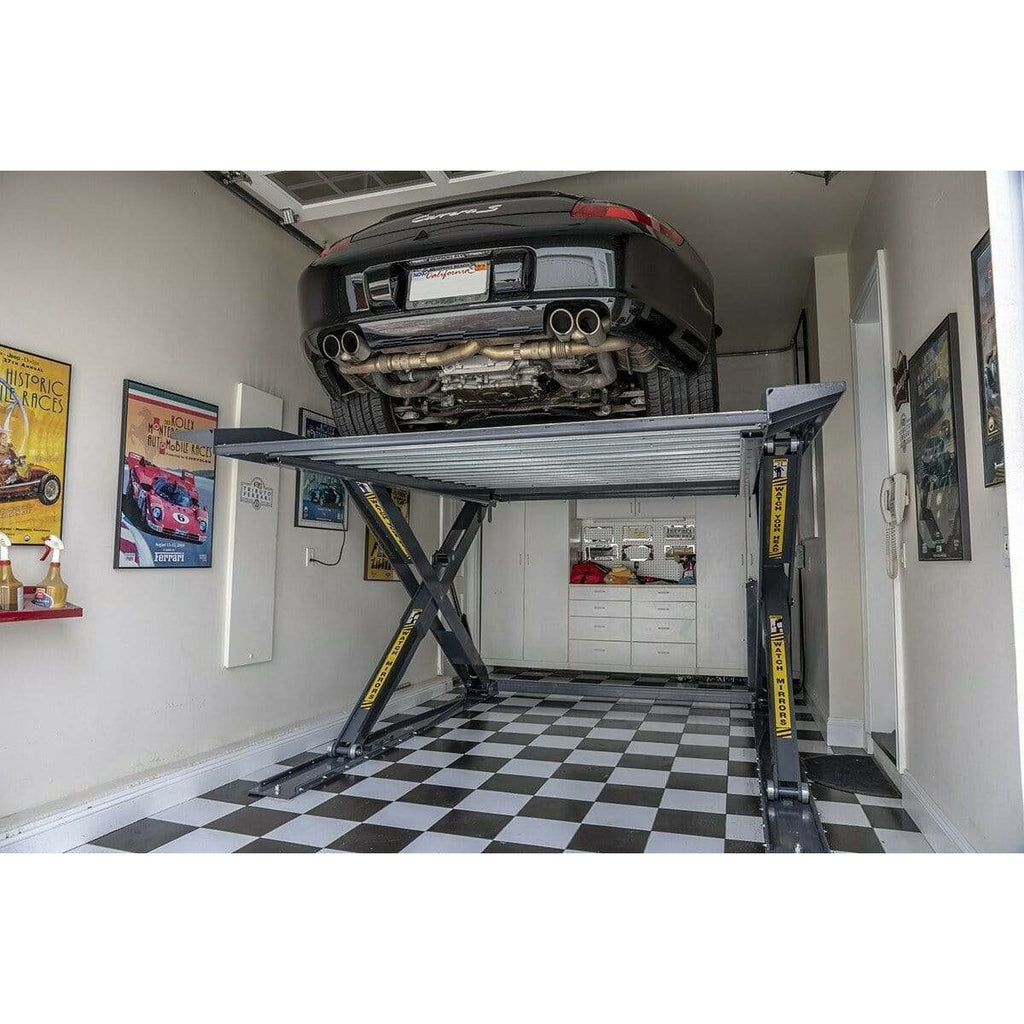

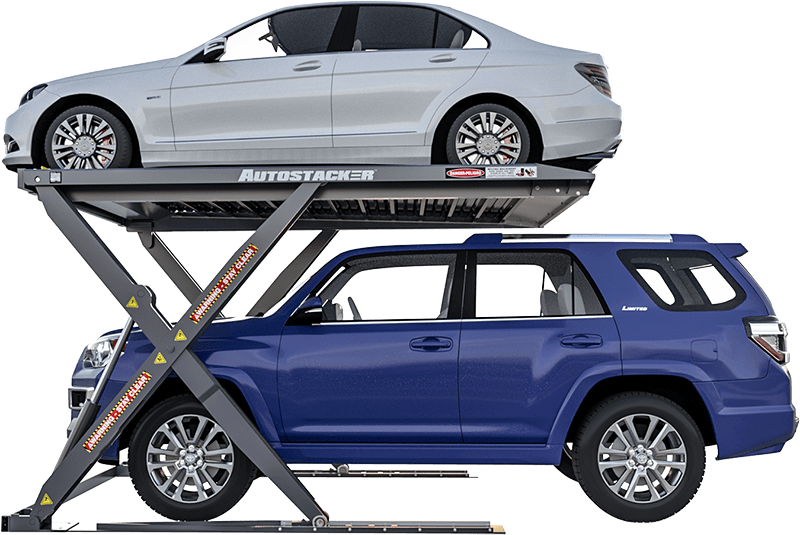

Autostacker is a home parking lift

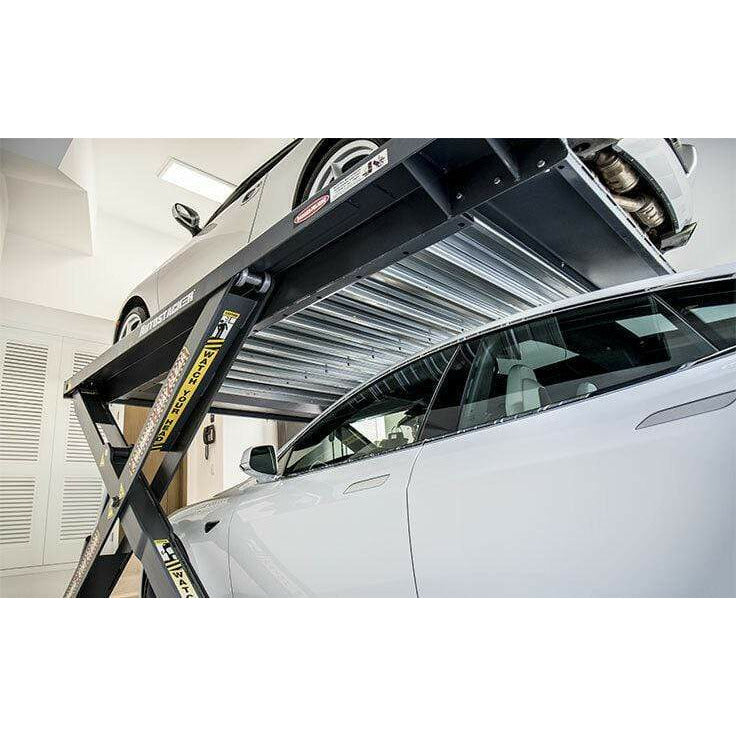

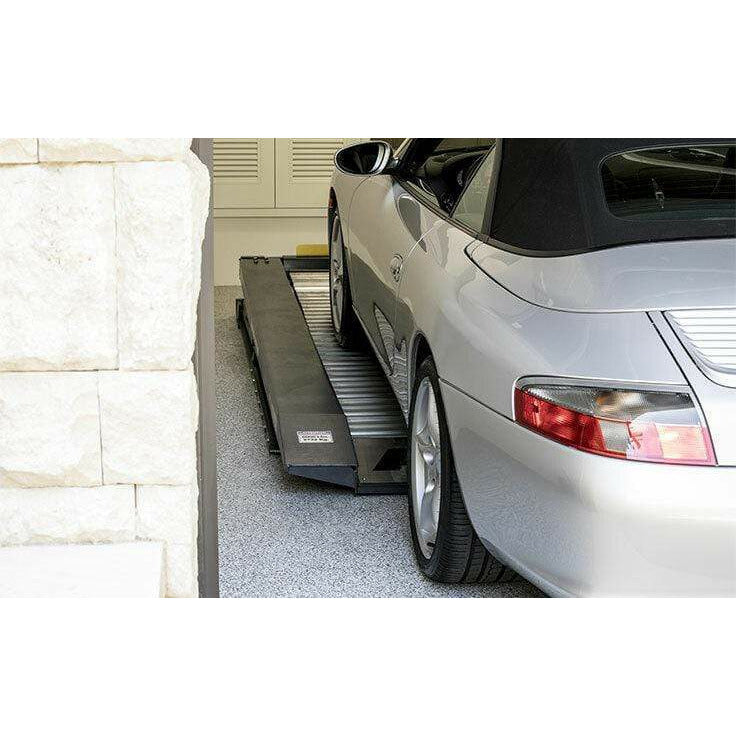

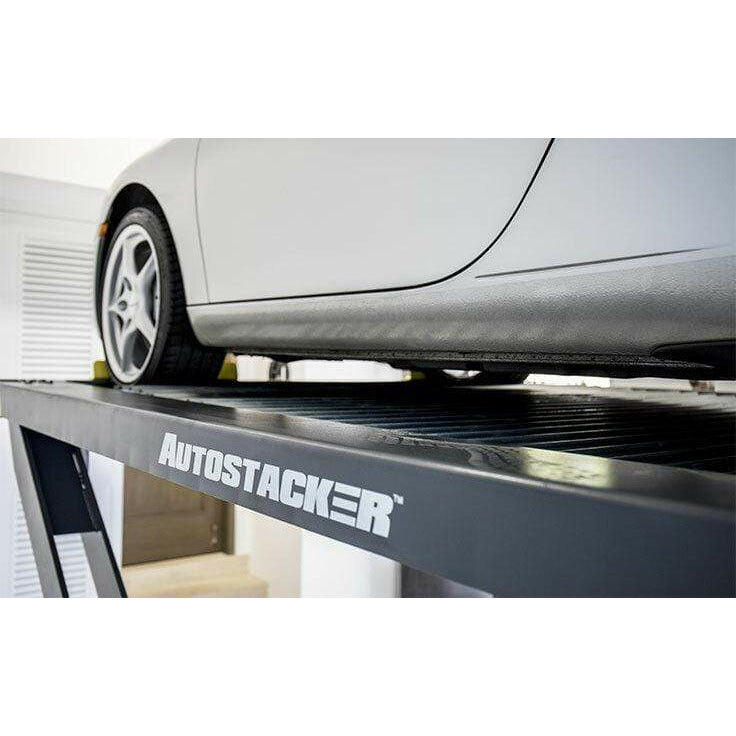

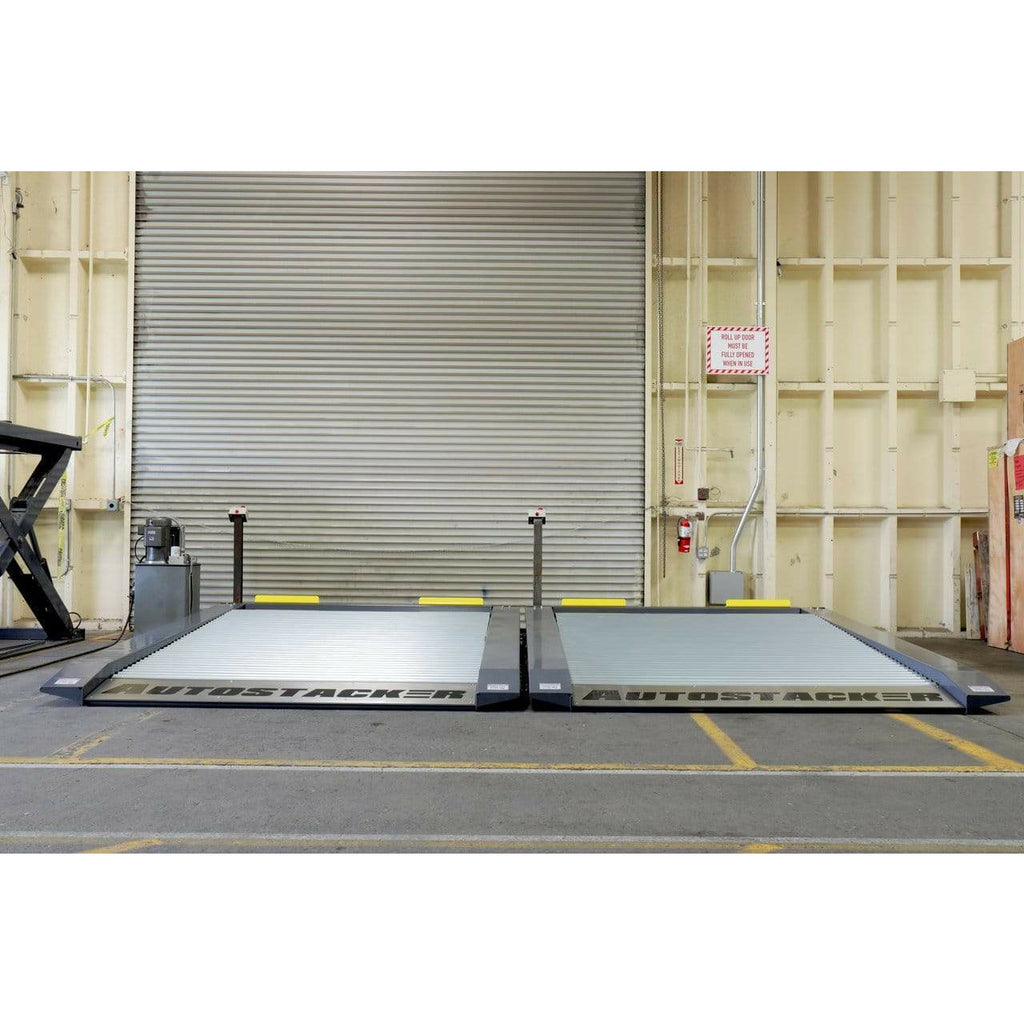

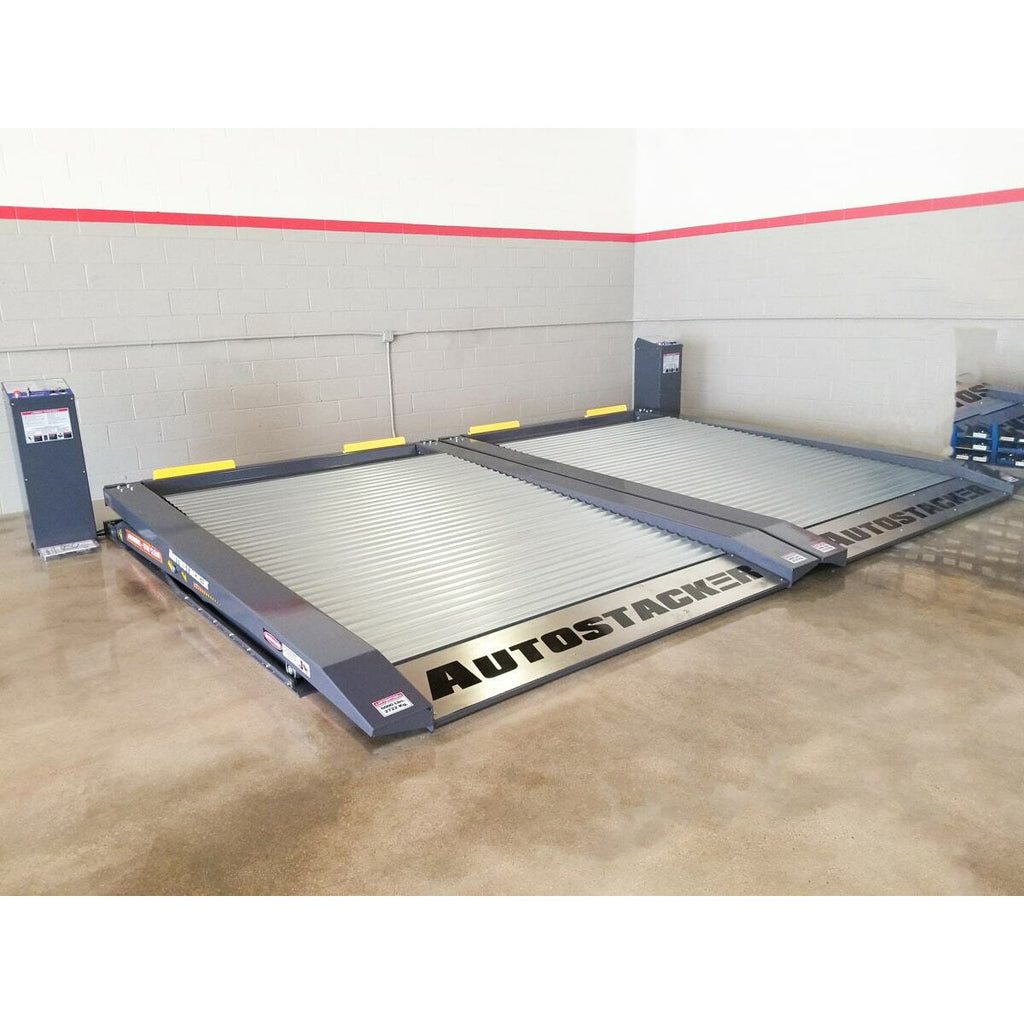

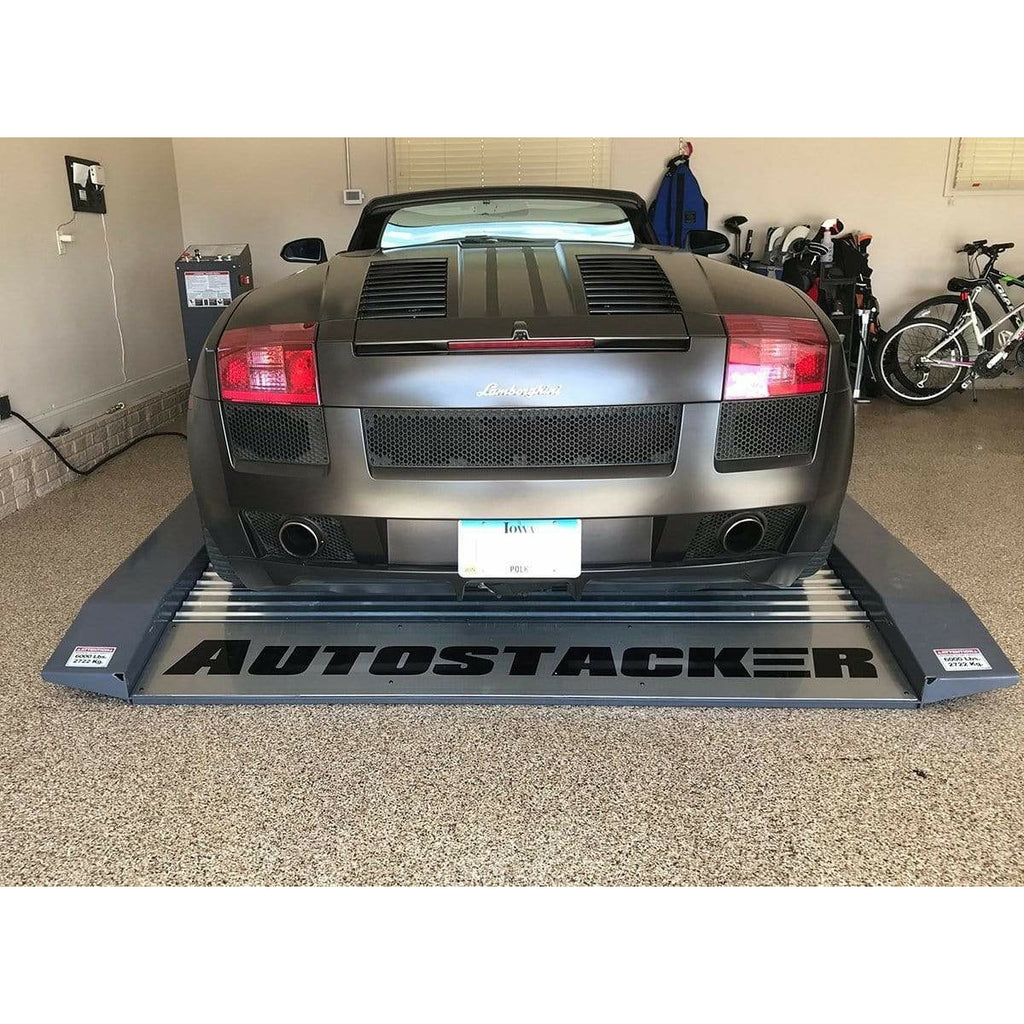

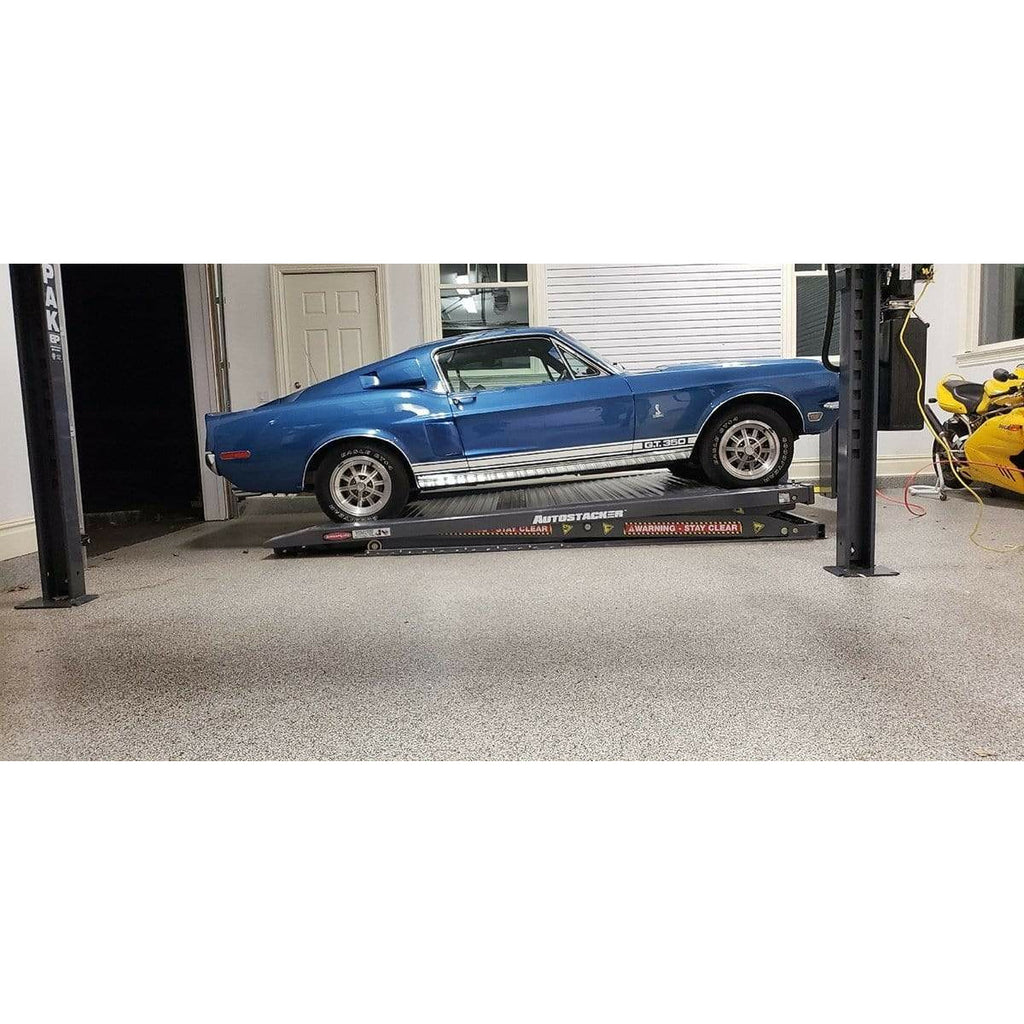

Low-profile, galvanized steel platform

The hot-dipped galvanized platform of the Autostacker is coated in zinc to protect it from weather and the daily abuse of the most fast-paced home garages and commercial parking lots. Whether your parking lift is installed in a garage or in the great (urban) outdoors, our super-low-profile deck is gently inclined to permit safe, easy clearance for low-stance vehicles.

Low Profile Platform Parking Lift

Automatic safety locks

The more lock positions on a lift, the less chance of catastrophe in the extremely rare event of mechanical or hydraulic failure. Autostacker offers five lock positions. Even at the lowest lock level, a low-standing car fits underneath the platform. The locks engage continuously as the parking lift rises, so there’s literally nothing you need to do other than press the Up and Down buttons to engage and release the locks.

Automatic Safety Locks

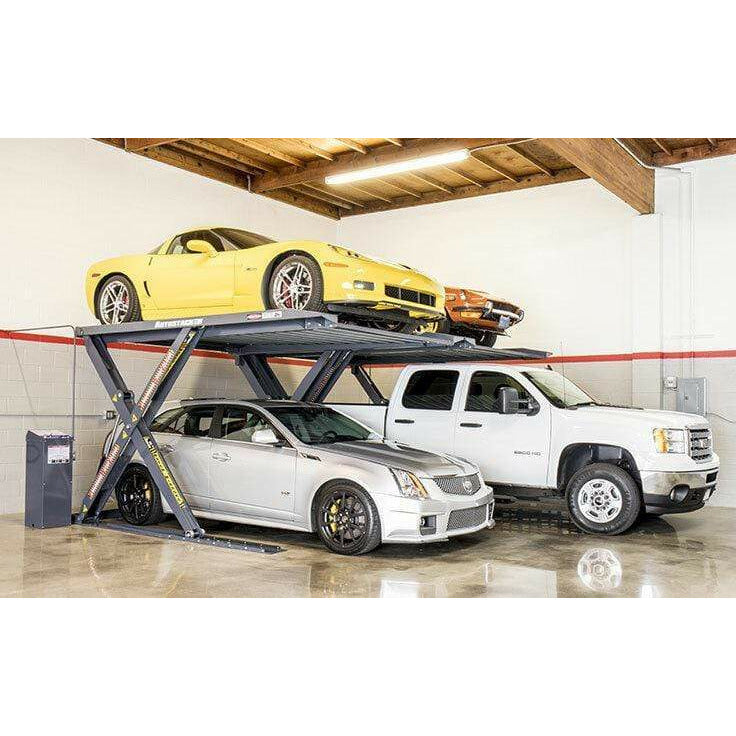

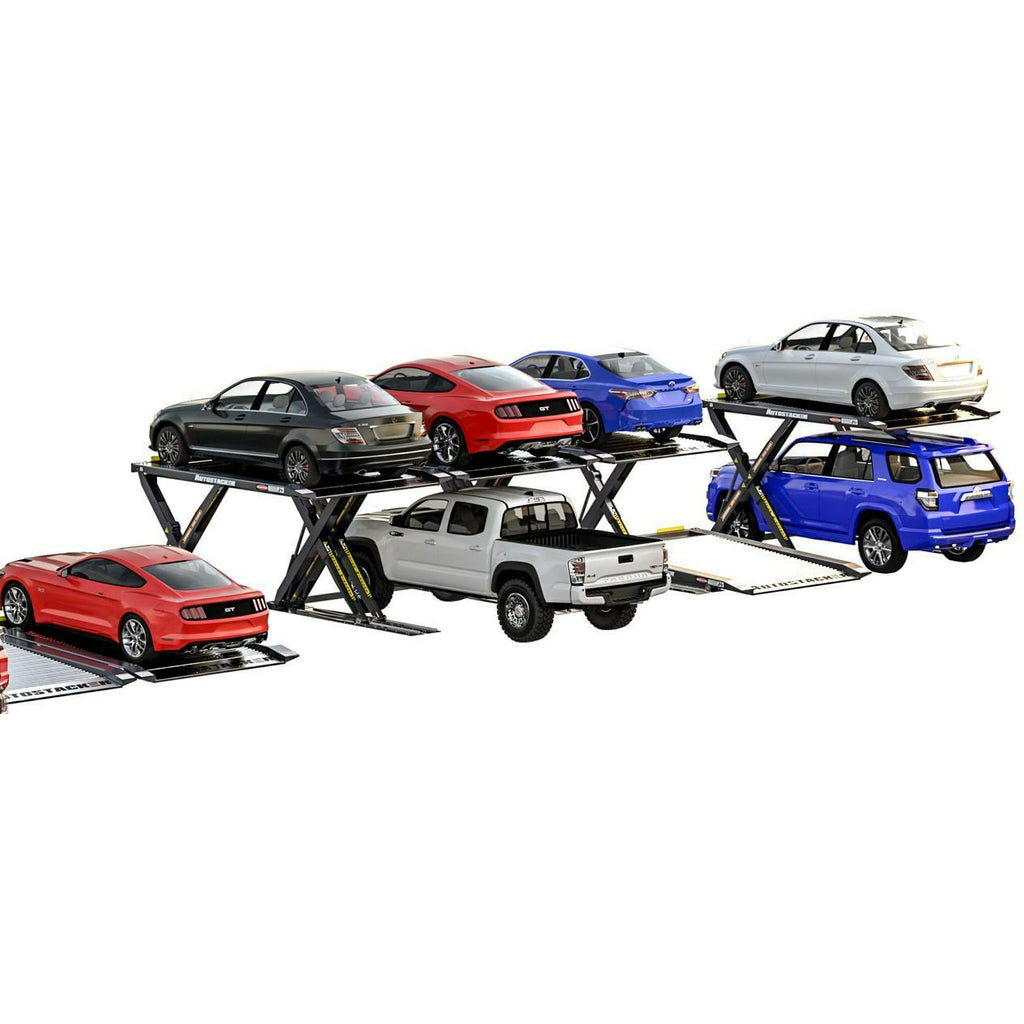

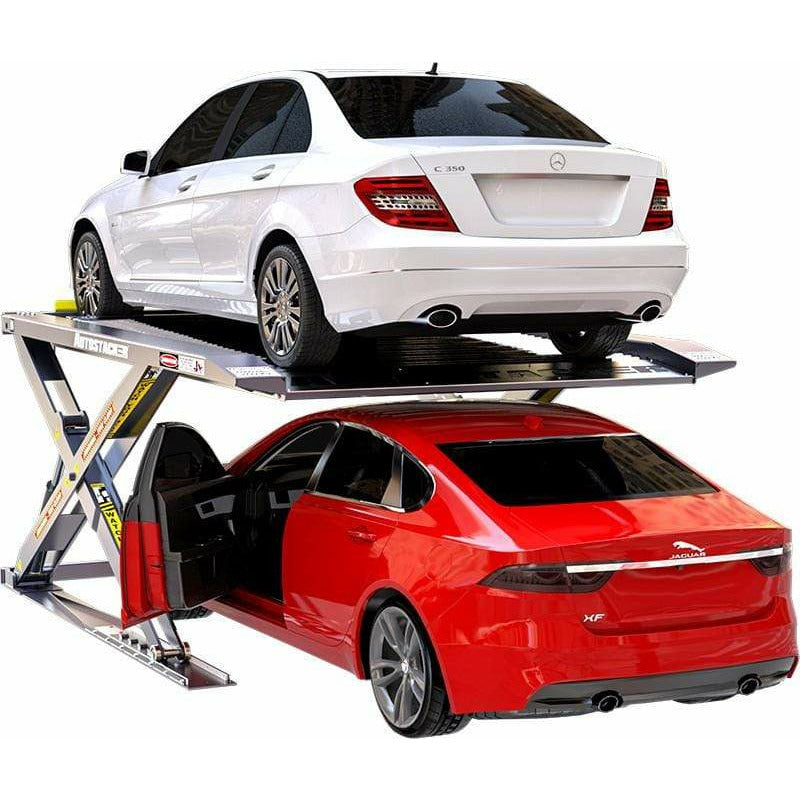

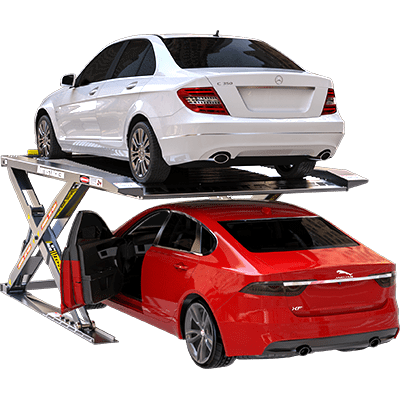

Autostacker in Action

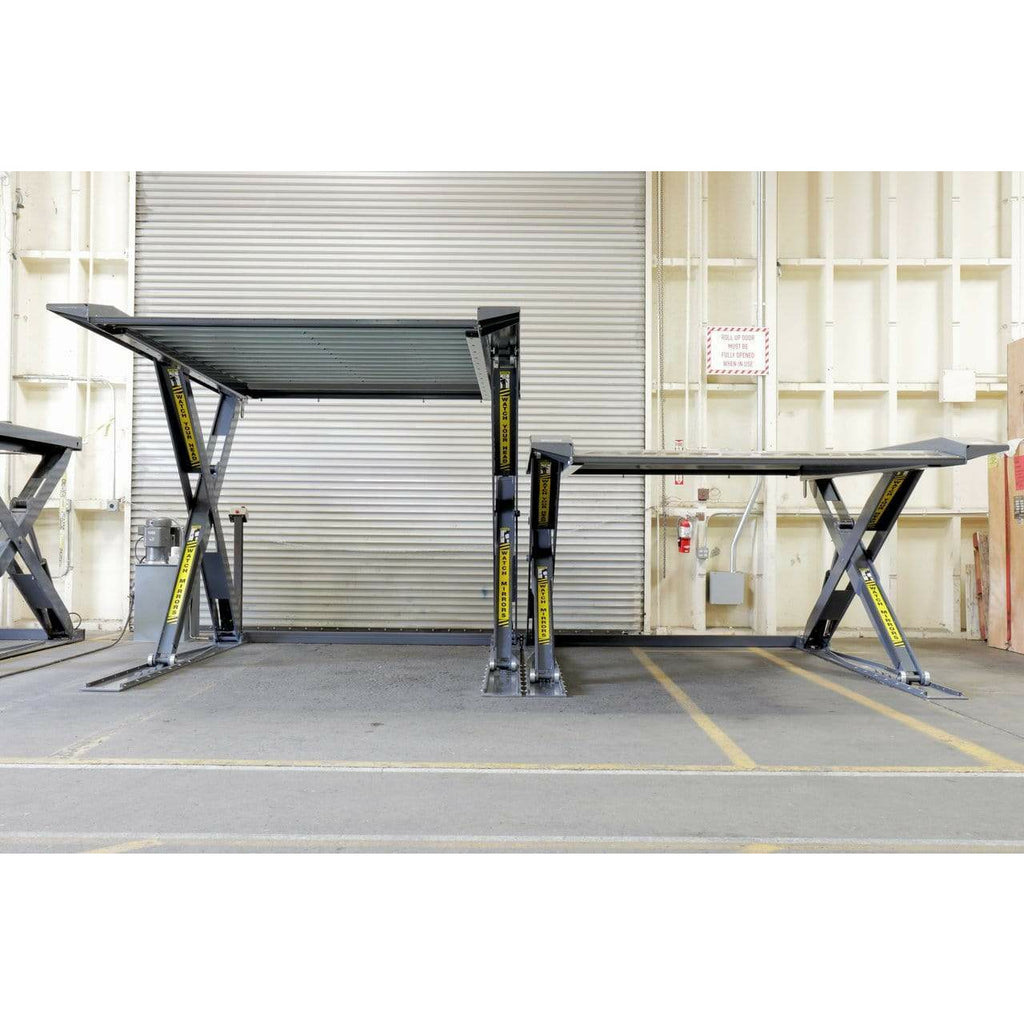

Autostacker is the ideal parking lift for home garages, as well as parking lots and structures of any size. Almost any vehicle glides easily onto the inclined, low-rise platform, and the seamless scissor structure fits comfortably in an average-sized parking space. The Autostacker boasts a fully collapsible design, which means zero posts or side columns to obstruct your space. A host of other exclusive features belong to this parking lift, all of which increase safety for you and your vehicles in as small a footprint as possible.

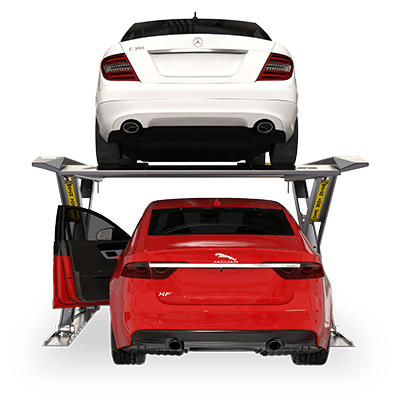

Patented Door-sentry™ protectors

When Autostacker lifts, you’ll notice a pair of patented rubber panels; these are our Door-sentry car door protectors. They offer true peace-of-mind when opening vehicle doors in the under parked position. If you’re in a rush and accidentally swing the door open, our door guards will significantly decrease the chance of dents, dings and scratches. These durable rubber strips fold seamlessly in and out of the collapsible parking lift design as it moves. You might even forget they’re there… until you need them.

Door-sentry car door protectors

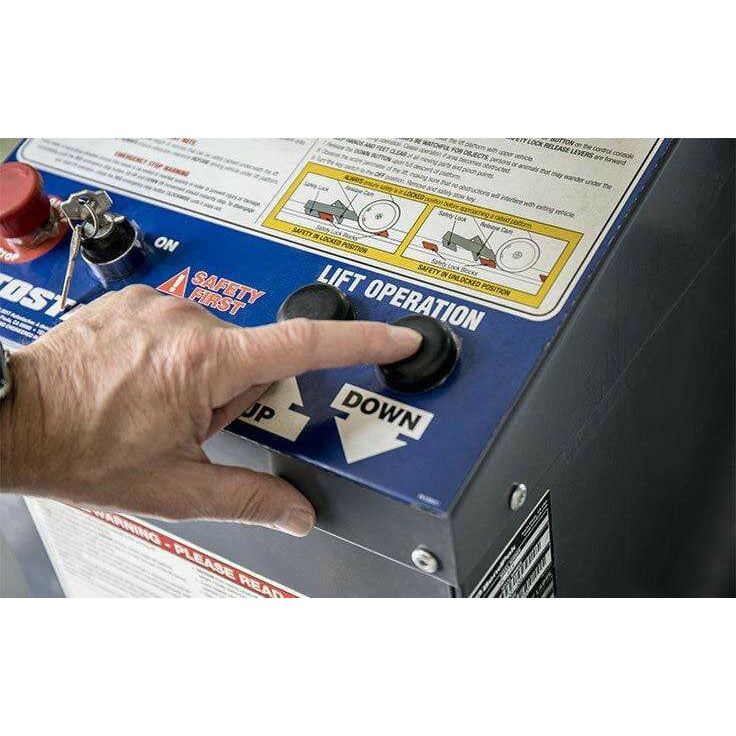

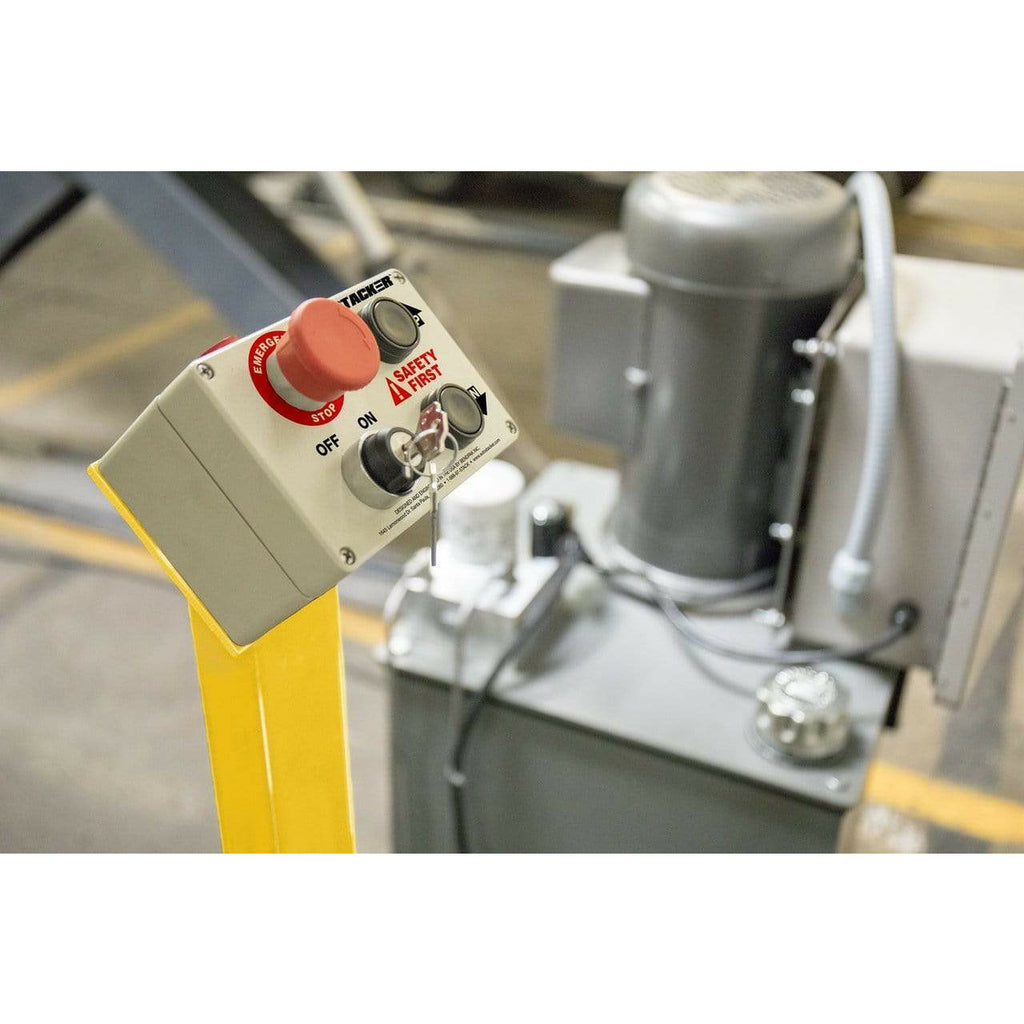

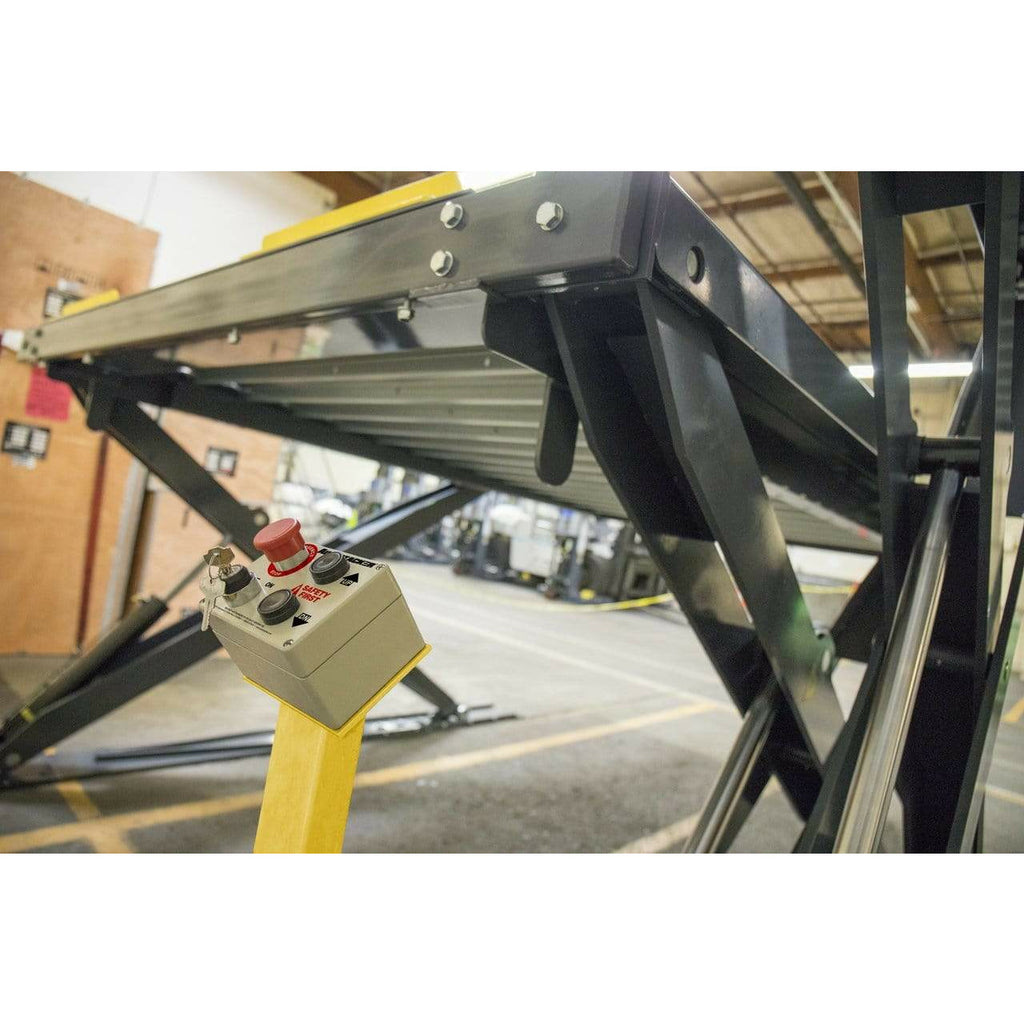

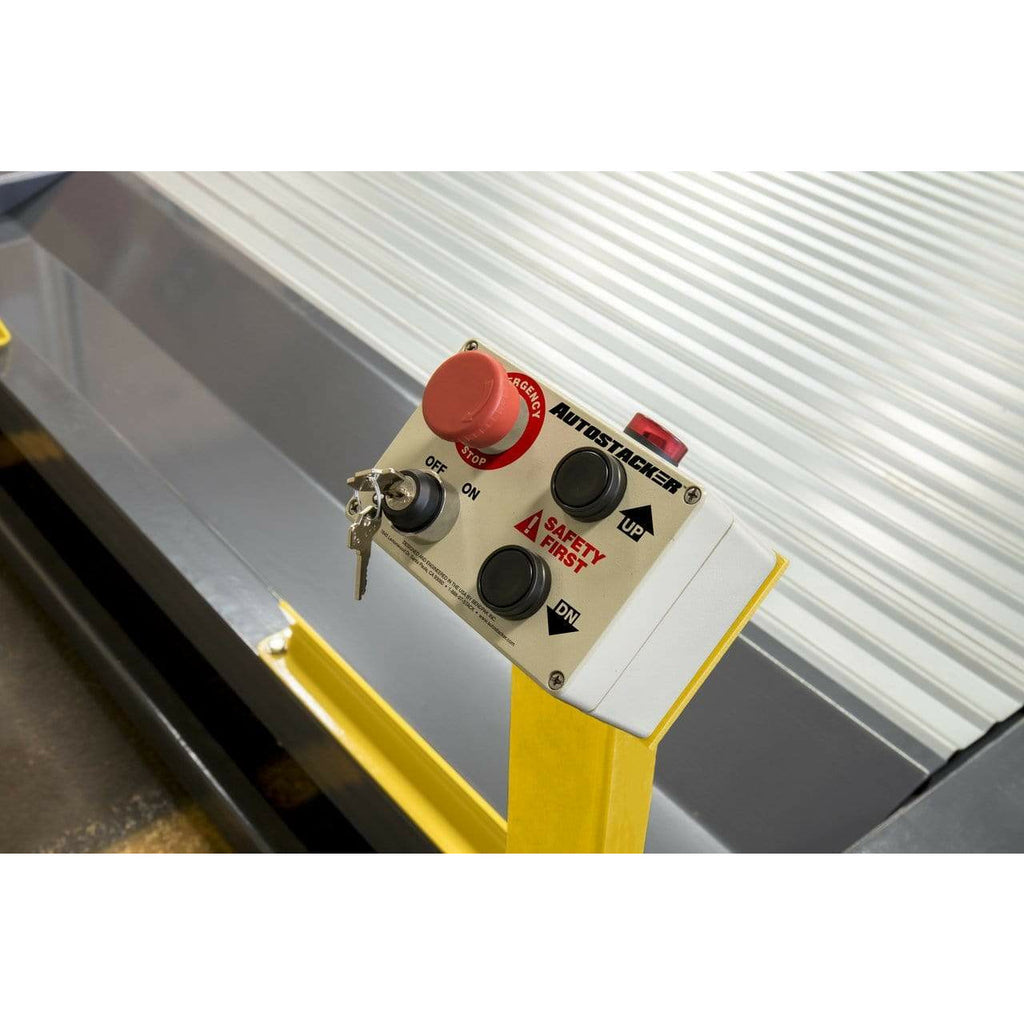

Simple push-button controls

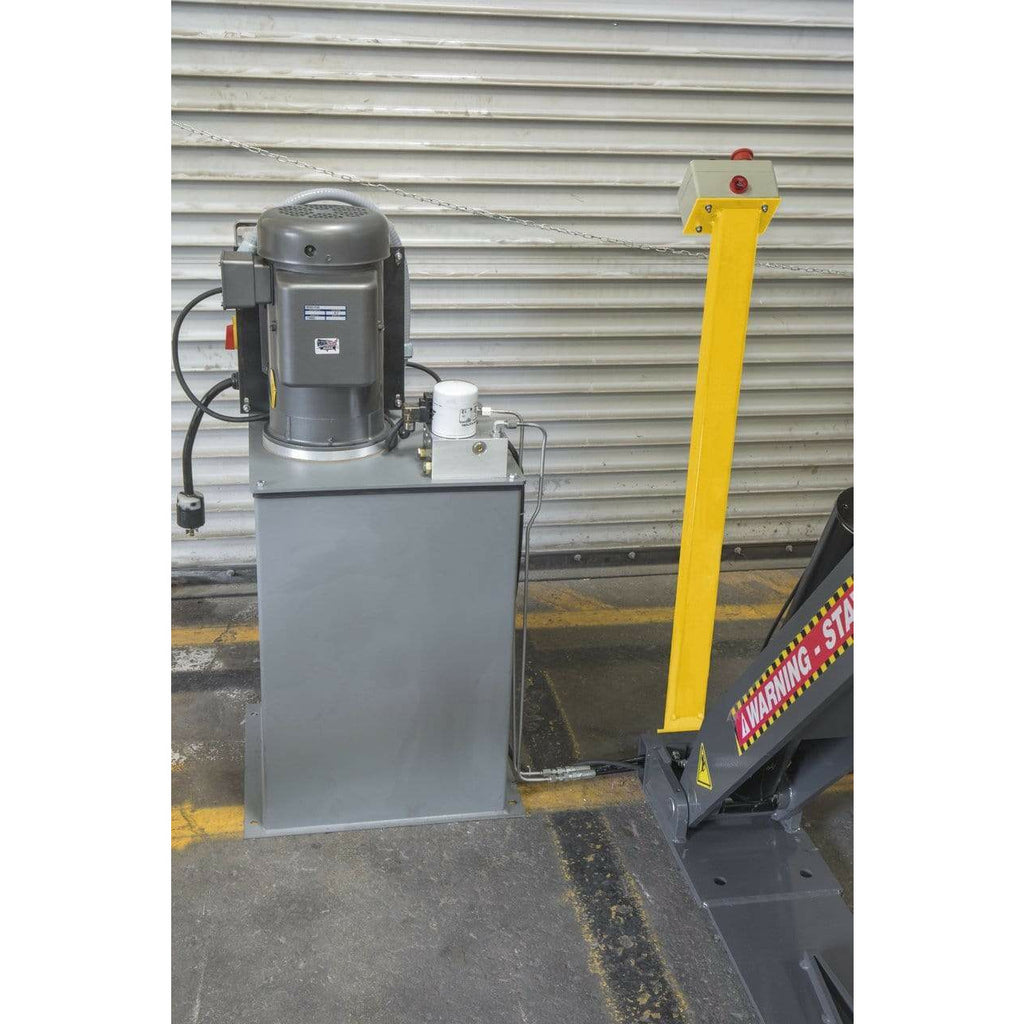

An easy-to-use, upfront console features highly visible, ergonomic push-button controls, including an emergency stop that immediately cuts power to the lift when pressed. The stand-up console contains the power unit and hydraulic tank. With a continuous hold on the Up button, Autostacker goes from “lowered to lift” in just 55 seconds.

Simple push-button controls

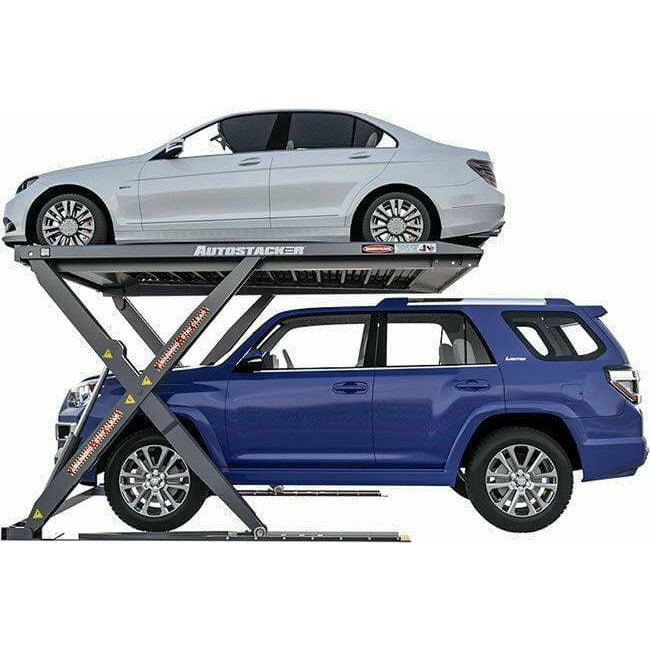

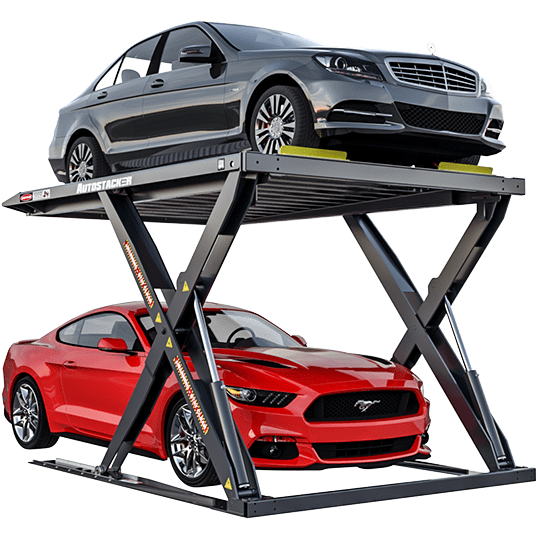

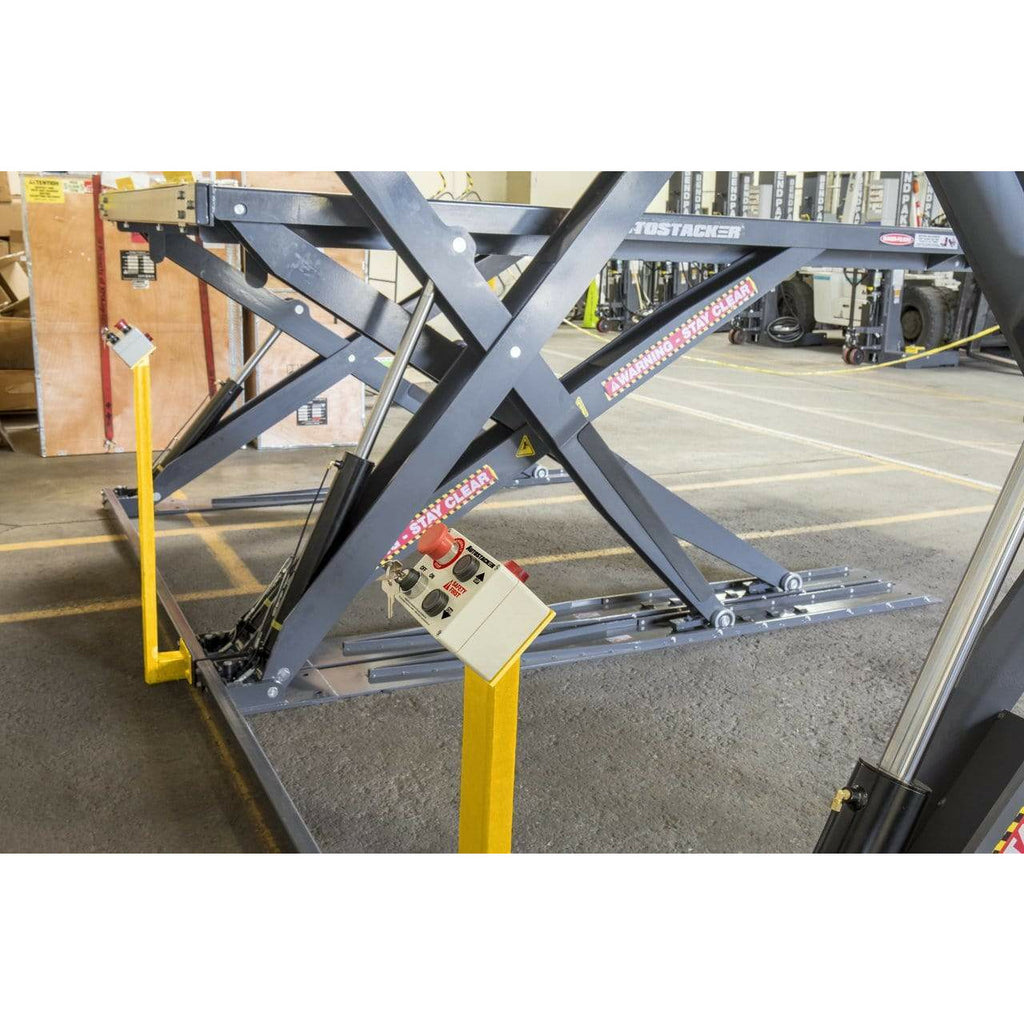

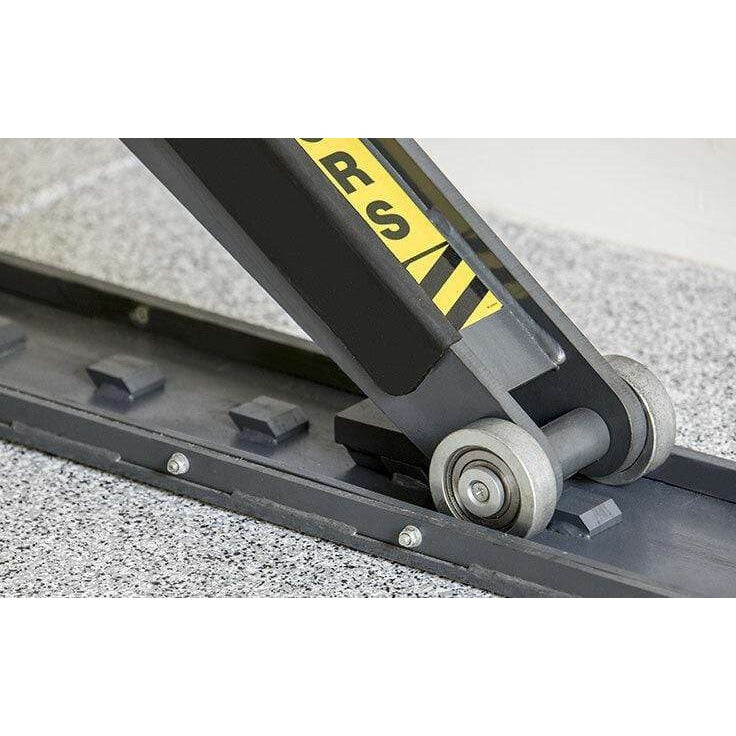

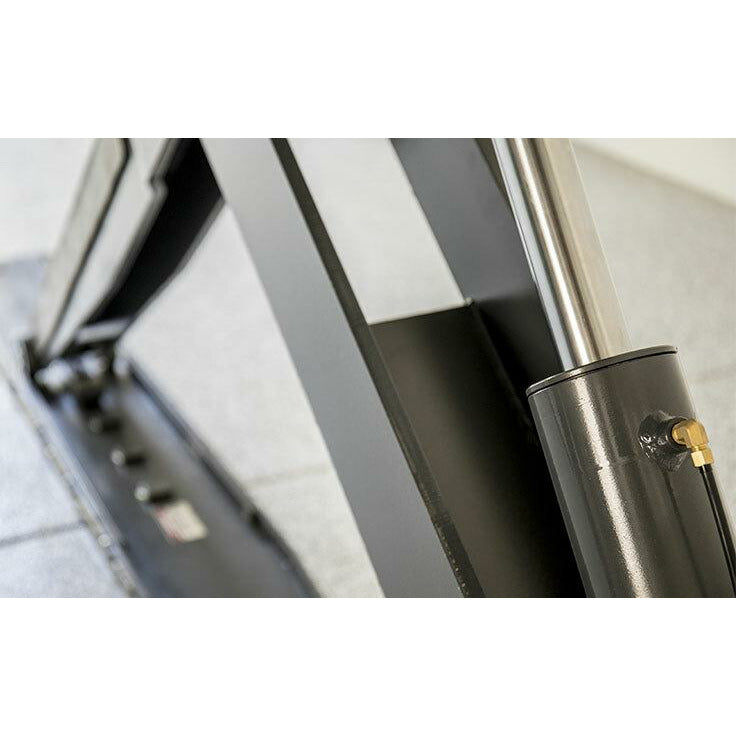

Patented asymmetric scissor arms

Only Autostacker has the world’s best fully collapsible scissor design. Our patented scissor arms contour to allow maximum entry and overhead clearance. In less than a minute, watch the arms unfold like magic. At the max rise level, most residential vehicles are able to park in the under position, protected from garage hazards of all sorts by the surrounding structure.

Patented asymmetric scissor arms

Specification

Lifting Capacity

  • 6,000 lbs. (2,722 kg)

Dimensions

A6S

  • Overall width: 103” (2,620 mm)
  • Overall length: 143” (3,632 mm)
  • Platform length: 124" (3,150 mm)
  • Platform width: 83.75” (2,128 mm)
  • Platform height: 13” (330 mm)
  • Ramp height (entry): 2” (51 mm)
  • Maximum underclearance: 80” (2,032 mm)

A6W

  • Overall width: 111” (2,815 mm)
  • Overall length: 143” (3,632 mm)
  • Platform length: 124" (3,150 mm)
  • Platform width: 91.75” (2,331 mm)
  • Platform height: 13” (330 mm)
  • Ramp height (entry): 2” (51 mm)
  • Maximum underclearance: 80” (2,032 mm)

Power

Standard - Power Unit Console

  • Single unit operation
  • Motor horsepower: 2HP
  • Power consumption: 1,500 Watts
  • Motor voltage: 208-240V, 50/60Hz / 1Ph
  • Starting amps: 25A
  • Normal running amps: 12-18A

Optional - Multi-Unit Power Unit Console

  • Operates up to 14 lifts
  • Motor horsepower: 5 HP
  • Power consumption: 5,600 Watts
  • Motor voltage: 208-230V VAC, 50/60Hz / 1Ph
  • Starting amps 208-230V: 25A
  • Normal running amps 208-230V: 12-18A

Optional - High-Speed Multi-Unit Power Unit Console

  • Operates up to 12 lifts
  • Motor horsepower: 10 HP
  • Power consumption: 5,600 Watts
  • Motor voltage: 208-230/460V VAC, 50/60Hz / 3Ph
  • Starting amps 208-230V: 25A
  • Normal running amps 208-230V: 12-18A
  • Starting amps 460V: 10A
  • Normal running amps 460V: 6-9A

Decibels

  • 52 db

Special voltages available upon request.

Shipping Weight

A6S

  • 3,350 lbs. (1,530 kg.)

Five Locking Heights

  • First (Lowest Locking Position): 52.5" (1,331 mm)
  • Second: 60.75" (1,543 mm)
  • Third: 68.5" (1,736 mm)
  • Fourth: 75" (1,909 mm)
  • Fifth (Highest Locking Position): 81.25" (2,064 mm)

DOWNLOAD CEILING HEIGHT CALCULATOR

Speed of Rise

  • Standard power unit console: 35 seconds
  • Optional multi-unit power unit console: 20 seconds

What's Included

  • Right side scissors superstructure
  • Left side scissors superstructure
  • Front wheel trough
  • Ramp assembly with logo plate
  • Lower front tie-bar
  • Galvanized decking sections

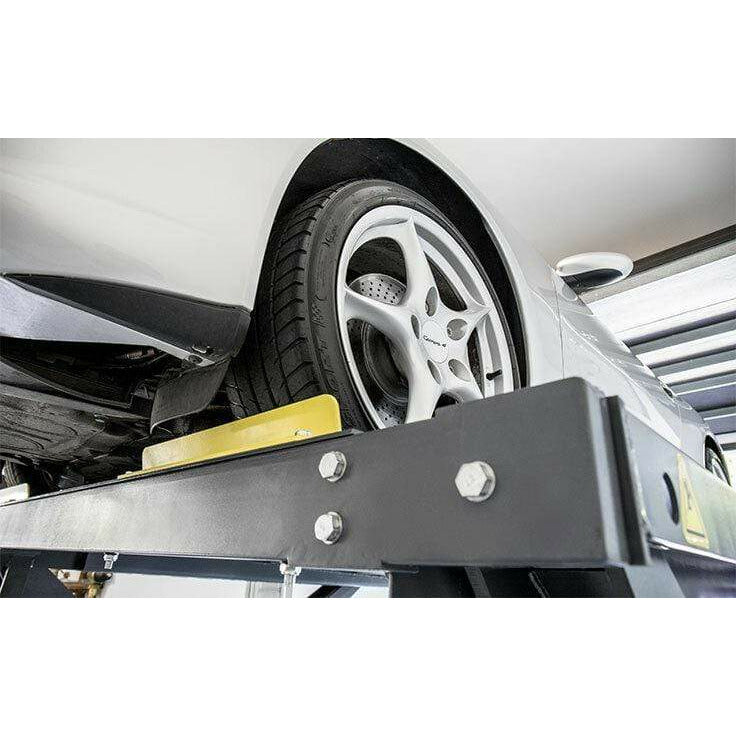

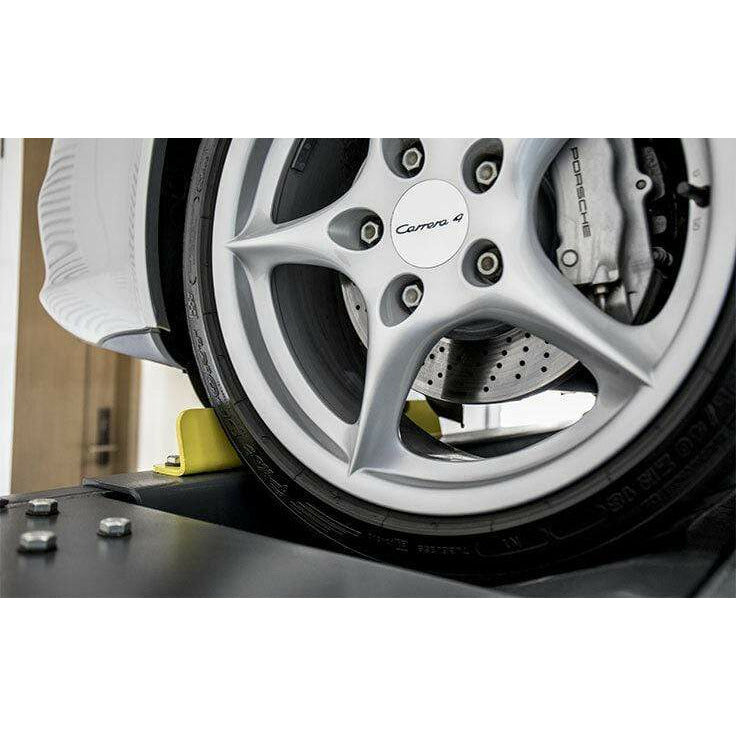

  • Front tire stops
  • Power unit control console
  • Complete parts package including all fasteners, hoses, fittings & anchor bolts
  • Installation and operators manual
